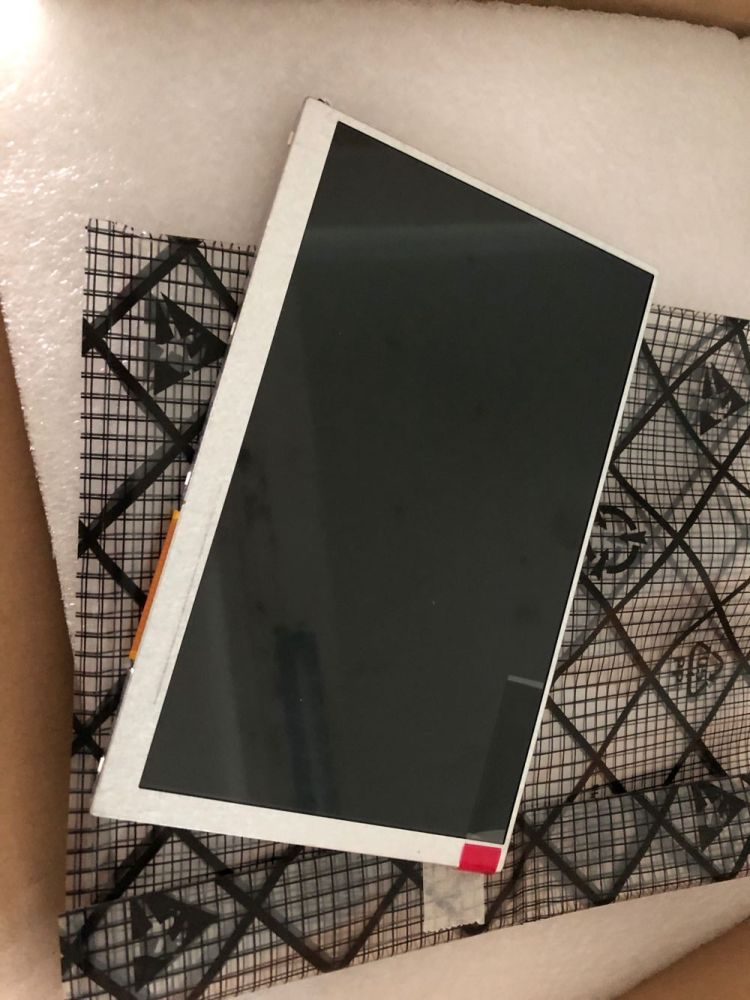

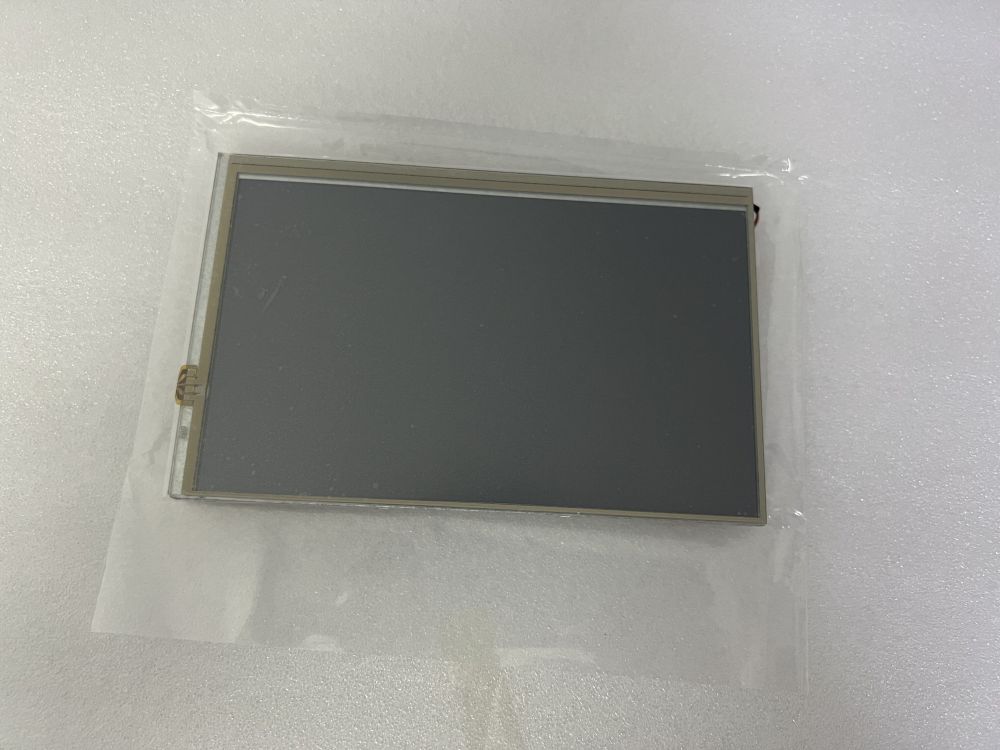

FG0700GEDUSWMG01 7 inch LCD Panel Display For Data Image
| Parameter |
Details |
| Model |
FG0700GEDUSWMG01 |
| Brand |
Data Image（工业级） |
| Diagonal Size |
7.0 inches |
| Panel Type |
a‑Si TFT‑LCD, TN, Normally White, Transmissive |
| Resolution |
800 × 480 (WVGA, RGB), 133 PPI |
| Active Area |
152.4 (W) × 91.44 (H) mm |
| Outline Dimensions |
165 (W) × 106 (H) × 8 (D) mm |
| Brightness |
500 cd/m² (Typ.) |
| Contrast Ratio |
400:1 (Typ.) |
| Viewing Angle |
80°/80°/80°/80° (L/R/U/D, CR ≥ 10) |
| Color Depth |
262K colors (RGB 6‑bit), 46% NTSC |
| Backlight |
WLED, 30,000 hrs lifespan, with driver |
| Interface |
LVDS (1 ch, 6‑bit), 20 pins, 3.3V |
| Operating Temperature |
−20 °C ~ +70 °C |
| Storage Temperature |
−30 °C ~ +80 °C |
| Surface Treatment |
Antiglare, Hard coating (3H) |
| Features |
Industrial grade, wide temp, high brightness, full viewing angle, rugged design |
Typical Applications (English)
- Industrial HMI & Control: CNC machines, PLC panels, factory automation terminals, robotics, industrial PCs
- Vehicle & Transportation: Automotive displays, construction vehicle dashboards, forklift terminals, marine instrument panels
- Outdoor & Smart Systems: Outdoor kiosks, vending machines, access control, smart cabinet displays, embedded industrial systems
- Medical Devices: Portable diagnostic equipment, patient monitors, lab instruments (reliable wide‑temp performance)
- Test & Measurement: Oscilloscopes, data loggers, industrial meters, weighing systems, field test equipment
