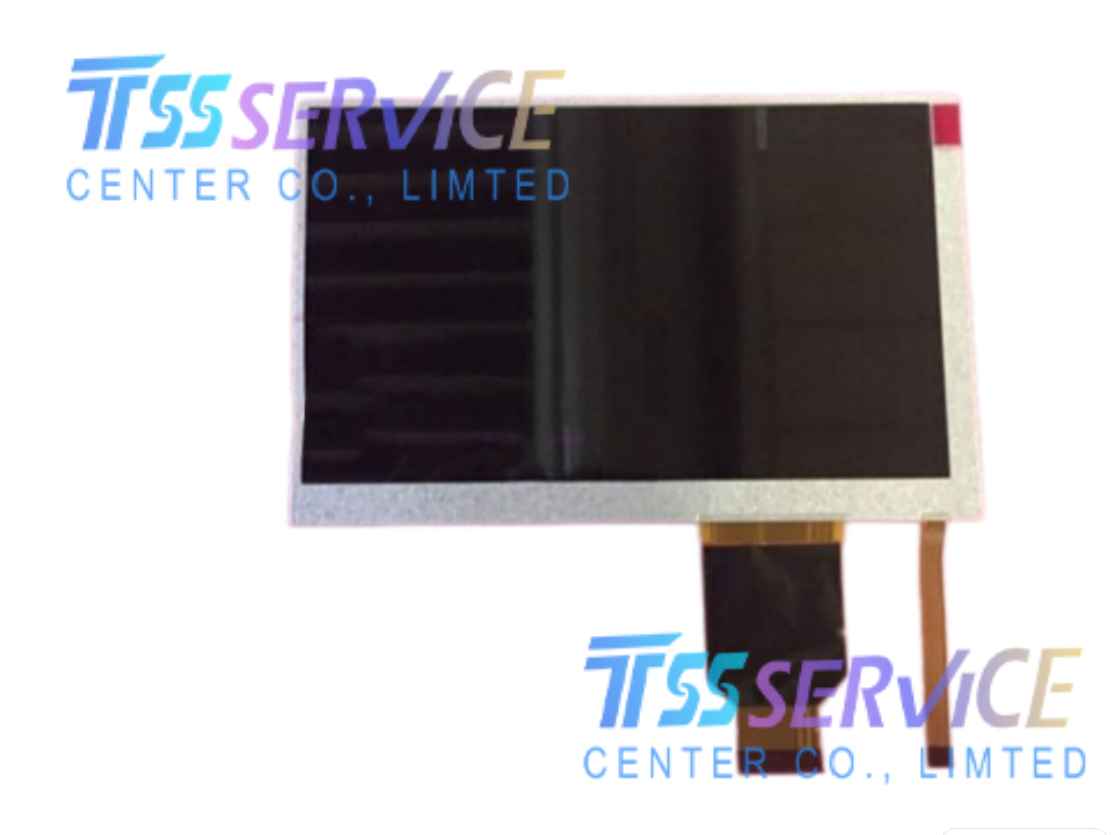

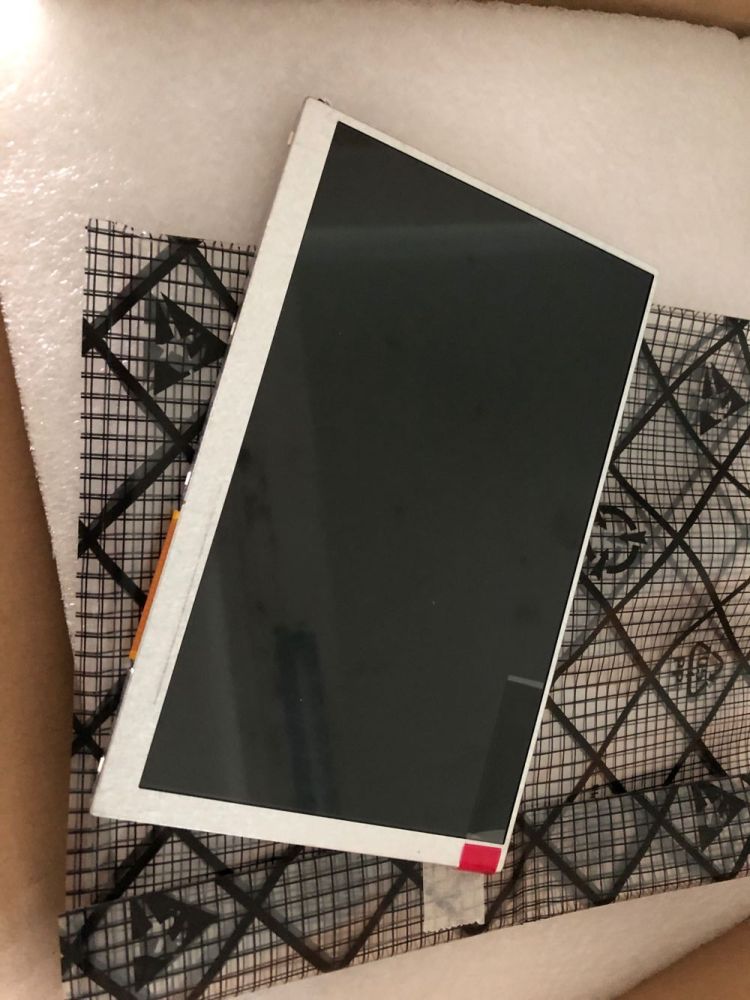

FG0700GGDSSWBGL1 Data Image 7 inch 800×480 LCD Display Screen For Industrial

Name: FG0700GGDSSWBGL1 Data Image 7 inch 800×480 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: FG0700GGDSSWBGL1
Price: 105 USD
Availability: InStock

SKU: FG0700GGDSSWBGL1

Model: FG0700GGDSSWBGL1
Diagonal Size: 7.0 inch
Type: a-Si TFT-LCD, LCM
Pixel Number: 800(RGB)×480, WVGA, 15:9
Dot Layout: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$110.00~~ $105.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

FG0700GGDSSWBGL1 Data Image 7 inch 800×480 LCD Display Screen For Industrial

Parameter	Value
Model	FG0700GGDSSWBGL1
Diagonal Size	7.0 inch
Display Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480 (WVGA), 133 PPI
Pixel Arrangement	RGB Vertical Stripe
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.)
Viewing Angle	70/70/50/60 (Typ., CR≥10)
Display Mode	TN, Normally White, Transmissive
Response Time	5/15 ms (Typ., Tr/Td)
Color Depth	16.7M colors (49% NTSC)
Backlight	WLED, 50,000 hours, with driver
Interface	LVDS (1 ch, 6-bit), 20 pins
Input Voltage	3.3V (Typ.)
Active Area	152.4 (W) × 91.44 (H) mm
Outline Dimension	169.8 (W) × 106 (H) × 13.5 (D) mm
Weight	232g (Typ.)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
RoHS	Compliant
Surface Treatment	Hard coating (3H), anti-glare

Industrial HMI & Control Panels
Factory automation, CNC machinery, PLC control rooms, industrial PCs, and operator terminals. The -20°C to +70°C operating range fits harsh factory environments。
Outdoor & Sunlight-Readable Displays
Kiosks, outdoor ticket machines, parking lot displays, and outdoor medical devices. 1000 cd/m² high brightness ensures visibility under direct sunlight。
Marine & Vehicle Terminals
Ship navigation displays, vehicle-mounted monitors, and heavy-duty vehicle control panels. Wide temperature and vibration resistance suit mobile applications。
Medical Equipment
Patient monitors, diagnostic devices, and portable medical instruments. Reliable performance and stable image quality meet medical standards。
Smart Home & Commercial Terminals
Home automation control panels, vending machines, and POS systems. Compact size and LVDS interface enable easy integration。
