Condition: New and orignal , Grade A
Warranty : 1 year
Lead time : 1-3 working days
Shipping : DHL , FEDEX , EMS , UPS ..
| Brand | Data Image |

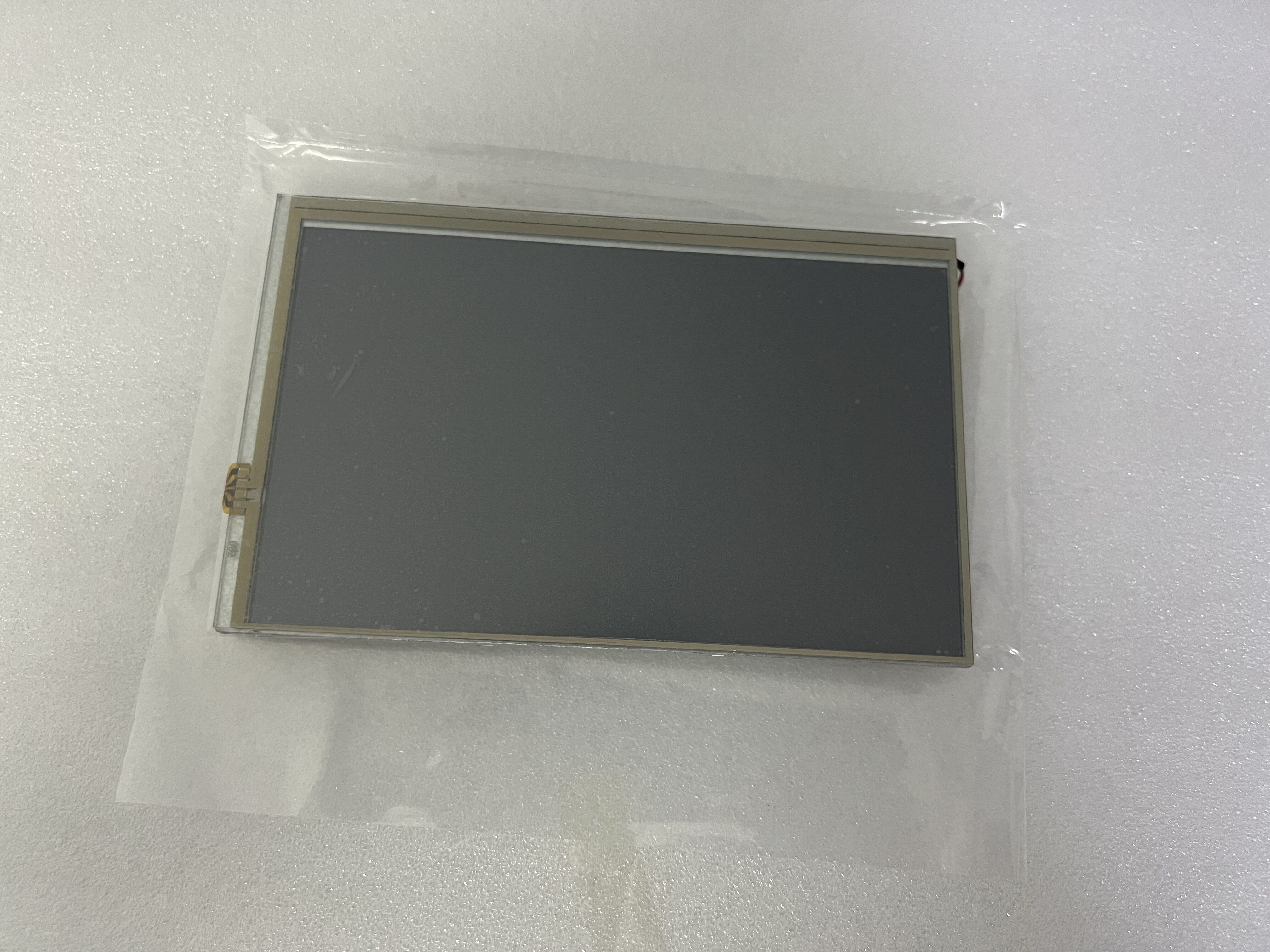

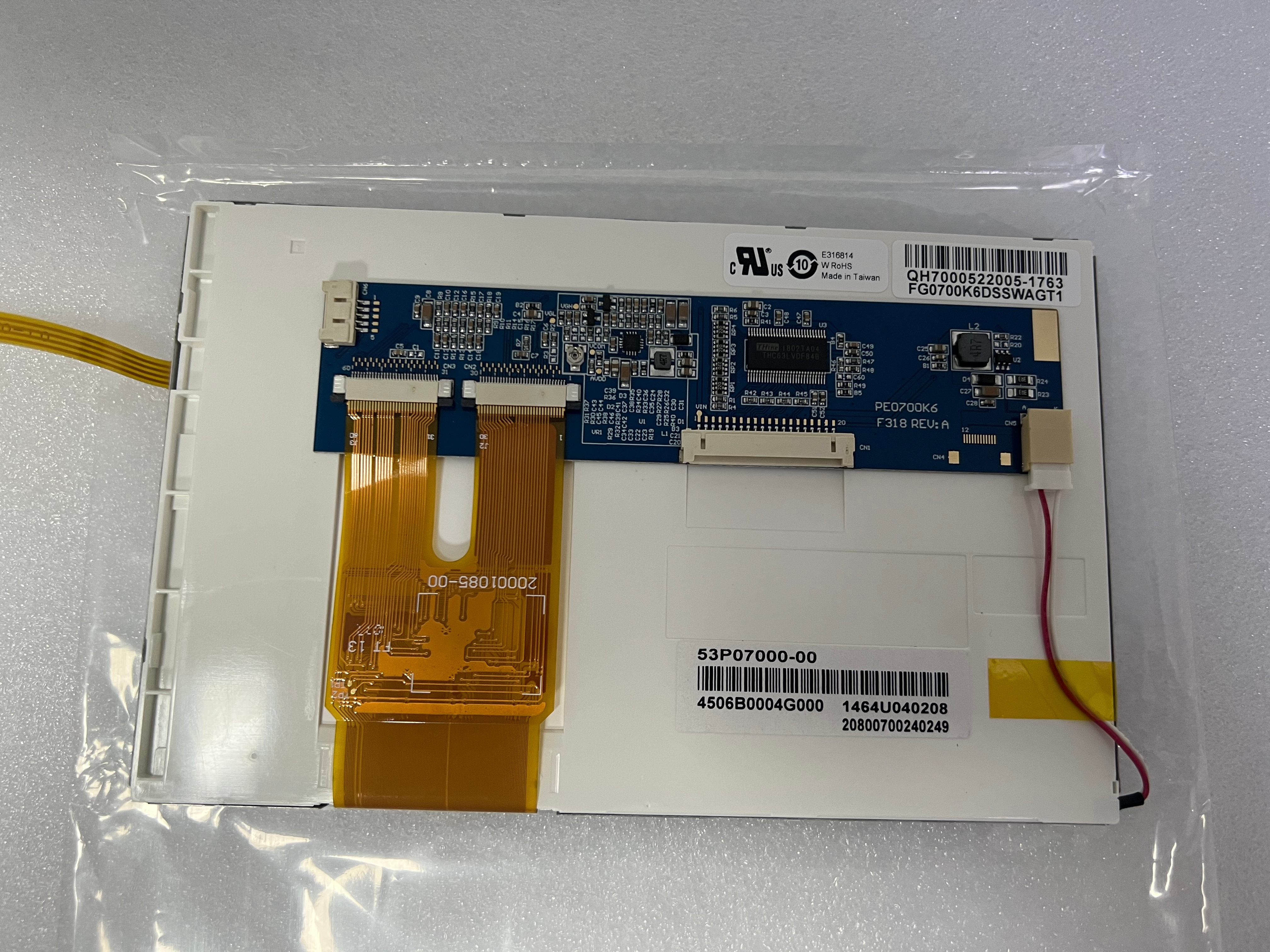

| Model P/N | FG0700K6DSSWAGT1 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.3(W)×94.3(H) mm |
| Outline(mm) | 165(W)×104.44(H)×11.26(D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Response | 5/11 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Backlight | 3S8P WLED, 20K hours, With LED Driver |
| Mass | 182g |
| Used for | Industrial Control HMI, Portable Devices, Embedded Terminals, Handheld Terminals |
| Refresh Rate | 60Hz |
| Touchscreen | 4-wire Resistive Touch |
| Signal Type | LVDS (1 ch, 6-bit), 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C ; Operating Temp.: -10 ~ 60 °C |
Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
