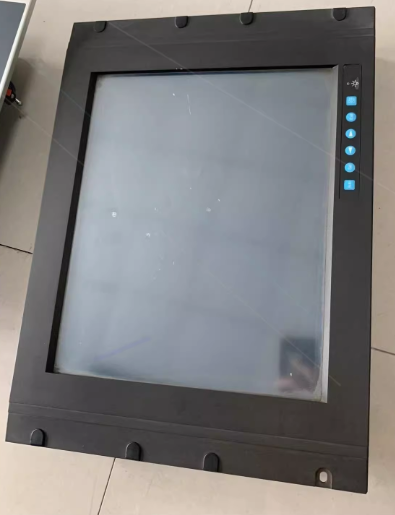

New Touch Screen FPM-3120TV-T
Category Specification
General Information
Manufacturer Advantech
Product Series FPM-3120TV Series
Model Number FPM-3120TV-T
Product Type Industrial Flat Panel Monitor with Touchscreen
Display
Screen Size 12.1" diagonal
Display Type Color TFT LCD
Max. Resolution 800 x 600 pixels (SVGA)
Supported Modes Multi-scan: SVGA, VGA, VGA-Text
Backlight CCFL (Cold Cathode Fluorescent Lamp)
Brightness Standard brightness (non-high-brightness model; see note below)
Touch Screen
Type 8-wire resistive touchscreen
Light Transmission Approx. 80% (typical for 8-wire resistive)
Interface RS-232 (via optional transmission cable)
Durability Millions of touches
Construction & Protection
Construction Heavy-duty steel chassis
Front Panel Al-Mg (aluminum-magnesium), NEMA4/IP65 compliant
Mounting Panel mount, wall mount, desktop, or VESA arm
Controls OSD (On Screen Display) control pad on rear side
Physical
Dimensions (W x H x D) 311 x 237 x 40 mm (12.2" x 9.3" x 1.6")
Panel Cut-out 303 x 229 mm (11.93" x 9.0")
Weight 4.5 kg (8 lbs)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F) (refer to manual for specifics)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Vibration (Operating) 5 ~ 17 Hz: double-amplitude displacement; 17 ~ 500 Hz: 1.0 G peak to peak
Protection NEMA4/IP65 (front panel only)
Certifications CE, FCC, BSMI, CCIB compliant
Signal Interface
Video Input Direct VGA signal input (standard 15-pin D-sub)
Maximum Cable Length Up to 50m with optional transmission cables
