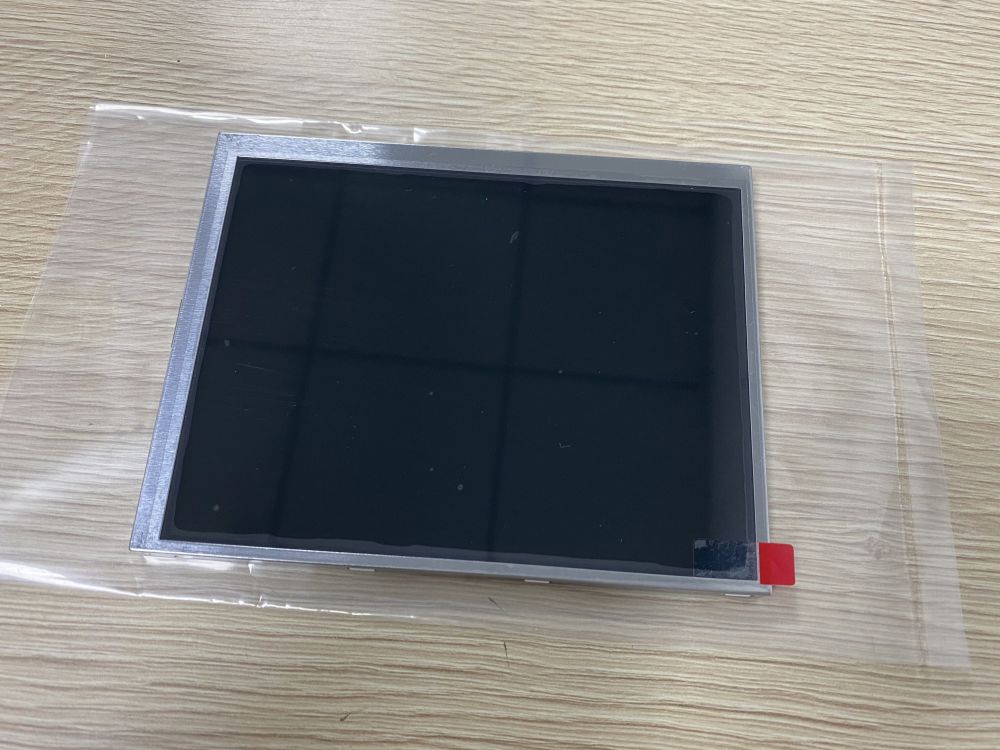

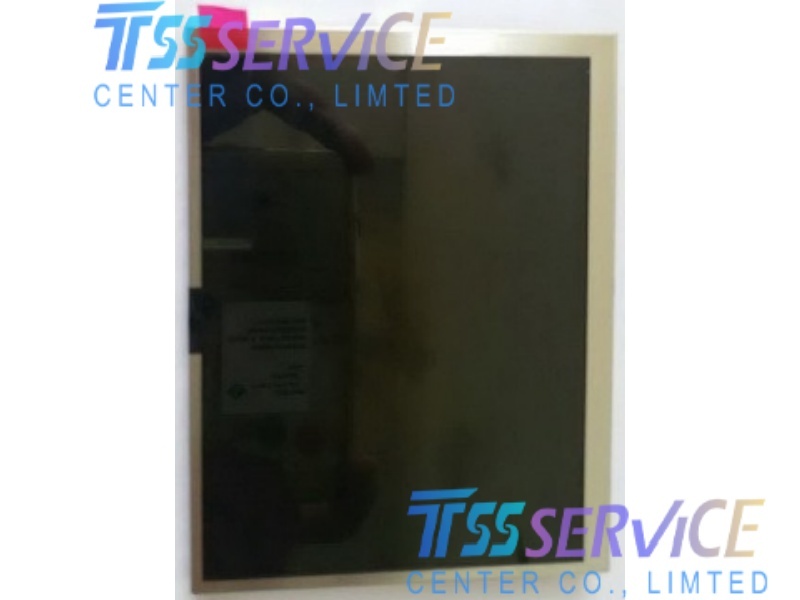

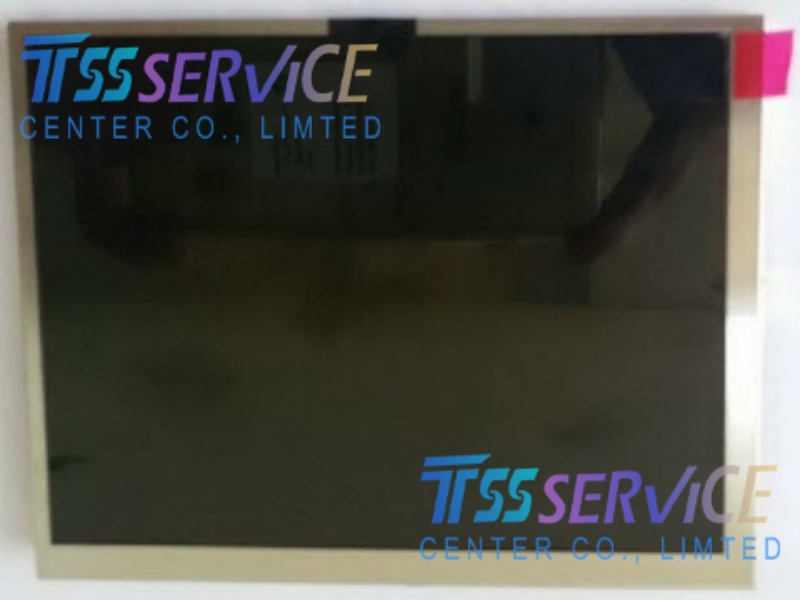

FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial

SKU: FX05072LDSSWHG05
Model P/N: FX05072LDSSWHG05
Diagonal Size: 5.7"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 640 × 480 (VGA)
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$105.00 $100.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial
  • FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial
  • FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial
  • FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial
  • FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial
  • FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial
1/1
  • FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial
  • FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial
  • FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial
  • Description
FX05072LDSSWHG05 Data Image 5.7 inch LCD Panel Screen For Industrial
Parameter Details
Manufacturer Data Image
Part Number FX05072LDSSWHG05
Panel Type a-Si TFT-LCD, LCM
Diagonal Size 5.7 inch
Resolution 640 × 480 (VGA)
Pixel Format RGB Vertical Stripe
Display Mode Transmissive, Normally Black
Brightness 1000 cd/m² (Typical)
Contrast Ratio 700:1 (Typical)
Viewing Angles 70/70/70/70° (Typ.)(CR≥10) (L/R/U/D)
Backlight WLED (White LED), Long life, No driver
Color Depth 262K (6-bit)
Response Time 30 ms (Typ.)(Tr+Td)
Interface Parallel RGB (6-bit)
Supply Voltage 3.3V (Typ.)
Refresh Rate 60 Hz
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Touch Panel None
Production Status Mass Production

Typical Applications

  • Industrial HMI & Control Panels
    Factory automation systems, industrial control terminals, machinery operation interfaces, and process monitoring displays.
  • Medical & Healthcare Devices
    Portable medical instruments, bedside monitors, diagnostic equipment, and clinical testing devices.
  • Automotive & Marine
    In-vehicle infotainment screens, car navigation systems, industrial vehicle dashboards, and marine equipment displays.
  • Embedded & IoT Systems
    Industrial IoT gateways, rugged embedded computers, outdoor data terminals, and smart sensor displays.
  • Test & Measurement Equipment
    Digital multimeters, oscilloscopes, signal analyzers, and portable testing instruments.
  • Public & Commercial Displays
    Information kiosks, ticketing machines, industrial advertising displays, and outdoor digital signage.
