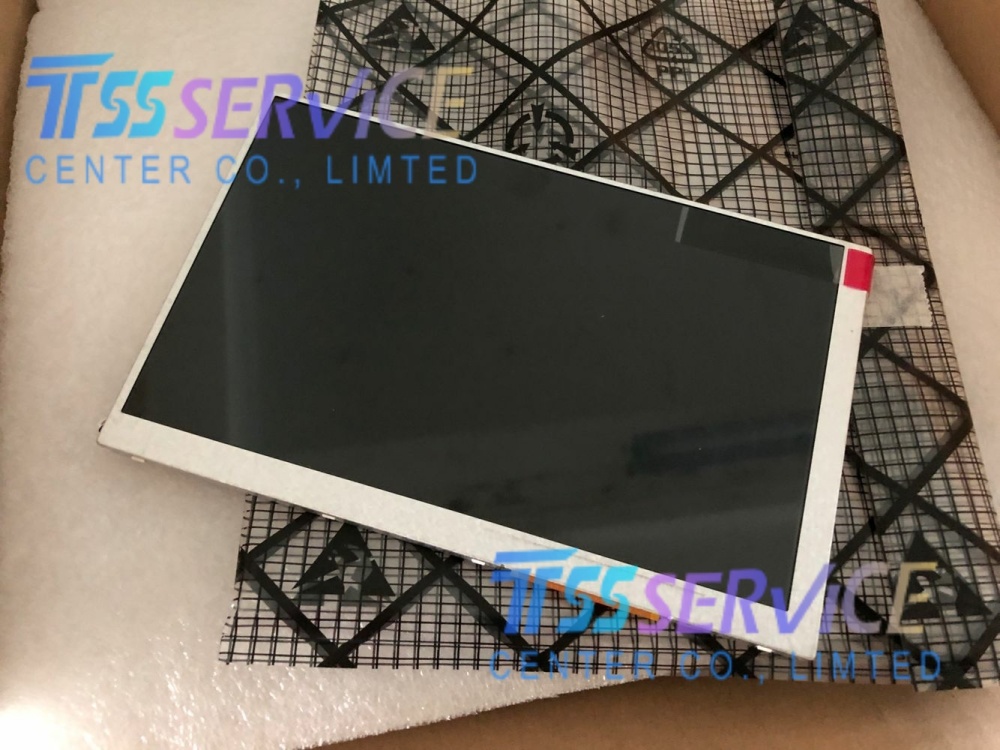

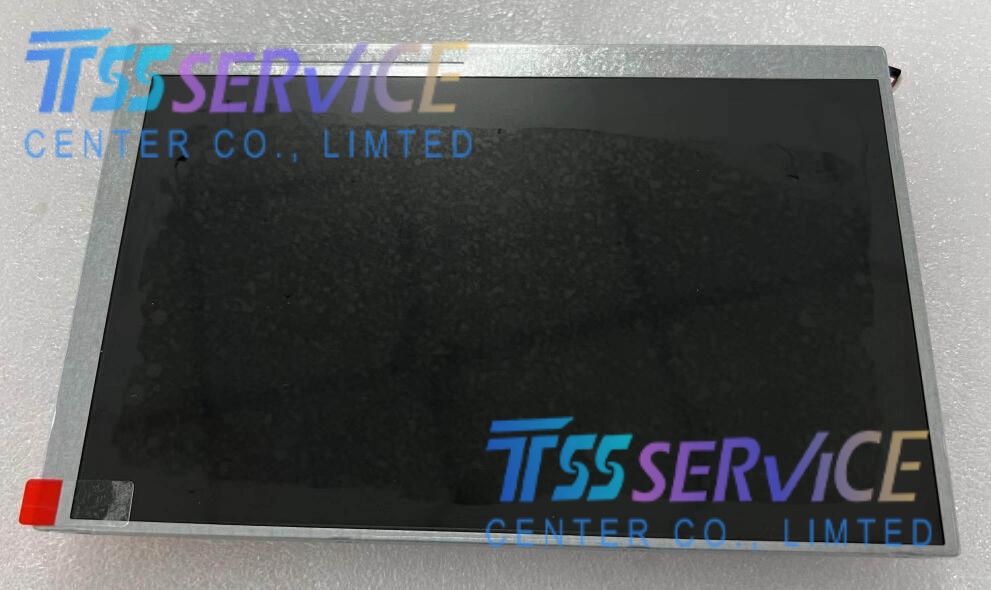

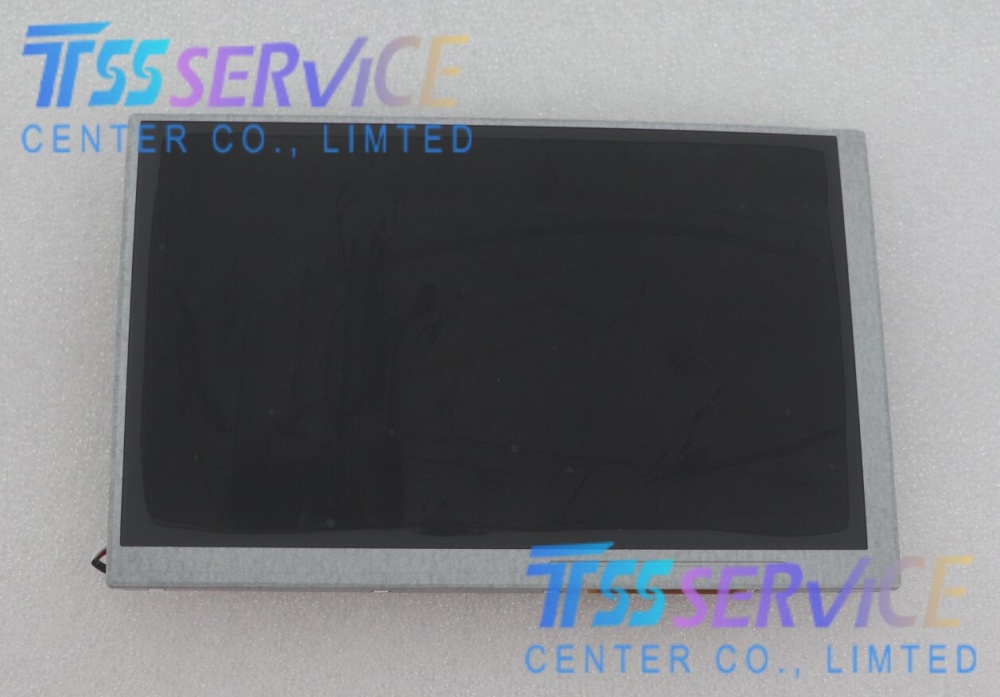

FX0700G3DSSWAG05 7 Inch 800×480 Industrial TFT LCD Display Module
| Item |
Specification Details |
| Part Number |
FX0700G3DSSWAG05 |
| Diagonal Size |
7.0 inch (177.8 mm) |
| Native Resolution |
800 (RGB) × 480 WVGA |
| Active Display Area |
154.08 mm (W) × 86.58 mm (H) / 6.07" × 3.41" |
| Overall Outline Dimension |
164.0 mm × 100.0 mm × 7.2 mm / 6.46" × 3.94" × 0.28" |
| LCD Technology |
a-Si TFT-LCD, Normally White TN Panel |
| Backlight |
WLED Backlight, Long lifespan ≥50,000 hours |
| Interface |
Single Channel LVDS Signal Connector |
| Typical Brightness |
400 cd/m² |
| Contrast Ratio |
500:1 |
| Color Depth |
24-bit RGB, 16.7M Full Colors |
| Response Time |
25 ms (Typical) |
| Viewing Angle (L/R/U/D, CR≥10) |
70°/70°/50°/60° |
| Supply Voltage |
3.3V / 12V Backlight Input |
| Refresh Rate |
60Hz |
| Surface Hardness |
3H Anti-glare Hard Coating |
| Net Weight |
125 g / 0.276 lbs |
| Operating Temperature |
-20℃ ~ +70℃ (-4℉ ~ 158℉) |
| Storage Temperature |
-30℃ ~ +80℃ (-22℉ ~ 176℉) |
| Vibration & Shock |
Industrial Grade Anti-vibration Structure |
| Certification |
RoHS Compliant |
| Touch Option |
Compatible with 4-wire resistive / Capacitive touch overlay (Model FX0700G3DSSWAGT series) |
Application
Industrial HMI Control Panels
- Small embedded human-machine interfaces for injection molding machines, textile equipment, packaging automation, CNC auxiliary operation screens.
- Welding equipment, testing instruments, environmental monitoring controllers; wide temperature range adapts to factory high/low temperature workshop environments.
- Replacement spare screen for old 7-inch industrial touch HMI, direct plug-and-play compatible with mainstream industrial driver boards.
Portable Medical Devices
- Handheld vital sign monitors, portable ECG analyzers, outpatient diagnostic terminals, medical infusion control panels.
- Medical bedside auxiliary display, low power consumption and stable color performance for long-term medical operation.
Logistics & Retail POS Terminals
- Handheld barcode scanners, warehouse inventory management terminals, supermarket mini POS cashier screens.
- Parking lot inspection devices, outdoor handheld logistics equipment; high brightness ensures clear viewing under indoor and outdoor ambient light.
Transportation & Vehicle Auxiliary Displays
- Construction machinery cabin display, forklift monitoring terminal, bus small auxiliary control screen.
- Agricultural machinery operating panel, shock-resistant structure adapts to bumpy working conditions.
Test & Measuring Instruments
- Portable electrical testers, water quality analyzers, geological survey instruments, field calibration equipment.
- Lab bench small testing equipment, clear color reproduction for data curve and waveform display.
