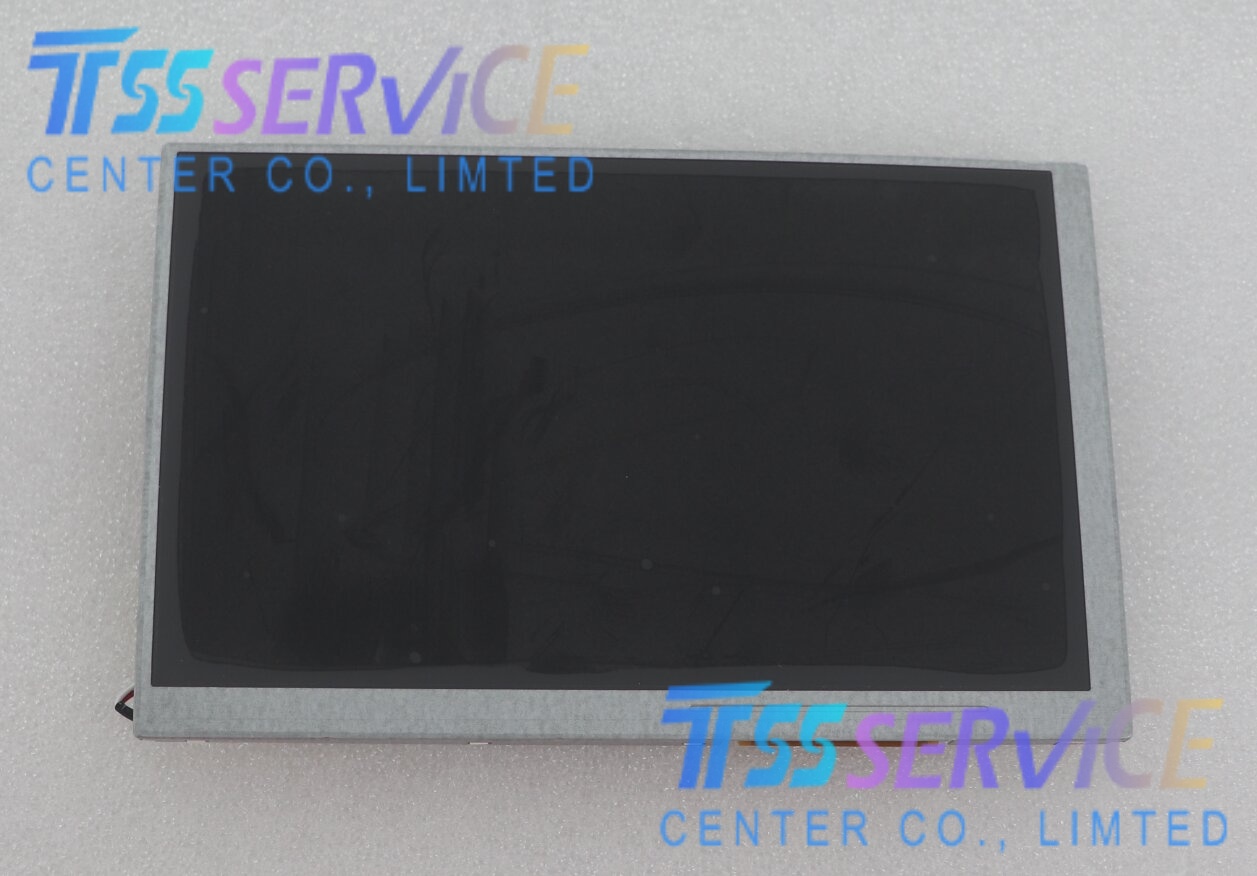

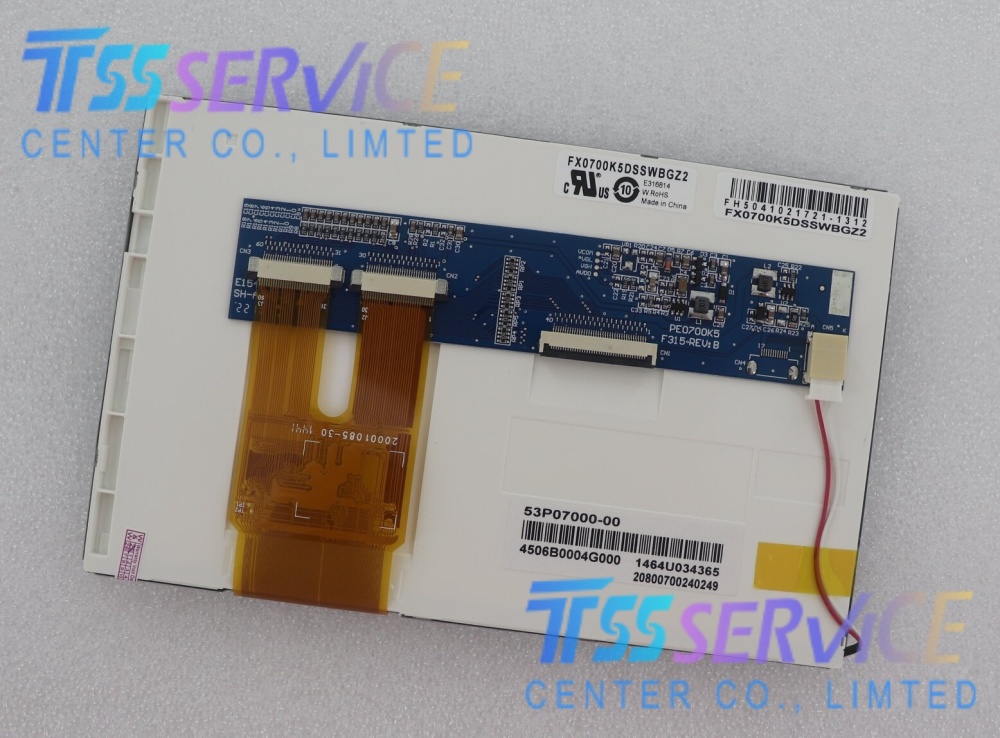

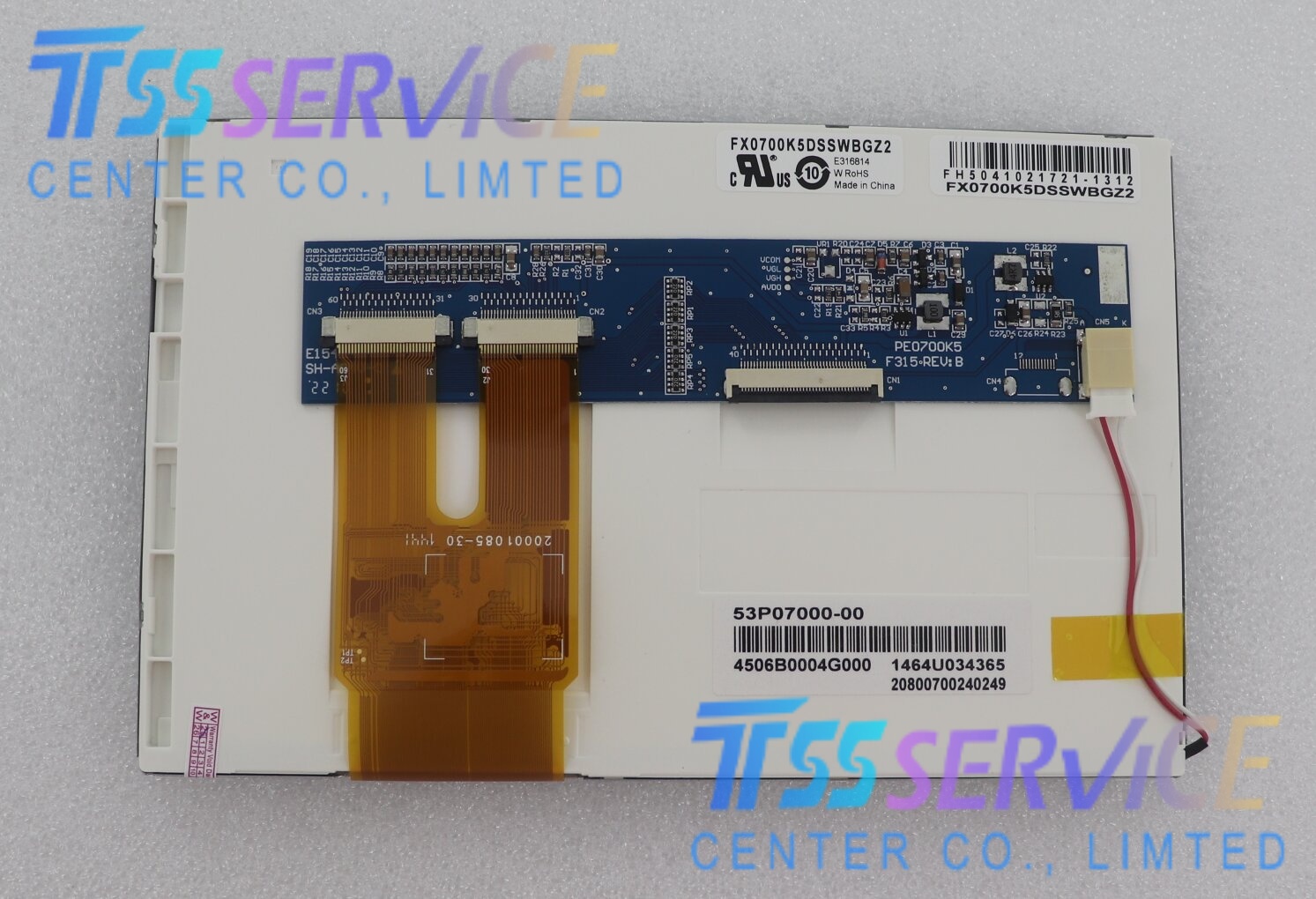

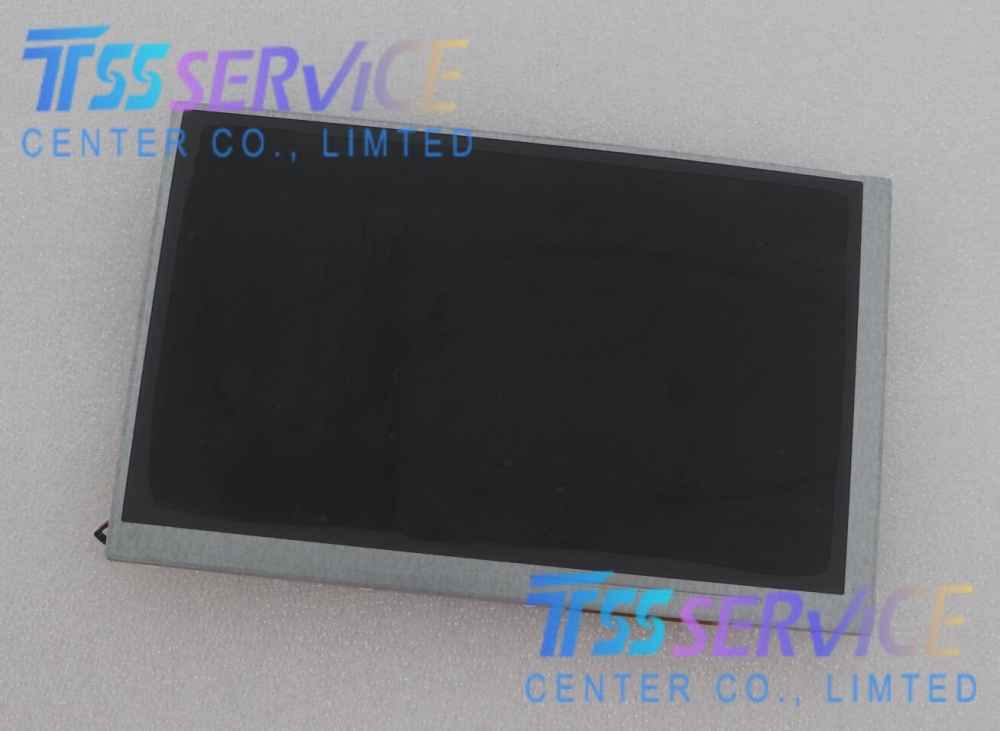

FX0700K5DSSWBGZ2 7" Industrial LCD Panel Display For Data Image
| Parameter |
Details |
| Manufacturer |
Data Image (众福科技) |
| Model Number |
FG0700K5DSSWBG01 (FX0700K5DSSWBGZ2) |
| Panel Type |
a-Si TFT-LCD, TN, Normally White, Transmissive |
| Diagonal Size |
7.0 inches |
| Resolution |
800 (RGB) × 480 (WVGA), 133 PPI |
| Pixel Configuration |
RGB Vertical Stripe |
| Active Area |
152.4 × 91.44 mm (W×H) |
| Outline Dimensions |
165.0 × 104.44 × 11.26 mm (W×H×D) |
| Display Mode |
Transmissive |
| Luminance (Brightness) |
500 cd/m² (Typical) |
| Contrast Ratio |
400:1 (Typical) (Transmissive) |
| Viewing Angle |
70/70/60/60 (Typical) (L/R/U/D, CR≥10) |
| Response Time |
5/11 ms (Typical) (Tr/Td) |
| Color Depth |
262K Colors, 45% NTSC |
| Backlight |
WLED (White LED), 30K hours lifespan, with LED Driver |
| Refresh Rate |
60 Hz |
| Interface |
Parallel RGB (1 ch, 6-bit), 40-pin FPC |
| Supply Voltage |
3.3V (Typical) |
| Operating Temperature |
-20°C ~ 70°C |
| Storage Temperature |
-30°C ~ 80°C |
| Surface Treatment |
Anti-glare (Haze 3%), Hard Coating (3H) |
| Touch Screen |
None |
| Status |
Discontinued (Mass production Q4 2014) |
This LCD module is specifically designed and recommended for automotive applications, primarily for:
- Automotive Infotainment Systems: Central control displays, car radios, DVD players, and navigation systems.
- Car Instrument Clusters: Secondary information displays for vehicle status.
- Rear-Seat Entertainment (RSE): Headrest-mounted screens for passengers.
- Industrial Control Panels: Robust human-machine interfaces (HMIs) for factory equipment.
- Embedded Systems: Specialized displays for medical devices, test instruments, and ruggedized handheld terminals.
