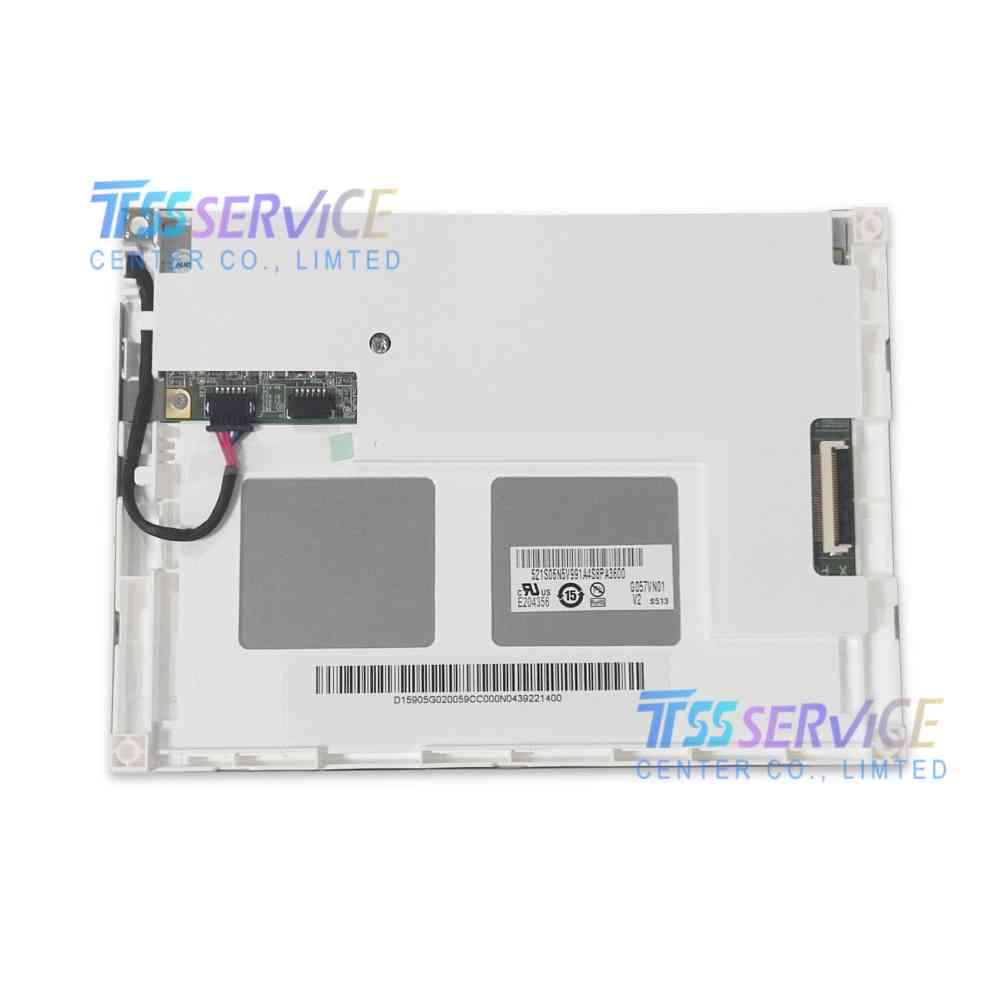

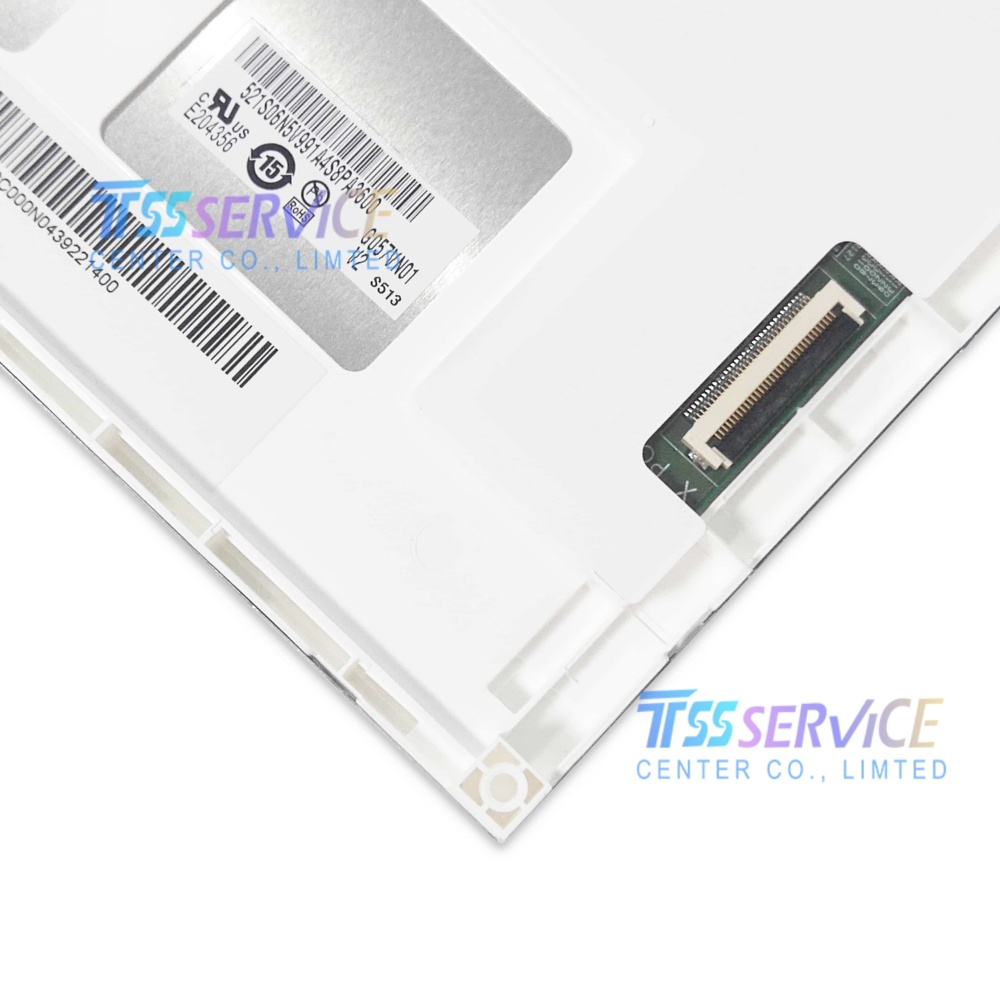

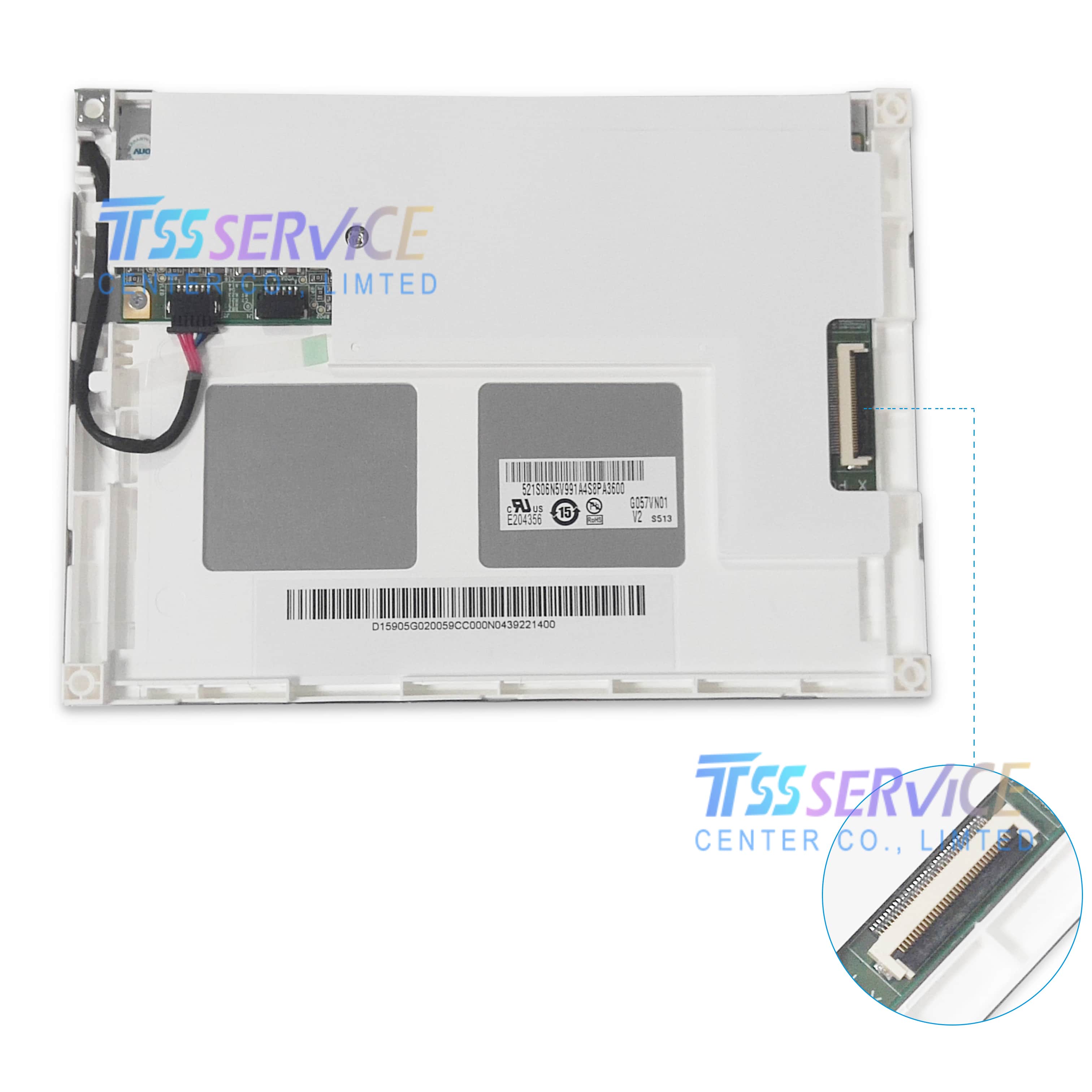

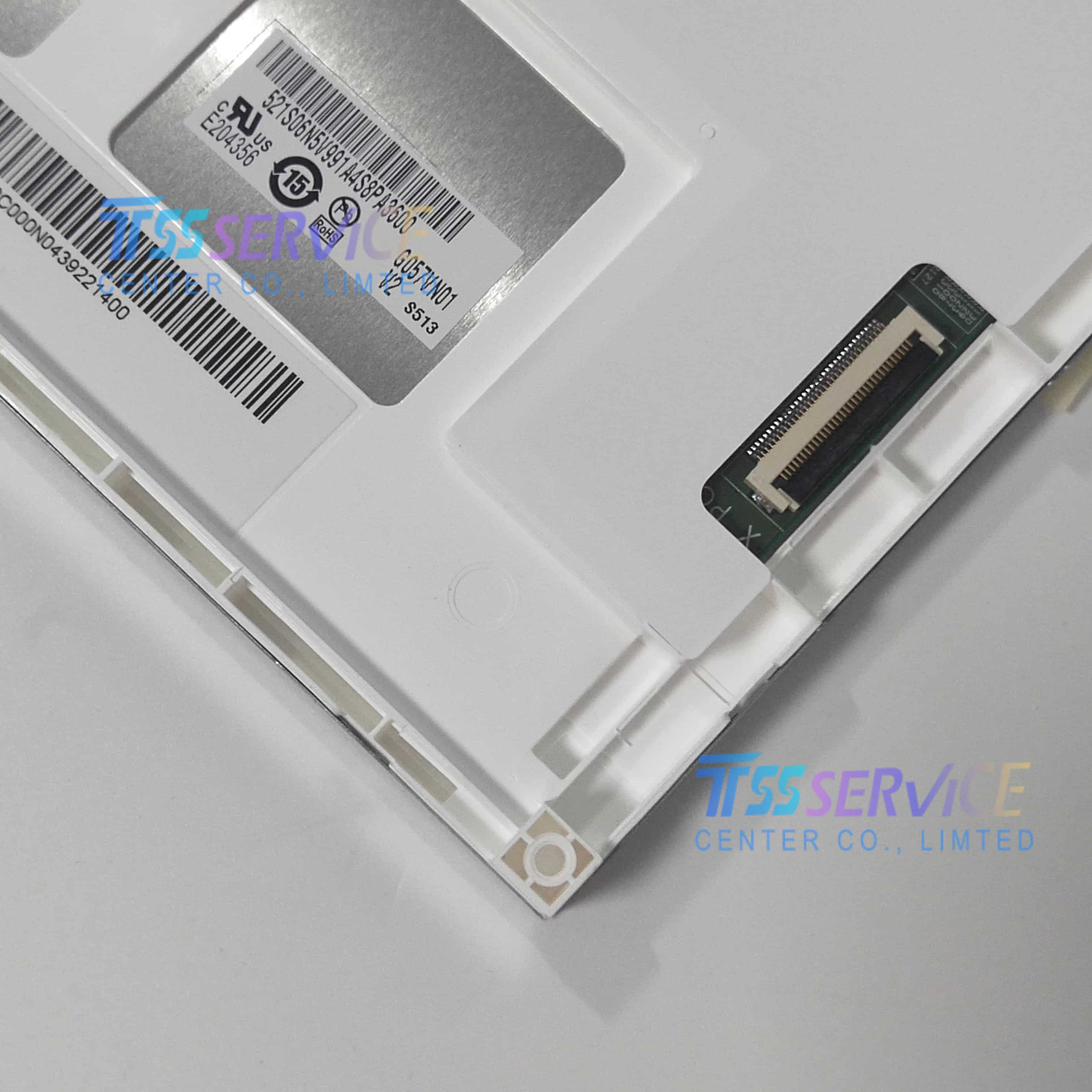

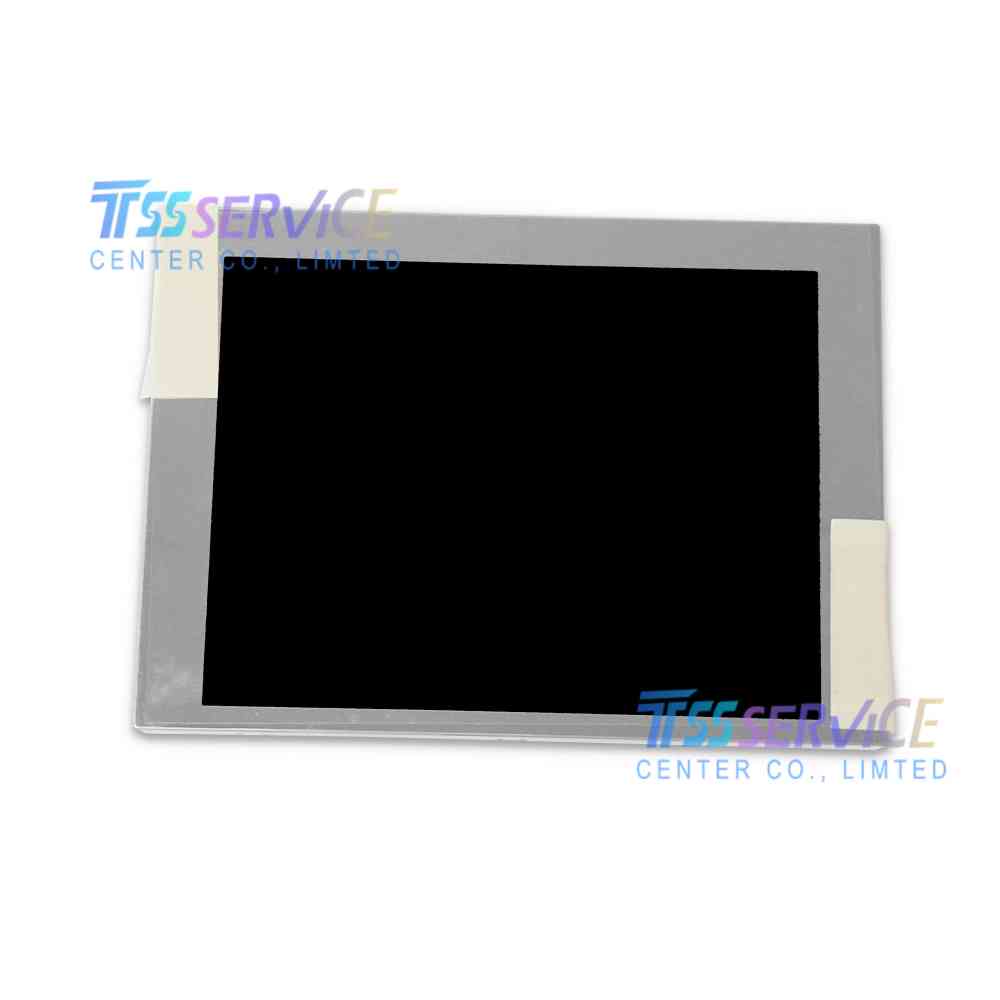

G057VN01 V.2 5.7inch 640×480 LCD for AUO G057VN01 V2

Name: G057VN01 V.2 5.7inch 640×480 LCD for AUO G057VN01 V2
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G057VN01 V2
Price: 60 USD
Availability: InStock

SKU: G057VN01 V2

Model P/N: G057VN01 V2
Diagonal Size: 5.7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480, VGA 141PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$62.00~~ $60.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The G057VN01 V.2 is a 5.7-inch a-Si (amorphous Silicon) TFT-LCD display panel produced by AU Optronics (AUO). Featuring a VGA resolution of 640 × 480 pixels, this panel provides sharp image quality and reliable performance in a compact industrial-grade display. The V.2 designation indicates a revised version, typically offering improved specifications, compatibility, or reliability over the previous iteration.

Category	Specification
Brand	AUO
Model	G057VN01 V2
Diagonal Size	5.7 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	640(RGB)×480, VGA, 4:3
Pixel Format	RGB Vertical Stripe
Active Area	115.2(H)×86.4(V) mm
Physical Size	144(H)×104.6(V)×12.8(D) mm
Mass	150/165g (Typ./Max.)
Surface Coating	Antiglare, Hard coating (3H)
Luminance	700 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	15/10 (Typ.)(Tr/Td) ms
Viewing Angle	80/80/70/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K, 50% NTSC
Power Usage	3.74W (Typ.)
Light Source	WLED, 50K hrs, With LED Driver
Frame Rate	60Hz
Touch Panel	Without
Interface Type	CMOS (1 ch, 6-bit), 33 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature -30 ~ 85 °C, Storage Temperature -30 ~ 85 °C

Application Fields

The G057VN01 V2 is widely used in various industrial and commercial applications that require durability, stable performance, and good visual clarity. Common application fields include :

Industrial Control Panels: HMIs (Human-Machine Interfaces), factory automation equipment.
Medical Devices: Patient monitoring systems, diagnostic equipment.
Automotive Displays: In-vehicle infotainment systems, instrument clusters.
Retail & Kiosk Systems: Self-service kiosks, point-of-sale (POS) terminals, vending machines.
Test & Measurement Instruments: Portable and benchtop test equipment.
