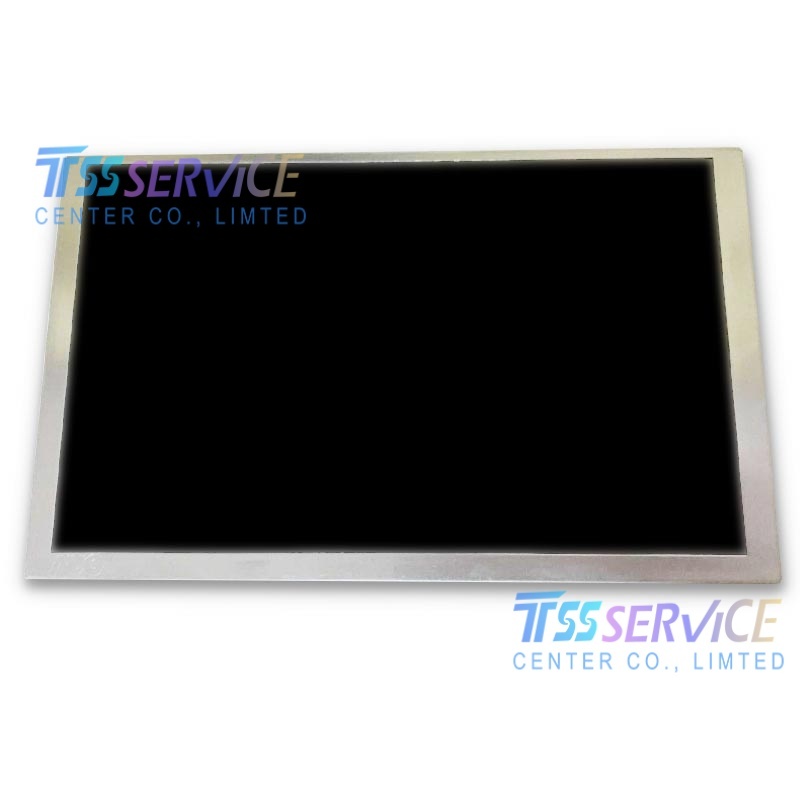

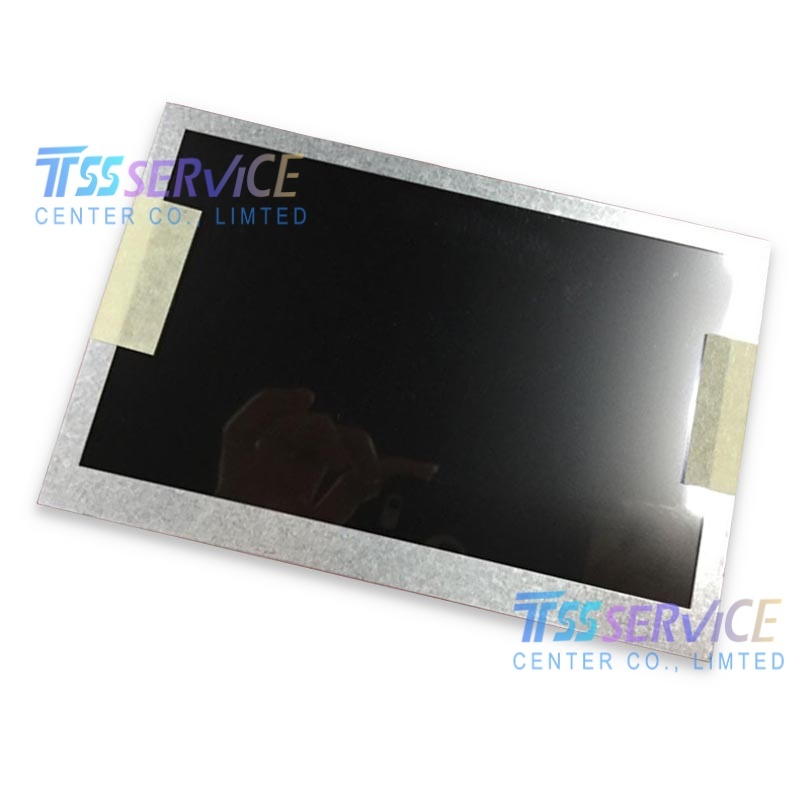

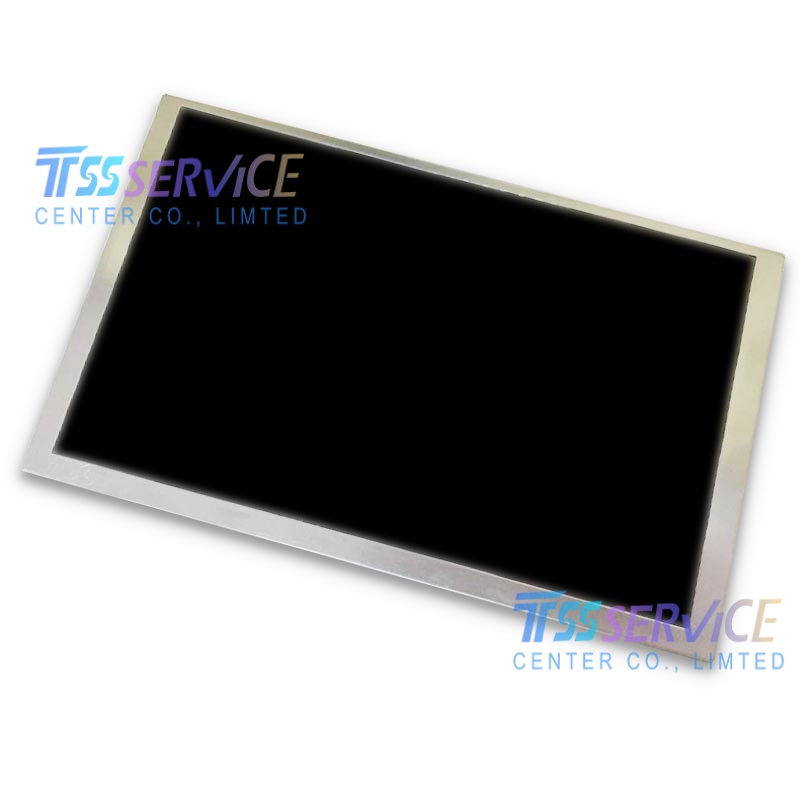

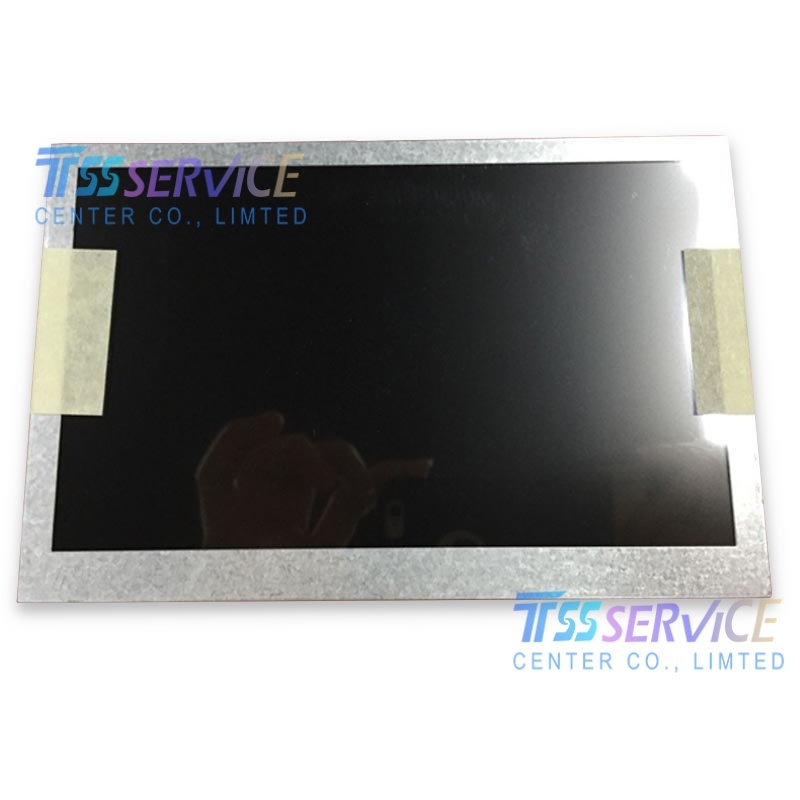

AUO G070VTN04.0 7 Inch 800×480 LCD Panel For Industrial

Name: AUO G070VTN04.0 7 Inch 800×480 LCD Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G070VTN04.0
Price: 70 USD
Availability: InStock

SKU: G070VTN04.0

Model P/N: G070VTN04.0
Diagonal Size: 7"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800×480(RGB), WVGA 133PPI
Pixel Format: RGB Horizontal Stripe

0.0 (0 Reviews)

0 Sold

~~$75.00~~ $70.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AUO G070VTN04.0 7 Inch 800×480 LCD Panel For Industrial

Parameter	Value	Unit	Note
Manufacturer	AUO (AU Optronics)	—
Model	G070VTN04.0	—
Diagonal Size	7.0	inch
Resolution	800(RGB) × 480	pixels	WVGA
Panel Type	a‑Si TFT‑LCD, TN	—
Display Mode	Normally White	—
Surface Treatment	Anti‑Glare (AG)	—
Brightness (Typ.)	400	cd/m²
Contrast Ratio (Typ.)	500:1	—
Viewing Angle (Typ.)	65/65/50/60	°	U/D/L/R (CR≥10)
Color Depth	16.7M	colors	6/8‑bit RGB
Backlight	WLED	—
Interface	Parallel RGB	—
Active Area	154.08 × 85.92	mm
Outline Dimension	164.8 × 100.0 × 6.5	mm	W×H×D
Pixel Pitch	0.1926 × 0.1790	mm
Weight	~130	g
Operating Temp.	−20 ~ +70	°C	Industrial grade
Storage Temp.	−30 ~ +80	°C
Power Supply	3.3V (logic)	V
Compliance	RoHS	—

This 7‑inch TN LCD is widely used in cost‑sensitive embedded, industrial, automotive & consumer devices requiring reliable, easy‑to‑integrate displays.
