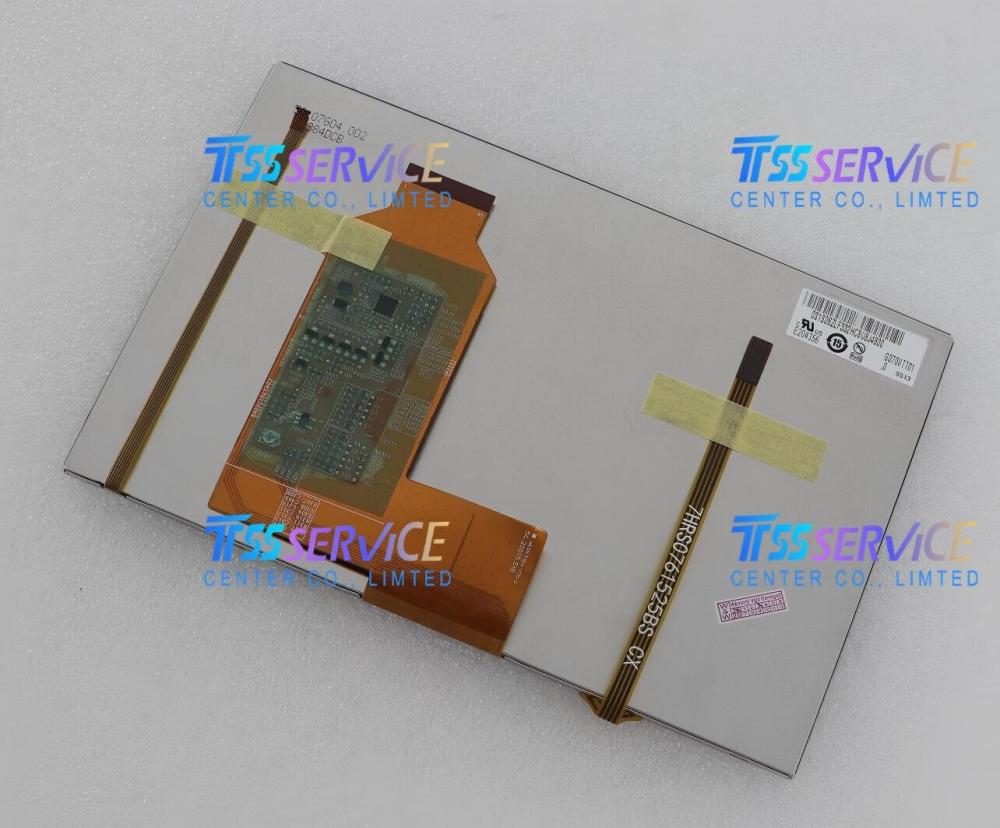

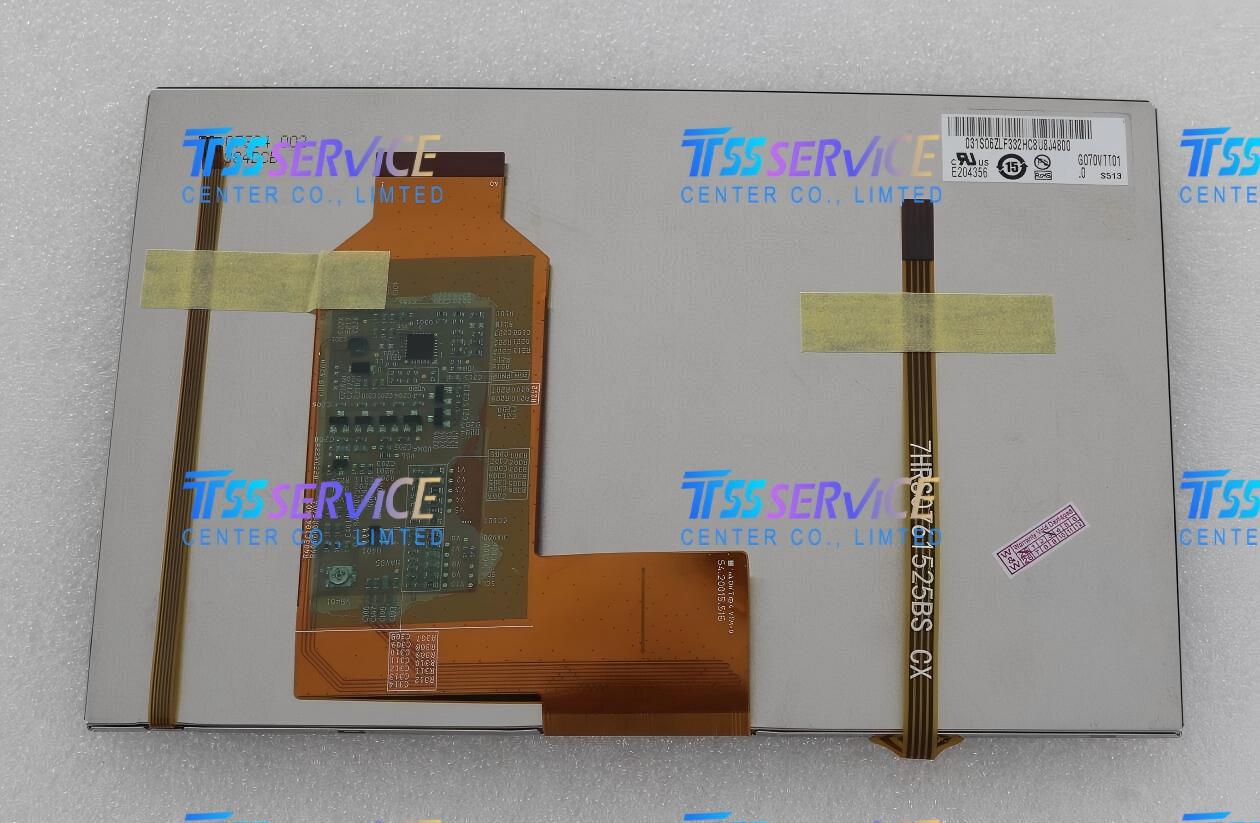

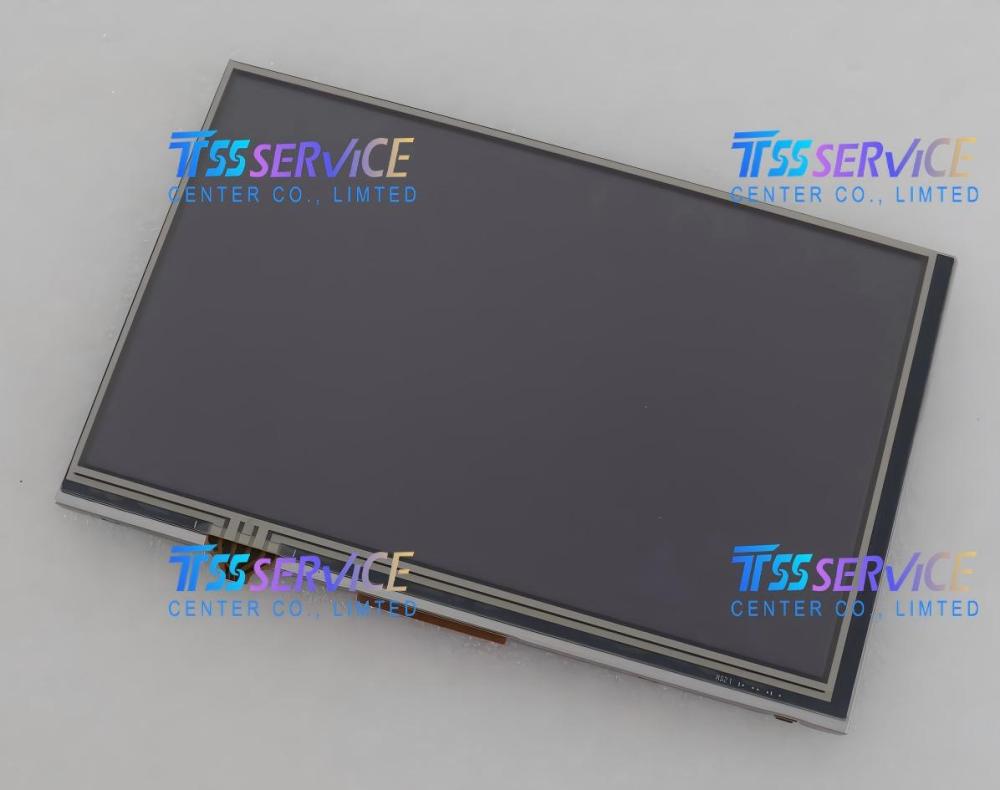

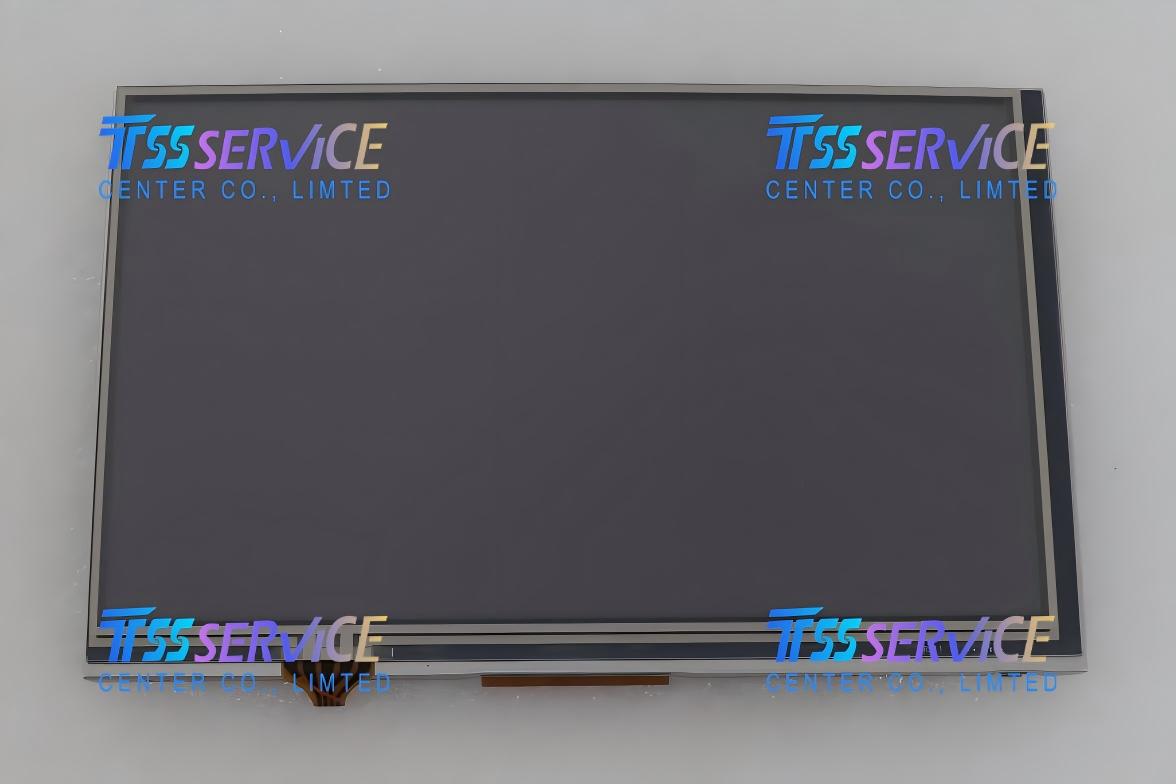

The G070VTT01.0 is a 7.0-inch a-Si TFT-LCD module manufactured by AUO (AU Optronics), featuring an integrated 4-wire resistive touch panel. With a resolution of 800×480 (WVGA) and a pixel density of 133 PPI, this display delivers clear, detailed images suitable for a wide range of industrial and commercial applications.
| Parameter |
Specification |
| Brand |
AUO |
| Model P/N |
G070VTT01.0 |
| Diagonal Size |
7.0" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800×480(RGB), WVGA 133PPI |
| Pixel Format |
RGB Horizontal Stripe |
| Active Area |
152.4(W)×91.44(H) mm |
| Outline Size |
165(W)×105.8(H)×4.81(D) mm |
| Surface |
Antiglare, Hard coating (3H) |
| Brightness |
380 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) (TM) |
| Viewing Angle |
65/65/50/60 (Typ.)(CR≥10) |
| Display Mode |
TN, Normally White, Transmissive |
| Best View on |
6 o'clock |
| Response Time |
12/18 (Typ.)(Tr/Td) ms |
| Display Colors |
262K 50% NTSC |
| Lamp Type |
8S3P WLED, 10K hours, Without Driver |
| Frequency |
60Hz |
| Touch Screen |
4-wire Resistive Touch |
| Panel Weight |
159±15g |
| Application |
(Icon placeholder) |
| Signal Interface |
Parallel RGB (1 ch, 6-bit), 40 pins FPC |
| Input Voltage |
3.3V (Typ.) |
| Environment |
Operating Temp.: -20 ~ 70 °C; Storage Temp.: -30 ~ 80 °C |
