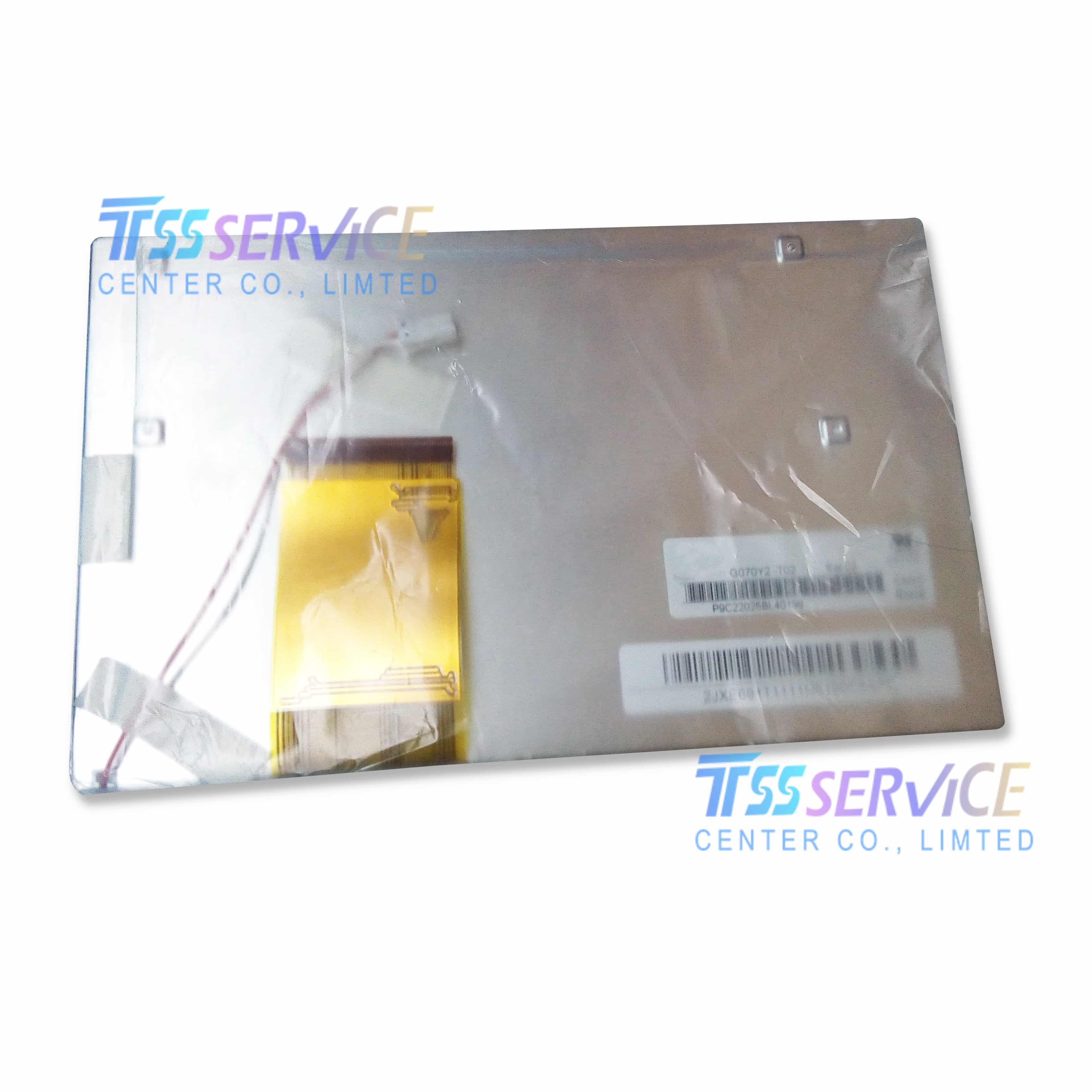

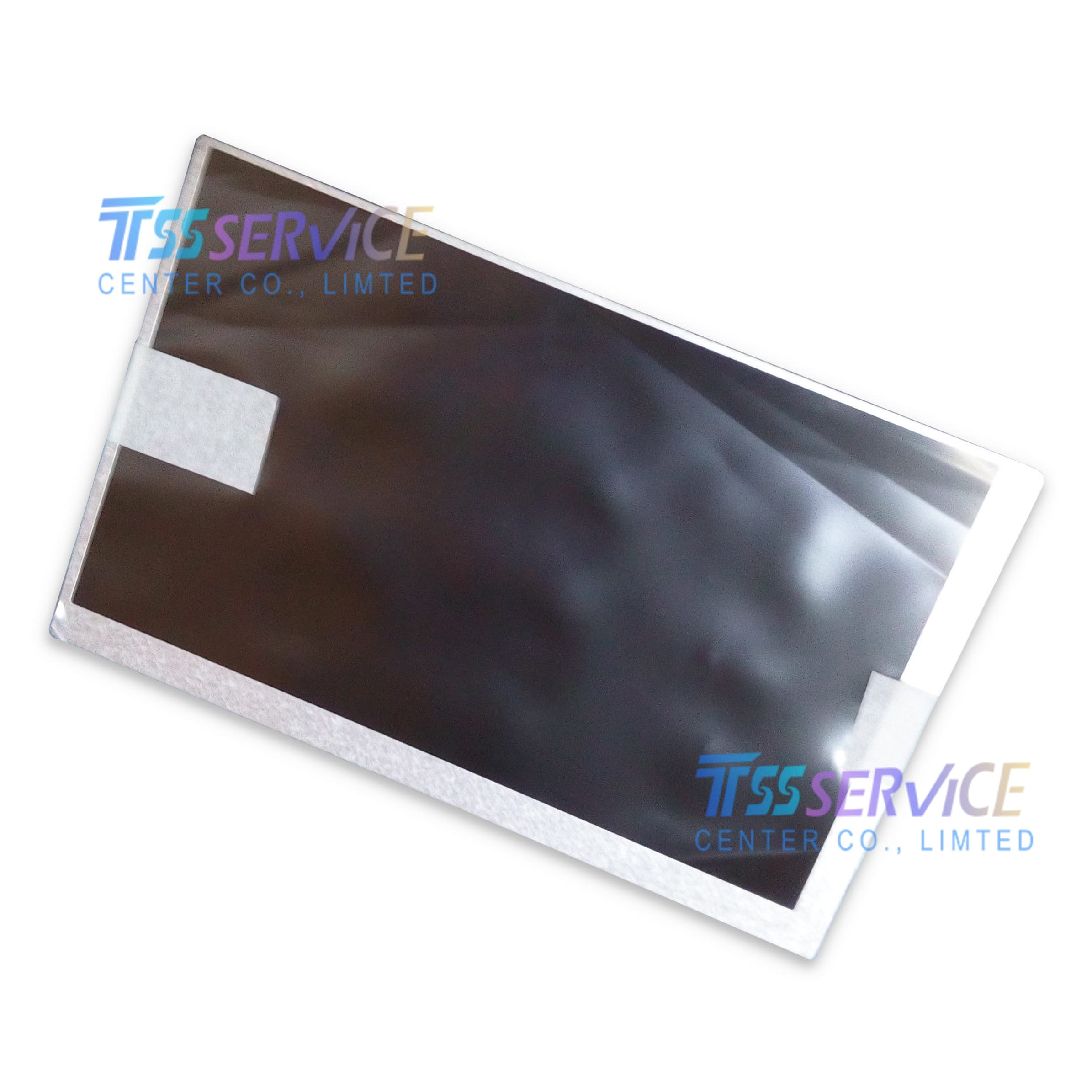

The G070Y2-T01 is a 7.0-inch a-Si TFT-LCD module manufactured by CMO (Chimei Innolux). It is designed for industrial applications that require a bright display capable of operating under extreme temperature conditions. The module features a resolution of 800x480 pixels (WVGA), TN technology with normally white transmissive mode, and WLED backlighting .
| Brand |
CMO |
| Model P/N |
G070Y2-T01 |
| Diagonal Size |
7.0" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
800(RGB)×480, WVGA, 133 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
152.4(W)×91.44(H) mm |
| Bezel Opening |
- |
| Outline Size |
165(W)×104(H) mm |
| Surface |
- |
| Brightness |
500 cd/m² (Typ.) |
| Contrast Ratio |
600:1 (Typ.) (TM) |
| Viewing Angle |
- |
| Display Mode |
TN, Normally White, Transmissive |
| Best View on |
- |
| Response Time |
5/11 (Typ.)(Tr/Td) |
| Display Colors |
262K |
| Lamp Type |
WLED, 50K hours |
| Signal Interface |
Parallel RGB |
| Operating Temp. |
-30 ~ 85 °C |
| Storage Temp. |
-40 ~ 95 °C |
Common Applications
Due to its wide temperature tolerance and reliable performance, the G070Y2-T01 is commonly used in various industrial sectors:
-
Industrial Automation: Human-Machine Interface (HMI) panels, PLC (Programmable Logic Controller) systems, and industrial PCs (IPC).
-
Commercial & Medical: Point of Sale (POS) terminals, medical equipment, and instrumentation displays.
-
Specialized Vehicles: CNC (Computer Numerical Control) machinery controls.
