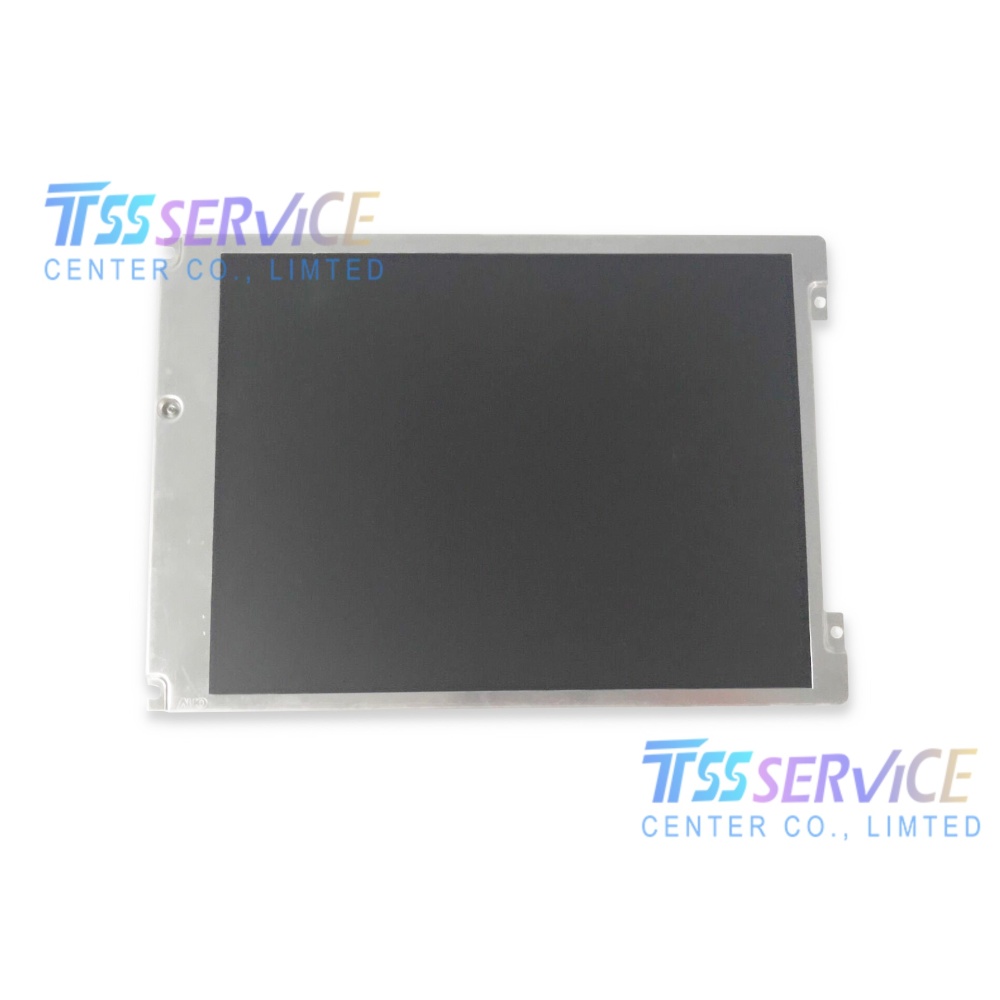

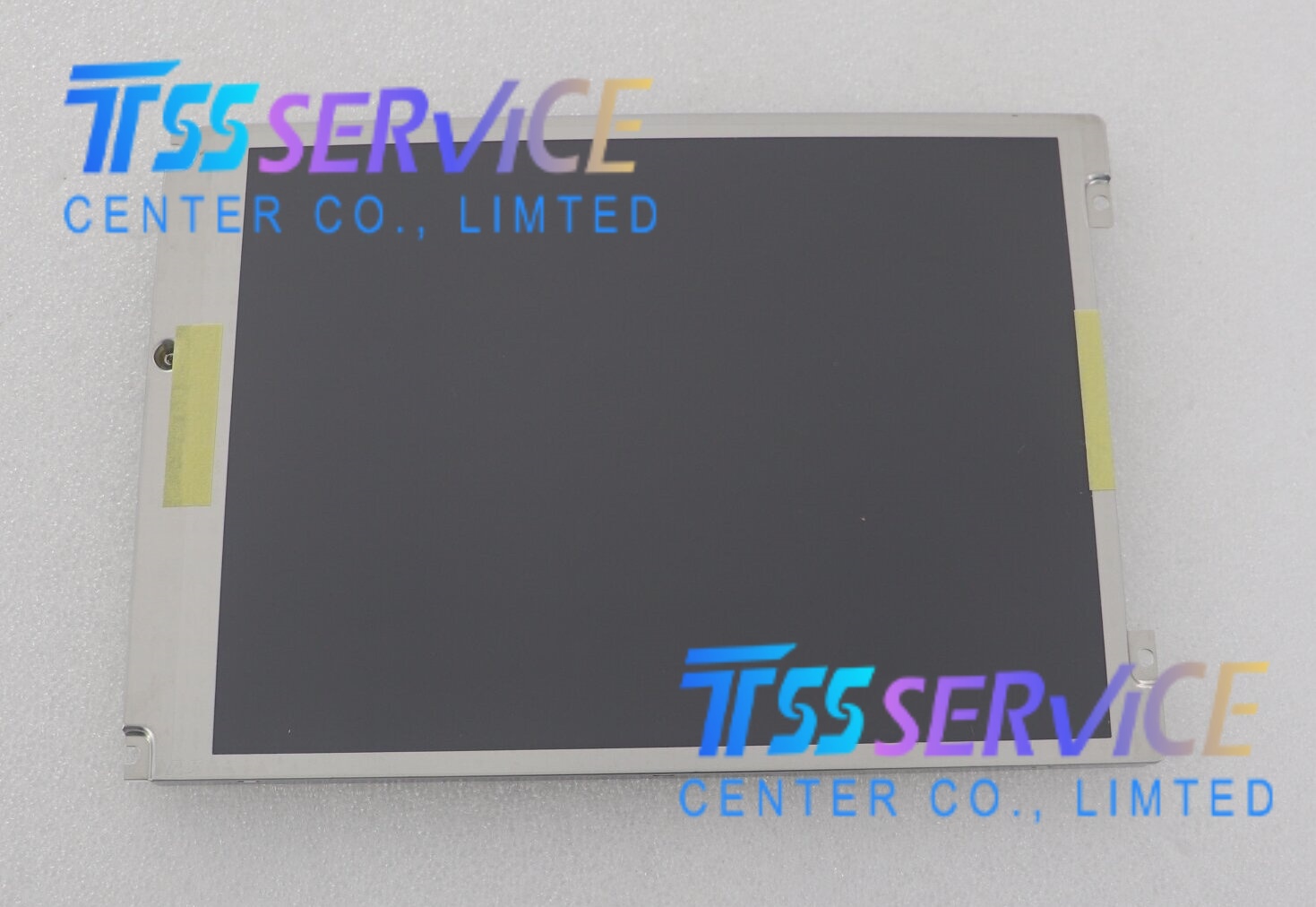

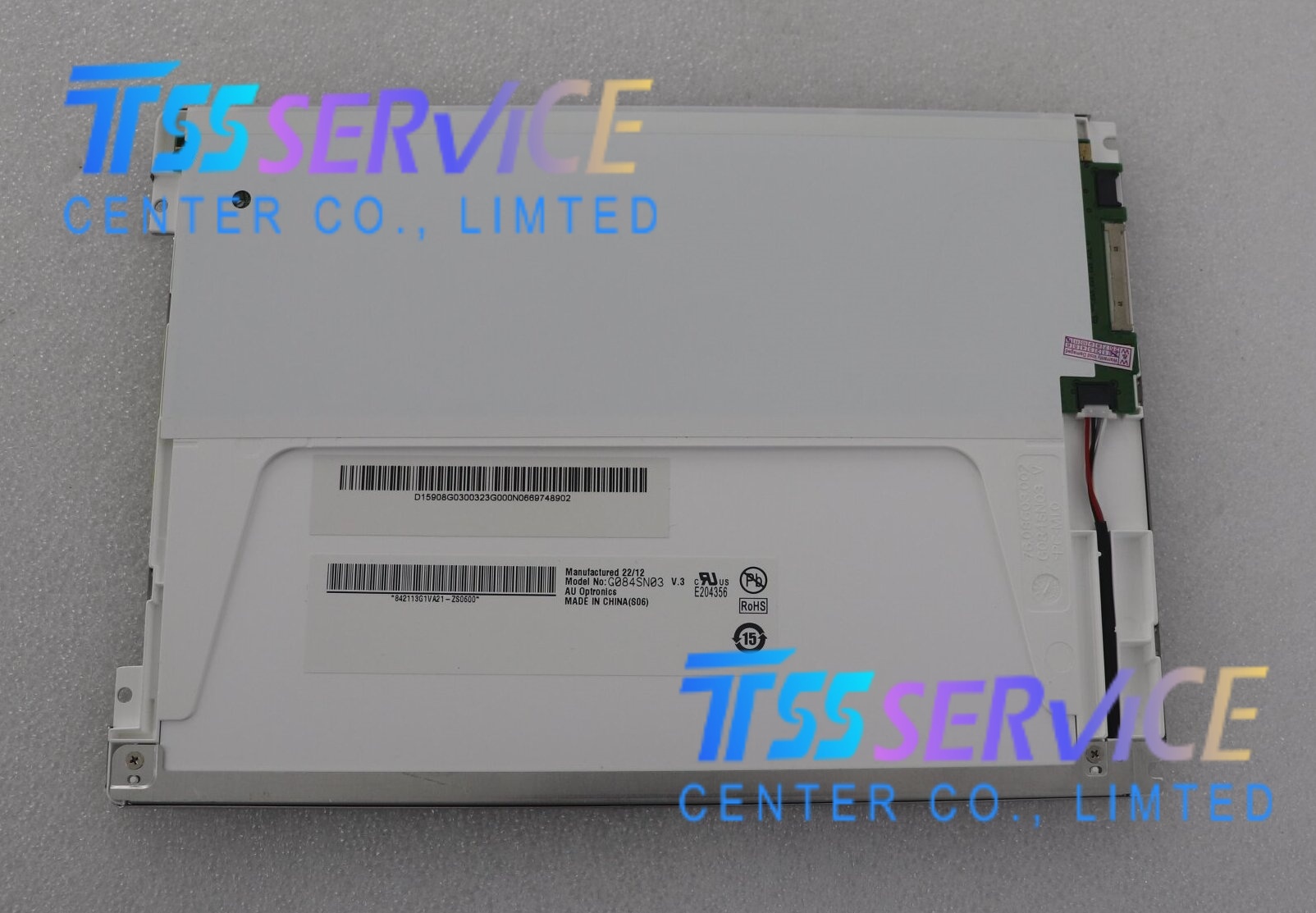

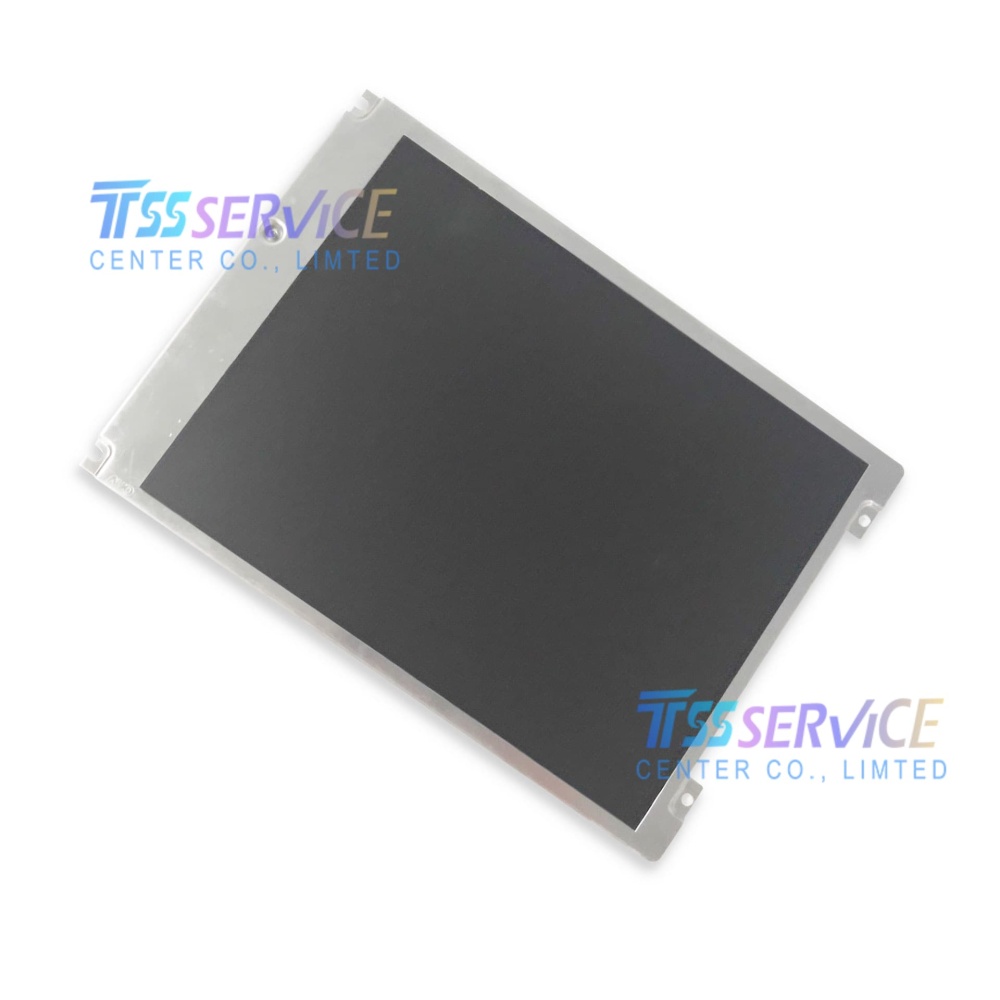

G084SN03 V3
Diagonal Size: 8.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA 119PPI
Pixel Format: RGB Vertical Stripe
| Parameter | Specification |
|---|---|
| Model Number | G084SN03 V3 (or G084SN03 V.3) |
| Manufacturer | AUO |
| Screen Size | 8.4 inches |
| Display Type | a-Si TFT-LCD, Transmissive, Normally Black |
| Resolution | 800 (RGB) × 600 pixels (SVGA) |
| Aspect Ratio | 4:3 |
| Pixel Pitch | 0.210 mm (H) × 0.210 mm (V) |
| Color Depth | 16.7M colors (8-bit per color) |
| Interface Type | LVDS (Low-Voltage Differential Signaling), 1 channel, 24-bit |
| Backlight | CCFL (Cold Cathode Fluorescent Lamp) or LED (depending on specific sub-version, V3 is often CCFL in older batches, but newer revisions may use LED. Note: Most G084SN03 V3 units found in market are CCFL.) |
| Brightness | Typical 450 cd/m² (High brightness version available up to 800-1000 nits in specific variants, but standard is ~450) |
| Contrast Ratio | Typical 700:1 to 1000:1 |
| Viewing Angle | 85/85/85/85 (Left/Right/Up/Down) – Often wide view |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
