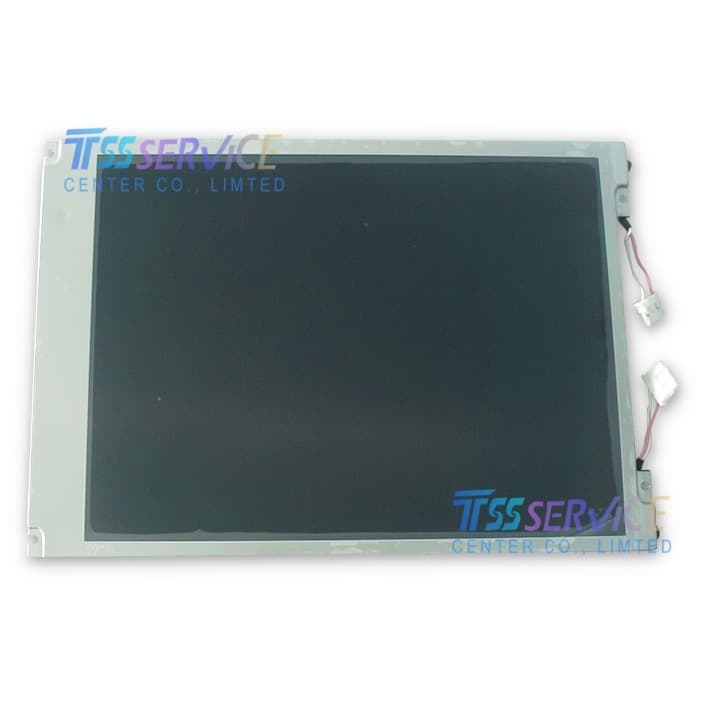

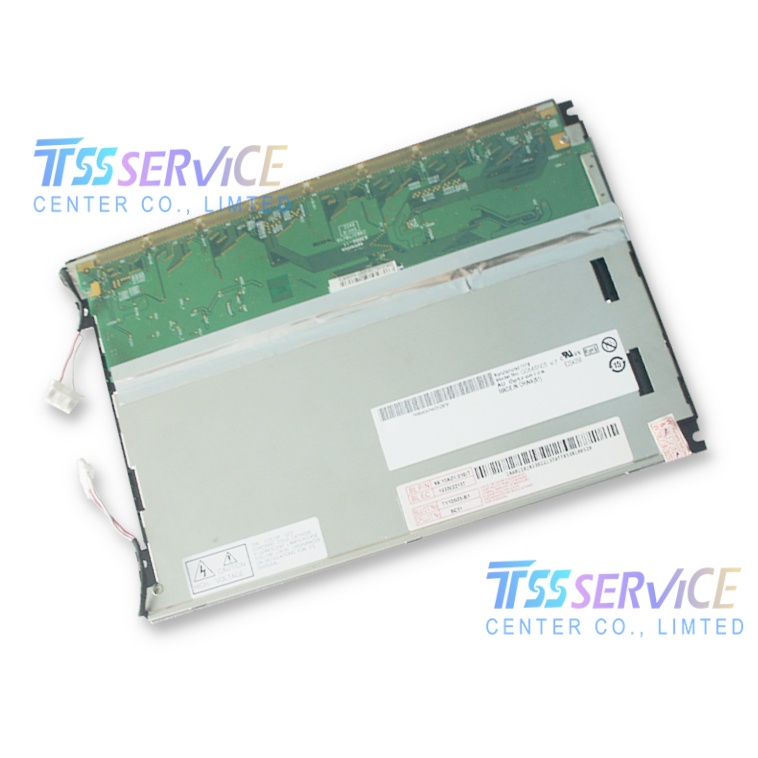

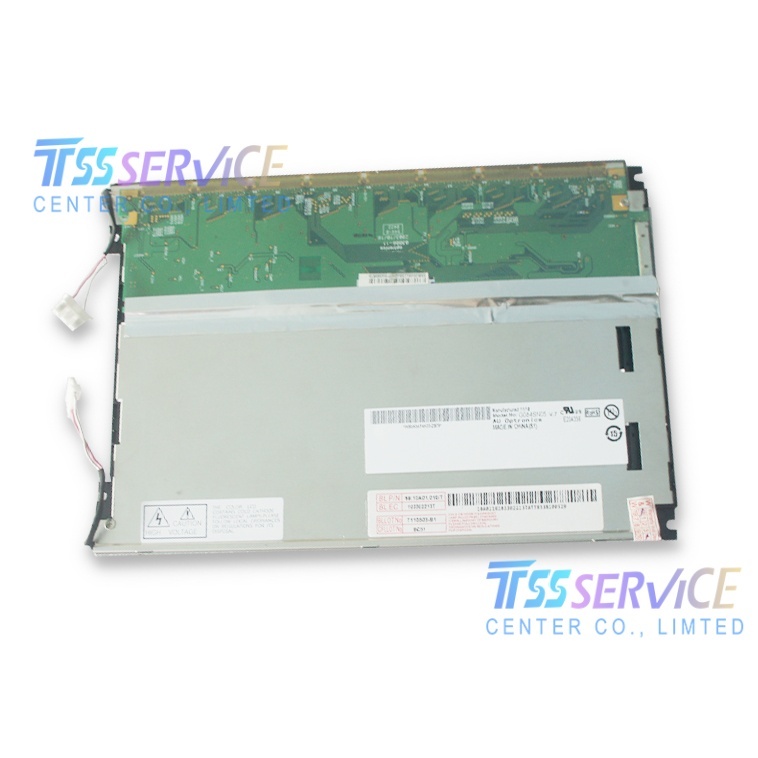

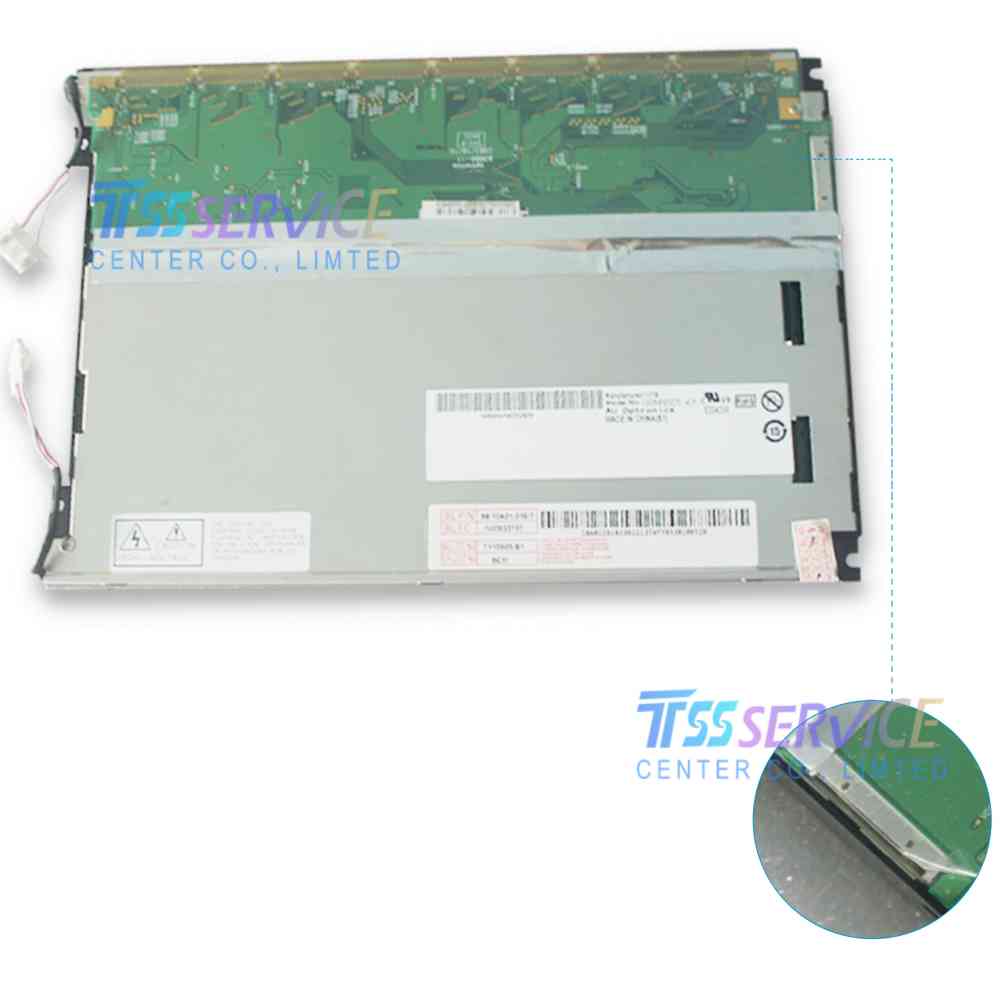

Model: G084SN05 V.7
Size: 8.4 inches
Resolution: 800 × 600 (SVGA)
Technology: a-Si TFT-LCD
Manufacturer: AU Optronics (AUO)
| Parameter | Specification |
|---|---|
| Mfr. | AUO |
| Model Name | G084SN05 V7 |
| Display Size | 8.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×600, SVGA, 4:3 |
| Dot Layout | RGB Vertical Stripe |
| Display Area | 170.4(W)×127.8(H) mm |
| Panel Weight | 260±10g |
| Outline Size | 203(W)×142.5(H)×8.3(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| View Direction | - |
| Response Time | 20/10 (Typ.) (Tr/Td) |
| Display Colors | 262K/16.2M, 45% NTSC |
| Touch Screen | Without |
| Power Usage | 5.8W (Typ.) |
| Light Source | 2 pcs CCFL, 50K hrs, Without Driver |
| Frequency | 60Hz |
| Interface | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp. -30 ~ 85 °C; Storage Temp. -30 ~ 85 °C |
Industrial Control Panels
Medical Monitoring Displays
Human-Machine Interface (HMI)
Test & Measurement Equipment
Kiosk & POS Systems
Embedded Industrial Systems
☛Delivery Details:
We will arrange the shipment within 1-3 working days asap after got your payment. And the tracking number and commercial inovice will be given to the customers asap. (only the standard speedpak or expedited shipping service). Expedited Shipping by DHL/FEDEX/4PX express Courier etc. But sometimes it is highly depended on buyer's payment, the courier company and local customs/duties.
☛About us:
We have specialized in LCD-Business for 20 years(NEC, SHARP, HITACHI, AUO, SAMSUNG, KOE, TIANMA LG Display, Samsung, Innolux, SHARP, MISTBISH,etc)
We are willing to provide the good service,professional technology and excellent products to you.
If you have any general questions and please contact us via julie@atssservice.com ,we will give you a exact reply within 24hours.
