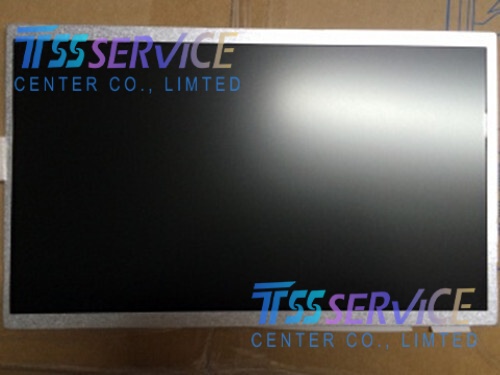

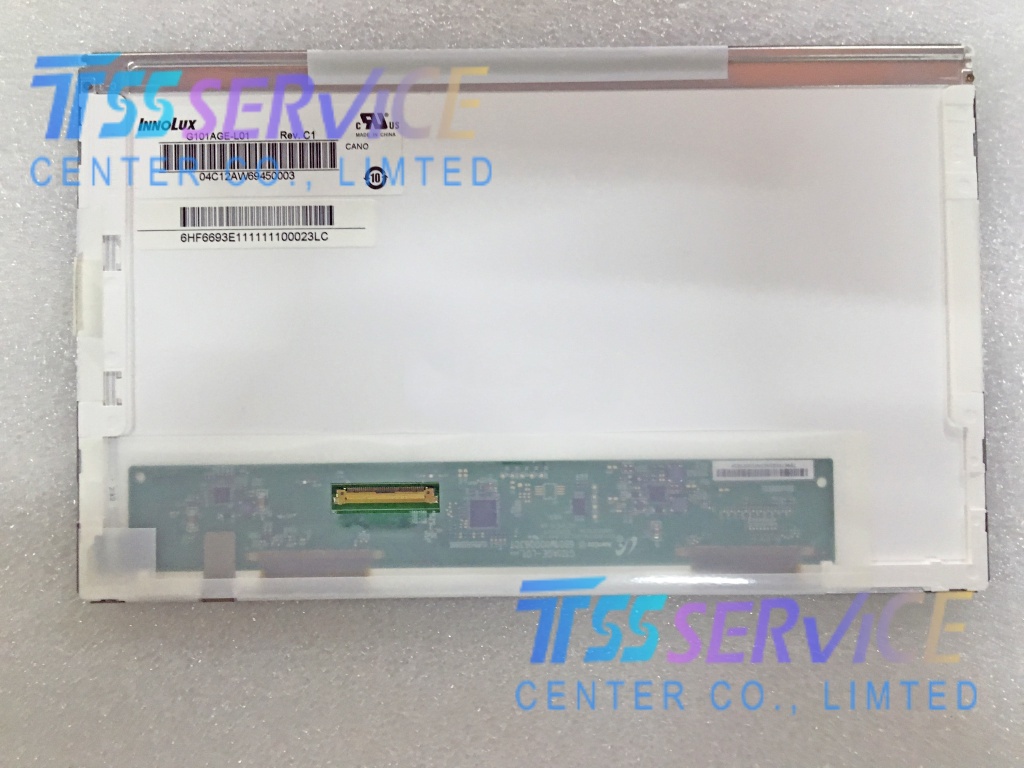

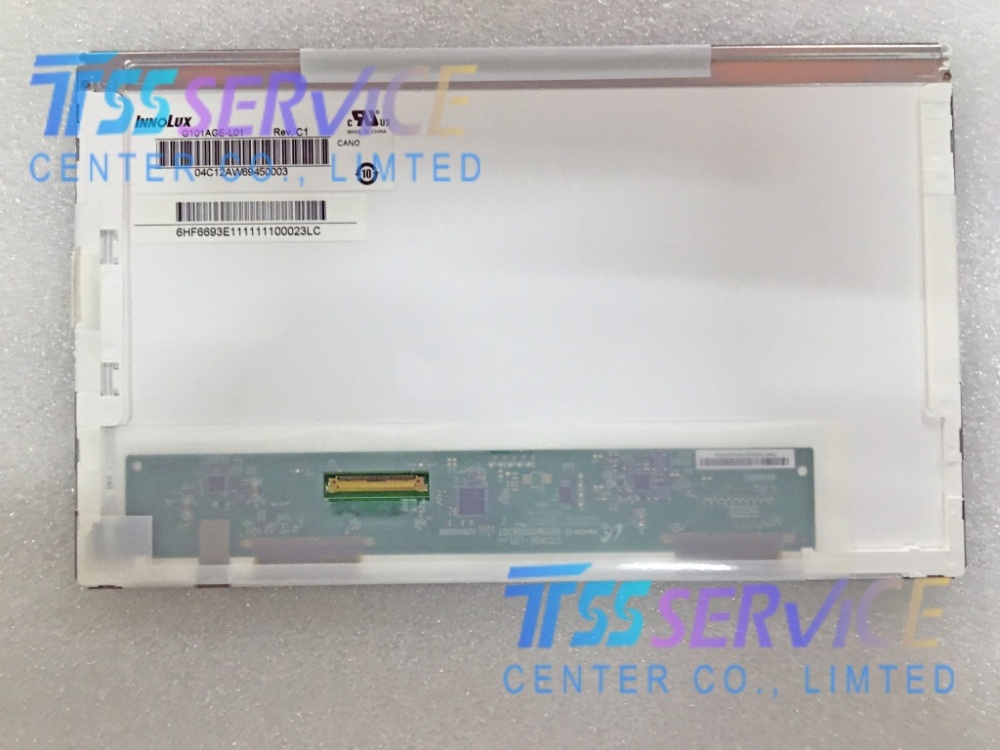

10.1 Inch Innolux G101AGE-L01 LCD Display Module for Industrial

Name: 10.1 Inch Innolux G101AGE-L01 LCD Display Module for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G101AGE-L01
Price: 68 USD
Availability: InStock

SKU: G101AGE-L01

The G101AGE-L01 is a 10.1-inch industrial-grade a-Si TFT-LCD module from Innolux, featuring WSVGA resolution (1024×600) in a 16:9 wide aspect ratio. With 350 cd/m² brightness, built-in LED driver, and a compact 40-pin LVDS interface, this display delivers stable performance for industrial HMI, embedded systems, and commercial devices requiring reliable widescreen visuals.

0.0 (0 Reviews)

0 Sold

~~$70.00~~ $68.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

10.1 Inch Innolux G101AGE-L01 LCD Display Module for Industrial

Parameter	Details
Brand	Innolux (Chimei)
Model	G101AGE-L01
Diagonal Size	10.1 inch
Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×600 (WSVGA, 16:9)
Pixel Format	RGB Vertical Stripe
Active Area	222.72 × 125.28 mm / 8.77" × 4.93"
Outline Size	235 × 143 × 5.2 mm / 9.25" × 5.63" × 0.20"
Weight	360g (Typ.) / 0.79 lb
Brightness	350 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	3/7 ms (Typ.) (Tr/Td)
View Direction	6 o'clock
Viewing Angle	70°/70°/60°/60° (Typ., CR≥10)
Display Mode	TN, Normally White, Transmissive
Display Colors	262K (6-bit), 46% NTSC
Backlight	WLED, 50,000 hrs lifespan, Built-in Driver
Power Consumption	2.17W (Max.)
Refresh Rate	60Hz
Touch Panel	Without Touchscreen
Interface	LVDS (1 ch, 6-bit), 40-pin Connector
Input Voltage	3.3V (Typ.)
Operating Temperature	0 ~ +50 °C
Storage Temperature	-20 ~ +60 °C
Surface Feature	Matte (Anti-Glare)

Applications

Industrial HMI & Control Panels: Factory automation, PLC interfaces, and industrial touchscreen terminals.
Embedded Systems: Industrial PCs, IoT gateways, and medical devices (non-life support).
Kiosks & POS Systems: Self-service terminals, digital signage, and retail POS displays.
Commercial Displays: Home appliances, gaming devices, and automotive infotainment (non-critical).
