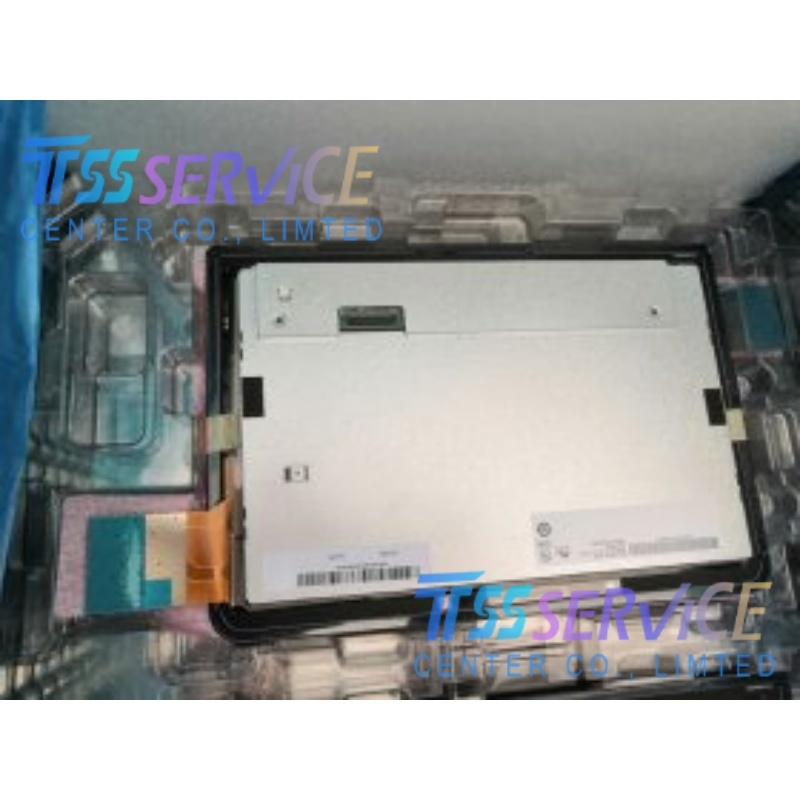

AUO G101EVT05.1 10.1-inch 1280×800 LCD Panel Display For Industrial

Name: AUO G101EVT05.1 10.1-inch 1280×800 LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G101EVT05.1
Price: 107 USD
Availability: InStock

SKU: G101EVT05.1

Model P/N: G101EVT05.1
Diagonal Size: 10.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1280(RGB)×800, WXGA 149PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$110.00~~ $107.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AUO G101EVT05.1 10.1-inch 1280×800 LCD Panel Display For Industrial

Parameter	Details
Manufacturer	AUO
Model Number	G101EVT05.1 (also known as G101EVT05 V1)
Panel Type	a-Si TFT-LCD, MVA, Normally Black, Transmissive
Diagonal Size	10.1 inches
Resolution	1280 (RGB) × 800 (WXGA), Aspect Ratio 16:10
Pixel Density	149 PPI
Pixel Configuration	RGB Vertical Stripe
Active Area	216.96 × 135.6 mm (W × H)
Outline Dimensions	257.35 × 175.5 × 10.64 mm (W × H × D)
Weight	350g (Max.)
Surface Treatment	Anti-glare (Haze 3%), Hard Coating (3H)
Brightness	440 cd/m² (Typical)
Contrast Ratio	1300:1 (Typical, Transmission)
Viewing Angle	85/85/85/85 (Typical, CR≥10)
Response Time	25 ms (Typical, Tr+Td)
Refresh Rate	60 Hz
Color Depth	6/8-bit, 262K/16.2M Colors, 47% NTSC
Backlight	WLED, Edge-type, Lifetime: 50,000 hours, with LED Driver

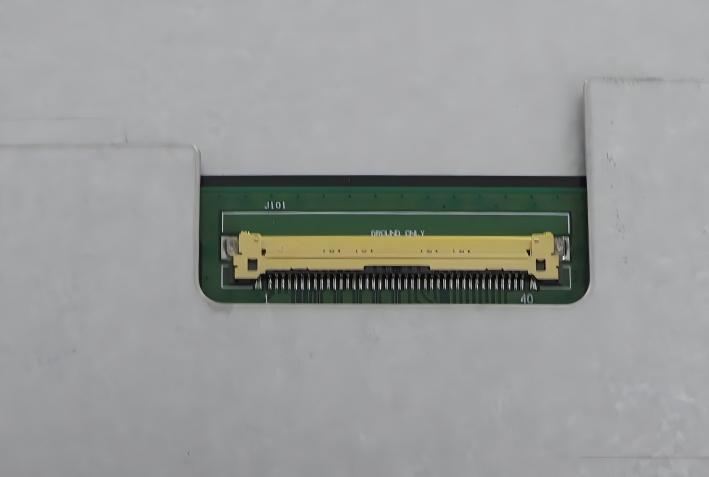

Signal Interface	LVDS, 40 pins, 1 channel, 6/8-bit
Touch Panel	Integrated Projected Capacitive (PCAP) Touch, I2C/USB interface
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-30°C ~ 80°C
Application	Industrial

Specific Applications

Industrial Control & HMI
Primarily designed for industrial human-machine interface (HMI) panels, factory automation equipment, and industrial controllers requiring reliable performance under wide temperature conditions (-20°C to 70°C). The integrated PCAP touch and high contrast MVA panel make it ideal for industrial environments.
Rugged Mobile Devices
Used in rugged tablets, field data collectors, and portable industrial terminals. Its 10.1-inch WXGA resolution, 440 nits brightness, and durable cover glass ensure clear visibility and operation in challenging field conditions.
Medical & Healthcare Equipment
Suitable for portable medical devices, patient monitoring systems, and diagnostic equipment where stable display performance, accurate color reproduction (for 8-bit mode), and long-term reliability are essential.
Embedded & Specialized Systems
Integrated into marine electronics, automotive infotainment, in-vehicle displays, and outdoor/ semi-outdoor kiosks, leveraging its wide temperature tolerance and anti-glare surface for consistent performance in varying environments.
