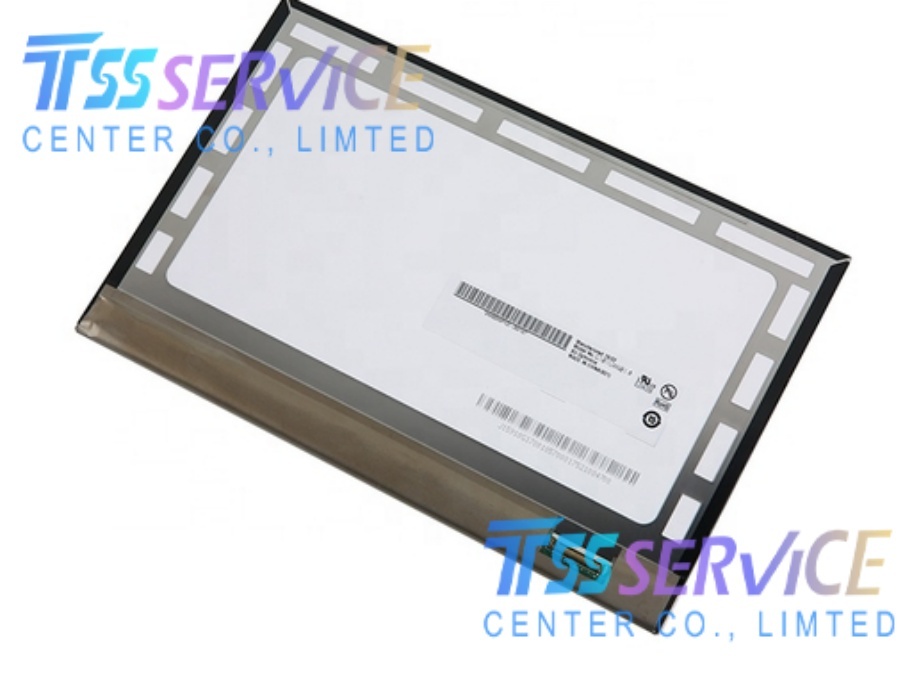

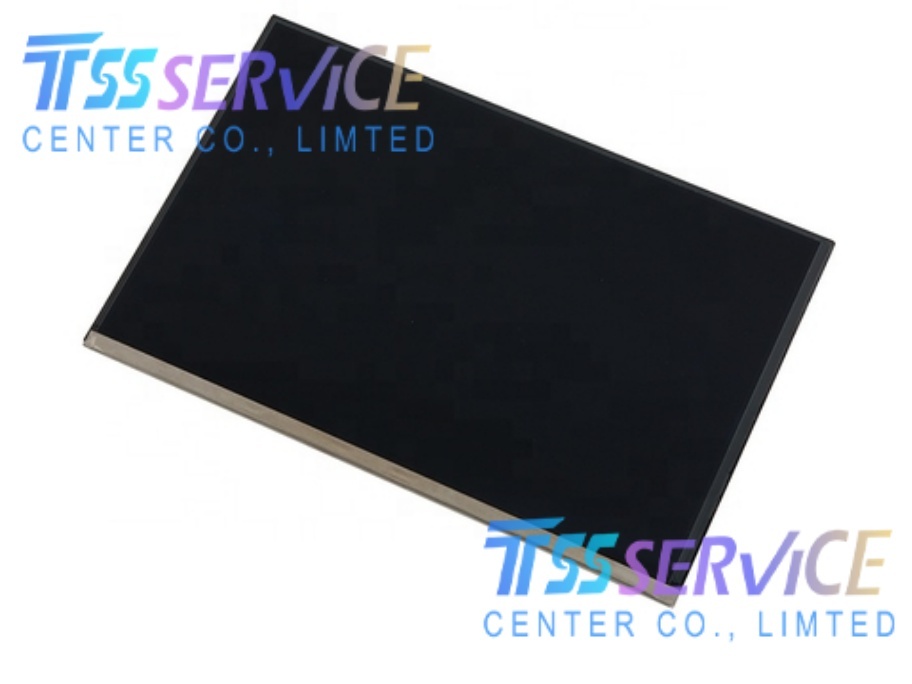

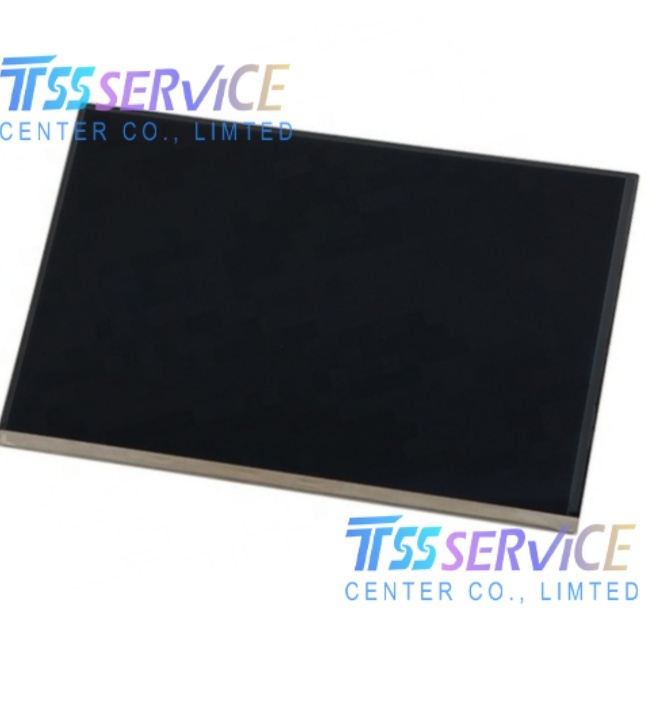

AUO G101HAN01.0 10.1 inch LCD Panel Display Screen for Industrial
| Parameter |
Details |
| Manufacturer |
AUO (AU Optronics) |
| Part Number |
G101HAN01.0 |
| Display Type |
a-Si TFT-LCD, AHVA (IPS), Normally Black, Transmissive |
| Diagonal Size |
10.1" (256.5 mm) |
| Resolution |
1920 (H) × 1080 (V) pixels (FHD) |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
216.6 (W) × 121.8 (H) mm |
| Outline Dimensions |
228.0 (W) × 136.0 (H) × 5.2 (D) mm |
| Brightness |
400 cd/m² (Typical) |
| Contrast Ratio |
800:1 (Typical) |
| Response Time |
25 ms (Typical, Tr+Td) |
| Viewing Angle |
85/85/85/85° (L/R/U/D, CR≥10) |
| Backlight |
Edge-type WLED, 30,000 hours (Typical), With LED Driver |
| Color Depth |
16.7M Colors (8-bit), 50% NTSC |
| Interface |
eDP (2 lanes), eDP 1.2, 30-pin FPC |
| Supply Voltage |
3.3V (Typical) |
| Refresh Rate |
60 Hz |
| Operating Temperature |
-10°C to +60°C |
| Storage Temperature |
-20°C to +60°C |
| Touch Panel |
No |
| Surface Treatment |
Anti-glare (AG) |
| RoHS Compliance |
Yes |
|
|
This high-resolution, wide-view-angle module is ideal for industrial and embedded systems requiring sharp, clear visuals from all directions. Key applications include:
- Industrial HMI & Control Panels: Factory automation, process control systems, PLC displays
- Medical Devices: Portable diagnostic equipment, bedside monitors, dental imaging displays
- Automotive & Transportation: In-car infotainment, car navigation, railway/marine control panels
- Test & Measurement: High-res oscilloscopes, spectrum analyzers, data loggers
- Smart Retail & POS: Touch-enabled POS terminals, self-service kiosks, digital signage
- Gaming & Entertainment: Portable gaming devices, arcade machine displays
- Smart Home & Building Automation: High-definition control panels, security monitoring systems
