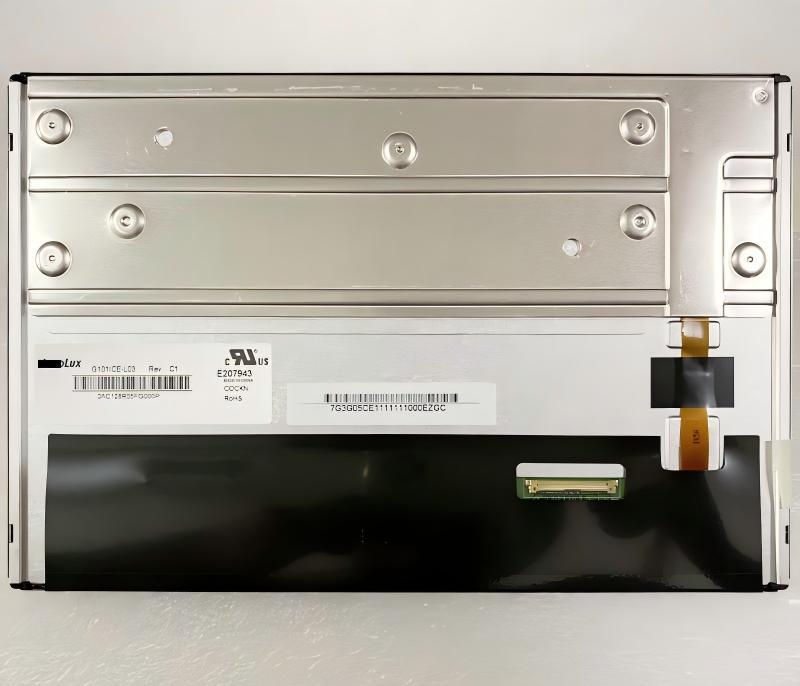

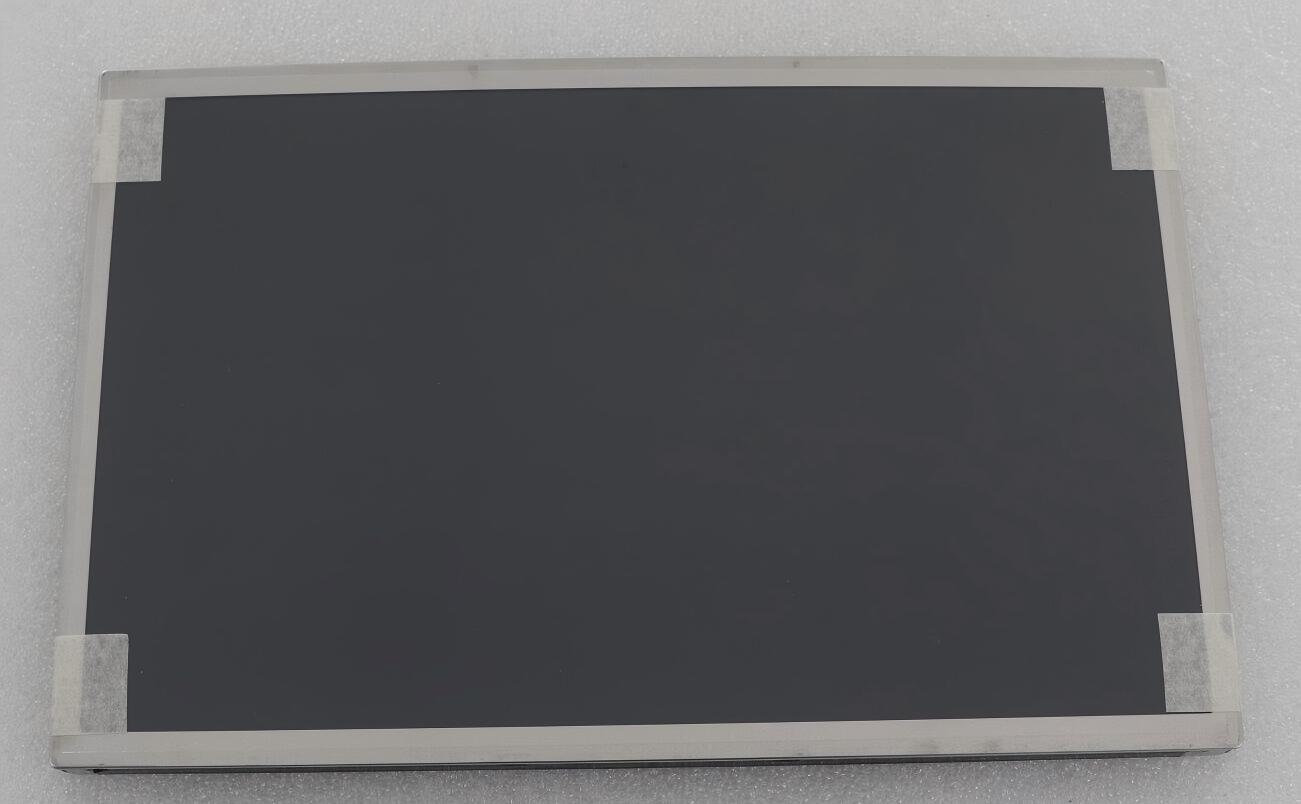

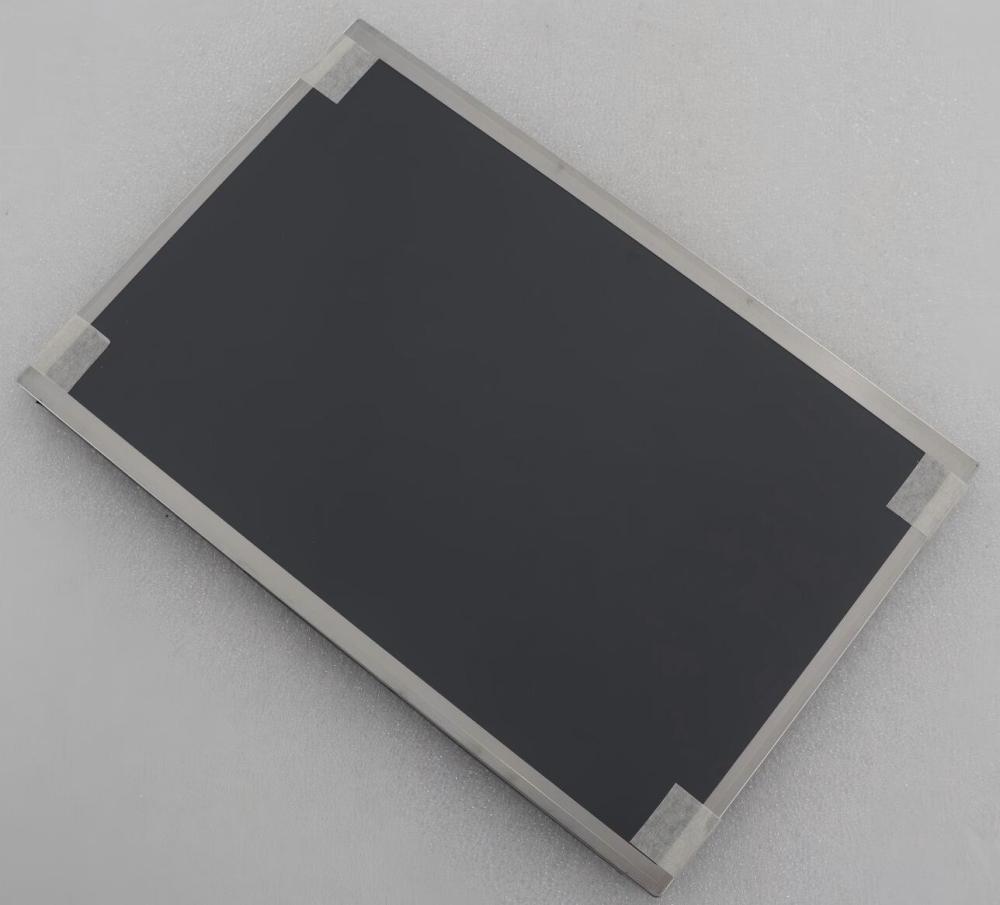

Innolux G101ICE-L03 10.1" 1280×800 LCD Display Panel

Name: Innolux G101ICE-L03 10.1" 1280×800 LCD Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G101ICE-L03
Price: 82 USD
Availability: InStock

SKU: G101ICE-L03

1，Condition: New，Grade A

2，Description: G101ICE-L03 10.1 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$85.00~~ $82.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The Innolux G101ICE-L03 is a 10.1-inch a-Si TFT-LCD module designed for industrial and commercial applications requiring superior optical performance, high brightness, and reliable operation. With a resolution of 1280×800 (WXGA) and a pixel density of 149 PPI, this display delivers sharp, detailed visuals suitable for a wide range of human-machine interface (HMI) applications.

Parameter	Specification
Brand	Innolux
Model P/N	G101ICE-L03
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)×135.6(H) mm
Bezel Opening	218.96(W)×137.6(H) mm
Outline Dim.	230.7(H)×152.55(V)×7(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	14/11 ms (Typ.)(Tr/Td)
Viewing Angle	85/85/85 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Support Color	262K/16.2M 54% NTSC
Light Source	WLED, 50K hours, With LED Driver
Weight	360/375g (Typ./Max.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 40 pins Connector
Power Supply	3.3V (Typ.)
Operating Temperature	-20 ~ 65 °C
Storage Temperature	-25 ~ 70 °C

Typical Applications

Industrial Automation – HMI panels, PLC interfaces, factory control systems
Medical Devices – Patient monitoring, diagnostic equipment
Commercial Kiosks – Self-service terminals, interactive displays
Transportation – In-vehicle infotainment, fleet management systems
Test & Measurement – Oscilloscopes, analyzers, instrumentation
Professional Displays – High-reliability commercial and industrial applications
