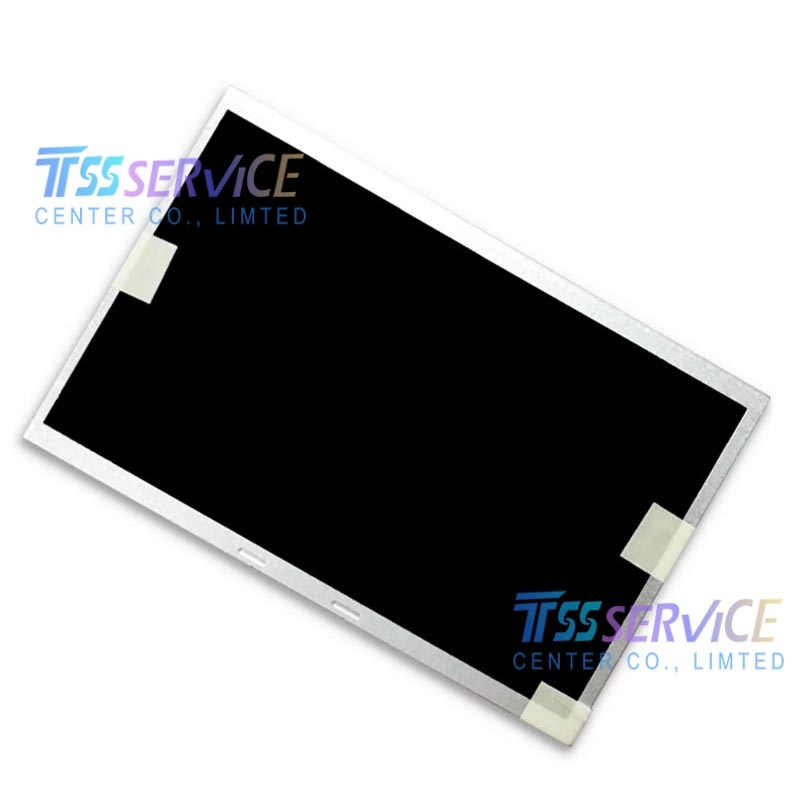

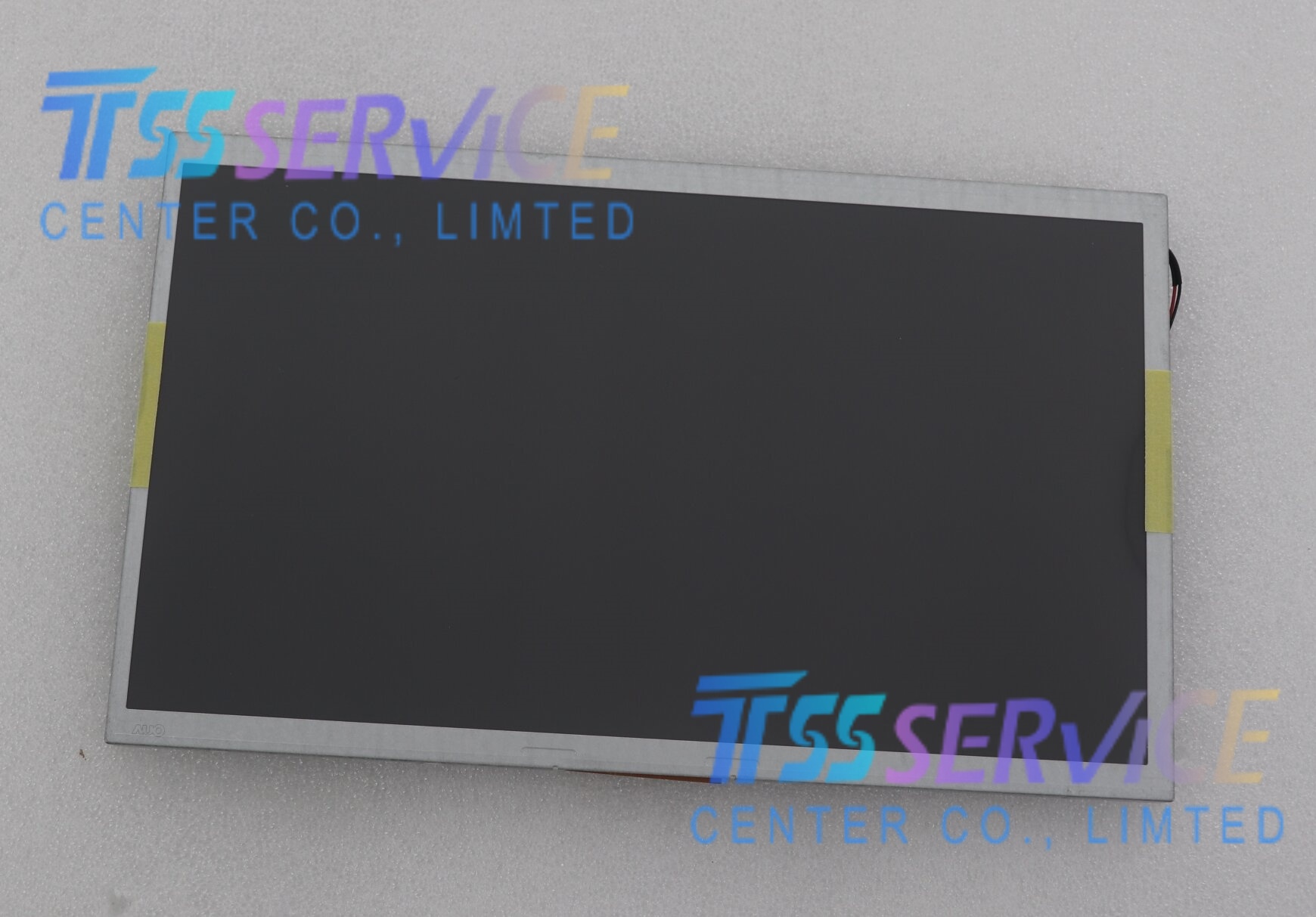

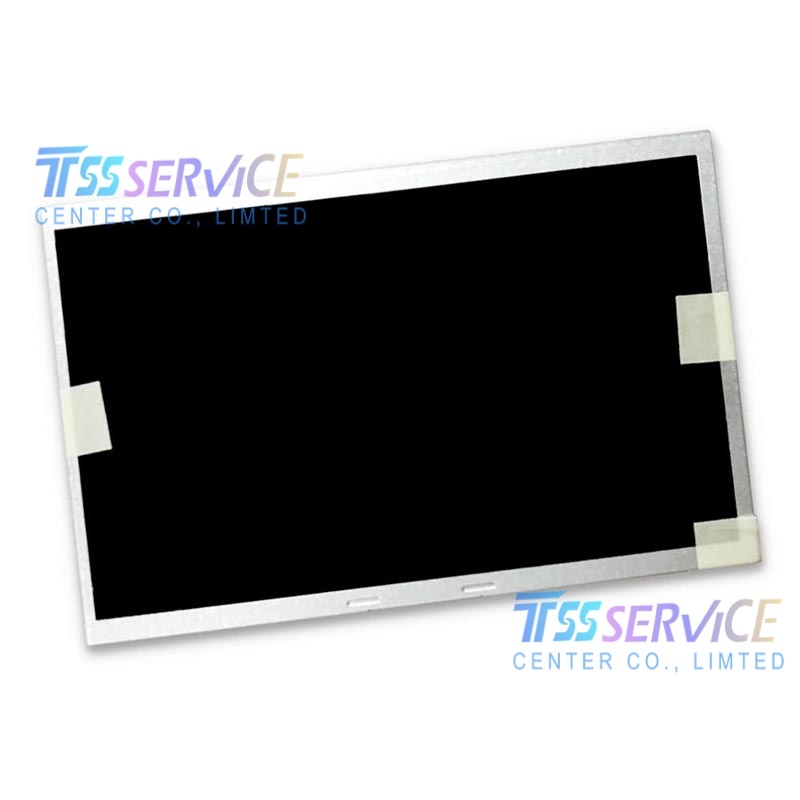

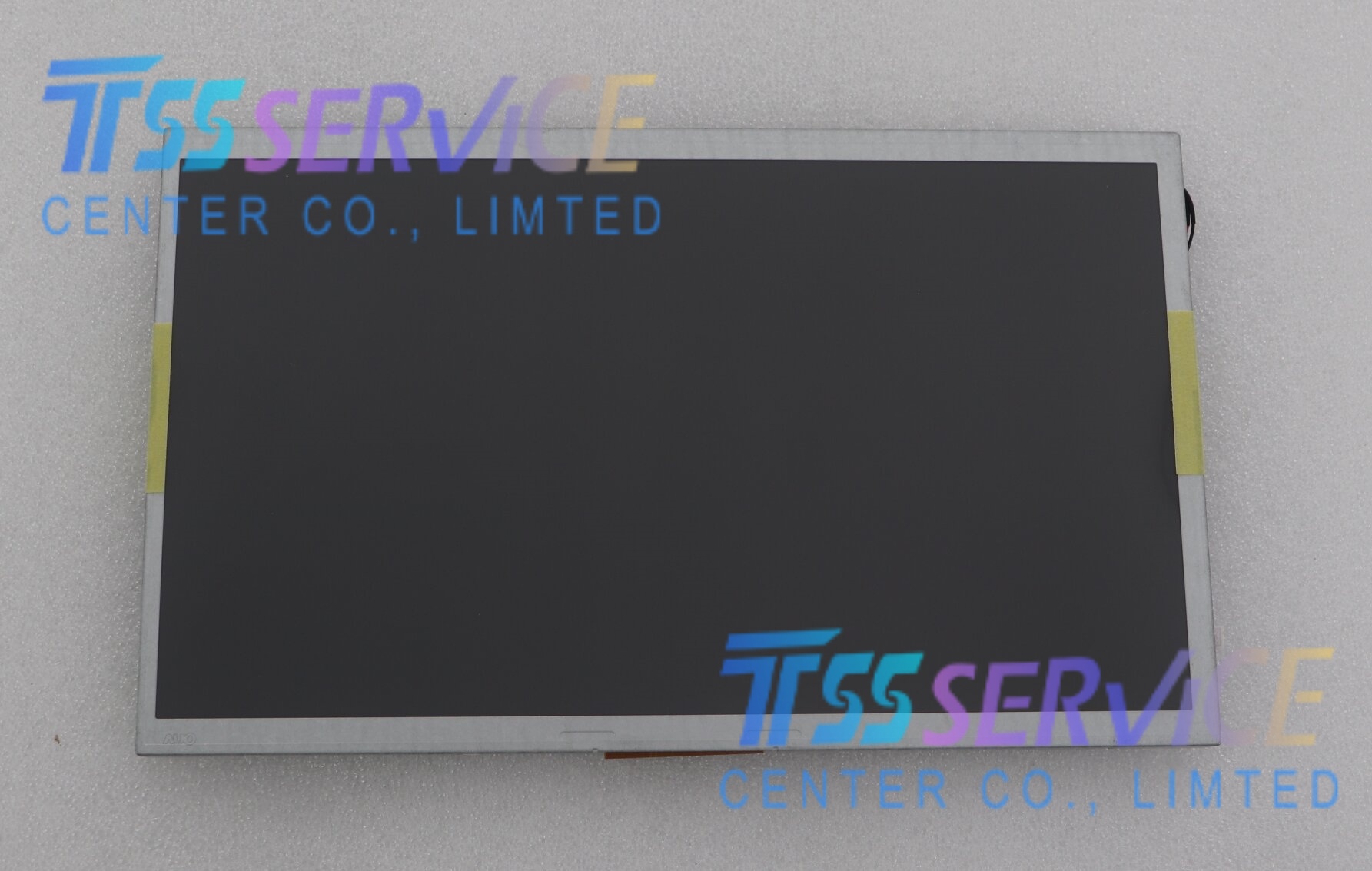

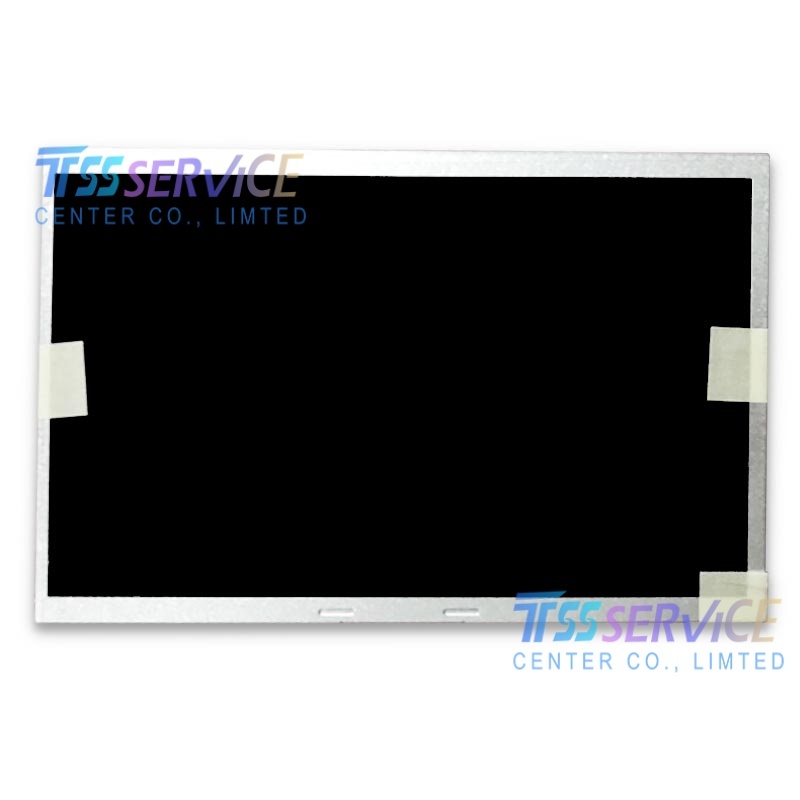

AUO G101STN01.K 10.1 inch 1024×600 TFT-LCD Display Panel Screen for Industrial
| Category |
Item |
Specification |
| Basic Information |
Manufacturer |
AUO (AU Optronics) |
|
Display Size |
10.1 inches (diagonal) |
|
Panel Type |
a-Si TFT-LCD, TN (Normally White, Transmissive) |
|
Aspect Ratio |
16:9 |
|
Production Status |
Discontinued |
| Resolution & Pixels |
Resolution |
1024 (RGB) × 600 (WSVGA) |
|
Pixel Pitch |
0.2175 (H) × 0.2088 (V) mm |
|
Pixel Layout |
RGB Vertical Stripe |
|
PPI |
117 (Typ.) |
| Optical Performance |
Brightness (Typ.) |
250 cd/m² |
|
Contrast Ratio (Typ.) |
500:1 (Transmission) |
|
Display Colors |
262K (6-bit) / 16.7M (6-bit + Hi-FRC) |
|
Response Time (Typ.) |
Tr/Td = 7/9 ms |
|
Viewing Angle (Typ., CR≥10) |
70°(L) / 70°(R) / 60°(U) / 60°(D) |
|
Surface Treatment |
Anti-glare (Matte), Hard Coating (3H) |
| Backlight |
Type |
WLED (White LED, Side-lit) |
|
Life Expectancy |
15,000 hours (Typ., at 25°C) |
| Interface |
Signal Interface |
LVDS (1 channel, 6/8-bit, 40 pins) |
|
Input Voltage |
3.3V (VCCS, Typ.) |
| Mechanical Dimensions |
Active Area |
222.72 (H) × 125.28 (V) mm |
|
Visible Area |
226.34 (H) × 128.10 (V) mm |
|
Module Outline |
235.0 (H) × 143.0 (V) × 5.2 (D) mm |
|
Net Weight (Typ.) |
180 g |
| Environmental Ratings |
Operating Temperature |
-10 °C to +60 °C |
|
Storage Temperature |
-30 °C to +70 °C |
|
Vibration Resistance |
1.5G (14.7 m/s²) |
| Compliance |
RoHS |
Compliant |
G101STN01.K is optimized for industrial reliability and embedded integration, making it ideal for the following scenarios:
1. Industrial Control & HMI (Human-Machine Interface)
- Use Cases: PLC terminals, SCADA systems, industrial PCs (IPCs), CNC machine tool panels, factory automation controllers.
- Why It Fits: The -10°C to +60°C operating temperature, 3H hard coating, and 1.5G vibration resistance withstand harsh factory environments (dust, vibration, minor impacts). The LVDS interface ensures stable, low-noise signal transmission for real-time process monitoring.
2. Embedded Computing & Medical Devices
- Use Cases: Portable medical monitors (patient vital signs), diagnostic equipment, embedded industrial boxes.
- Why It Fits: Its slim profile (5.2mm) and lightweight (180g) enable compact device design. The 500:1 contrast ratio and 250 cd/m² brightness deliver clear visuals for medical data and graphical interfaces.
3. Transportation & Mobility
- Use Cases: In-vehicle infotainment, fleet management terminals, railway control systems, marine navigation displays.
- Why It Fits: The 1.5G vibration resistance and wide temperature range withstand vehicle/railway vibrations and extreme ambient temperatures. The anti-glare surface reduces sunlight reflection for better outdoor visibility.
4. Commercial & Retail Equipment
- Use Cases: POS systems, self-service kiosks, barcode scanners, small digital signage.
- Why It Fits: The 60Hz refresh rate and fast response time (7/9 ms) ensure smooth video playback and touch interactions. The WSVGA resolution balances clarity and power efficiency for 24/7 operation.
5. Test & Measurement Instruments
- Use Cases: Oscilloscopes, multimeters, environmental testers, laboratory data loggers.
- Why It Fits: The accurate color reproduction (16.7M colors) and stable LVDS interface support precise data visualization. The industrial-grade environmental ratings ensure reliability in laboratory and field testing.
