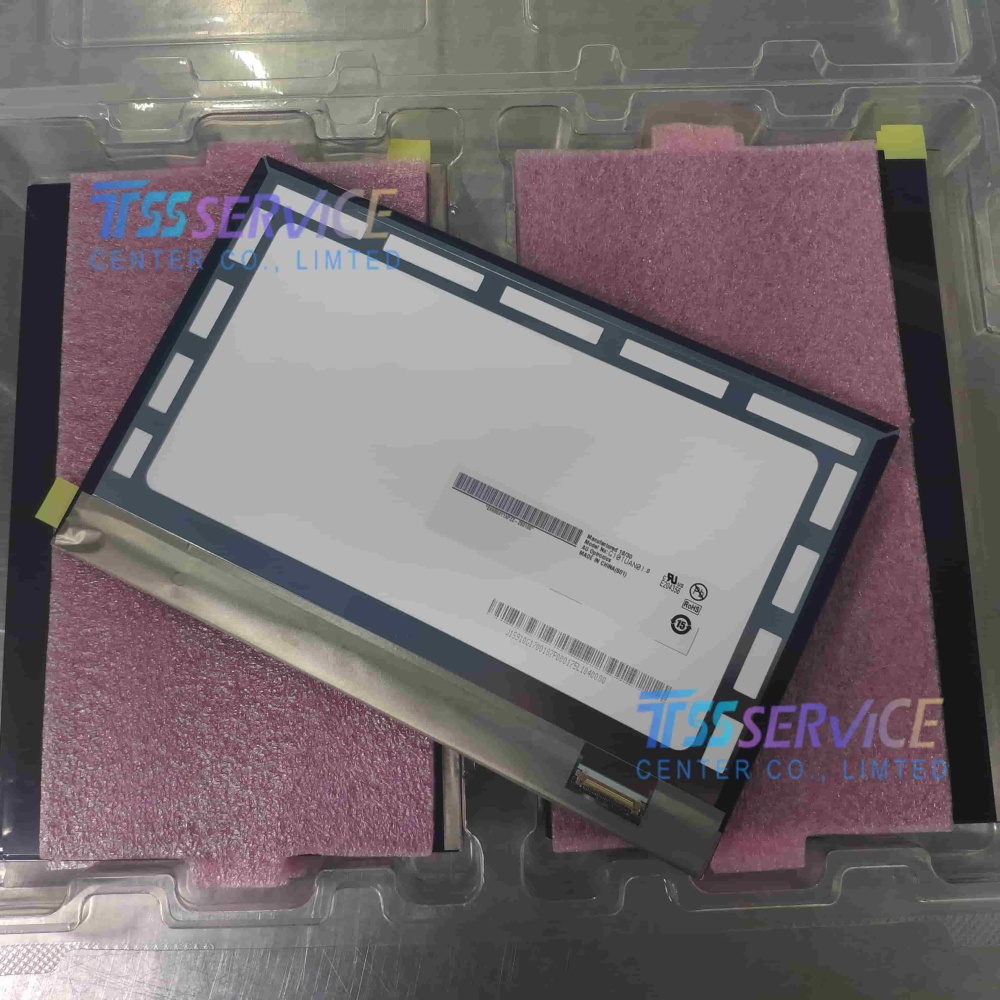

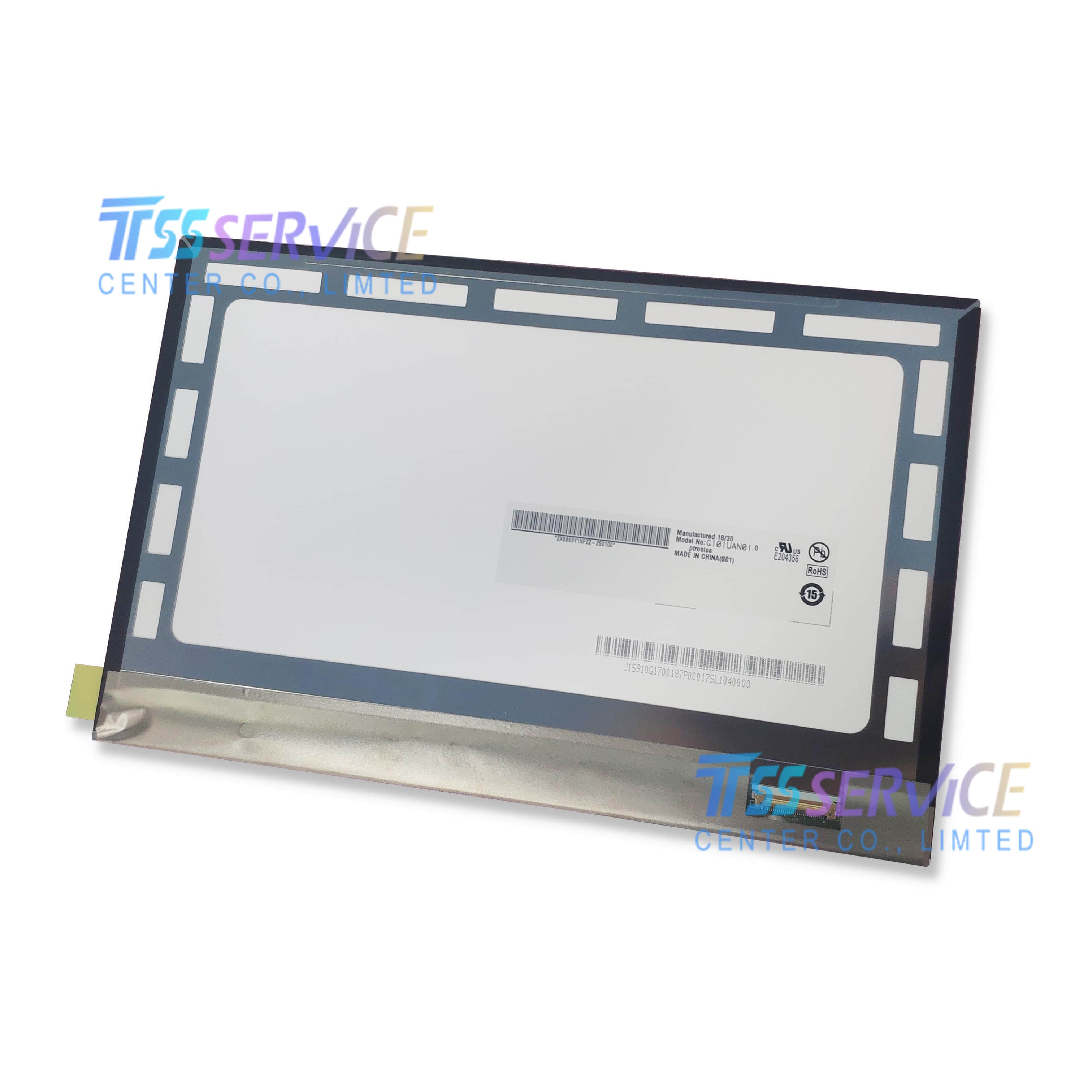

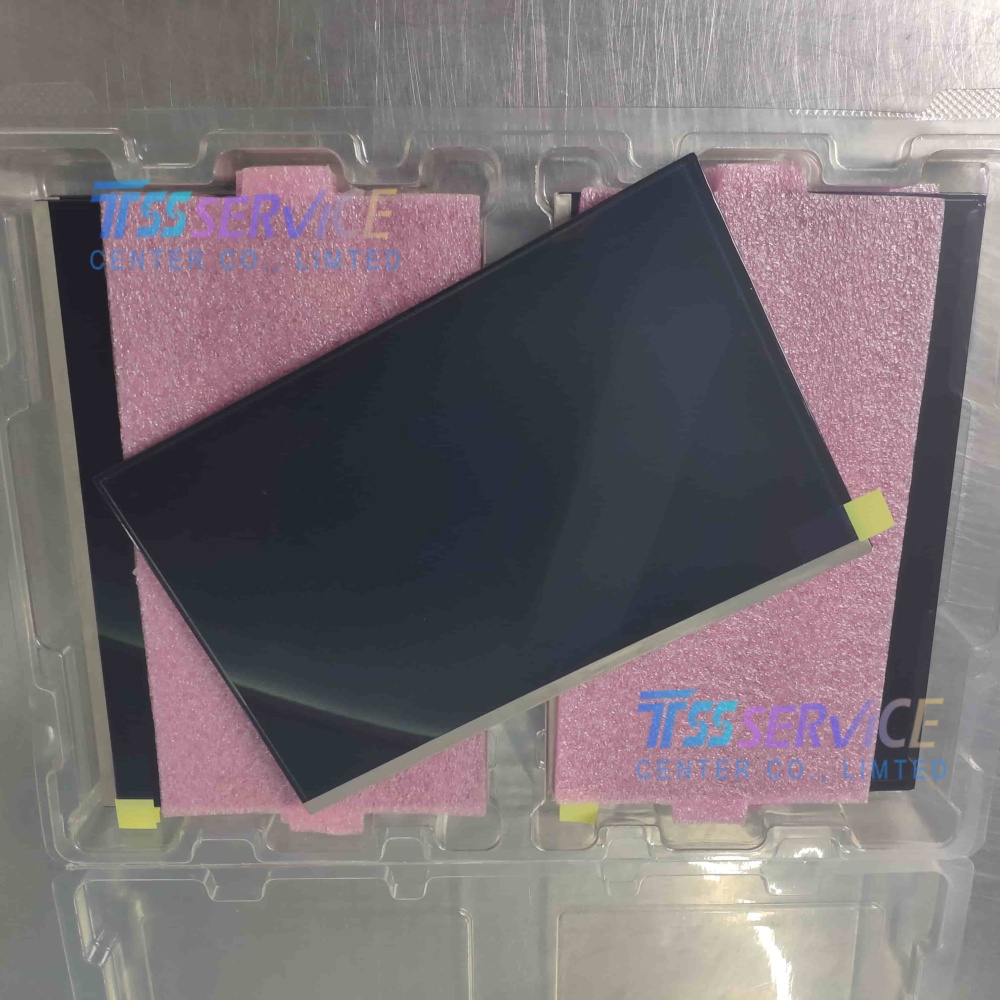

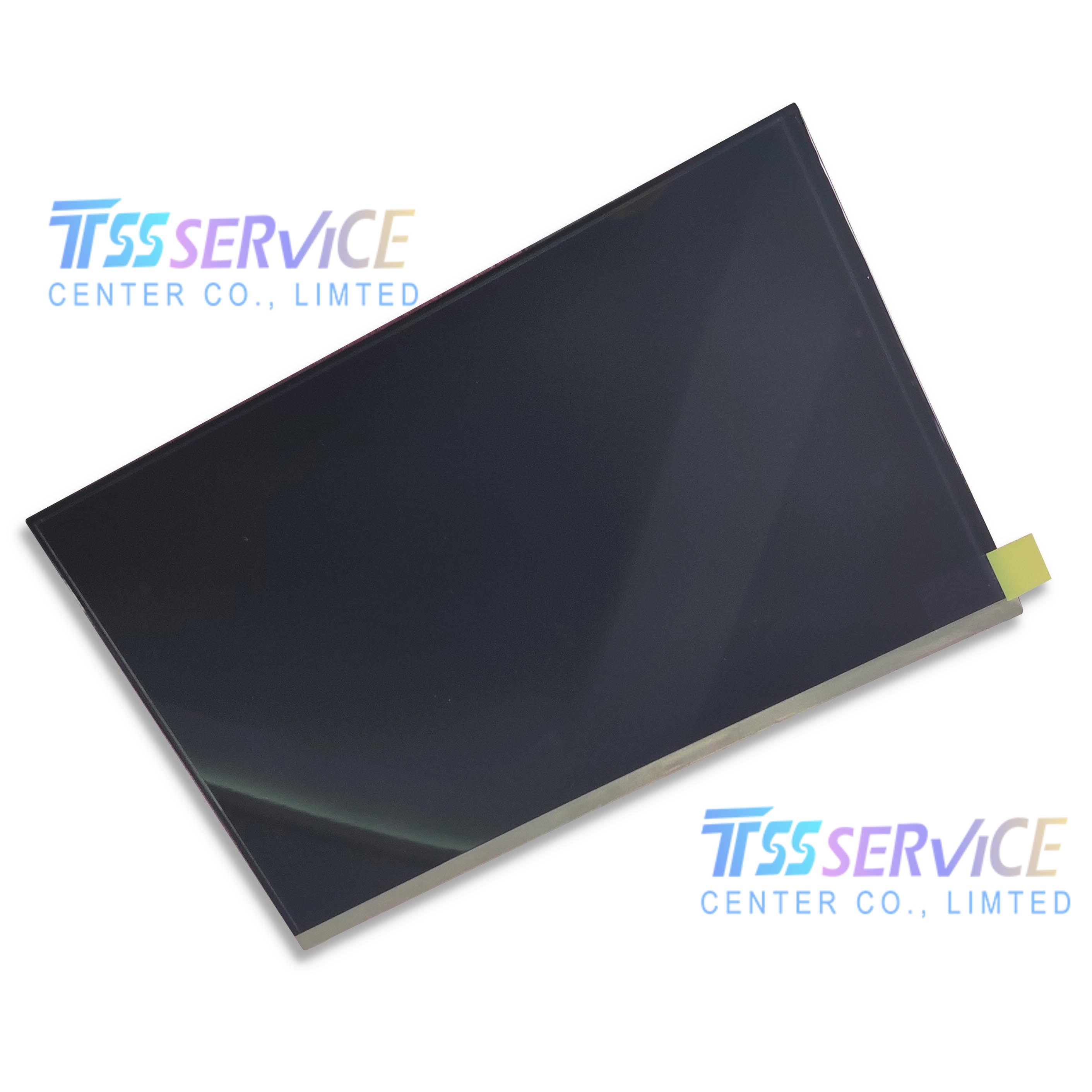

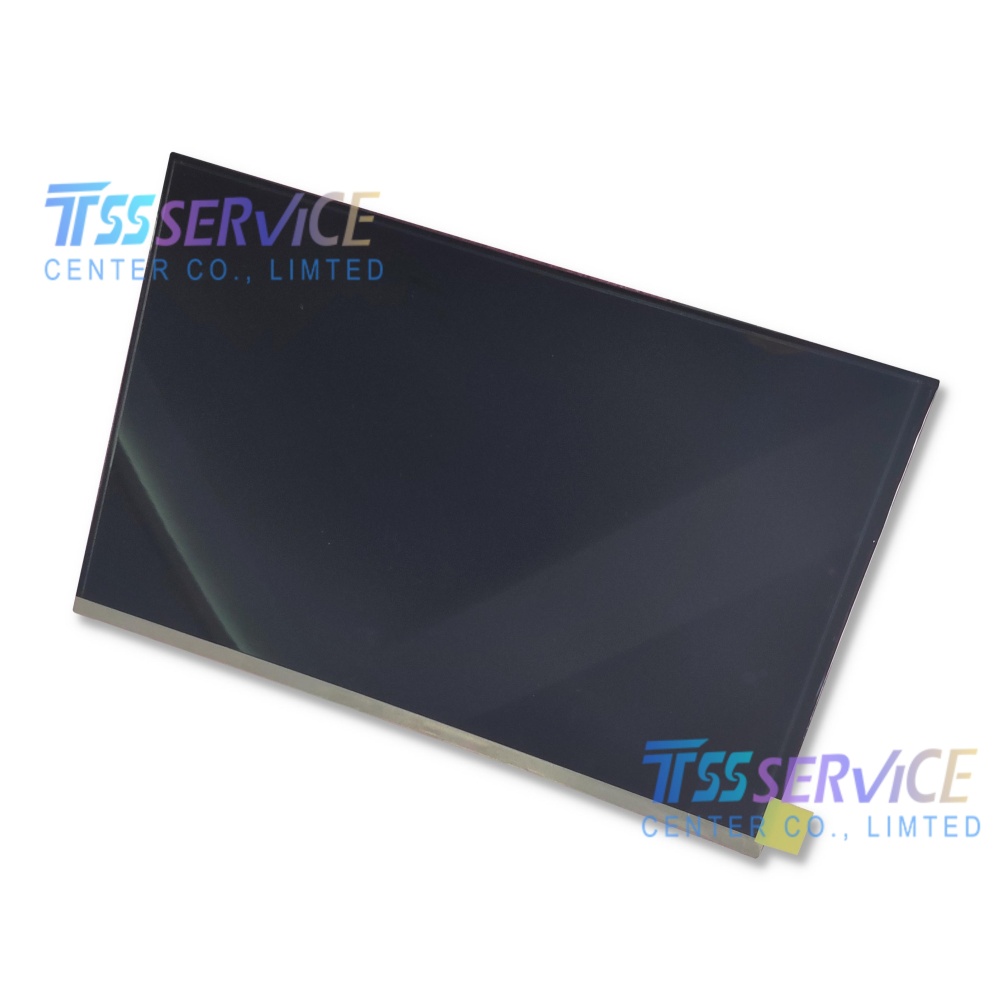

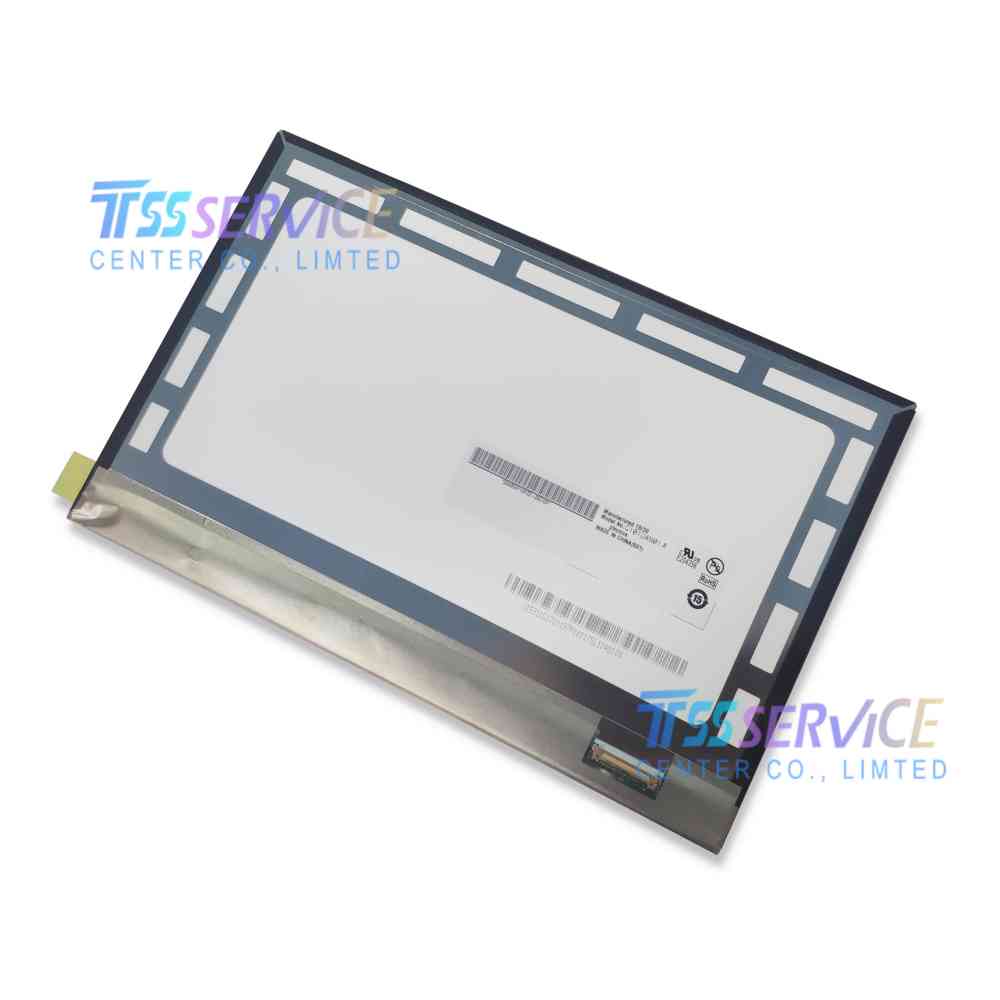

The G101UAN01.0 is a 10.1-inch a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module manufactured by AUO (AU Optronics) . This high-performance display panel features WUXGA resolution with AUO's proprietary AHVA (Advanced Hyper-Viewing Angle) technology, delivering exceptional image quality, wide viewing angles, and superior color reproduction. With its ultra-high pixel density and eDP interface, this panel is ideal for premium industrial, medical, and consumer applications requiring sharp, vibrant visuals in a compact form factor.
| Attribute |
Value |
| Brand |
AUO |
| Model P/N |
G101UAN01.0 |
| Diagonal Size |
10.1" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1920(RGB)×1200, WUXGA 224PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
216.81(W)×135.5(H) mm |
| Outline Size |
227.72(W)×147.8(H)×5.35(D) mm |
| Treatment |
Hard coating |
| Luminance |
380 cd/m² (Typ.) |
| Contrast Ratio |
800 : 1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
| Response |
25 (Typ.)(Tr+Td) ms |
| Good View at |
Symmetry |
| Work Mode |
AHVA, Normally Black, Transmissive |
| Color Depth |
16.7M 52% NTSC |
| Backlight |
WLED, 30K hours, With LED Driver |
| Mass |
140g (Max.) |
| Refresh Rate |
60Hz |
| Touchscreen |
Without |
| Signal Type |
eDP (2 Lanes), eDP1.2, 30 pins Connector |
| Voltage Supply |
3.3V (Typ.) |
| Max. Ratings |
Storage Temp.: -20 ~ 60 °C; Operating Temp.: -10 ~ 60 °C |
Applications
This high-performance display panel is ideal for:
-
Industrial tablets and rugged handheld devices
-
Medical monitors and diagnostic equipment
-
Point-of-Sale (POS) terminals and interactive kiosks
-
Aviation and in-flight entertainment systems
-
Gaming devices and high-end consumer electronics
-
Industrial control panels requiring high-resolution HMIs
-
Digital signage and information displays
-
Any application demanding sharp visuals and wide viewing angles
