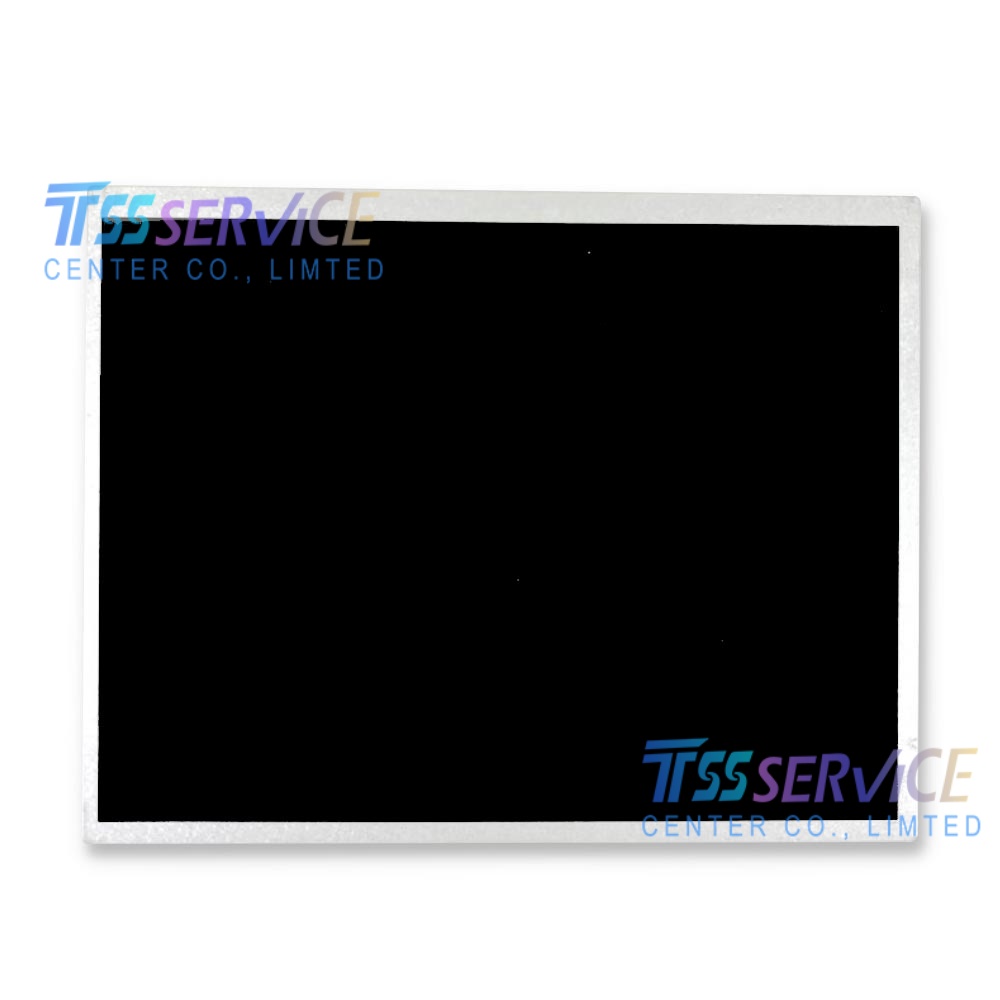

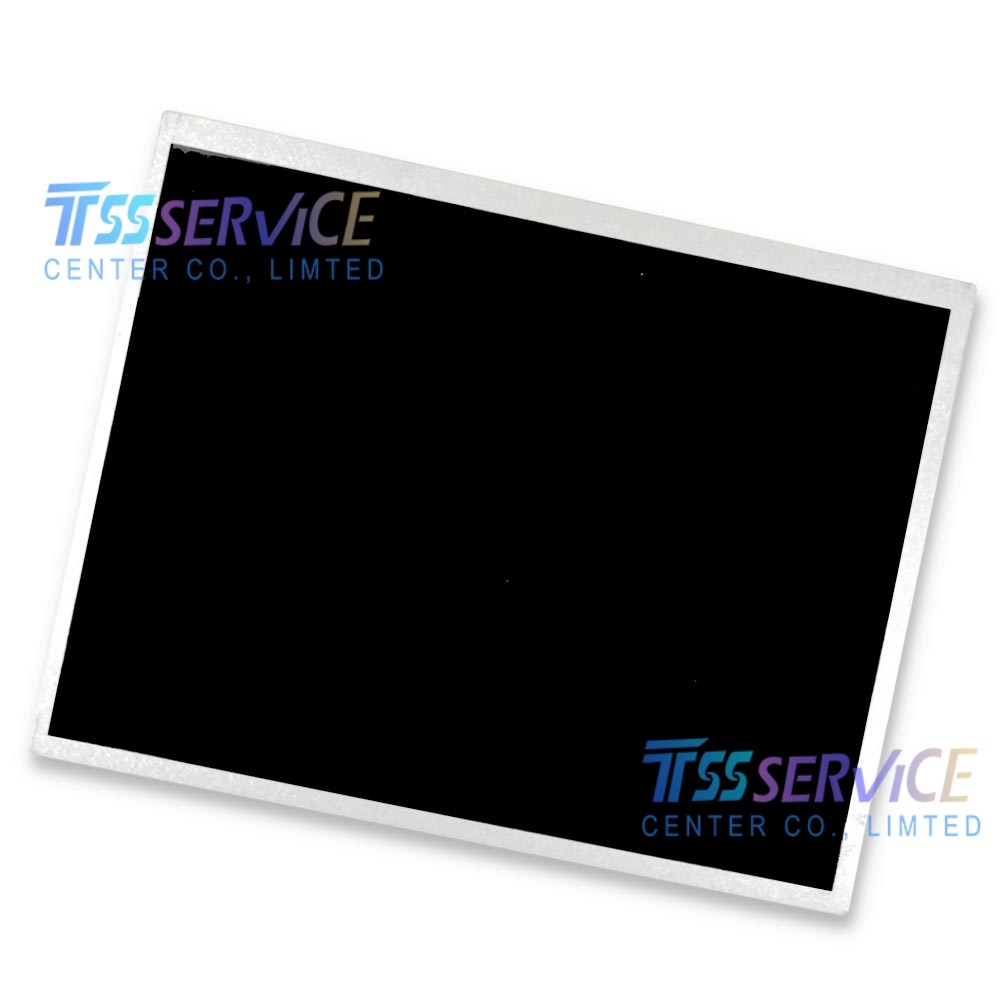

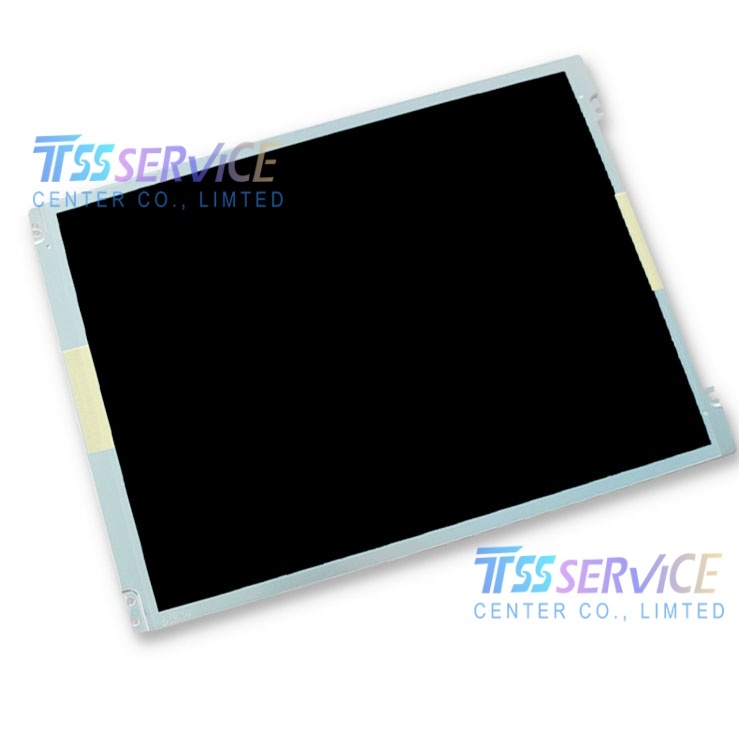

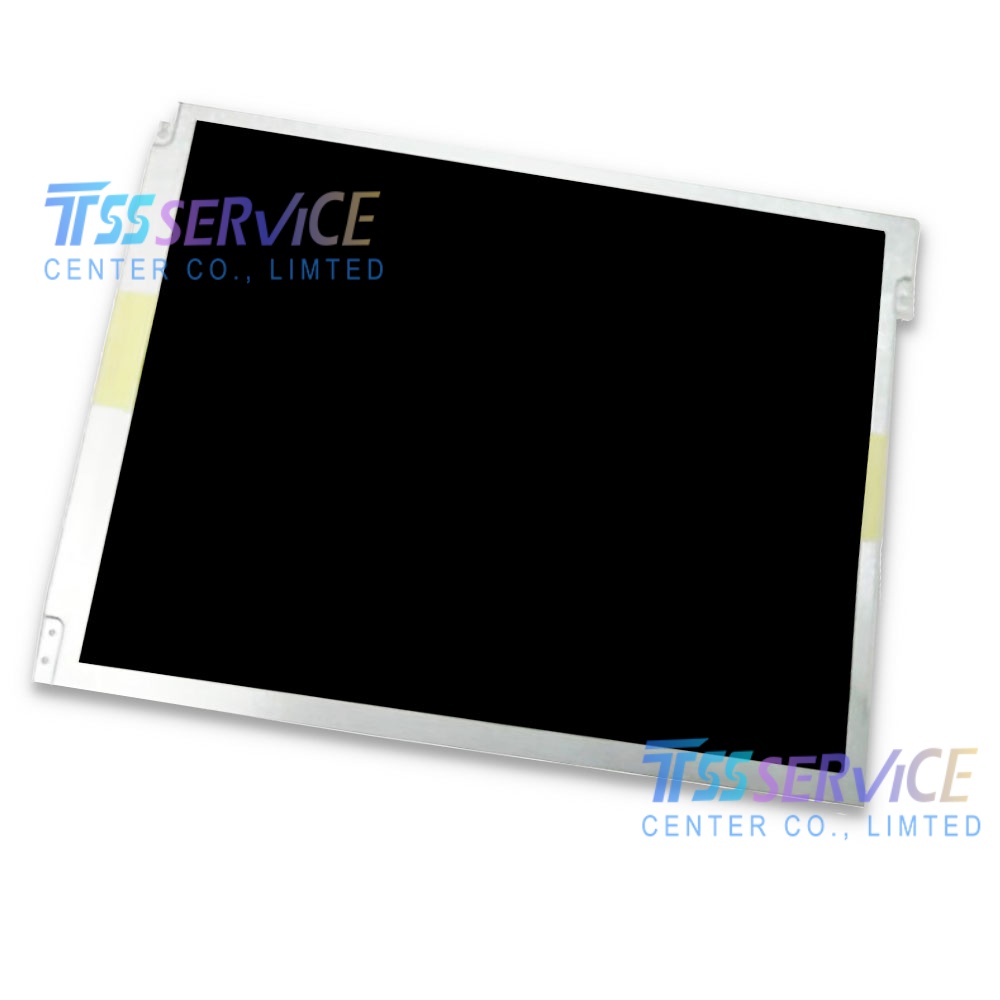

| Model Number |
G104SN01 V1 |
| Manufacturer |
AUO |
| Panel Size |
10.4 inch |
| Resolution |
800 (RGB) × 600 [SVGA] |
| Pixel Pitch |
0.264 mm (H) × 0.264 mm (V) |
| Display Type |
a-Si TFT-LCD, Transmissive, Normally White |
| Brightness |
450 ~ 500 cd/m² (Typ.) |
| Contrast Ratio |
500:1 ~ 600:1 (Typ.) |
| Viewing Angle |
70/70/55/65 (Left/Right/Up/Down) (CR≥10) |
| Color Depth |
16.2M Colors (6-bit + Dithering) or 18-bit interface |
| Interface |
LVDS (Low-Voltage Differential Signaling), 1 channel, 18-bit |
| Connector |
20-pin or 30-pin LVDS (Commonly DF19 or similar) |
| Backlight Type |
WLED (White LED) [Note: Early V0/V1 revisions sometimes used CCFL, but V1 is often LED in modern stock] |
| Backlight Life |
≥ 50,000 hours |
| Operating Temperature |
-20°C to +70°C (Standard Industrial) or -30°C to +80°C (Wide Temp version) |
| Storage Temperature |
-30°C to +80°C |
