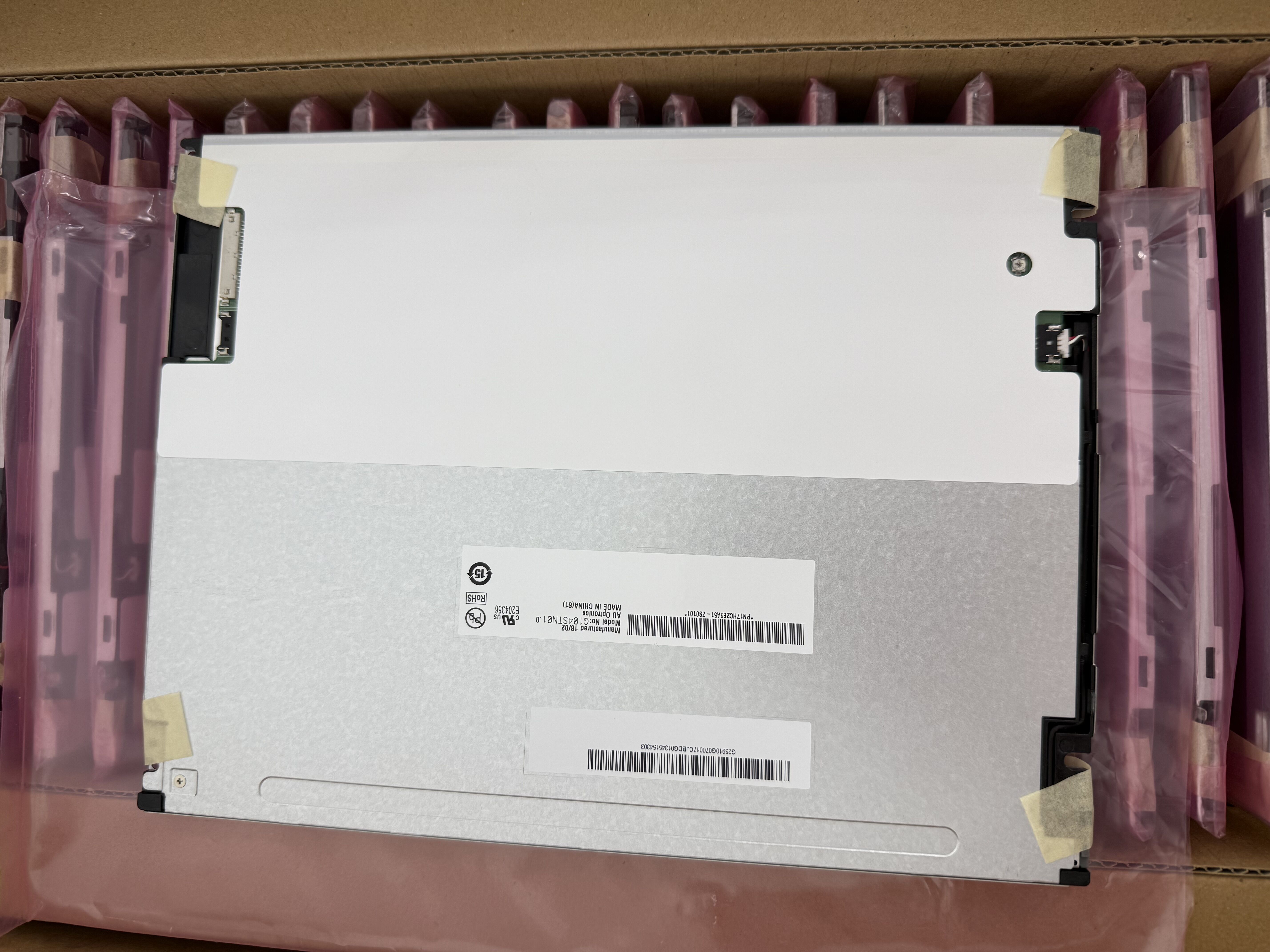

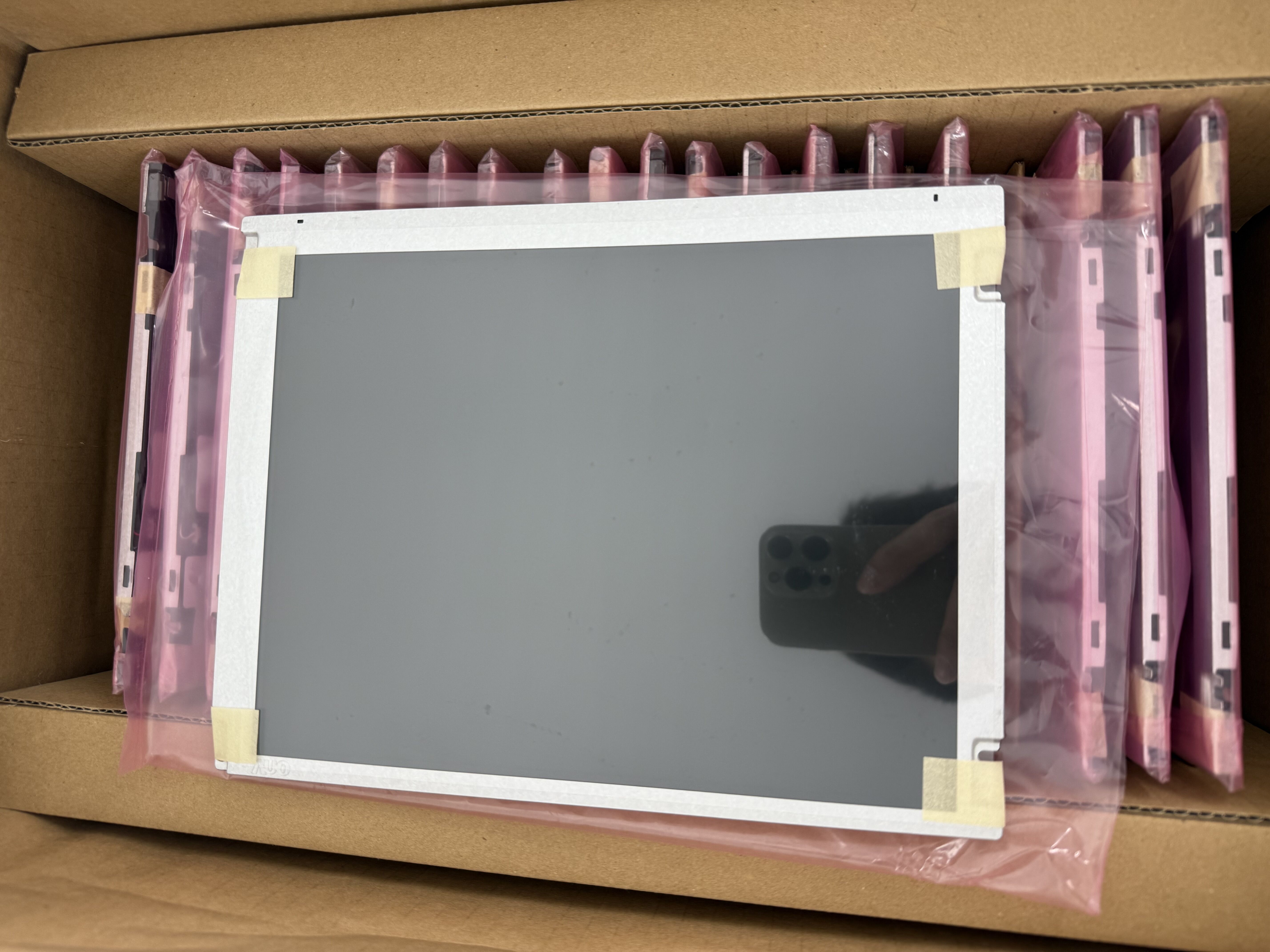

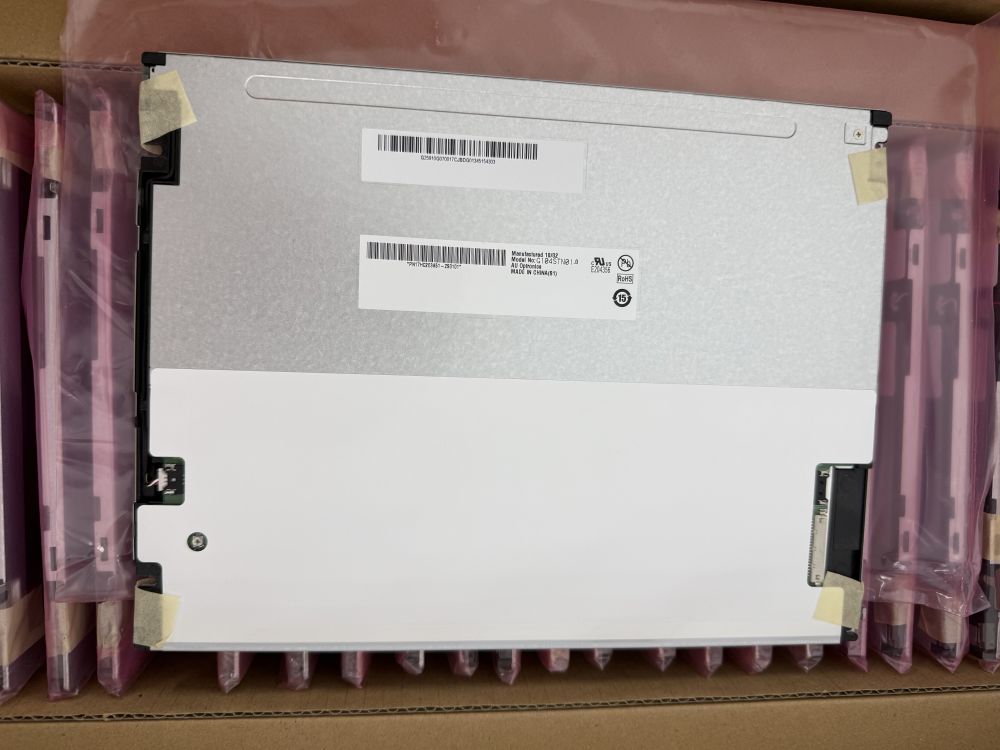

G104STN01.0 10.4inch 800×600 lcd display panel for AUO

SKU: G104STN01.0
Model P/N:G104STN01.0
Diagonal Size:10.4"
Panel Type:a-Si TFT-LCD, LCM
Resolution:800(RGB)×600, SVGA  96PPI
Pixel Format:RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$90.00 $85.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • G104STN01.0  10.4inch 800(RGB)×600 lcd display panel for AUO
  • G104STN01.0  10.4inch 800(RGB)×600 lcd display panel for AUO
  • G104STN01.0  10.4inch 800(RGB)×600 lcd display panel for AUO
  • G104STN01.0  10.4inch 800(RGB)×600 lcd display panel for AUO
1/1
  • G104STN01.0  10.4inch 800(RGB)×600 lcd display panel for AUO
  • G104STN01.0  10.4inch 800(RGB)×600 lcd display panel for AUO
  • Description
The G104STN01.0 is a high-performance 10.4-inch TFT-LCD panel manufactured by AUO, a global leader in display technology. Designed for industrial and professional applications, this panel delivers reliable and stable performance with a classic 4:3 aspect ratio display area, making it particularly well-suited for human-machine interface (HMI), medical, and industrial control systems where consistent readability and durability are paramount.

Key Specifications

Parameter Specification
Manufacturer AUO (AU Optronics)
Model G104STN01.0
Diagonal Size 10.4 inches
Resolution 800 × 600 (SVGA)
Aspect Ratio 4:3
Pixel Density 96 PPI
Pixel Pitch 0.264 × 0.264 mm
Active Area 211.2 × 158.4 mm
Outline Dimensions 243.0 × 184.0 × 6.5 mm (Typ.)
Panel Weight 365g (Typ.)
Surface Treatment Antiglare, Hard coating (3H)
Display Mode TN, Normally White, Transmissive
Brightness 400 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.)
Viewing Angle (CR≥10) 80° / 80° / 60° / 70° (L/R/U/D)
Response Time 10 / 5 ms (Tr / Td, Typ.)
Display Colors 262K / 16.2M (6-bit / 6-bit + FRC)
Color Gamut 54% NTSC
Backlight Type WLED [7S2P], 70,000 hours, with integrated LED driver
Signal Interface LVDS (1 channel, 6/8-bit), 20-pin connector
Input Voltage 3.3V (Typ.) for logic
Refresh Frequency 60Hz
Operating Temperature -30°C to +80°C
Storage Temperature -30°C to +80°C
Vibration Resistance 1.5G (14.7 m/s²)

Applications

This display is specifically designed for industrial applications, including :

  • Industrial Automation and HMIs – Factory automation equipment and PLC operator panels

  • Industrial PCs – Embedded computing and operator terminals

  • Test and Measurement Instruments – Laboratory and field testing equipment

  • Kiosks and ATM Machines – Self-service terminals requiring reliable displays

  • Renewable Energy Systems – Solar and wind power monitoring equipment
