AUO 10.4 inch 800×600 G104STN01.5 LCD Display Screen For Industrial

Name: AUO 10.4 inch 800×600 G104STN01.5 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G104STN01.5
Price: 140 USD
Availability: InStock

SKU: G104STN01.5

Model: G104STN01.5（AUO）
Diagonal Size: 10.4 inch
Resolution: 800×600 SVGA（4:3）
Panel Type: a-Si TFT‑LCD, TN, Normally White, Transmissive

0.0 (0 Reviews)

0 Sold

~~$145.00~~ $140.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

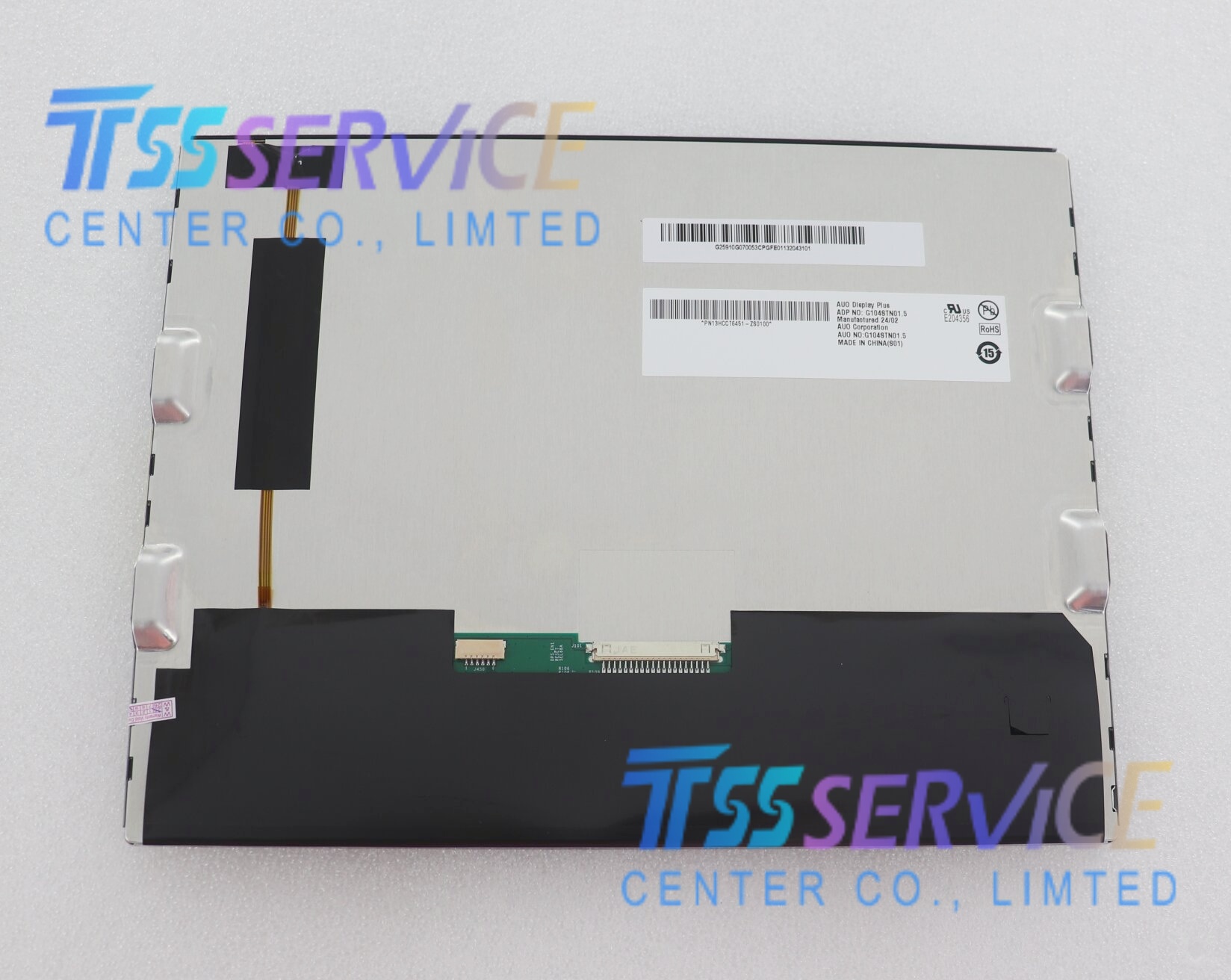

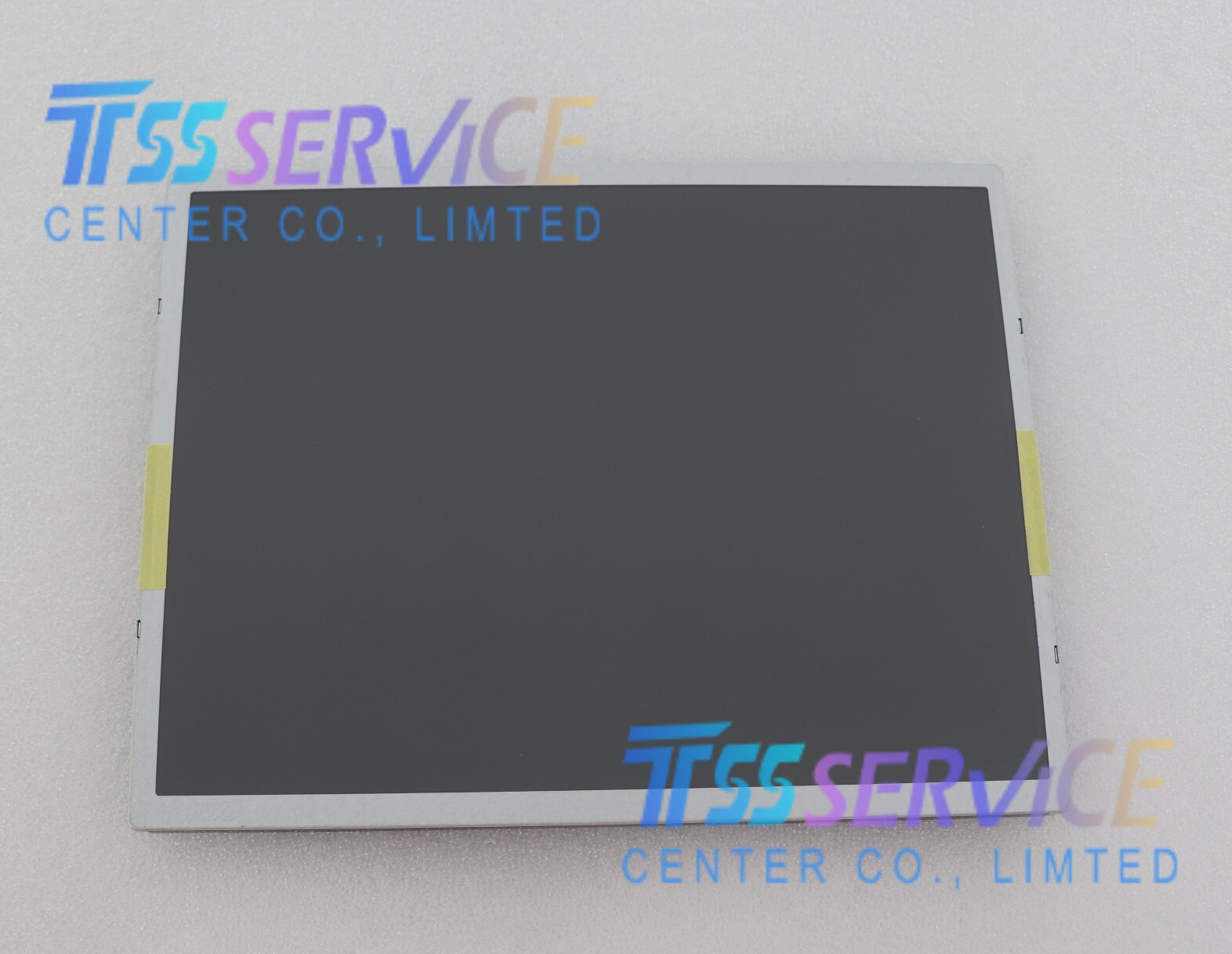

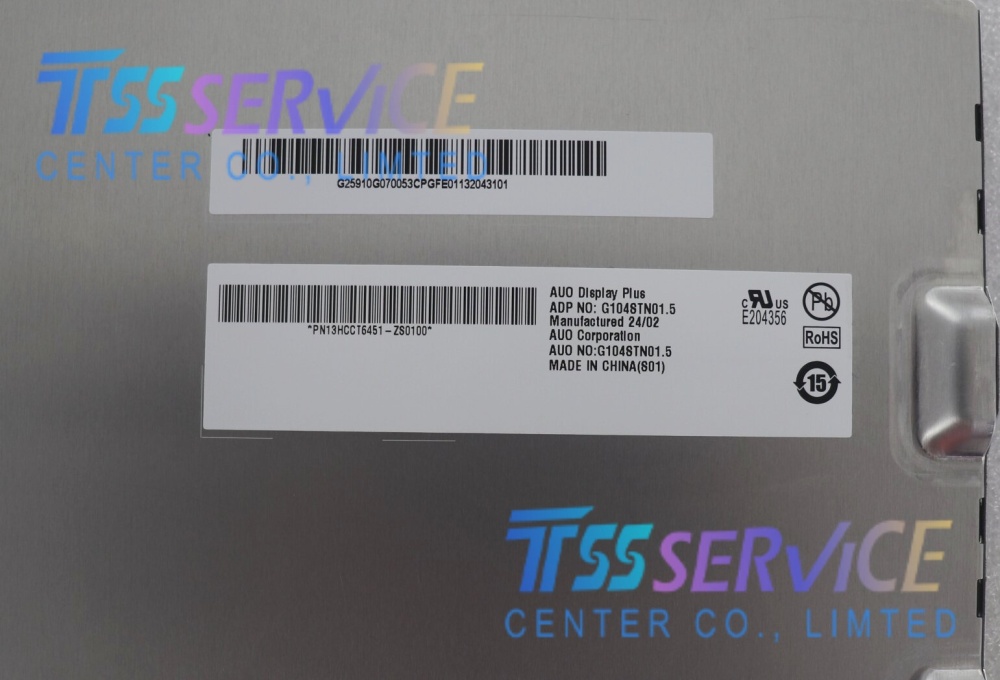

AUO 10.4 inch 800×600 G104STN01.5 LCD Display Screen For Industrial

Parameter	Specification
Model	G104STN01.5（AUO）
Diagonal Size	10.4 inch
Resolution	800×600 SVGA（4:3）
Panel Type	a-Si TFT‑LCD, TN, Normally White, Transmissive
Brightness	500 cd/m²（Typ.）
Contrast Ratio	700:1（Typ.）
Viewing Angle	80/80/60/70（L/R/U/D, CR≥10）
Active Area	211.2 × 158.4 mm
Outline Dimension	243.0 × 184.0 × 6.5 mm（approx.）
Dot Pitch	0.264 × 0.264 mm
Color Depth	262K colors（6‑bit）

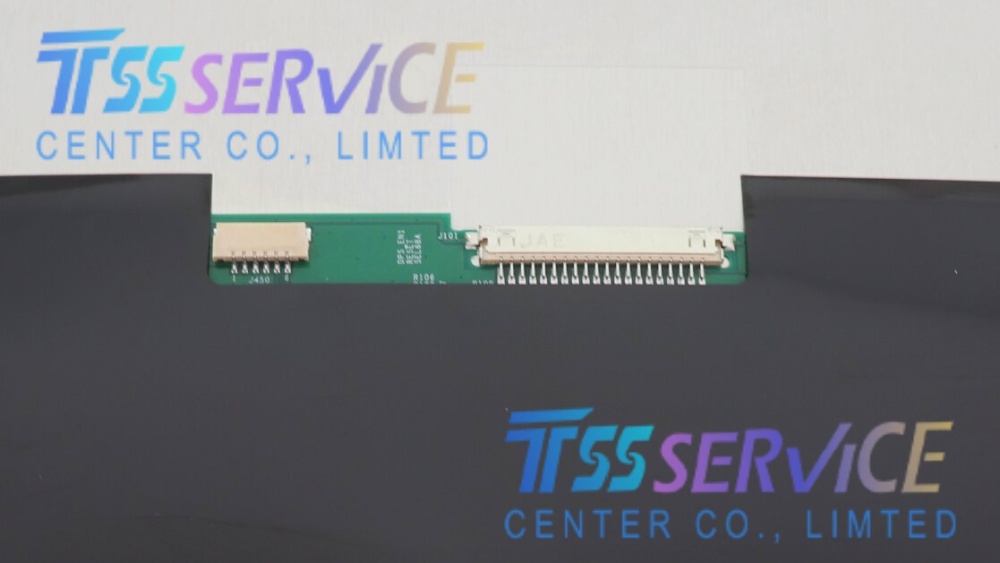

Interface	LVDS（1 ch, 6/8‑bit）, 20‑pin connector
Backlight	WLED, 50,000 hrs lifespan, with LED driver
Operating Temp	−20°C ~ +70°C
Storage Temp	−30°C ~ +80°C
Surface Treatment	Matte（3H hard coating）
Touch Panel	Without touch
Compliance	RoHS certified

Applications（英文应用场景）

Industrial HMI & Control: PLC panels, CNC machine tools, factory automation terminals
Medical Devices: Diagnostic equipment, patient monitors, laboratory analyzers
Smart Transportation: Vehicle dashboards, fleet management displays, railway control panels
Retail & Kiosks: Industrial POS, vending machines, self‑service ticketing systems
Instrumentation & Testing: Industrial meters, data loggers, environmental monitoring devices
Marine & Rugged Systems: Boat instrumentation, outdoor industrial terminals（sheltered）
