Home > LCD Display > AUO > 10.4" > G104VTN01.0

1/1

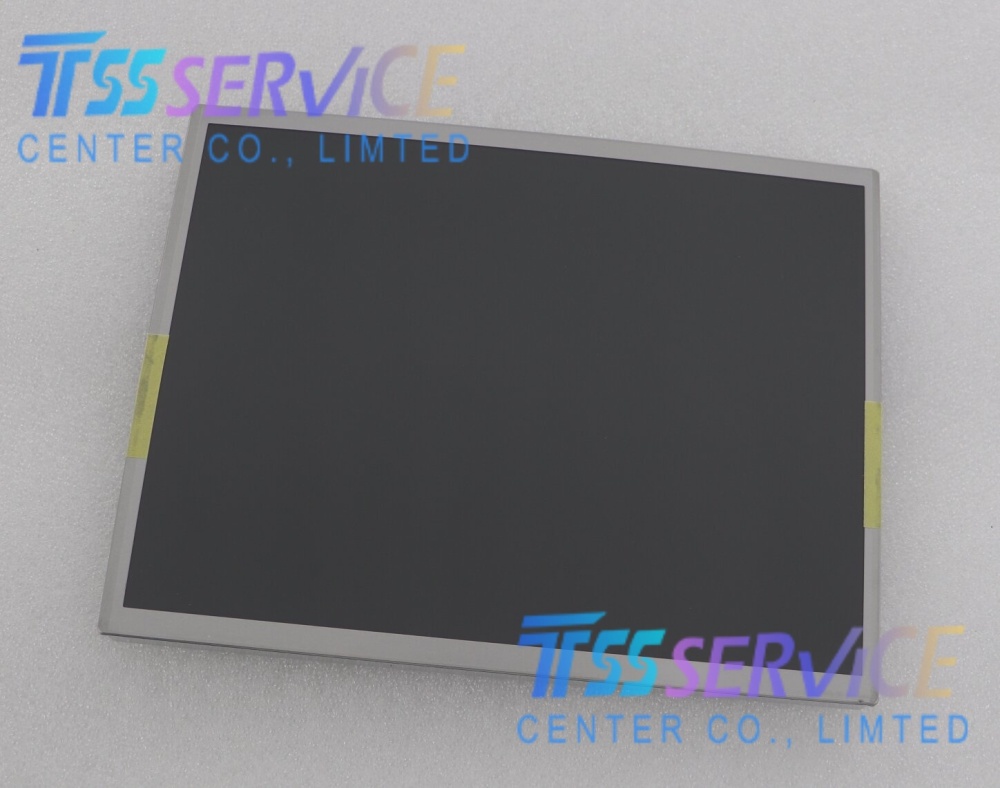

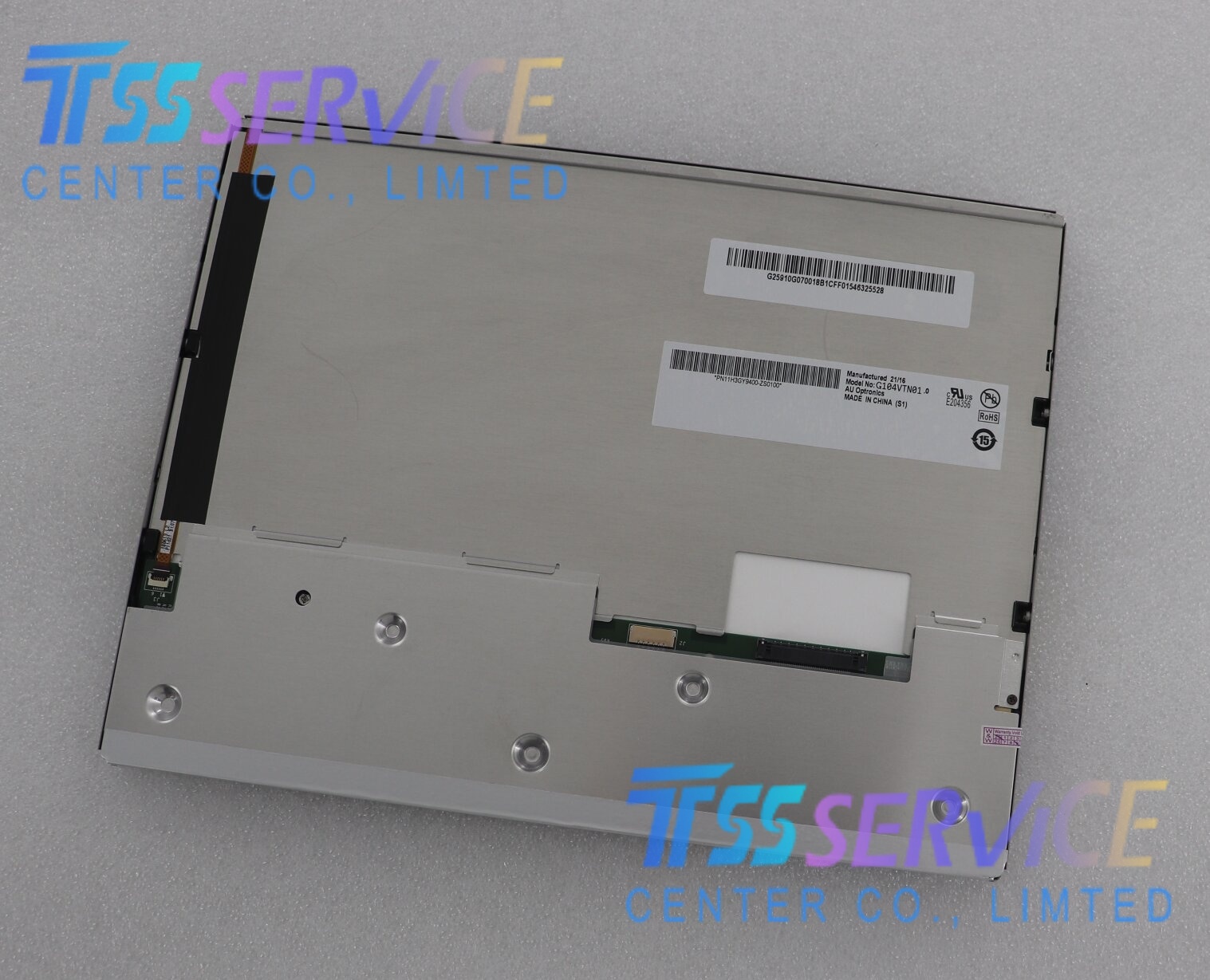

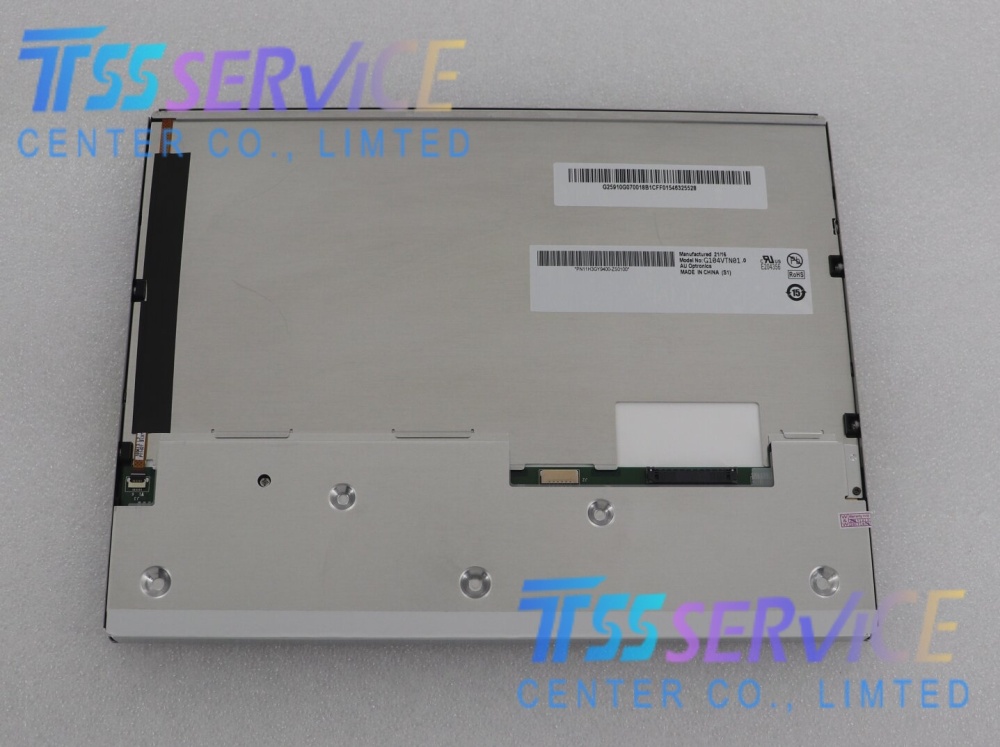

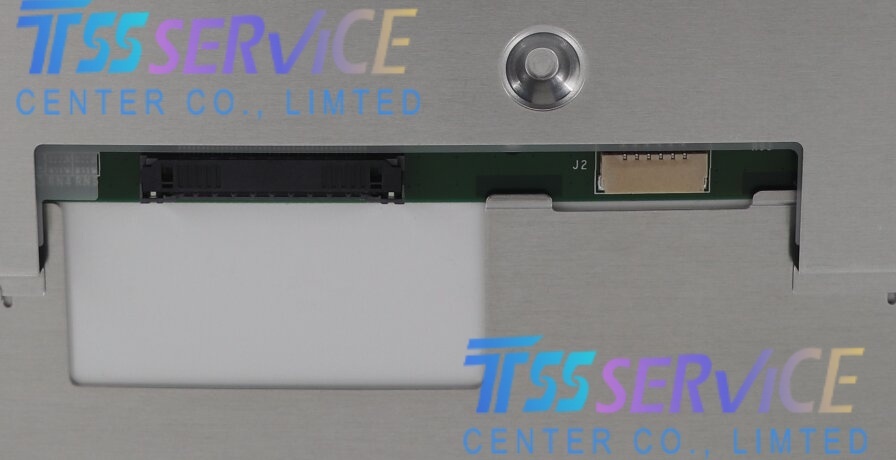

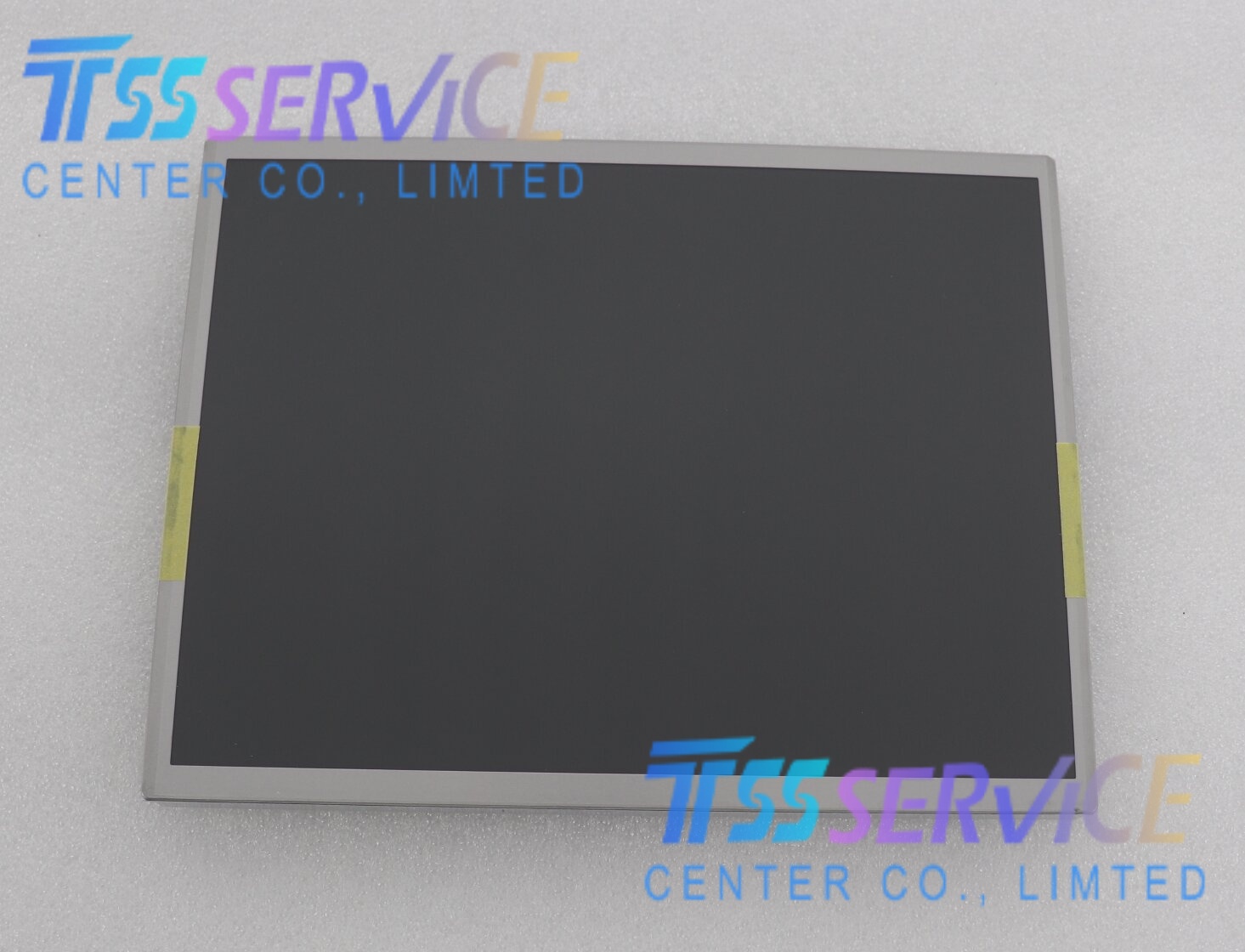

G104VTN01.0 AUO 10.4 inch 640×480 LCD Panel for Industrial Machine

Name: G104VTN01.0 AUO 10.4 inch 640×480 LCD Panel for Industrial Machine
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G104VTN01.0
Price: 230 USD
Availability: InStock

SKU: G104VTN01.0

Model P/N: G104VTN01.0
Diagonal Size: 10.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480, VGA 76PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$235.00~~ $230.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

G104VTN01.0 AUO 10.4 inch 640×480 LCD Panel for Industrial Machine

Parameter	Details
Manufacturer	AU Optronics (AUO)
Model Number	G104VTN01.0
Panel Type	a-Si TFT-LCD, TN, Normally White, Transmissive
Diagonal Size	10.4 inch
Resolution	640 × 480 (VGA), 4:3
Active Area	211.2(W) × 158.4(H) mm
Outline Dimensions	227.3(W)×177.5(H) ×9.8(D) mm
Pixel Pitch	0.330 × 0.330 mm
Surface	Anti-Glare (AG), Hard Coating 3H
Brightness (Typ.)	370 cd/m²
Contrast Ratio (Typ.)	700:1
Viewing Angle (CR≥10)	80/80/60/80 (L/R/U/D)
Display Colors	262K (6-bit)
Response Time (Typ.)	20 ms (Tr) / 10 ms (Td)
Backlight	WLED, 70K hours lifetime, With LED driver
Signal Interface	LVDS (1 channel, 6-bit), 20-pin connector
Supply Voltage	3.3V
Operating Temperature	-30°C ~ +80°C
Storage Temperature	-30°C ~ +80°C
Touch Panel	None (Optional)
RoHS	Compliant
Application Grade	Industrial Grade
