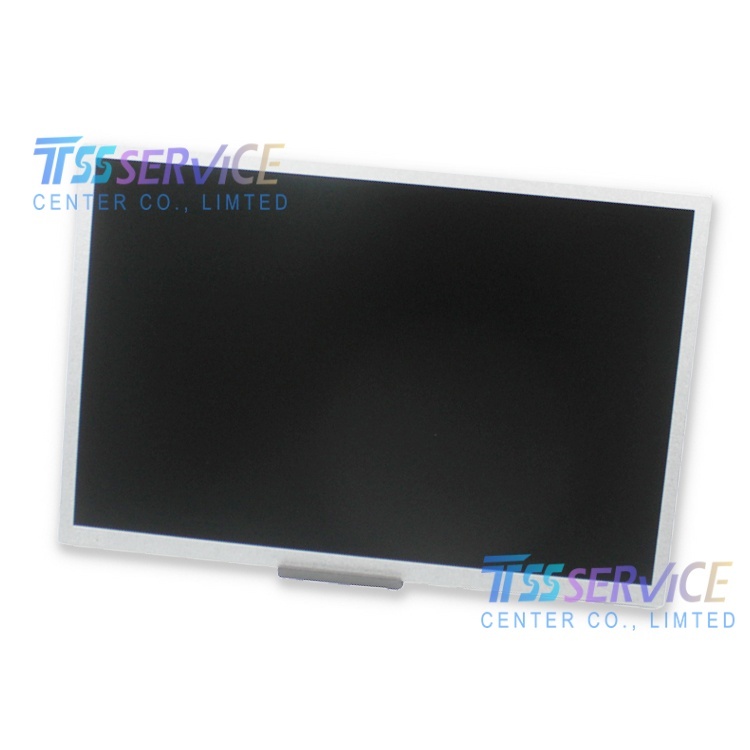

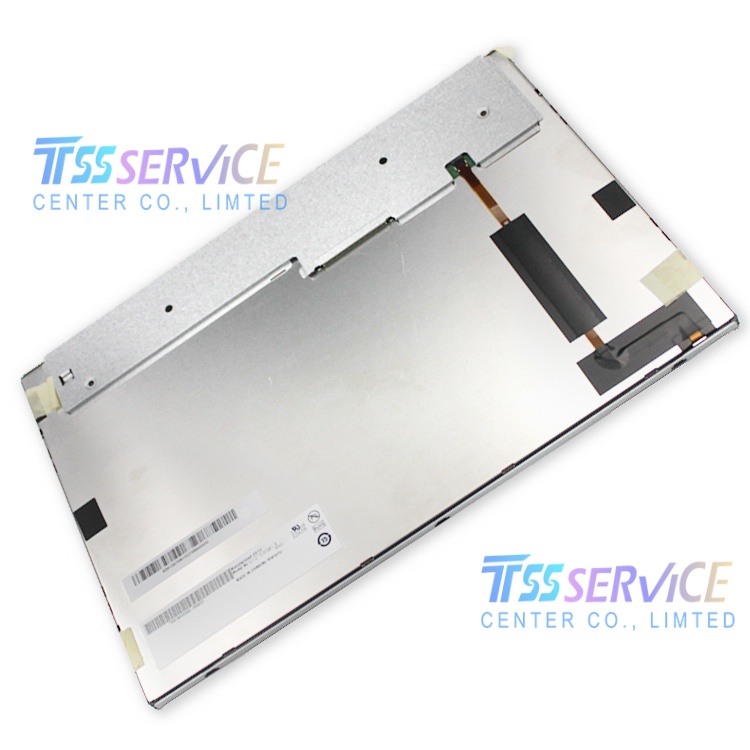

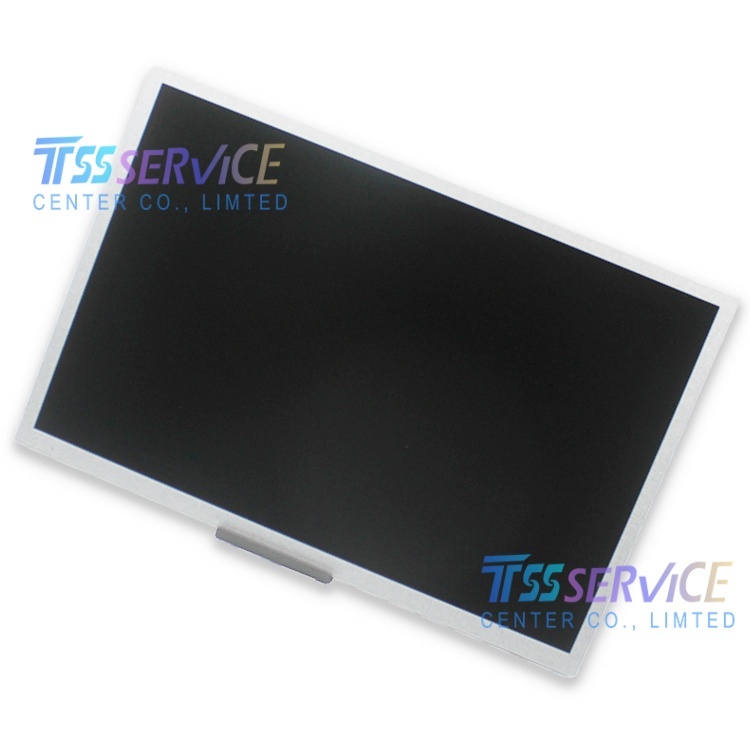

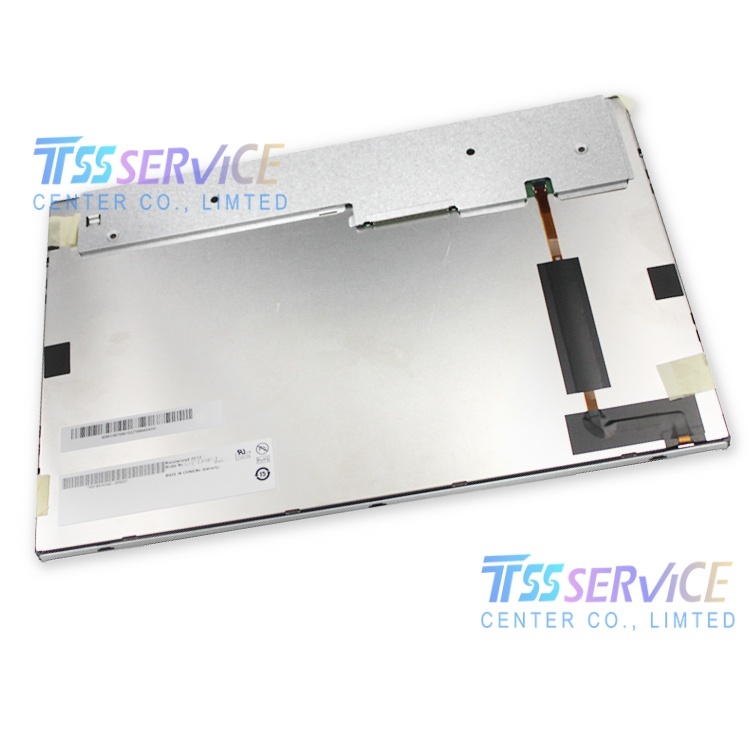

G121EAN01.1 12.1inch 1280(RGB)×800 lcd display panel for AUO

Name: G121EAN01.1 12.1inch 1280(RGB)×800 lcd display panel for AUO
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G121EAN01.1
Price: 98 USD
Availability: InStock

SKU: G121EAN01.1

Model P/N: G121EAN01.1
Diagonal Size: 12.1"
Panel Type: a-Si TFT-LCD, LCM
Resolution:1280(RGB)×800, WXGA 124PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $98.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The AUO G121EAN01.1 is a high-performance 12.1-inch LCD (Liquid Crystal Display) panel designed to deliver sharp visuals and reliable performance for a wide range of industrial, commercial, and embedded applications.

Feature	Specification
Model	G121EAN01.1
Brand	AU Optronics (AUO)
Screen Size	12.1 inches (diagonally)
Active Area	261.12 × 163.20 mm
Resolution	1280 (RGB) × 800 pixels (WXGA)
Display Technology	a-Si TFT-LCD, Transmissive
Surface Treatment	Anti-Glare, Hard Coating (3H)
Brightness (Typ.)	400 cd/m² (Typ.)
Contrast Ratio (Typ.)	1000:1 (Typ.) (TM)
Viewing Angle (CR≥10)	89/89/89/89 (Typ.)(CR≥10)
Response Time (Typ.)	25 ms (Tr + Td)
Backlight Type	WLED, Edge-lit
Backlight Lifetime	50,000 hours (Typ.)
Interface	LVDS (1 ch, 6/8-bit) , 30 pins Connector
Power Supply (VCC)	3.3 V (Typ.)
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Weight (Typ.)	Approx. 320 g
