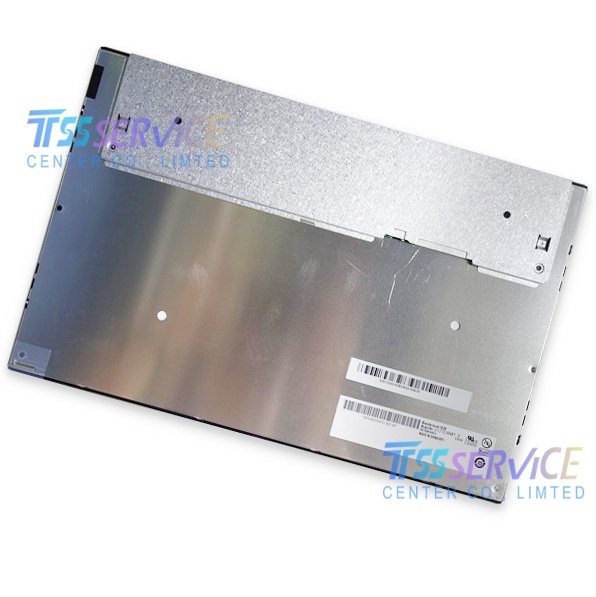

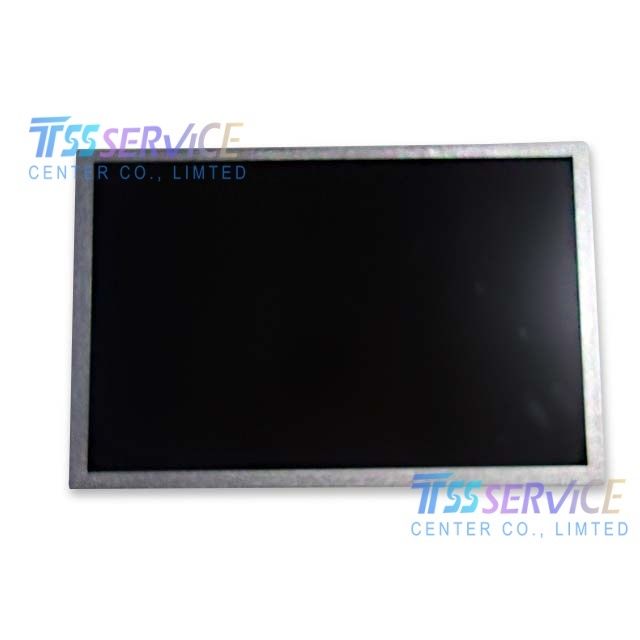

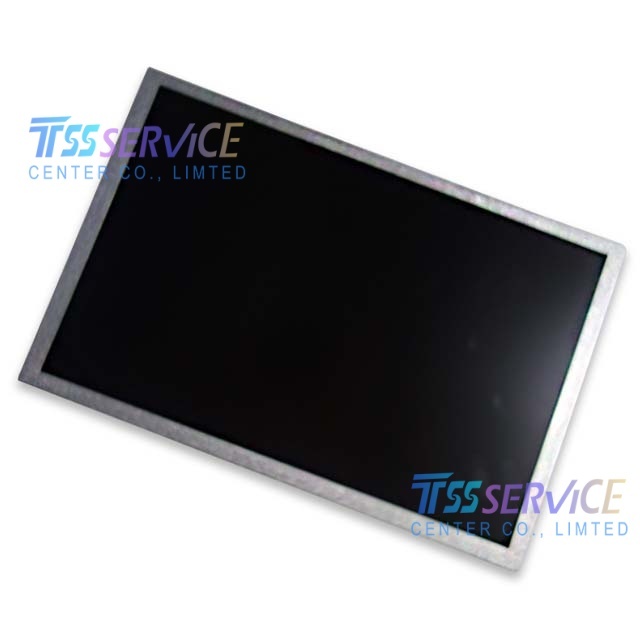

The G121EAN01.3 is a 12.1-inch a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module manufactured by AUO (AU Optronics). This high-performance display is designed specifically for industrial applications and outdoor high-brightness environments where superior readability under direct sunlight is essential
| Brand |
AUO |
| Model P/N |
G121EAN01.3 |
| Diagonal Size |
12.1" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1280(RGB)×800, WXGA 124PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
261.12(W)×163.2(H) mm |
| Bezel Opening |
264.22(W)×168.12(H) mm |
| Outline Size |
283(W)×185.1(H) ×9.9(D) mm |
| Surface |
Antiglare, Hard coating (3H) |
| Brightness |
1500 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
| Display Mode |
AHVA, Normally Black, Transmissive |
| Best View on |
Symmetry |
| Response Time |
25 (Typ.)(Tr+Td) |
| Display Colors |
262K/16.2M 99% sRGB |
| Lamp Type |
WLED, 50K hours, Without Driver |
| Frequency |
60Hz |
| Touch Screen |
Without |
| Weight |
490g (Max.) |
| Signal Interface |
LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Input Voltage |
3.3V (Typ.) |
| Environment |
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
Applications
This display panel is ideal for:
-
Industrial equipment and control panels
-
Outdoor kiosks and information terminals
-
Charging stations (EV charging piles)
-
Advertising machines and digital signage
-
Transportation equipment (railway, mining vehicle terminals)
-
Payment machines and self-service terminals
-
Any environment requiring sunlight readability and wide temperature operation
