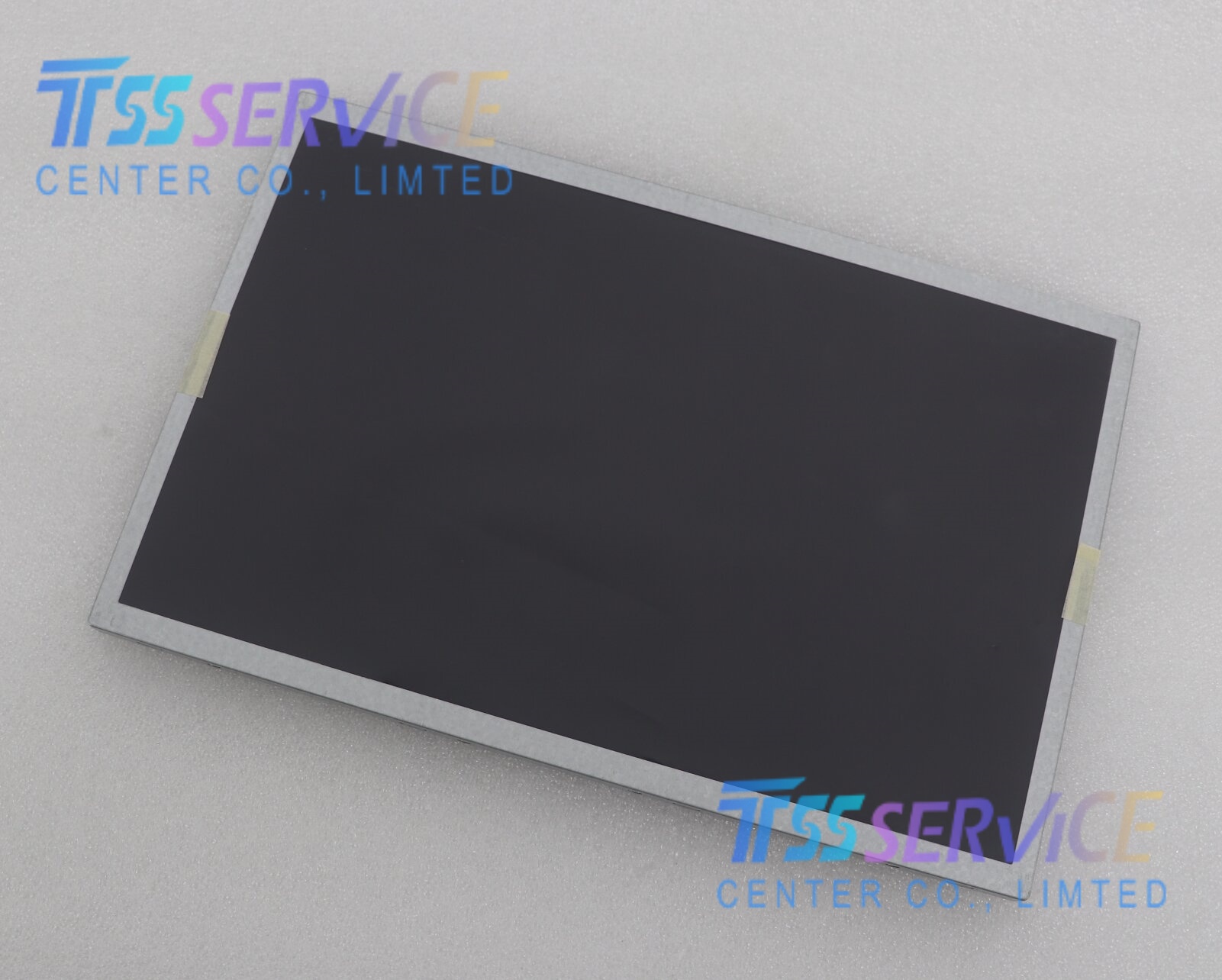

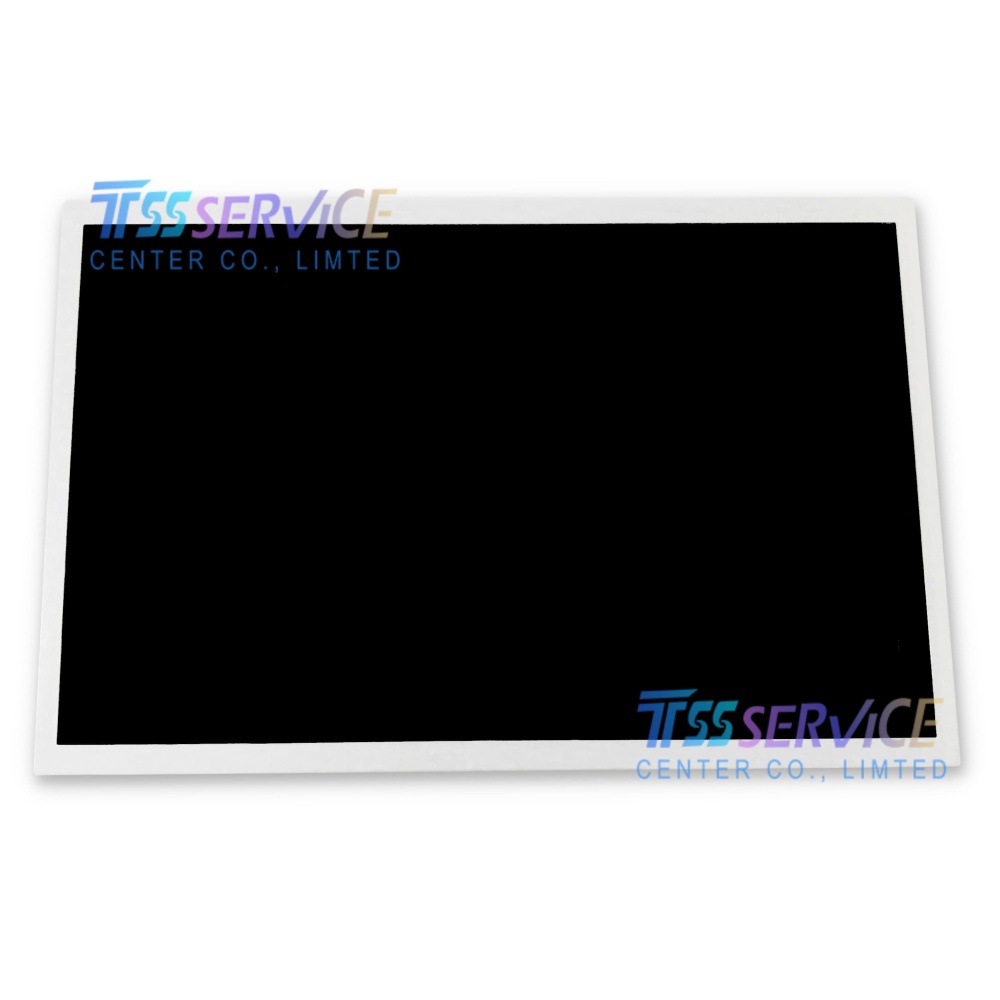

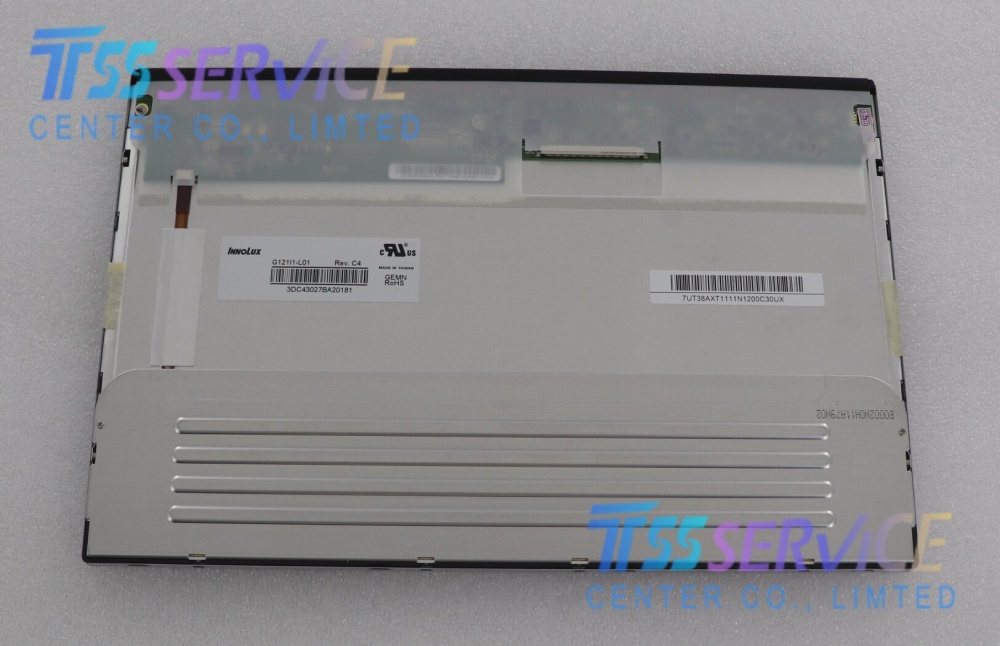

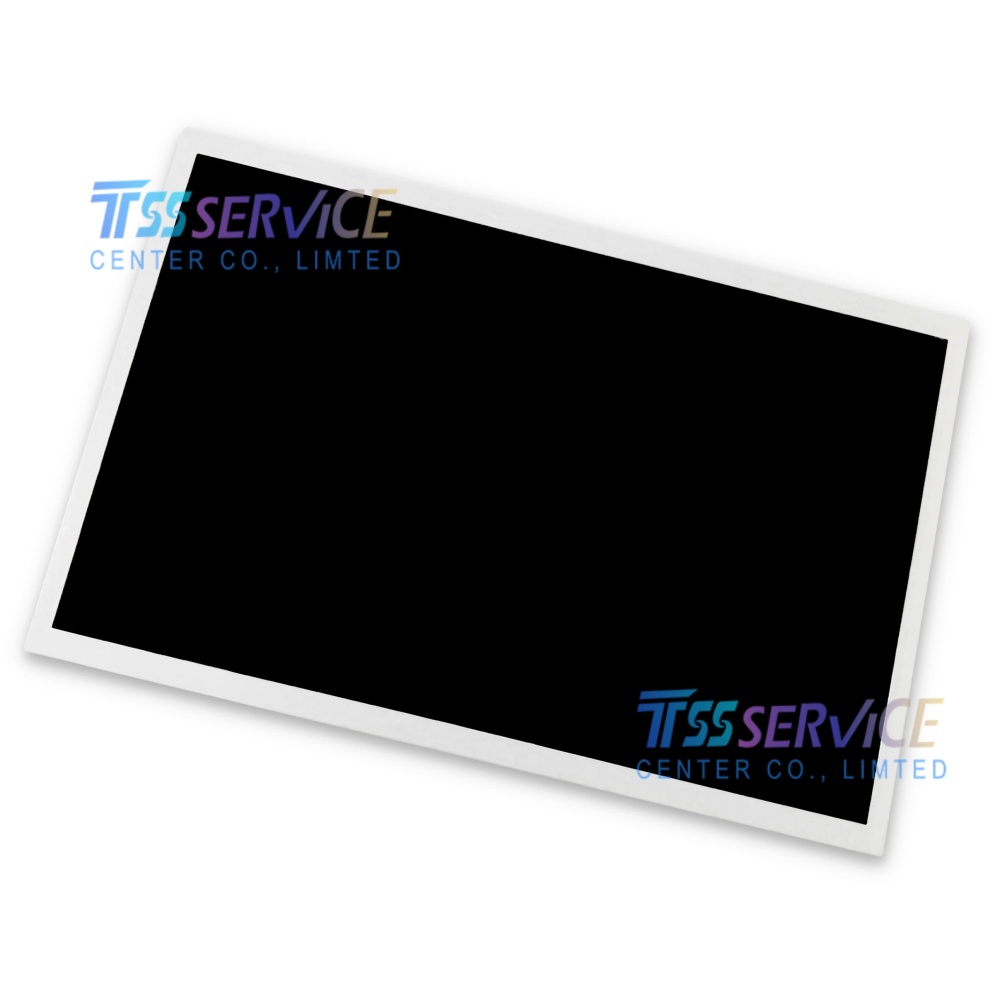

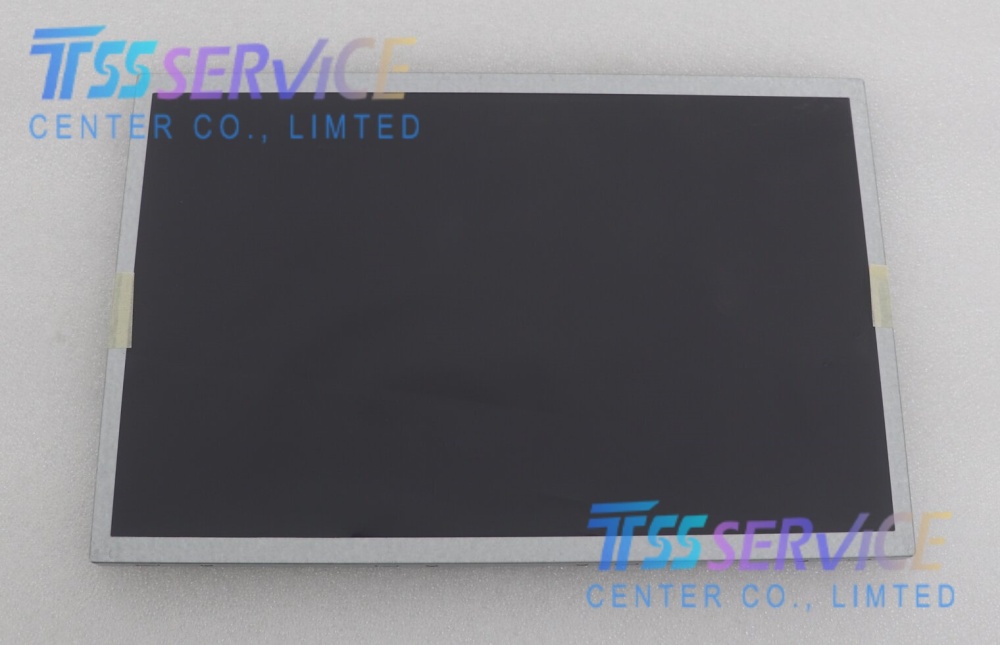

G121I1-L01 REV.C4 12.1 inch 1280(RGB)×800 LCD Panel Screen Display for Innolux
| Parameter |
Value |
Unit |
| Manufacturer |
Innolux (CMO) |
- |
| Model |

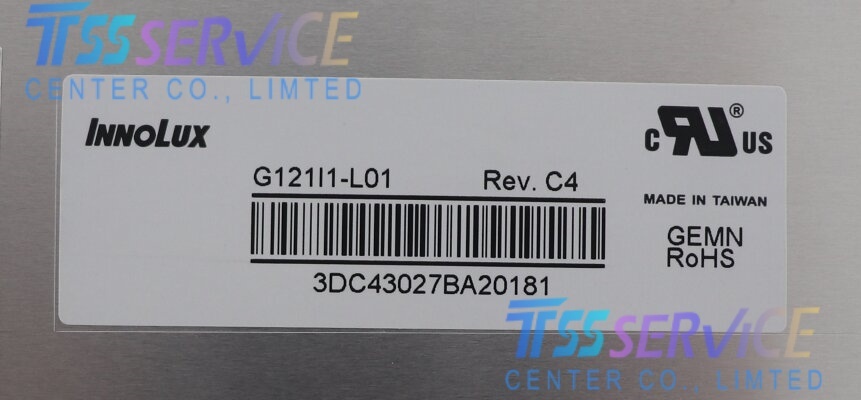

G121I1-L01 REV.C4 |
- |
| Display Type |
a-Si TFT-LCD, MVA, Normally Black, Transmissive |
- |
| Diagonal Size |
12.1 |
inch |
| Resolution |
1280(RGB) × 800 (WXGA) |
pixels |
| Aspect Ratio |
16:10 |
- |
| Pixel Density |
124 |
PPI |
| Pixel Pitch |
0.204(H) × 0.204(V) |
mm |
| Pixel Configuration |
RGB Vertical Stripe |
- |
| Active Area |
261.12(W) × 163.20(H) |
mm |
| Outline Dimension |
278.0(W) × 184.0(H) × 10.0(Typ.) |
mm |
| Brightness |
400 |
cd/m² (Typ.) |
| Contrast Ratio |
1000:1 |
(Typ.) |
| Response Time |
15(Tr) / 10(Td) / 25(Tr+Td) |
ms (Typ.) |
| Viewing Angle |
88/88/88/88 (L/R/U/D) |
degree (Typ., CR≥10) |
| Color Depth |
262K / 16.2M |
colors |
| Color Gamut |
~45% NTSC |
- |
| Backlight |
White LED (WLED, 9S3P side-lit) |
- |
| Backlight Lifetime |
50,000 |
hrs (Typ.) |
| Interface |
30-pin LVDS |
- |
| Frame Rate |
60 |
Hz |
| Power Consumption |
10.15 (Max.) |
W (Total: Panel 1.65W + BL 8.5W) |
| Operating Temperature |
-10 to +70 |
°C |
| Storage Temperature |
-20 to +80 |
°C |
| Surface Treatment |
Anti-Glare (AG), 3H Hard Coating |
- |
| Weight |
455 |
g (Typ.) |
| Touch Panel |
None |
- |
| Production Status |
Discontinued |
- |
G121I1-L01 REV.C4 is a 12.1-inch industrial-grade WXGA MVA TFT-LCD module with wide viewing angles and anti-glare surface, widely used in industrial, embedded, and commercial display scenarios:
- Industrial Control & HMI
- Industrial human-machine interfaces (HMI), factory automation control panels, PLC operation terminals, and industrial monitoring workstations.
- Medical & Healthcare Equipment
- Medical diagnostic displays, bedside patient monitors, and portable medical instrument screens requiring stable color and wide viewing angles.
- Commercial & Self-Service Terminals
- ATM/POS machines, self-service kiosks, information inquiry terminals, and indoor digital signage.
- Automotive & Transportation
- In-car navigation systems, vehicle-mounted DVD players, and automotive infotainment auxiliary displays.
- Marine & Outdoor Instruments
- Marine navigation monitors, outdoor measurement equipment, and vehicle-mounted data display terminals.
- Embedded & Legacy Systems
- Retrofit displays for industrial equipment, workstation monitors, and AV application display terminals.
