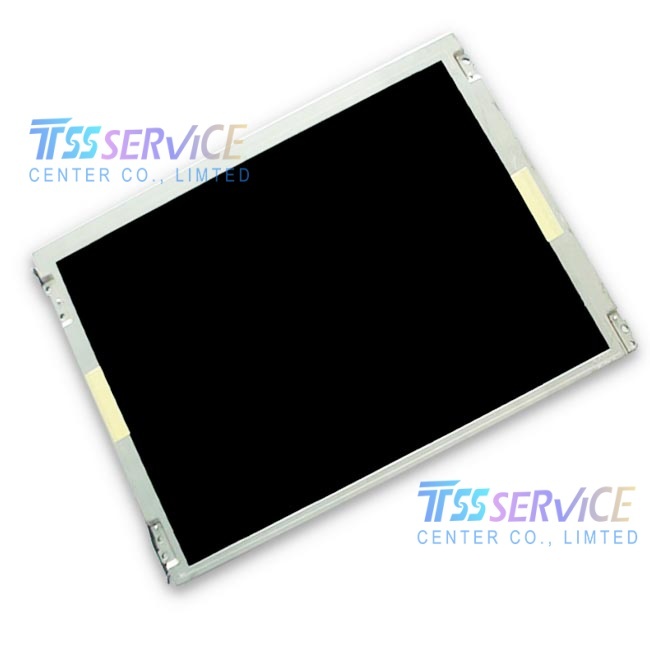

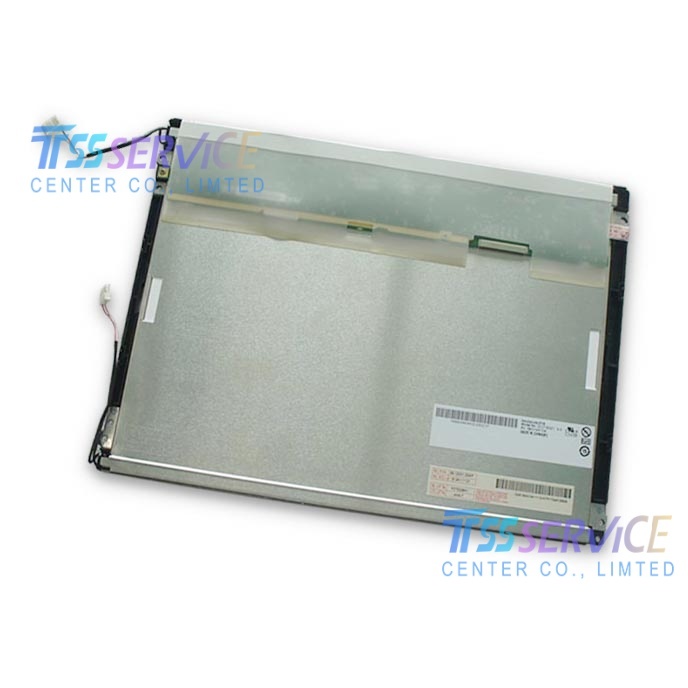

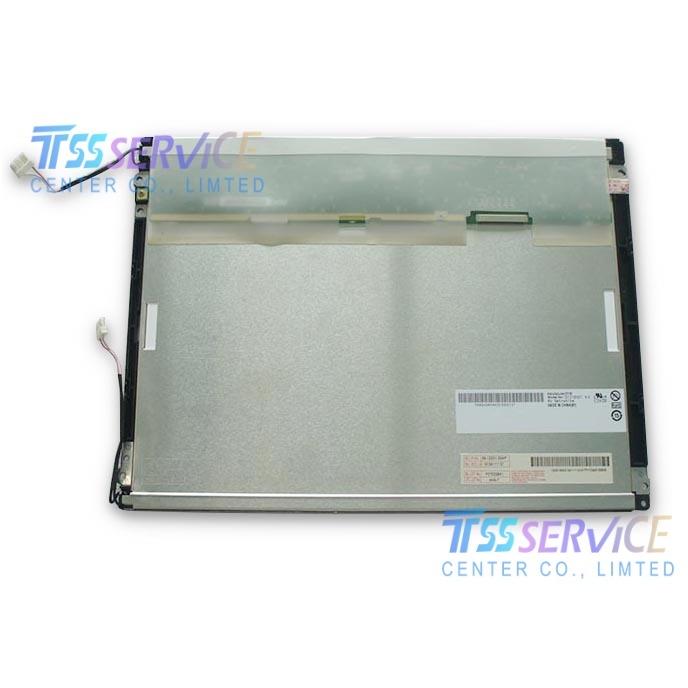

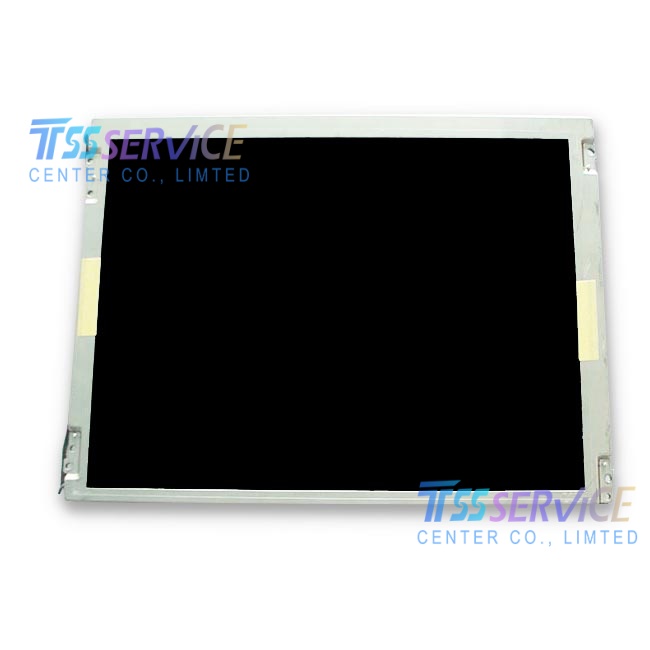

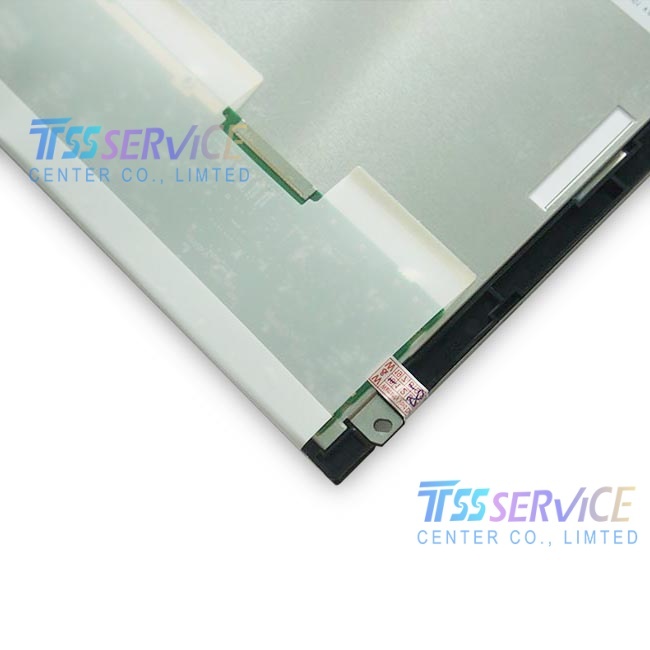

AUO G121SN01 V3 12.1 inch 640*480 a-Si TFT-LCD G121SN01 V.3 for Industrial

Name: AUO G121SN01 V3 12.1 inch 640*480 a-Si TFT-LCD G121SN01 V.3 for Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G121SN01 V3
Price: 76 USD
Availability: InStock

SKU: G121SN01 V3

Model P/N : G121SN01 V3
Diagonal Size: 12.1"
Panel Type: a-Si TFT-LCD,
Resolution ：800(RGB)×600, SVGA 82PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $76.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AUO G121SN01 V3 12.1 inch 640*480 a-Si TFT-LCD G121SN01 V.3 for Industrial

Parameter	Specification
Model Number	G121SN01 V3
Manufacturer	AUO
Panel Size	12.1 inch
Resolution	800 (RGB) × 600 [SVGA]
Pixel Pitch	0.3075 mm (H) × 0.3075 mm (V)
Display Type	a-Si TFT-LCD, Transmissive, Normally White
Brightness	500 cd/m² (Typ.) - High Brightness
Contrast Ratio	700:1 (Typ.)
Viewing Angle	80/80/80/80 (Left/Right/Up/Down) (CR≥10)
Color Depth	16.2M Colors (6-bit per color + Dithering) or 18-bit interface
Interface	LVDS (Low-Voltage Differential Signaling), 1 channel, 18-bit
Backlight Type	WLED (White LED)
Backlight Life	≥ 50,000 hours (to 50% brightness)
Operating Temperature	-30°C to +80°C (Wide Temperature)
Storage Temperature	-40°C to +90°C

Specific Applications

The G121SN01 V3 is a versatile SVGA display known for its wide operating temperature range (-30°C to +80°C) and high brightness, making it a standard choice for demanding environments:

Industrial Automation & Control:
- Widely used in Human-Machine Interfaces (HMI) for factory automation, CNC machine control panels, and robotic system monitors where reliability under temperature stress is critical.
Transportation Systems:
- Ideal for railway signaling displays, onboard passenger information systems (PIS), and marine navigation instruments that require visibility in direct sunlight and operation in unheated/cooled vehicle cabins.
Medical Equipment:
- Integrated into patient monitoring stations, mobile medical carts, and diagnostic devices where consistent image quality and long LED backlight life are essential for 24/7 operation.
Outdoor Kiosks & ATMs:
- Deployed in self-service terminals located in semi-outdoor environments (e.g., gas stations, drive-throughs) due to its 500 nits brightness and anti-glare surface treatment.
Test & Measurement:
- Used in portable field testing equipment and data loggers for the energy and utility sectors, capable of withstanding extreme weather conditions during field deployment.
