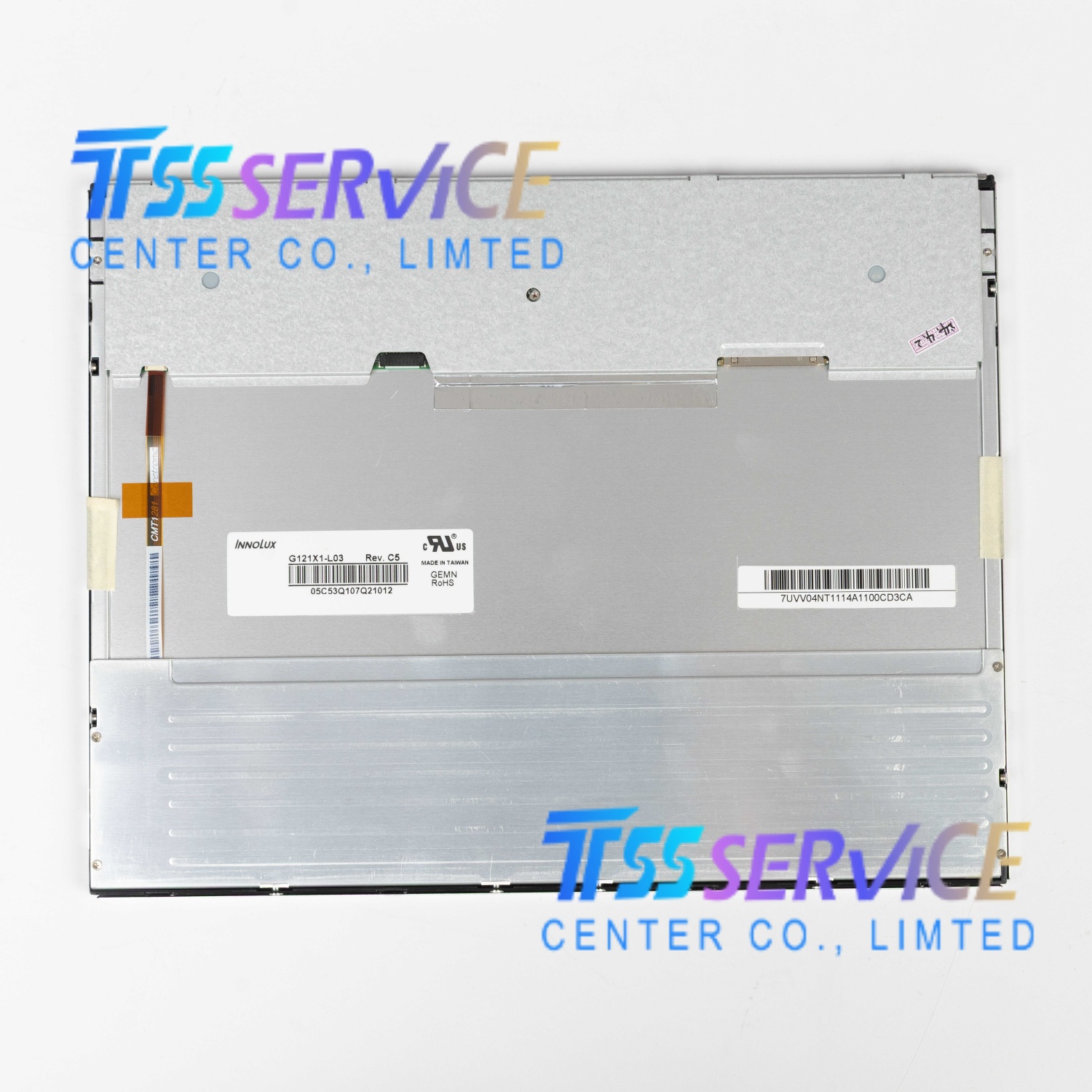

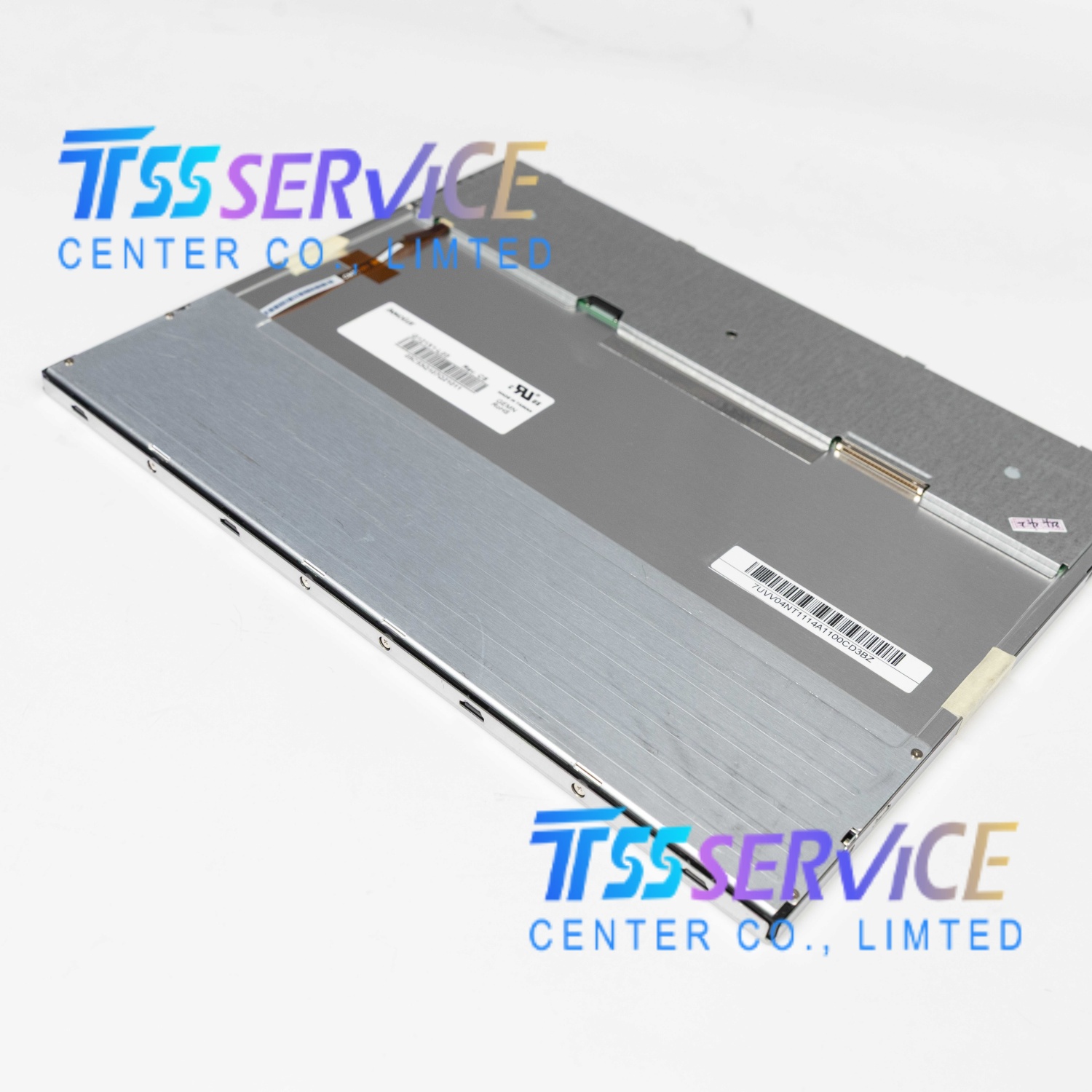

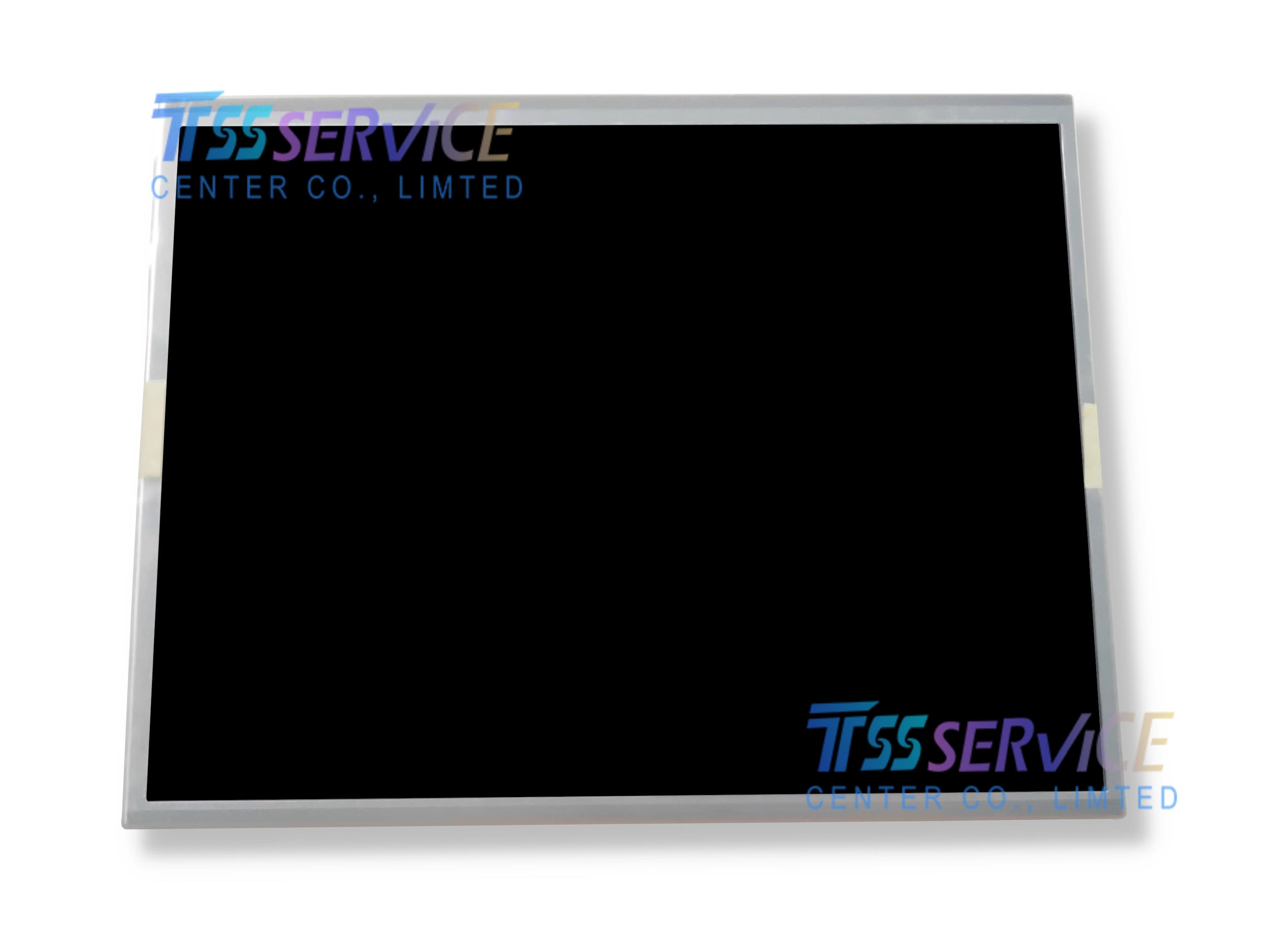

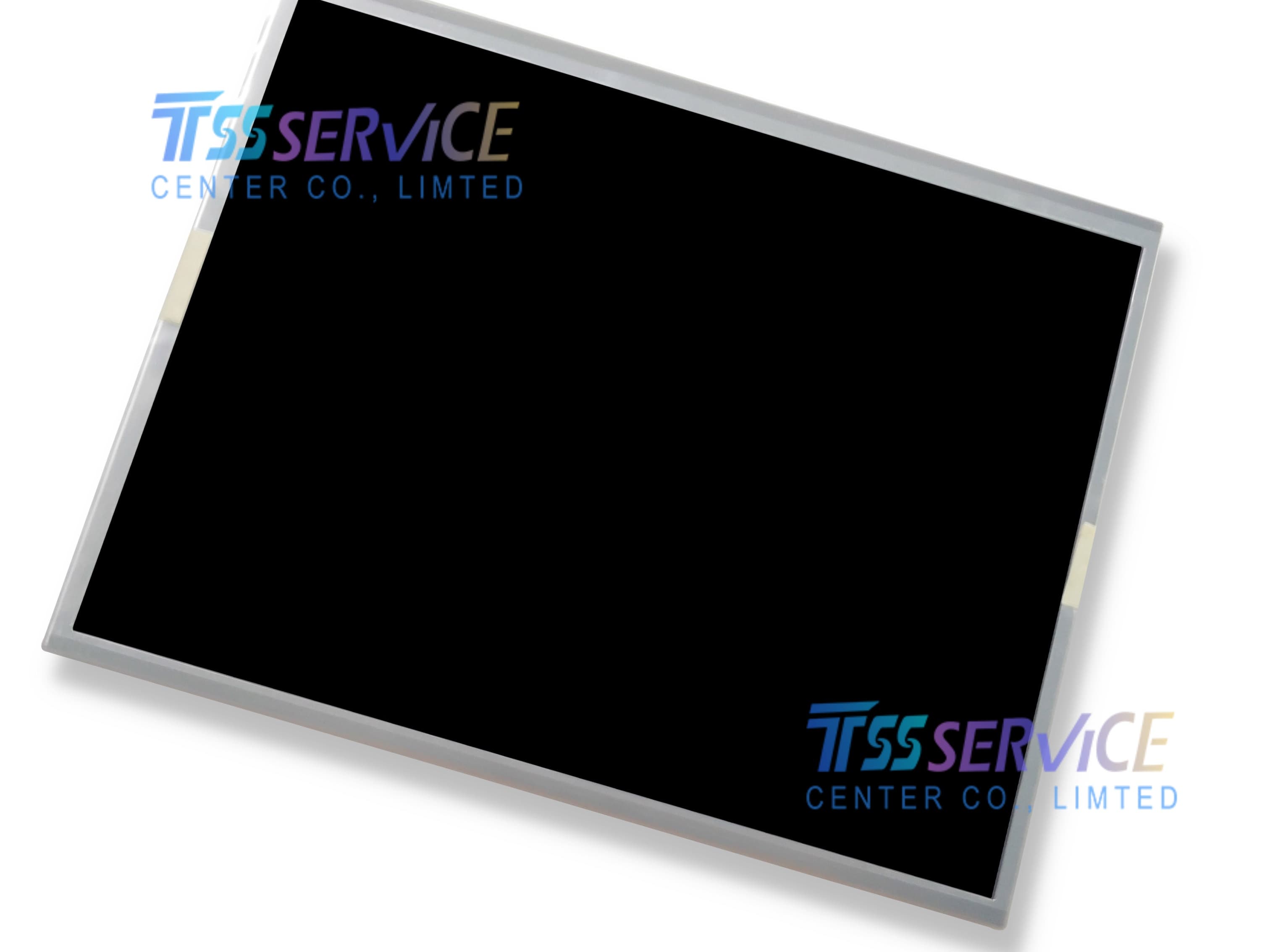

Innolux G121X1-L03 Rev.C5 12.1 inch 1024(RGB)×768 LCD Display Panel For Industrial
| Parameter |
Specification |
| Model Number |
G121X1-L03 (Rev. C5) |
| Manufacturer |
Innolux (CMO) |
| Panel Size |
12.1 inch (Diagonal) |
| Resolution |
1024 (RGB) × 768 [XGA] |
| Pixel Pitch |
0.240 mm (H) × 0.240 mm (V) |
| Display Type |
a-Si TFT-LCD, Transmissive, Normally White |
| Brightness |
500 cd/m² (Typ.) - High Brightness |
| Contrast Ratio |
700:1 (Typ.) |
| Viewing Angle |
85/85/85/85 (Left/Right/Up/Down) (CR≥10) |
| Color Depth |
16.7M Colors (8-bit per color) |
| Interface |
LVDS (Low-Voltage Differential Signaling), 2 channels, 24-bit |
| Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp) [Note: Some later revisions may use LED, but L03 is typically CCFL] |
| Backlight Life |
≥ 50,000 hours |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Active Area |
245.76 mm (H) × 184.32 mm (V) |
| Outline Dimensions |
275.0 mm (H) × 204.5 mm (V) × 9.5 mm (D) (Typ.) |
| Weight |
Approx. 650g |
| Touch Panel |
None (Open frame module) |
Specific Applications
The G121X1-L03 Rev.C5 is a robust XGA display designed for mid-sized industrial interfaces requiring clear visibility and reliable performance. Its key features (500 nits brightness and standard XGA resolution) make it suitable for:
-
Medical Imaging & Diagnostic Equipment:
- Used in patient monitoring systems, ultrasound machines, and mobile medical carts where accurate image reproduction and moderate high brightness are required for clinical environments.
-
Industrial Automation & HMI:
- Ideal for Human-Machine Interfaces (HMI) in factory automation, PLC control panels, and assembly line monitoring stations that need a larger viewable area than 10.4" screens.
-
Transportation & Infotainment:
- Applied in railway passenger information displays, bus ticketing machines, and marine bridge instruments where wide viewing angles and vibration resistance are critical.
-
Test & Measurement Instruments:
- Integrated into oscilloscopes, spectrum analyzers, and portable diagnostic tools used in field service and laboratory settings.
-
Legacy System Upgrades:
- Frequently used as a direct replacement or upgrade for older 12.1" CCFL-based systems in banking ATMs, lottery terminals, and gaming machines due to its long-term availability and standard form factor.
