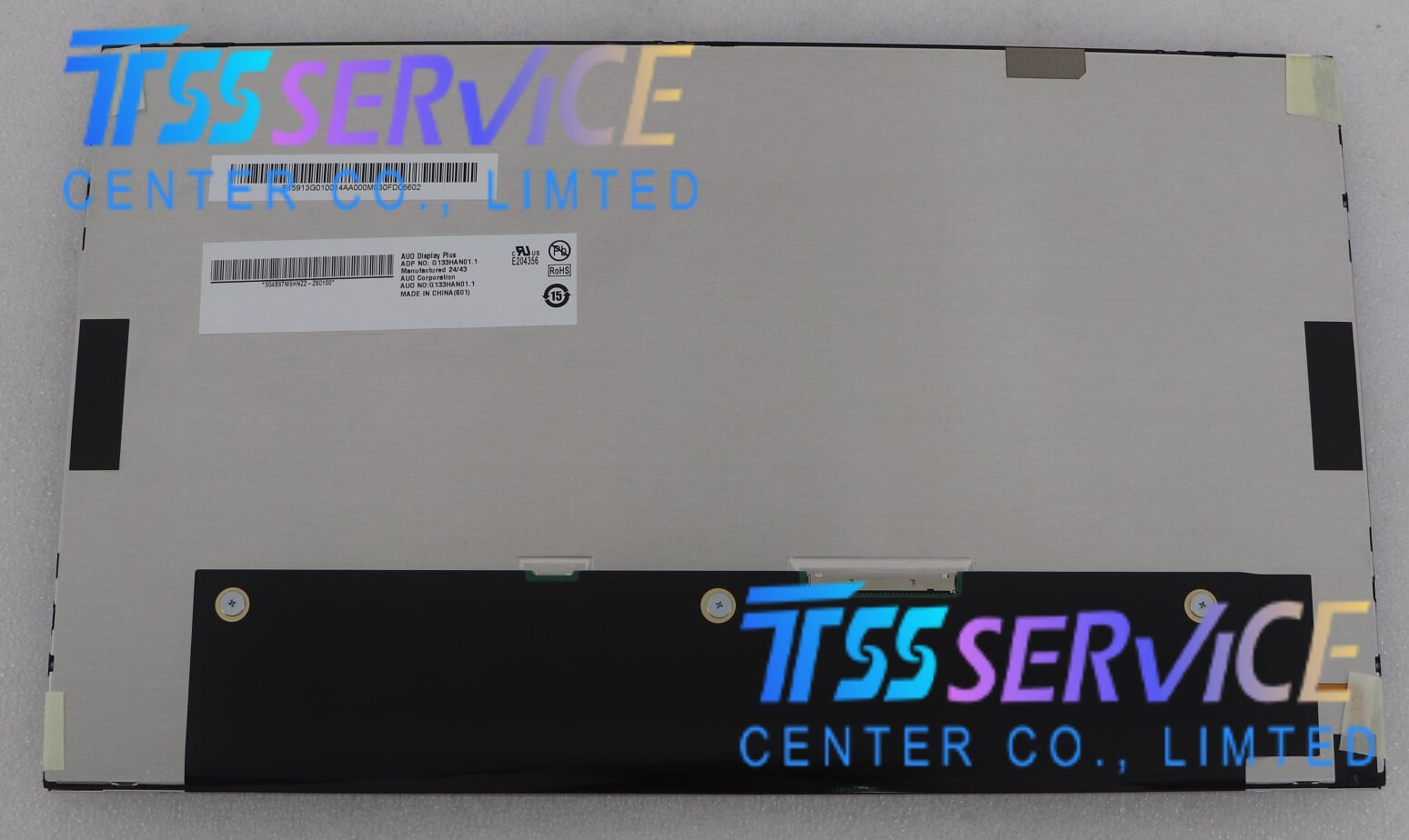

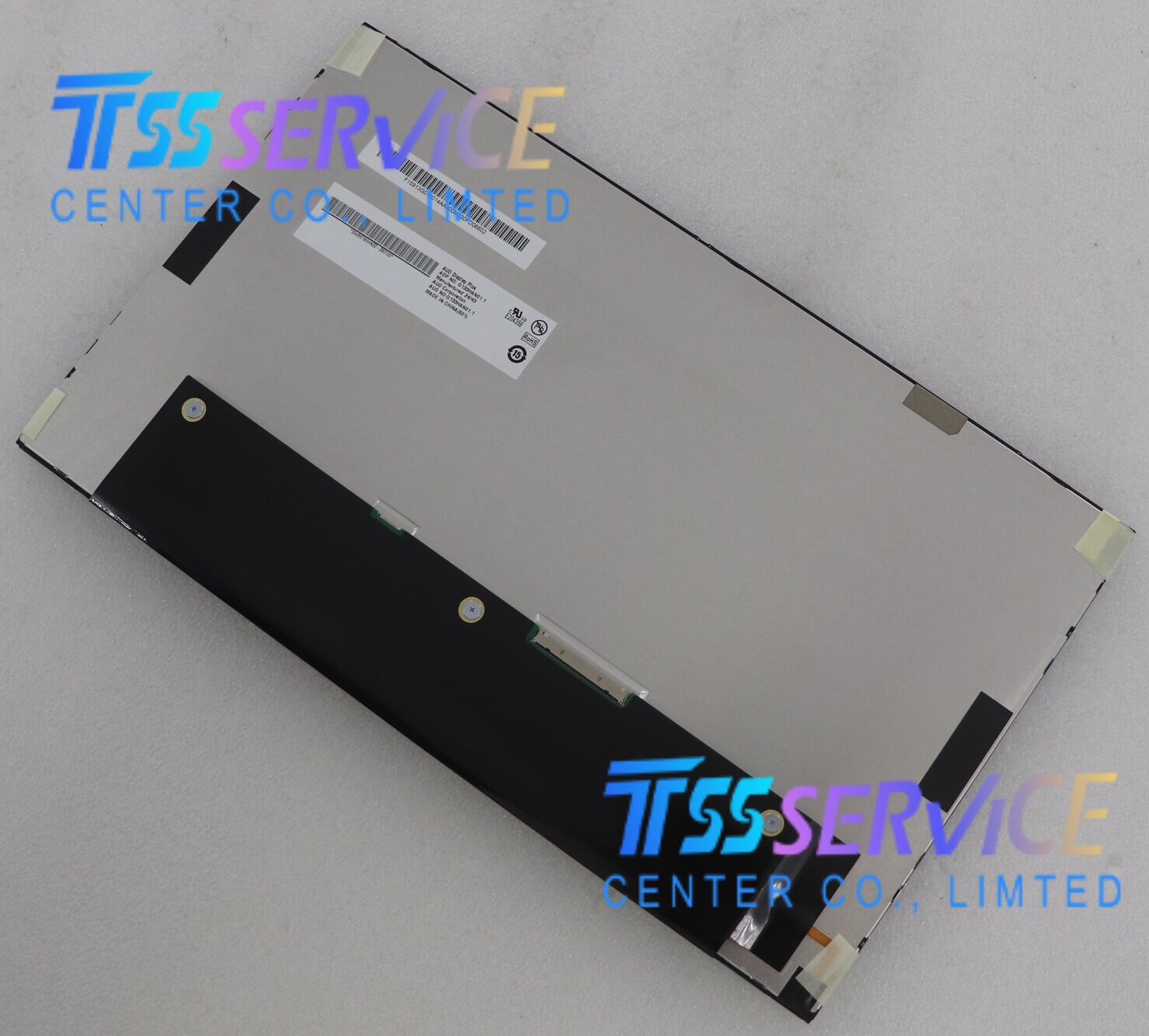

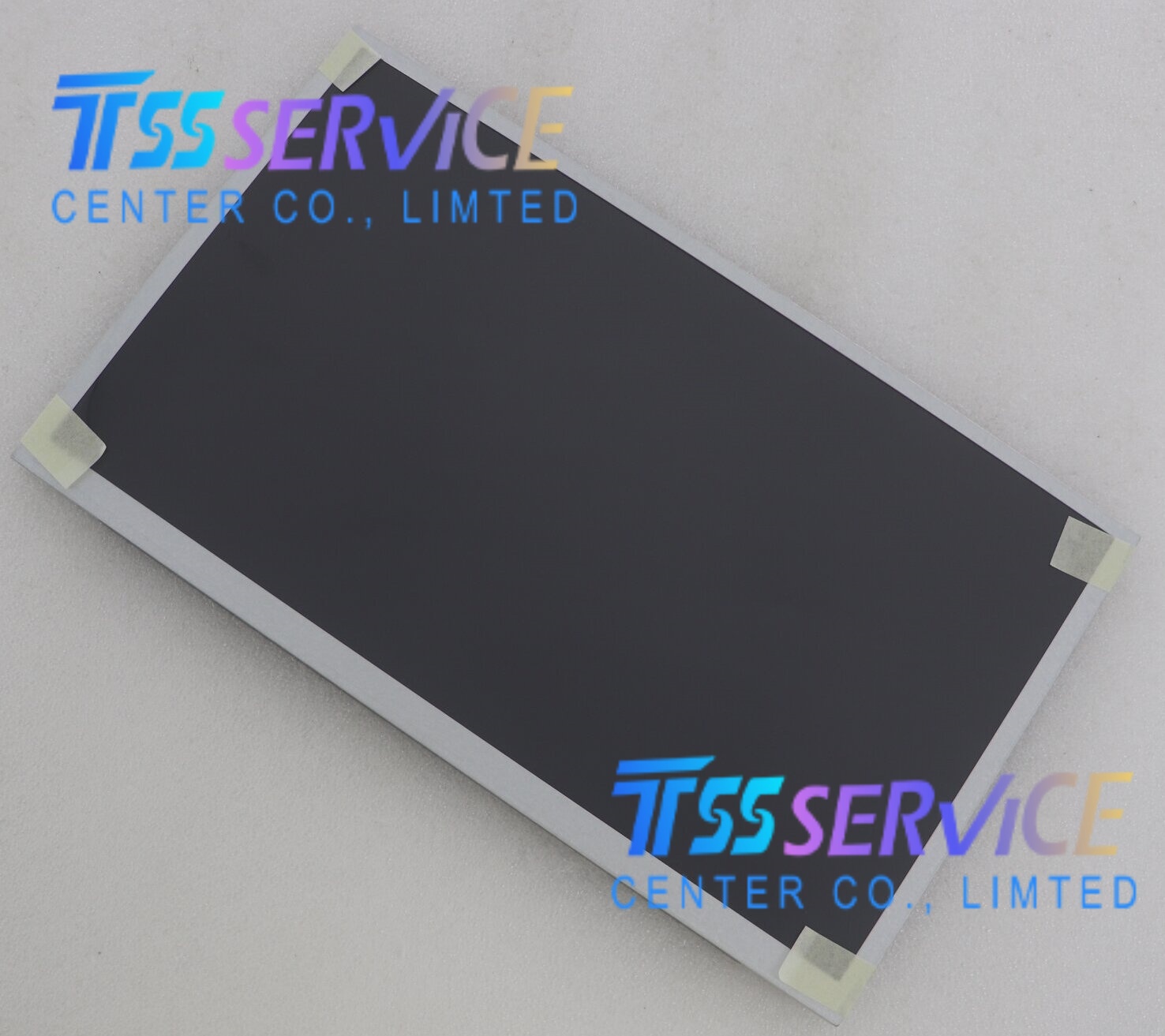

Model P/N: G133HAN01.1
Diagonal Size: 13.3"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1920(RGB)×1080, FHD 166PPI
Pixel Format: RGB Vertical Stripe
| Parameter | Specification |
|---|---|
| Model Number | G133HAN01.1 |
| Manufacturer | AU Optronics (AUO) |
| Screen Size | 13.3 inches |
| Display Type | a-Si TFT-LCD, IPS (In-Plane Switching), Transmissive |
| Resolution | 1920 (RGB) × 1080 pixels (Full HD / FHD) |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.153 mm (H) × 0.153 mm (V) |
| Color Depth | 16.7M colors (8-bit) |
| Color Gamut | Typically 72% NTSC or 100% sRGB (High Color Saturation) |
| Interface Type | eDP (Embedded DisplayPort), 2 lanes, 30-pin connector |
| Backlight | WLED (White LED), Edge-Lit |
| Brightness | Typical 300 cd/m² (Some variants up to 400 cd/m²) |
| Contrast Ratio | Typical 1000:1 (IPS typical) |
| Viewing Angle | 85/85/85/85 (Left/Right/Up/Down) – Excellent wide view |
| Response Time | Typical 25ms (Gray-to-Gray) |
| Operating Temperature | 0°C to +50°C (Standard); Industrial versions may vary |
| Storage Temperature | -20°C to +60°C |
