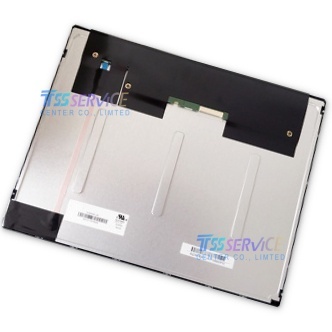

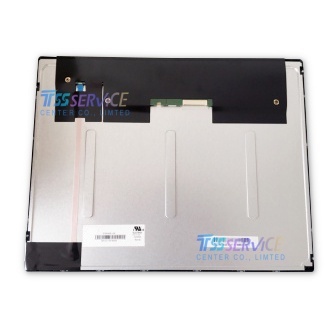

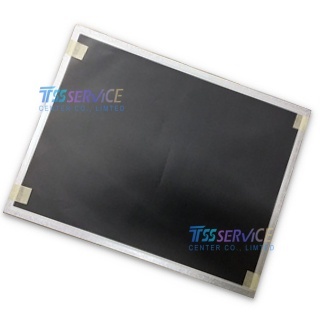

Innolux G150XNE-L03 15.0" XGA (1024×768) TFT-LCD Display Panel

SKU: G150XNE-L03

1,Condition: New,Grade A

2,Description: G150XNE-L03 15.0 inch LCD Display Panel

3,Warranty: 90 Days

4,Lead Time: 1-3 Working days

5,Shipping: DHL ,FedEx, EMS , SF express  or by air.

6,Packaging: Bubble pad+Paper box

7,Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$89.00 $88.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Innolux G150XNE-L03 15.0" XGA (1024×768) TFT-LCD Display Panel
  • Innolux G150XNE-L03 15.0" XGA (1024×768) TFT-LCD Display Panel
  • Innolux G150XNE-L03 15.0" XGA (1024×768) TFT-LCD Display Panel
  • Innolux G150XNE-L03 15.0" XGA (1024×768) TFT-LCD Display Panel
  • Innolux G150XNE-L03 15.0" XGA (1024×768) TFT-LCD Display Panel
  • Innolux G150XNE-L03 15.0" XGA (1024×768) TFT-LCD Display Panel
1/1
  • Innolux G150XNE-L03 15.0" XGA (1024×768) TFT-LCD Display Panel
  • Innolux G150XNE-L03 15.0" XGA (1024×768) TFT-LCD Display Panel
  • Innolux G150XNE-L03 15.0" XGA (1024×768) TFT-LCD Display Panel
  • Description
The Innolux G150XNE-L03 is a high-performance 15.0-inch diagonal a-Si TFT-LCD (amorphous silicon thin-film transistor liquid crystal display) module, engineered for industrial, medical, and embedded applications requiring superior image quality, ultra-wide viewing angles, and exceptional contrast performance.

Parameter Specification
Brand Innolux
Model P/N G150XNE-L03
Diagonal Size 15.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×768, XGA 85PPI
Pixel Format RGB Vertical Stripe
Active Area 304.128(W)×228.096(H) mm
Bezel Opening 307.4(W)×231.3(H) mm
Outline (mm) 326.5 × 253.5 × 9.6 (H×V×D)
Treatment Antiglare, Hard coating (3H)
Luminance 300 cd/m² (Typ.)
Contrast Ratio 2000:1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.) (CR≥10)
Response 16/7 (Typ.) (Tr/Td) ms
Good View at Symmetry
Work Mode NPVA, Normally Black, Transmissive
Color Depth 262K / 16.7M 72% NTSC
Backlight WLED, 70K hours, With LED Driver
Mass 0.96 / 1.00 Kgs (Typ./Max.)
Refresh Rate 60Hz
Touchscreen Without
Signal Type LVDS (1 ch, 6/8-bit), Connector 20 pins
Voltage Supply 3.3V (Typ.)

Typical Applications

  • Industrial automation – HMIs, operator panels, CNC machine displays, factory control systems

  • Medical equipment – Patient monitoring, diagnostic displays, surgical workstations, medical carts

  • Test and measurement – Bench-top instruments, oscilloscopes, analyzers, data acquisition systems

  • Gaming and entertainment – Slot machines, arcade games, casino displays

  • Point-of-sale (POS) terminals – Retail kiosks, checkout systems, self-service terminals

  • Transportation – Railway displays, marine navigation, fleet management

  • Security and surveillance – CCTV monitors, control room displays, security workstations

  • Aerospace and defense – Ruggedized displays, mission-critical systems

    ☛Delivery Details:

    We will arrange the shipment within 1-3 working days asap after got your payment. And the tracking number and commercial inovice will be given to the customers asap. (only the standard speedpak or expedited shipping service). Expedited Shipping by DHL/FEDEX/4PX express Courier etc. But sometimes it is highly depended on buyer's payment, the courier company and local customs/duties.

    ☛About us:

    We have specialized in LCD-Business for 20 years(NEC, SHARP, HITACHI, AUO, SAMSUNG, KOE, TIANMA LG Display, Samsung, Innolux, SHARP, MISTBISH,etc)

    We are willing to provide the good service,professional technology and excellent products to you.

    If you have any general questions and please contact us via julie@atssservice.com ,we will give you a exact reply within 24hours.
