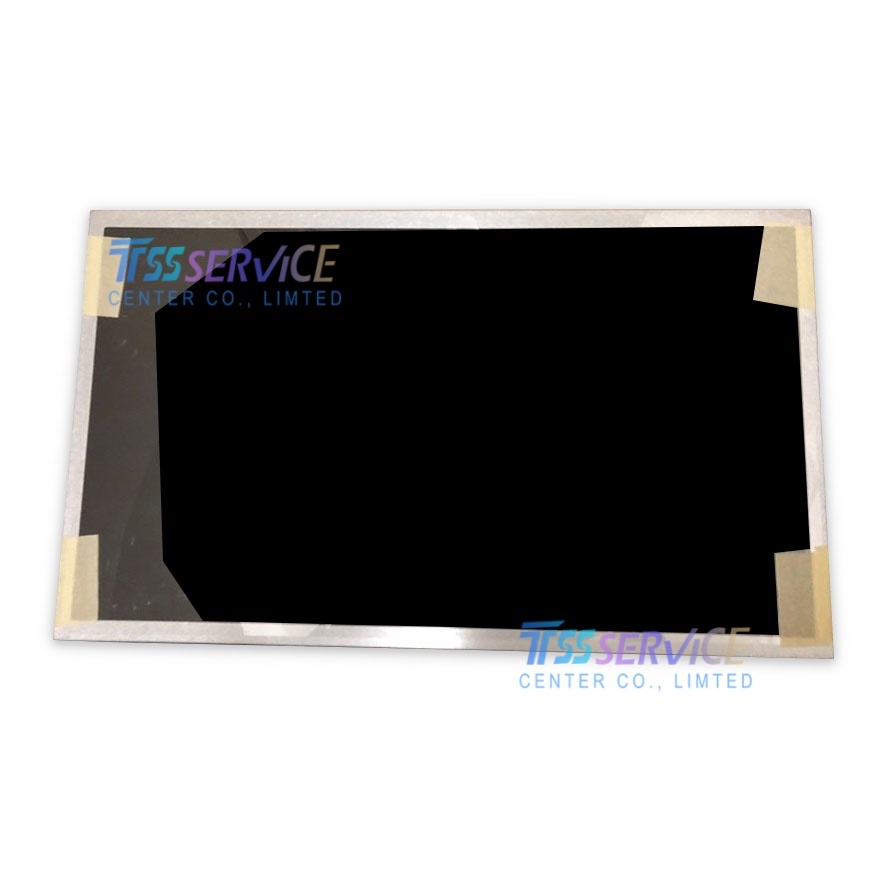

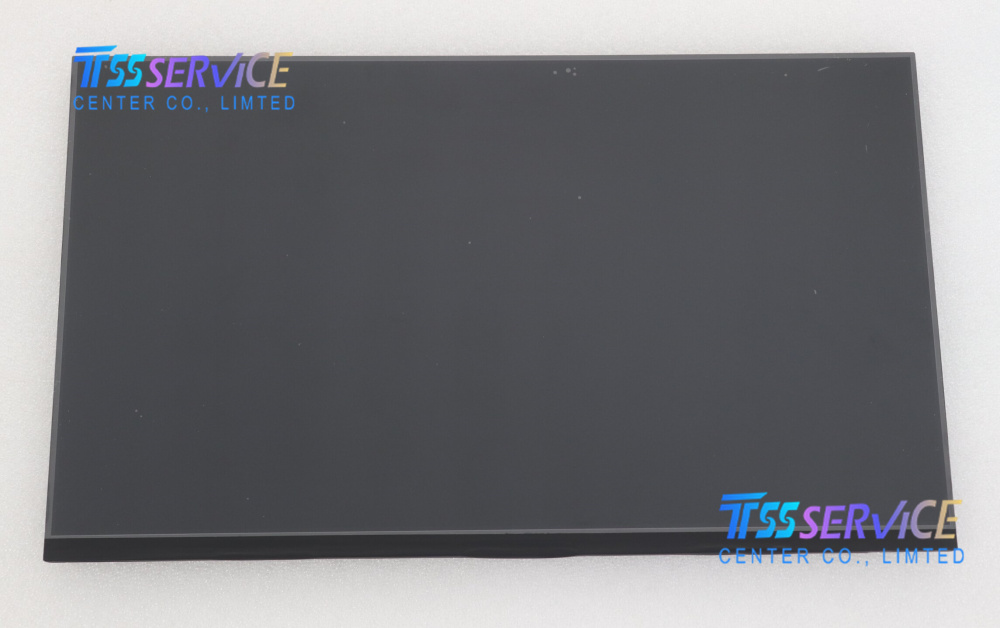

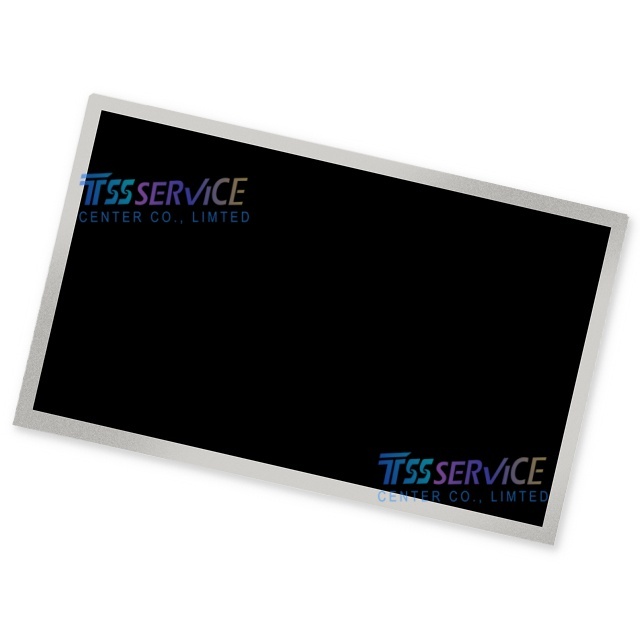

AUO G156HAT01.0 15.6 INCH 1920×1080 LCD Display Panel For Industrial

Name: AUO G156HAT01.0 15.6 INCH 1920×1080 LCD Display Panel For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G156HAT01.0
Price: 195 USD
Availability: InStock

SKU: G156HAT01.0

Model P/N: G156HAT01.0
Diagonal Size: 15.6"
Panel Type: a-Si TFT-LCD, Assembly
Pixel Number: 1920(RGB)×1080, FHD, 16:9
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$200.00~~ $195.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

AUO G156HAT01.0 15.6 INCH 1920×1080 LCD Display Panel For Industrial

Item	Specification
Brand	AUO (友达)
Model	G156HAT01.0
Size	15.6 inch
Panel Type	a-Si TFT-LCD, AHVA, Normally Black, Transmissive
Resolution	1920×1080 (FHD), 141 PPI
Active Area	344.16 (W) × 193.59 (H) mm
Brightness	425 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Viewing Angle (CR≥10)	89°/89°/89°/89° (L/R/U/D)
Display Colors	16.2M (72% CIE1931)
Response Time	25 ms (Tr+Td, Typ.)
Backlight	WLED, 50,000 hrs lifespan, with driver
Interface	eDP (2 lanes, 30 pins)
Operating Temp	-10°C ~ +60°C
Storage Temp	-20°C ~ +70°C
Outline Size	370.4 (W) × 215.9 (H) × 12.5 (D) mm
Surface Treatment	Anti-glare, 3H hard coating
Touch Option	G/G Projected Capacitive Touch (optional)
Production Status	In production

Applications

Industrial HMI & Control Panels: Factory automation, CNC machinery, PLC interfaces, and production line monitoring systems.
Industrial PCs & Workstations: Rugged industrial computers, manufacturing workstations, and embedded display terminals.
Medical Equipment: Diagnostic devices, patient monitoring systems, and medical imaging displays (reliable wide-temperature performance).
Smart Building & Kiosks: Building automation control panels, self-service kiosks, and information terminals.
Transportation & Special Machinery: Railway on-board displays, industrial vehicle dashboards, and marine control panels.
