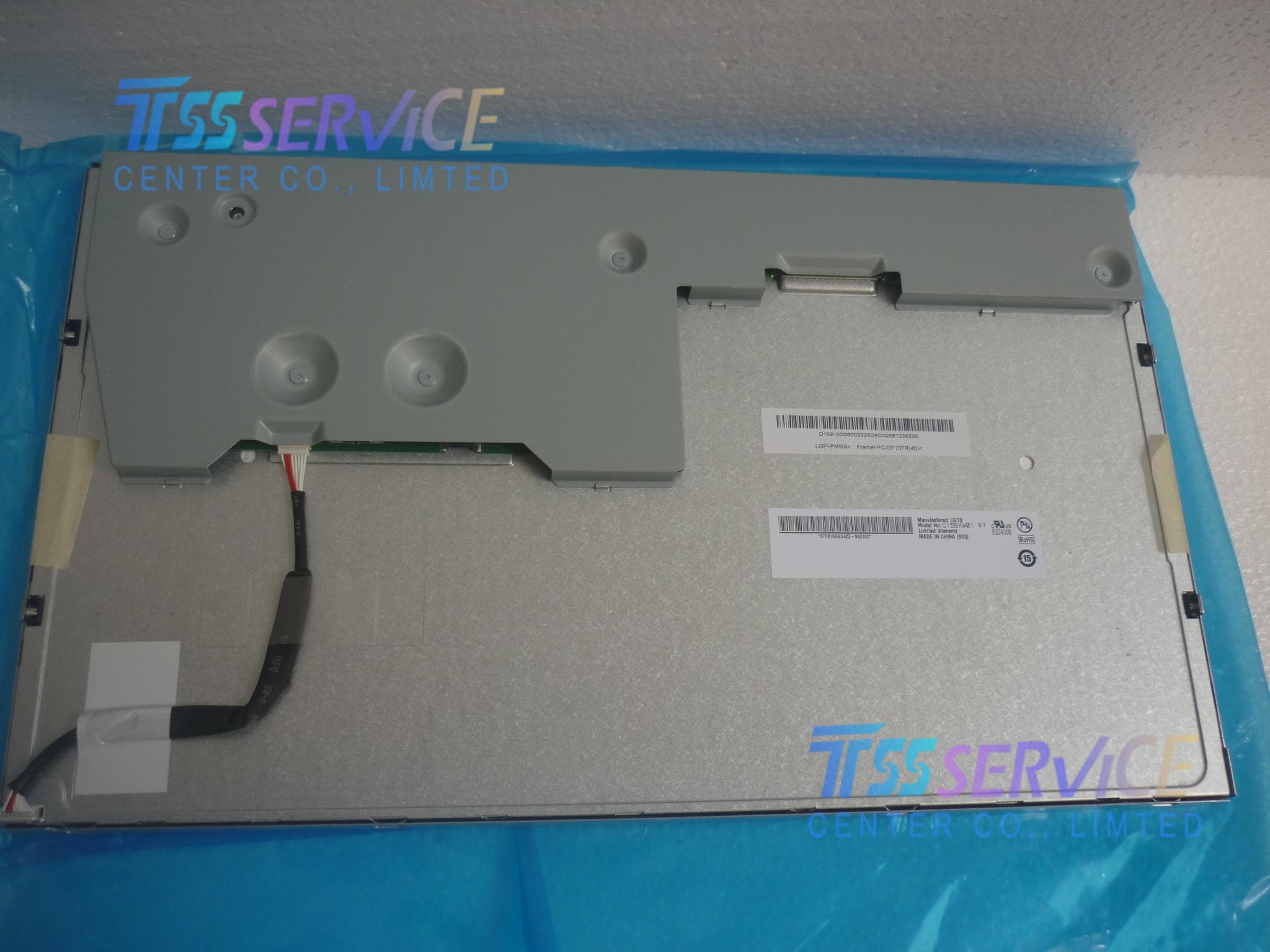

G156XW01 V0（AUO 15.6inch TFT-LCD）

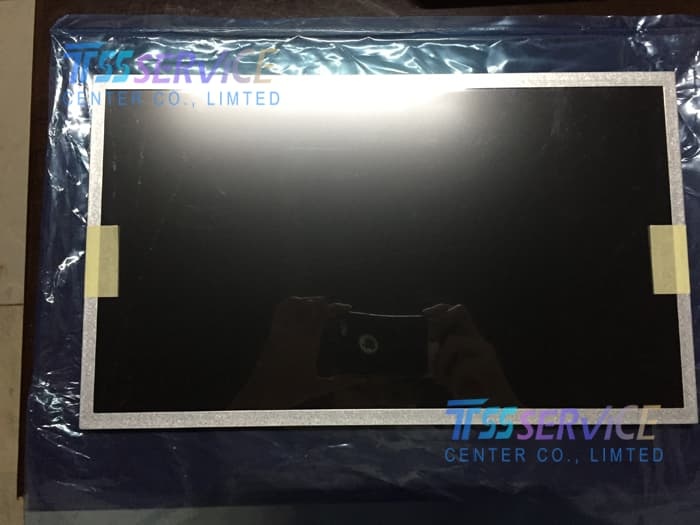

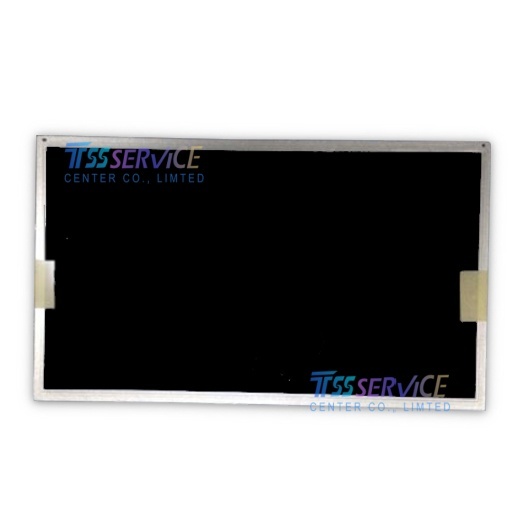

G156XW01 V0 is a 15.6-inch AUO industrial-grade a-Si TN TFT-LCD panel with WXGA 1366×768 resolution, dual CCFL backlight and single-channel 8-bit LVDS interface. Equipped with 3H anti-glare hard coating, stable optical performance and standard industrial temperature range, it is widely used for embedded industrial display, legacy equipment upgrade and special terminal monitor solutions.
| Parameter |
Specification Details |
| Model No. |
G156XW01 V0 |
| Manufacturer |
AUO (AU Optronics) |
| Diagonal Size |
15.6 inch, 16:9 Landscape |
| Native Resolution |
1366(RGB)×768 (WXGA,100PPI) |
| Display Mode |
TN, Normally White, Transmissive |
| Active Area(W×H) |
344.232 × 193.536 mm |
| Overall Outline Size |
363.8 × 215.9 × 14.8 mm |
| Typical Brightness |
300 cd/m² |
| Contrast Ratio |
500:1 (Typ.) |
| Viewing Angle(L/R/U/D) |
85°/85°/80°/80° (CR≥10) |
| Response Time(Tr/Td) |
6ms / 2ms (Typ.) |
| Display Color |
16.7M Colors (6bit+FRC,70% sRGB coverage) |
| Backlight Type |
2pcs CCFL, typical lifespan 50,000H |
| Surface Treatment |
Matte Anti-glare + 3H Hard Coating |
| Signal Interface |
Single channel 8-bit LVDS,30Pin connector |
| Supply Voltage |
5.0V DC (Typ.) |
| Refresh Rate |
60Hz |
| Operating Temperature |
0℃ ~ +50℃ |
| Storage Temperature |
-20℃ ~ +60℃ |
| Net Weight |
1.16kg (Typ.) |
| Compliance |
RoHS, TCO'03 certified |
