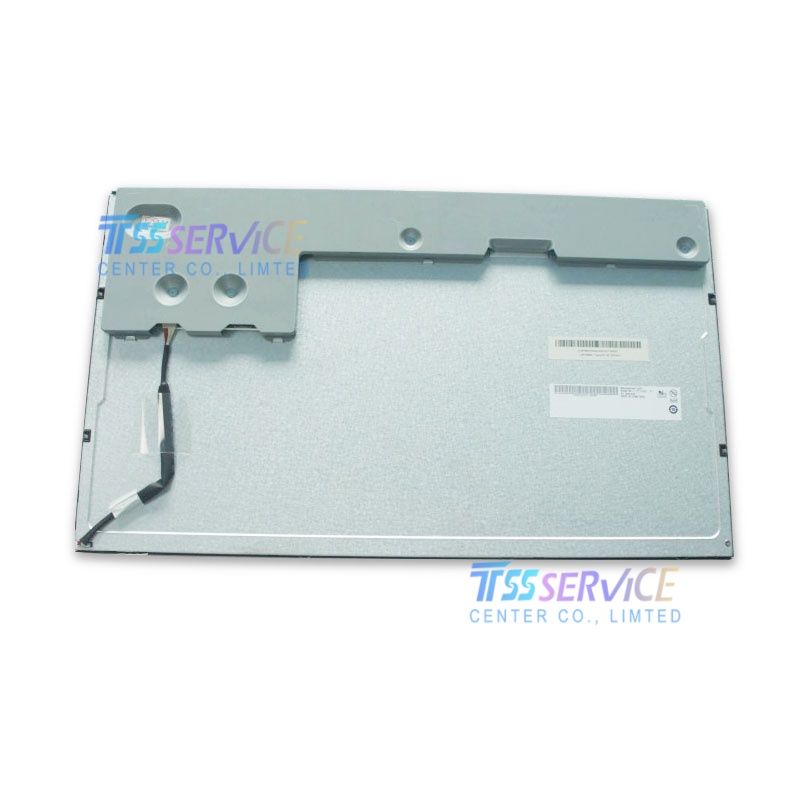

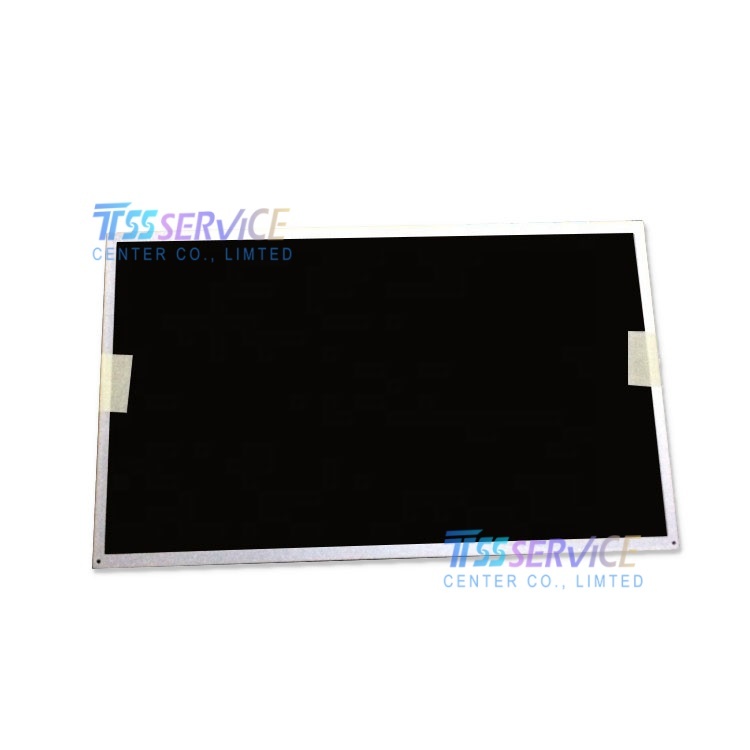

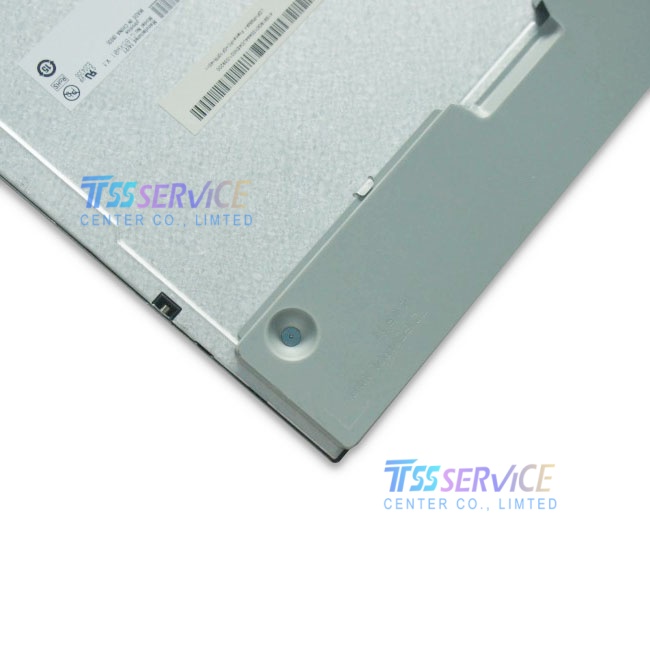

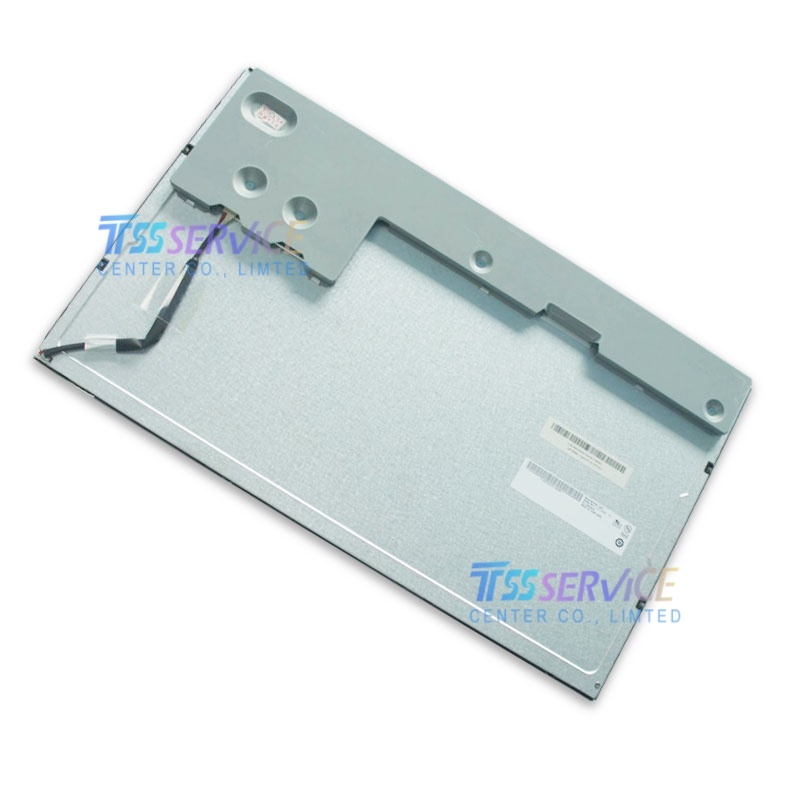

The AUO G185XW01 V0 (also known as G185XW01 V.0) is an 18.5-inch a-Si TFT-LCD display module from AU Optronics (AUO), engineered to deliver high-contrast, wide-format display performance for demanding industrial applications .
Designed as a reliable solution for industrial environments, this panel combines robust construction with excellent optical characteristics, making it a trusted choice for industrial automation, human-machine interfaces (HMIs), and embedded systems.
This module features a proven LCD architecture with CCFL backlighting, providing clear and accurate visual output with a rugged design that ensures dependable long-term operation.
| Parameter |
Value |
| Brand |
AUO |
| Model P/N |
G185XW01 V1 |
| Diagonal Size |
18.5" |
| Panel Type |
a-Si TFT-LCD, LCM |
| Resolution |
1366(RGB)×768, WXGA 84PPI |
| Pixel Format |
RGB Vertical Stripe |
| Active Area |
409.8(W)×230.4(H) mm |
| Bezel Opening |
413.4(W)×234.0(H) mm |
| Outline Dim. |
430.4(H)×254.6(V)×16.9(D) mm |
| Treatment |
Antiglare, Hard coating (3H) |
| Luminance |
300 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) (TM) |
| Response Time |
3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle |
85/85/80/80 (Typ.)(CR≥10) |
| Operating Mode |
TN, Normally White, Transmissive |
| Support Color |
16.7M 66% NTSC |
| Light Source |
WLED, 50K hours, With LED Driver |
| Weight |
1.82Kgs (Max.) |
| Frame Rate |
60Hz |
| Touch Panel |
Without |
| Interface Type |
LVDS (1 ch, 8-bit), 30 pins Connector |
| Power Supply |
5.0V (Typ.) |
| Operating Temperature |
0 ~ 60 °C |
| Storage Temperature |
-20 ~ 60 °C |
Applications
The AUO G185XW01 V0 is ideally suited for applications that require a reliable, high-contrast display with stable performance:
-
Industrial Automation: HMIs, control panels, and factory floor equipment requiring clear visibility .
-
Commercial Information Systems: Kiosks, information terminals, and ticketing machines.
-
Test and Measurement Equipment: For displaying waveforms and data in laboratory and field applications.
-
Embedded Visual Interfaces: For automation equipment and specialized industrial systems
