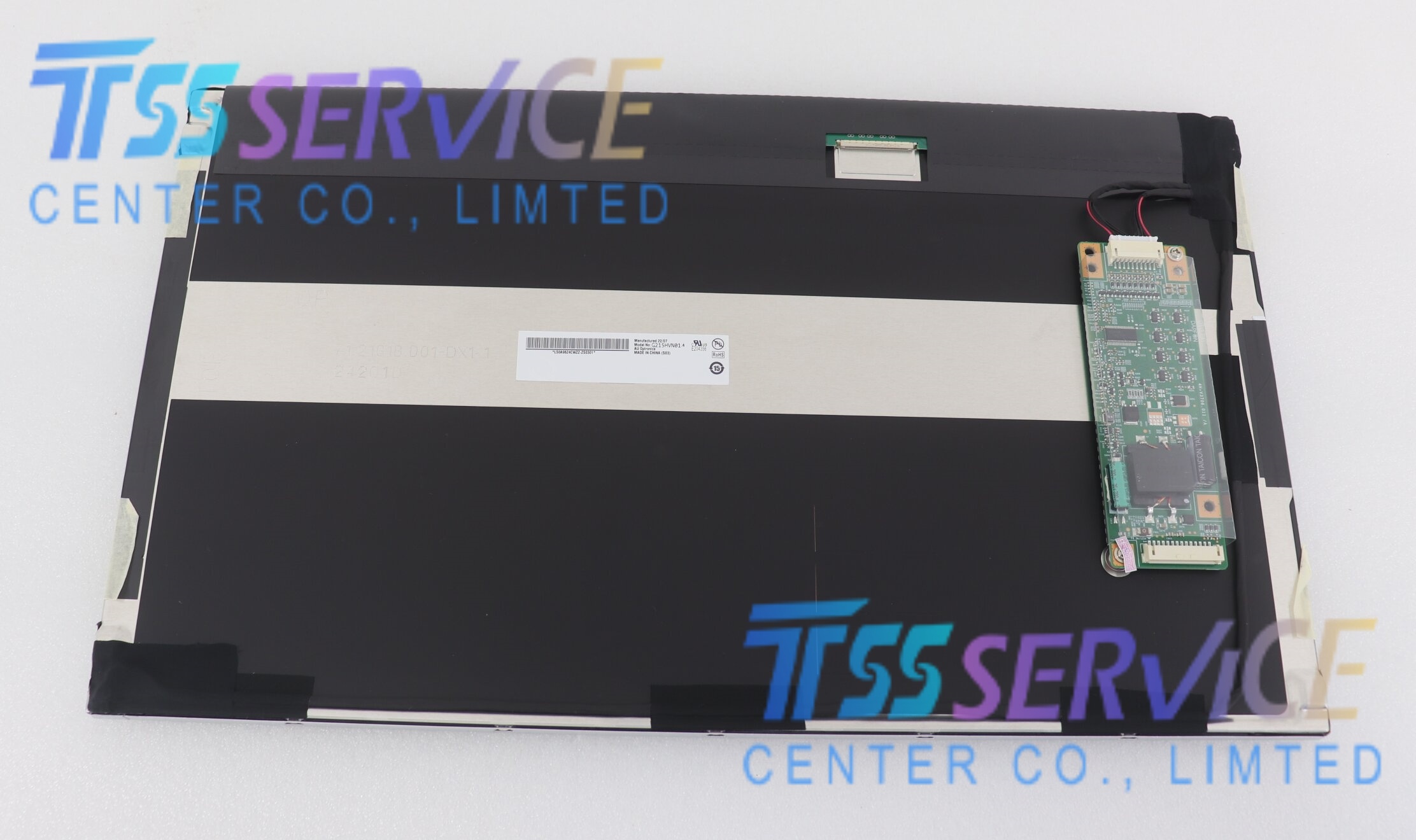

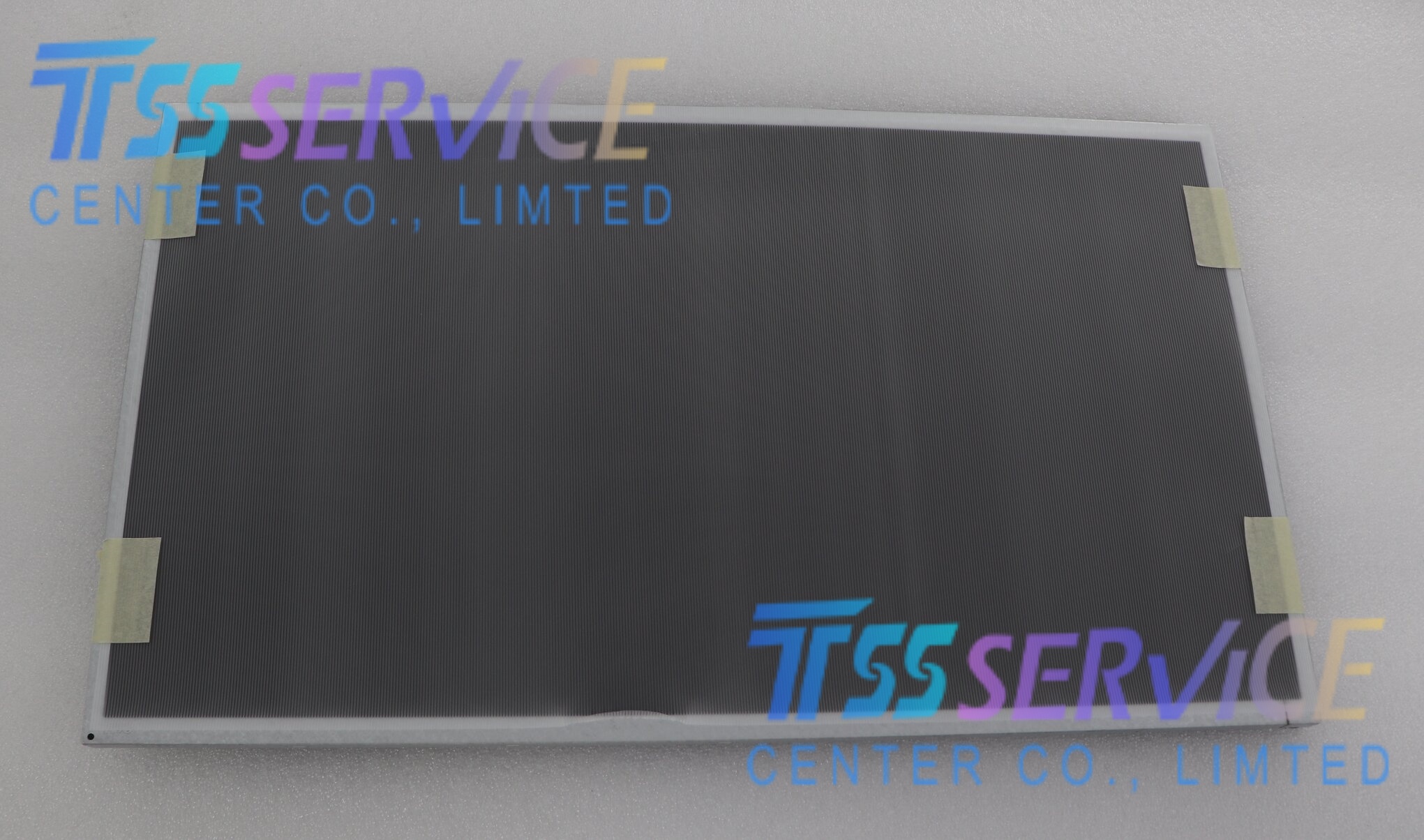

G215HVN01.4 AUO 21.5 Inch 1920×1080 LCD Display Screen For Industrial
| Parameter |
Specification |
| Manufacturer |
AU Optronics (AUO) |
| Panel Type |
a-Si TFT-LCD, VA (Vertical Alignment), Transmissive, Normally Black |
| Diagonal Size |
21.5 inches (546.86 mm) |
| Resolution |
1920 (H) × 1080 (V) pixels (FHD, 16:9 Aspect Ratio) |
| Pixel Format |
RGB Vertical Stripe, 8-bit per channel (16.7M colors) |
| Pixel Pitch |
0.24825 × 0.24825 mm (102 PPI) |
| Active Area |
476.64 (H) × 268.11 (V) mm |
| Outline Dimensions |
495.6(H)×292.2(V)×24.25(D) mm |
| Brightness |
1500 cd/m² (Typical) |
| Contrast Ratio |
5000:1 (Typical, Transmissive) |
| Viewing Angle |
89°/89°/89°/89° (L/R/U/D, CR≥10, Typical) |
| Response Time |
20 ms (Tr) / 5 ms (Td) (Typical) |
| Color Gamut |
72% NTSC (Typical) |
| Backlight |

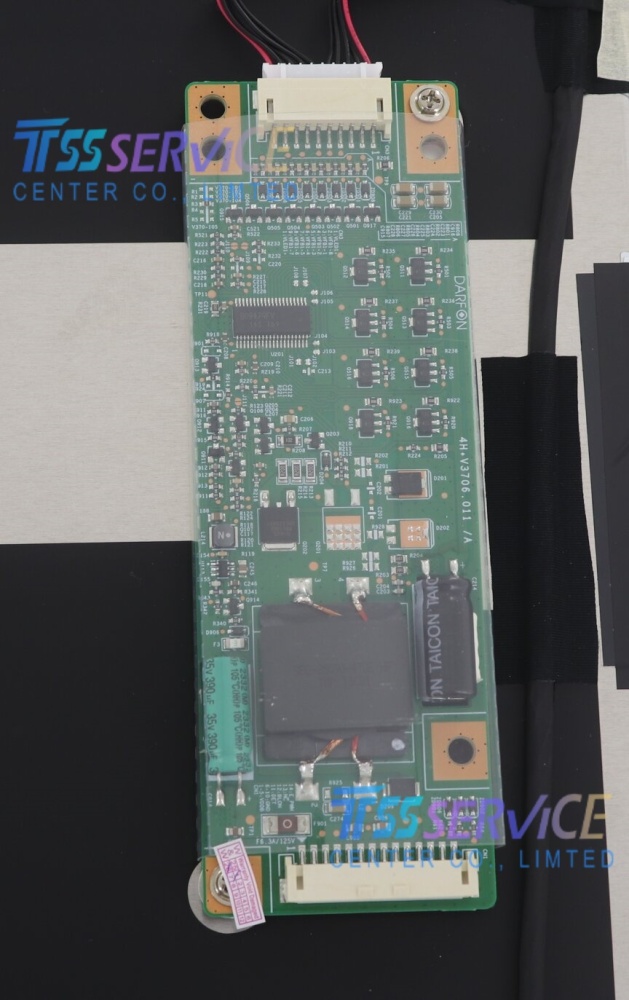

WLED (White LED), Edge-lit (Top & Bottom), with built-in LED Driver |
| Backlight Lifetime |
50,000 hours (Typical) |
| Interface |

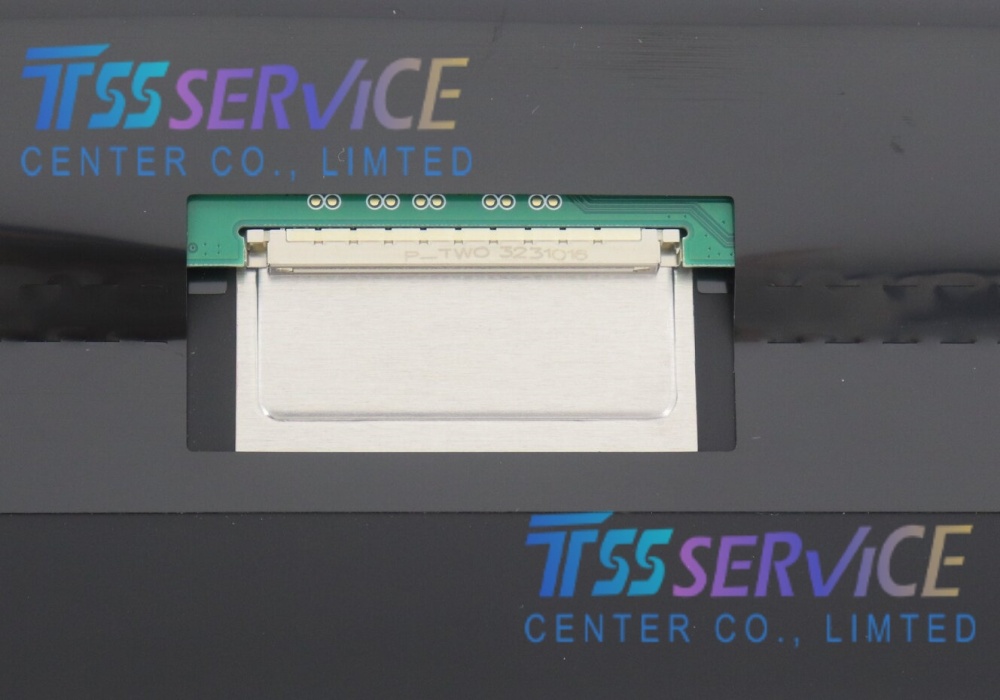

LVDS (2 channels, 8-bit), 30-pin connector |
| Supply Voltage |
5.0 V (Typical) |
| Refresh Rate |
60 Hz (Vertical) |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-20°C to +70°C |
| Power Consumption |
Approx. 19.8 W (Typical, all white pattern) |
| Weight |
Approx. 1.60±0.16Kgs |
| Touch Panel |
None |
G215HVN01.4 is a high-brightness, wide-temperature industrial-grade LCD panel designed for demanding environments requiring stable, clear, and long-lasting visual output. Its key applications include:
Industrial Control & Factory Automation
- HMI Displays: Used in industrial control panels, PLC interfaces, and factory automation systems for real-time monitoring of production lines, equipment status, and process parameters.
- Industrial PCs & Workstations: Integrated into industrial computers and operator workstations for machine control, data visualization, and industrial software operation.
- Factory Monitoring Walls: Deployed in control rooms for multi-screen monitoring of manufacturing processes, safety systems, and energy consumption.
Medical & Healthcare Equipment
- Medical Imaging Displays: Suitable for non-critical medical imaging equipment such as patient monitors, ultrasound systems, and dental imaging devices, providing high contrast and clear image details.
- Medical Device Interfaces: Used in various medical diagnostic and treatment equipment interfaces, ensuring stable operation in clinical environments.
Transportation & Automotive
- In-Vehicle Infotainment: Integrated into commercial vehicles, buses, and trains for passenger information systems, entertainment displays, and navigation interfaces.
- Traffic Control Displays: Used in traffic management centers, toll stations, and transportation hubs for real-time traffic monitoring and information release.
Retail & Commercial Displays
- Digital Signage: Deployed in high-brightness retail environments, shopping malls, and public spaces for advertising, product promotion, and information display.
- Kiosks & Self-Service Terminals: Used in self-checkout machines, ticketing kiosks, and information terminals in airports, stations, and commercial buildings.
Marine & Outdoor Applications
- Marine Navigation Displays: Suitable for shipboard navigation systems and marine equipment, with wide temperature tolerance and high brightness for visibility in outdoor marine environments.
- Outdoor Industrial Terminals: Used in outdoor industrial control terminals, construction equipment displays, and agricultural machinery interfaces.
Professional AV & Public Information
- Control Room Displays: Applied in security monitoring centers, data center control rooms, and emergency command centers for multi-screen video wall and information display.
- Public Information Displays: Used in stadiums, convention centers, and government buildings for public announcements, event information, and emergency alerts.
