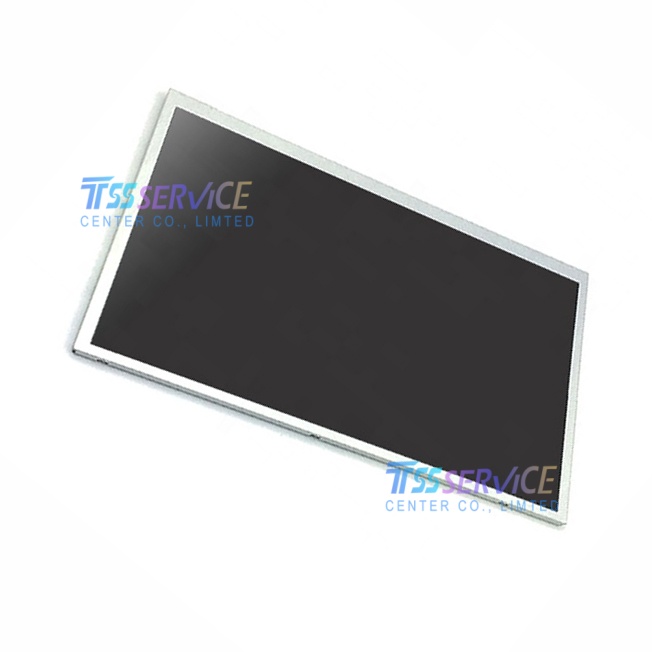

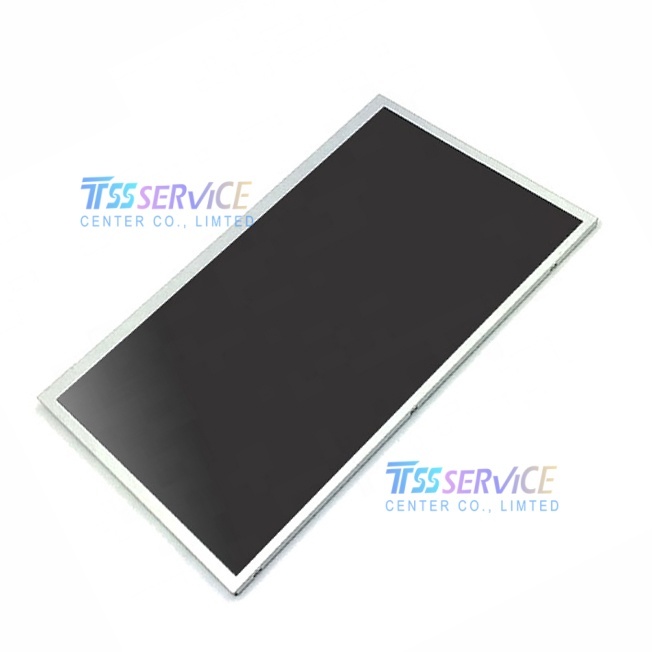

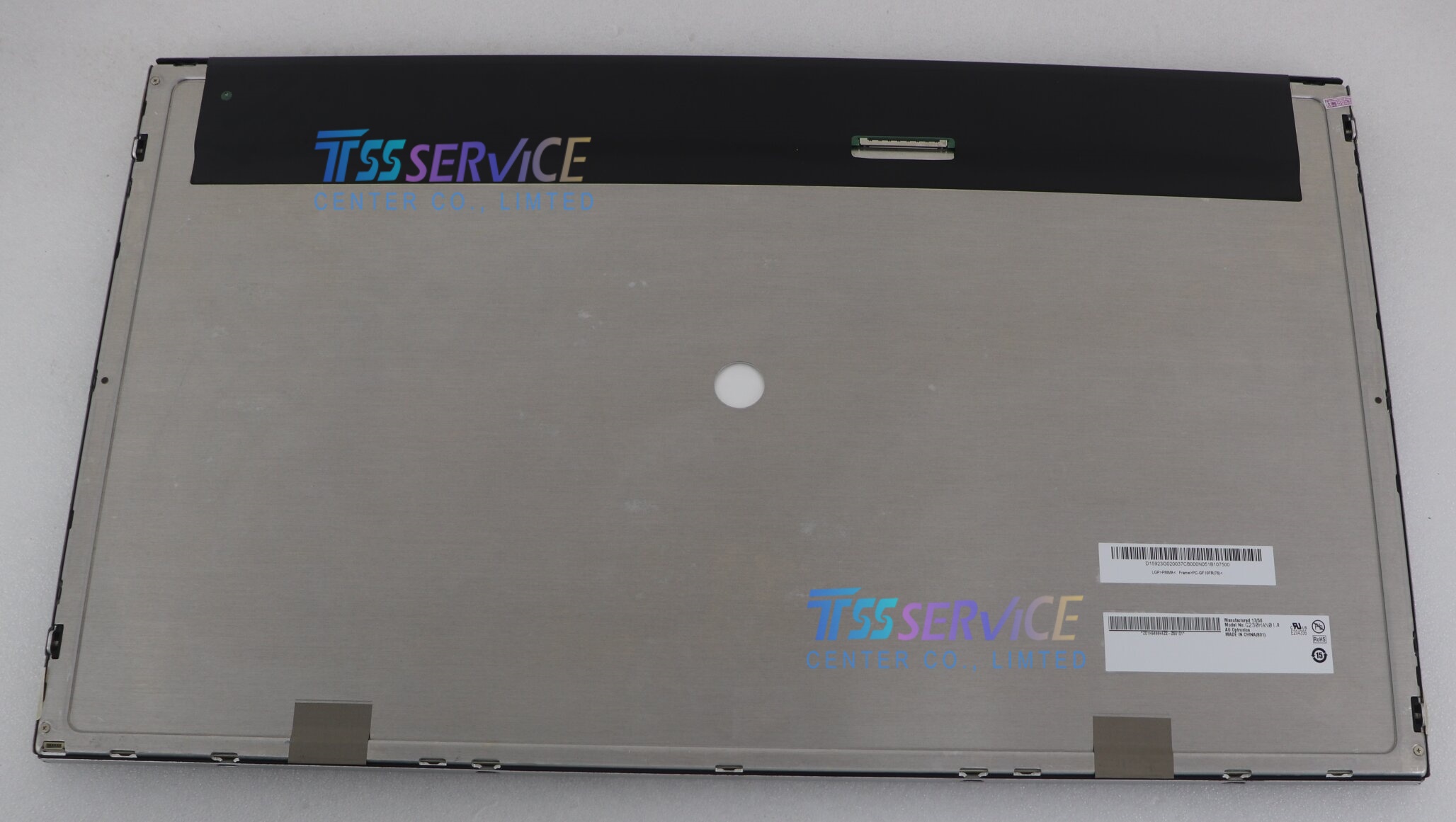

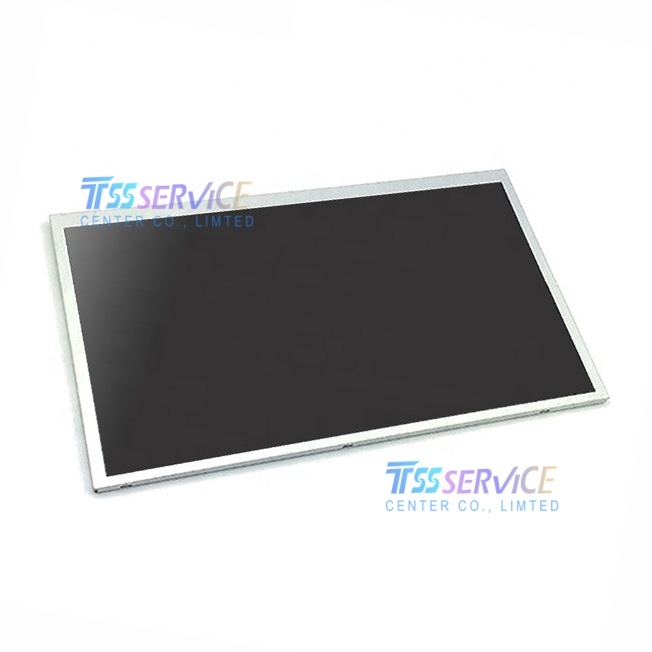

G230HAN01.0 AUO 23 inch 1920×1080 LCD Panel Display For Industrial
| Category |
Parameter |
Value |
Unit |
Note |
| Basic Information |
Manufacturer |
AU Optronics (AUO) |
- |
- |
|
Model |
G230HAN01.0 |
- |
- |
|
Panel Type |
a‑Si TFT‑LCD Module (AHVA) |
- |
Normally Black, Transmissive |
|
Diagonal Size |
23.0 |
inch |
- |
|
Resolution |
1920 × 1080 |
pixel |
FHD, 16:9 |
|
Pixel Format |
RGB Vertical Stripe |
- |
- |
|
Pixel Pitch |
0.2652 × 0.2652 |
mm |
95 PPI |
|
Surface |
Anti‑Glare (Matte) |
- |
- |
|
RoHS |
Compliant |
- |
- |
|
Production Status |
Mass Production |
- |
- |
| Optical |
Brightness (Typ.) |
300 |
cd/m² |
- |
|
Contrast Ratio (Typ.) |
1000:1 |
- |
- |
|
Viewing Angle (CR≥10) |
89°/89°/89°/89° |
° |
Left/Right/Up/Down |
|
Response Time (GtG, Typ.) |
8/8 |
ms |
Tr/Td: 8/8 ms |
|
Color Depth |
16.7M |
colors |
8‑bit |
|
Color Gamut |
72% |
CIE1931 |
- |
|
Backlight Type |
WLED (Side‑lit) |
- |
- |
|
Backlight Lifetime (Typ.) |
50,000 |
hours |
- |
| Mechanical |
Active Area (W×H) |
509.184 × 286.416 |
mm |
- |
|
Outline (W×H×D) |
533.2 × 312 × 10.5±0.5 |
mm |
- |
|
Mounting |
Standard screw holes |
- |
- |
| Electrical |
Signal Interface |
LVDS (2‑channel, 8‑bit) |
- |
30‑pin connector |
|
Input Voltage |
DC 5.0 |
V |
Typ. |
|
Operating Voltage |
DC 4.5–5.5 |
V |
- |
|
Refresh Rate |
60 |
Hz |
- |
| Environmental |
Operating Temp |
0 ~ +50 |
°C |
- |
|
Storage Temp |
-20 ~ +60 |
°C |
- |
|
Humidity |
5%–95% RH |
- |
Non‑condensing |
|
Vibration |
1.5G |
14.7 m/s² |
- |
G230HAN01.0 is a 23‑inch FHD AHVA industrial‑grade LCD panel with wide viewing angles, suitable for:
- Industrial Control & Automation: HMI panels, factory automation systems, CNC machine displays, industrial PCs
- Medical Imaging & Monitoring: Medical diagnostic displays, bedside monitors, clinical equipment screens
- Test & Measurement Instruments: Oscilloscopes, signal analyzers, data acquisition systems
- Gaming & Amusement: Arcade machines, slot machines, gaming consoles
- Commercial Displays: Digital signage, information kiosks, POS terminals
- Transportation & Marine: Vehicle‑mounted displays, ship navigation systems, railway control panels
