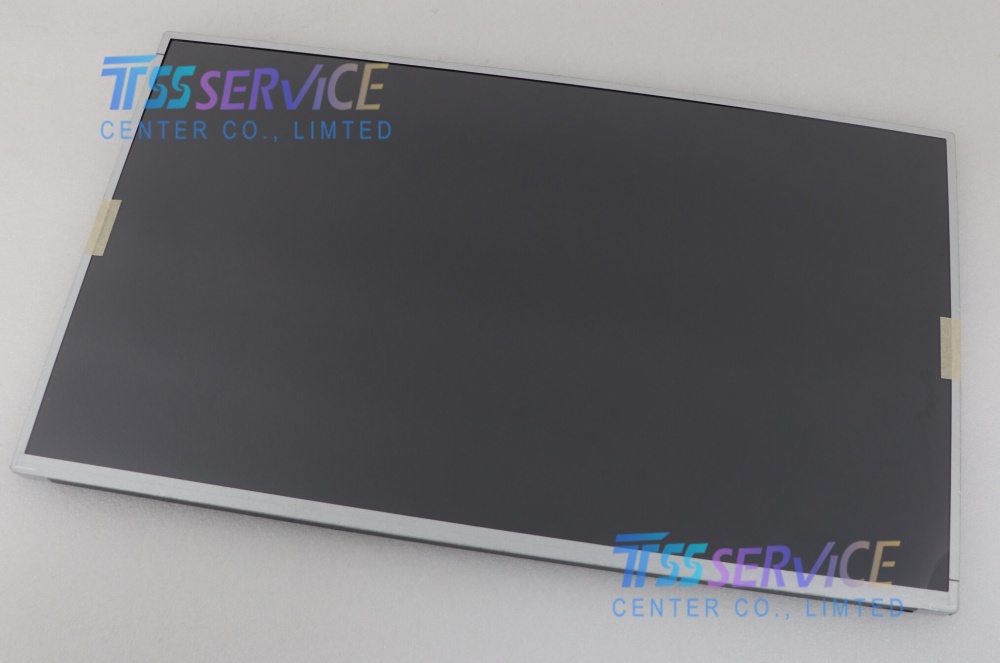

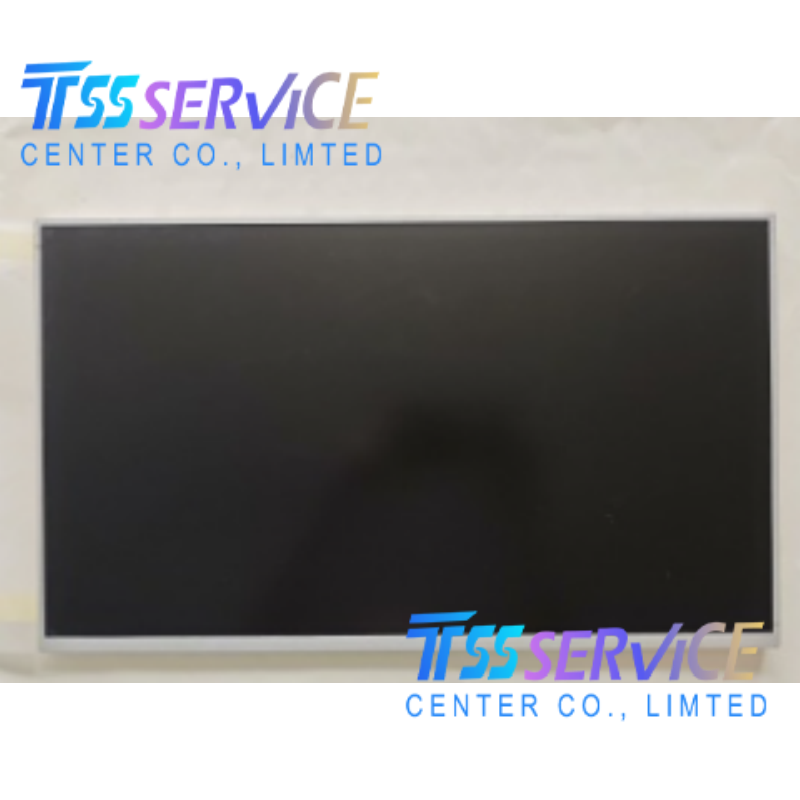

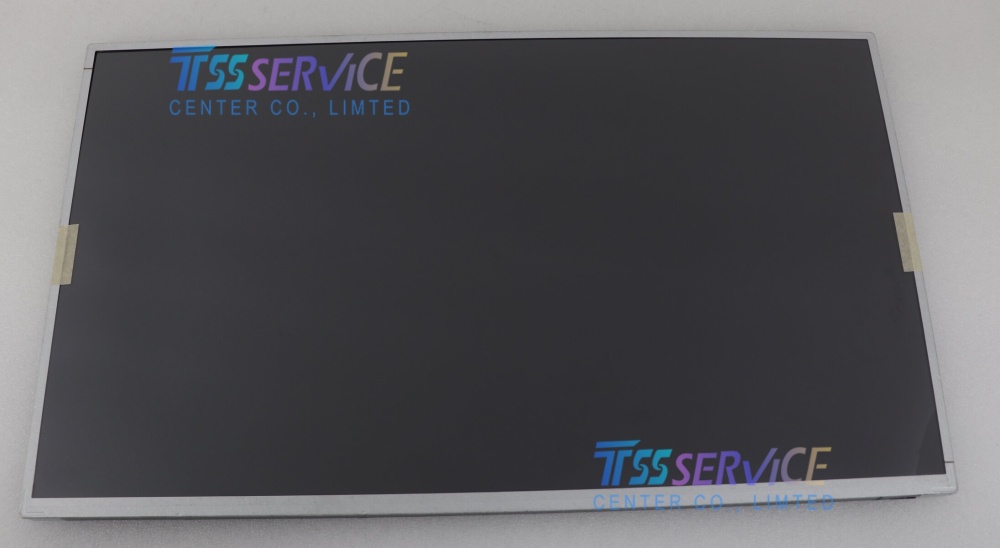

G238HCB-LA1 | Innolux 23.8" FHD IPS High-Bright Industrial LCD Panel
G238HCB-LA1 is a 23.8-inch Full HD industrial TFT LCD panel manufactured by Innolux. It adopts IPS wide-view technology, Mini LED backlight with ultra-high 1400 cd/m² brightness, dual-channel 8-bit LVDS 30-pin interface, 1000:1 contrast ratio and 16.7M true color depth. Designed for high-bright outdoor semi-outdoor equipment, sunlight-readable kiosks, industrial monitoring and outdoor advertising terminals, it delivers clear visual performance under strong ambient light with stable industrial temperature resistance.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Part Number |
G238HCB-LA1 |
| Manufacturer |
Innolux (群创光电) |
| Diagonal Size |
23.8 inch, landscape, 16:9 aspect ratio |
| Native Resolution |
1920(H) × 1080(V) pixels (FHD 1080P) |
| Display Technology |
a-Si TFT-LCD, IPS mode, Normally Black, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.2745 mm × 0.2745 mm |
| Active Area (AA) |
527.04 mm (W) × 296.46 mm (H) |
| Overall Outline Dimension |
543 mm (W) × 317.4 mm (H) |
| Typical Brightness |
1400 cd/m² (sunlight readable) |
| Typical Contrast Ratio |
1000:1 |
| Viewing Angle (L/R/U/D, CR≥10 Min.) |
80° / 80° / 80° / 80° symmetrical wide angle |
| Display Color Depth |
16.7M true colors (8-bit RGB) |
| Backlight System |
Mini LED backlight, long service life, no built-in driver board |
| Signal Interface |

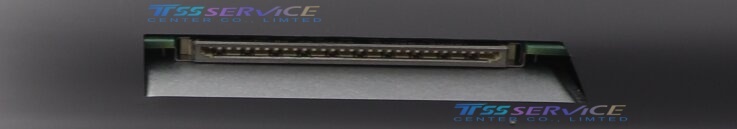

Dual-channel LVDS, 8-bit, 30-pin FPC connector |
| Logic Supply Voltage |
5.0 VDC (4.5V ~ 5.5V allowable range) |
| Power Consumption |
4.6W typical @60Hz white screen |
| Refresh Rate |
60 Hz / 75 Hz compatible |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-20°C ~ +60°C |
| Touch Function |
Without integrated touch screen (resistive/capacitive touch overlay customizable) |
| Surface Treatment |
Anti-glare hard coating, anti-reflection treatment for sunlight environment |
| Compliance Standard |
RoHS industrial compliant |
| Production Status |
Mass production new industrial high-bright panel |
