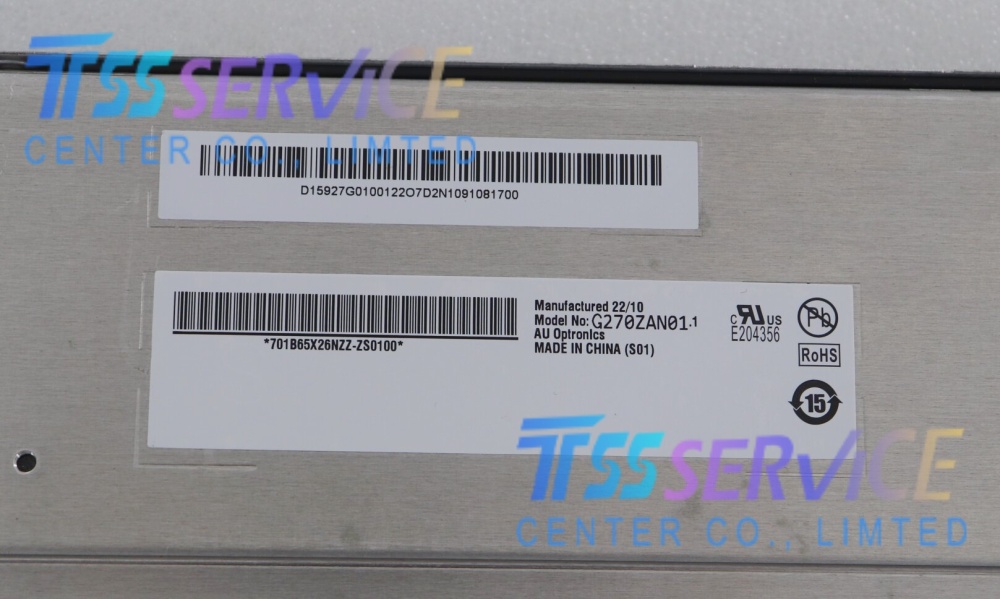

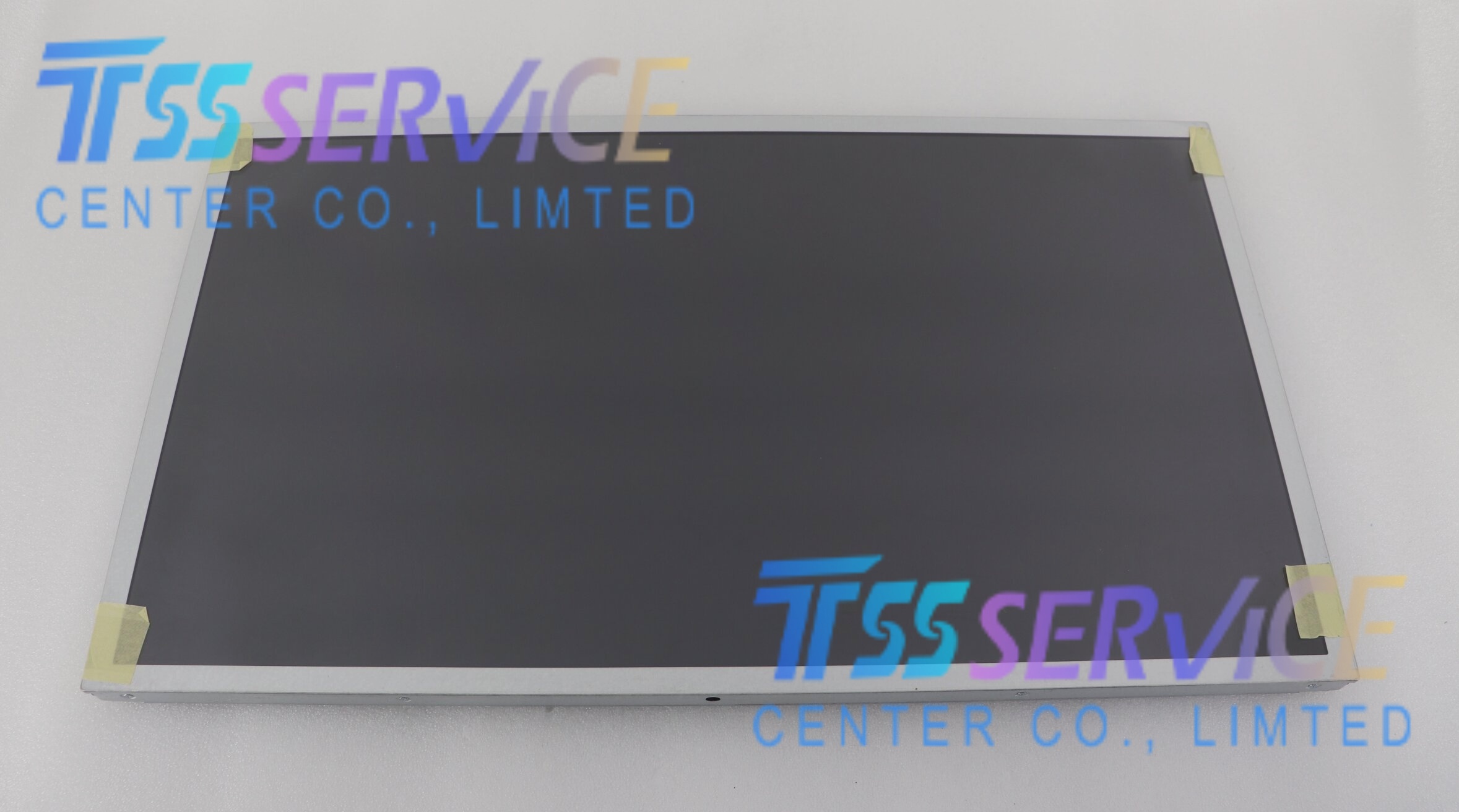

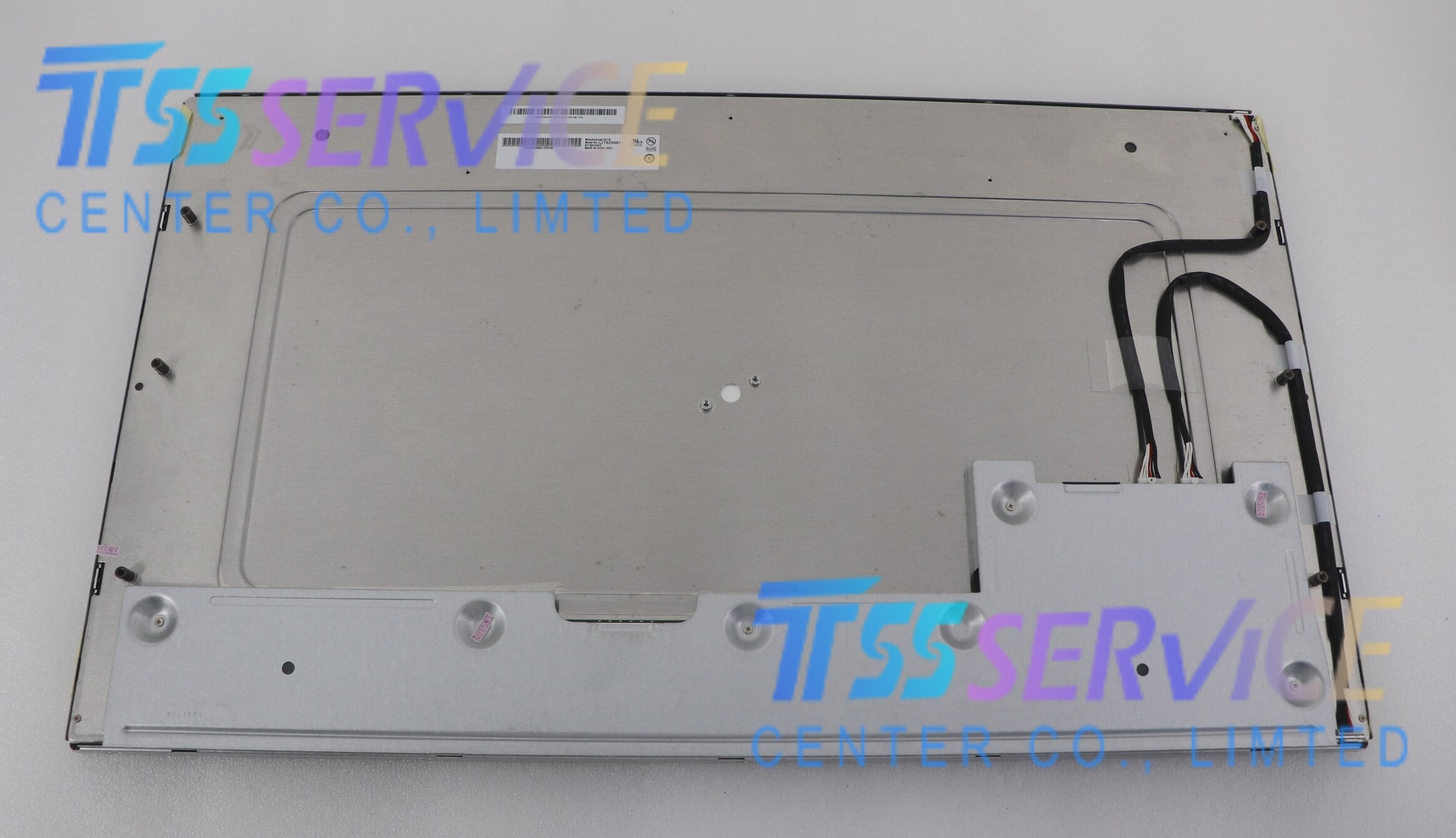

AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial

SKU: G270ZAN01.1
Model P/N: G270ZAN01.1
Diagonal Size: 27"
Panel Type: a-Si TFT-LCD, LCM
Pixel Number: 3840(RGB)×2160, UHD, 16:9
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$355.00 $350.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial
  • AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial
  • AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial
  • AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial
  • AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial
  • AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial
1/1
  • AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial
  • AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial
  • AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial
  • Description
AUO 27 inch G270ZAN01.1 3840×2160 LCD Panel Display For Industrial
Parameter Specification
Manufacturer AU Optronics (AUO)
Model G270ZAN01.1
Panel Type a-Si TFT-LCD, AHVA (IPS-like)
Size 27.0" (Diagonal)
Resolution 3840 × 2160 (UHD 4K)
Aspect Ratio 16:9
Active Area 596.16 × 335.34 mm
Outline Dimension 630(W)×368.2(H)×23.4(D) mm
Brightness 800 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)
Viewing Angle 89°/89°/89°/89° (L/R/U/D)
Response Time 16 ms (Typ.) / 25 ms (Max.)
Display Colors 1.07B (8-bit + Hi FRC)
Color Gamut 90% CIE1931
Backlight WLED (White LED)
LED Lifetime 50,000 hours
Interface V-by-One 8 lanes (51 pins)
Input Voltage 12 V DC (Typ.)
Power Consumption 61.96 W (Total)
Operating Temp. 0°C ~ +50°C
Storage Temp. -20°C ~ +60°C
Surface Treatment Anti-Glare (AG)
Touch Screen No
Weight 3.4 kg (Typ.)

Applications

  • Industrial Displays: High-brightness, wide-angle panels for factory automation, HMI, and control rooms.
  • Medical Imaging: 4K resolution for diagnostic monitors (ultrasound, radiology) requiring precise color reproduction.
  • Outdoor Digital Signage: 800 nits brightness for clear visibility in direct sunlight.
  • Kiosks & POS Terminals: Rugged design for public-facing interactive displays.
  • High-End Retail: Digital signage for luxury stores, museums, and exhibition halls.
  • Video Walls: Multi-panel setups for command centers, stadiums, and large public venues.
