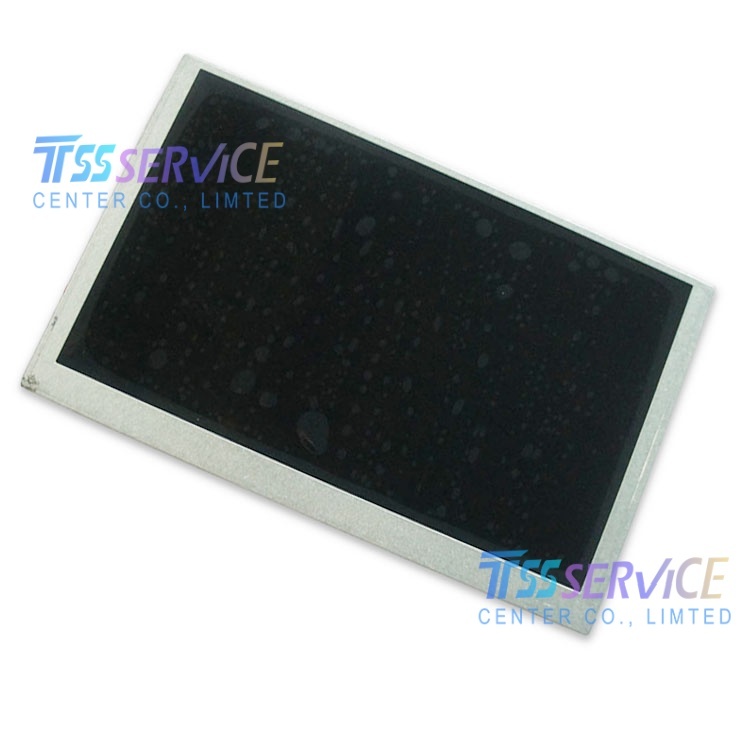

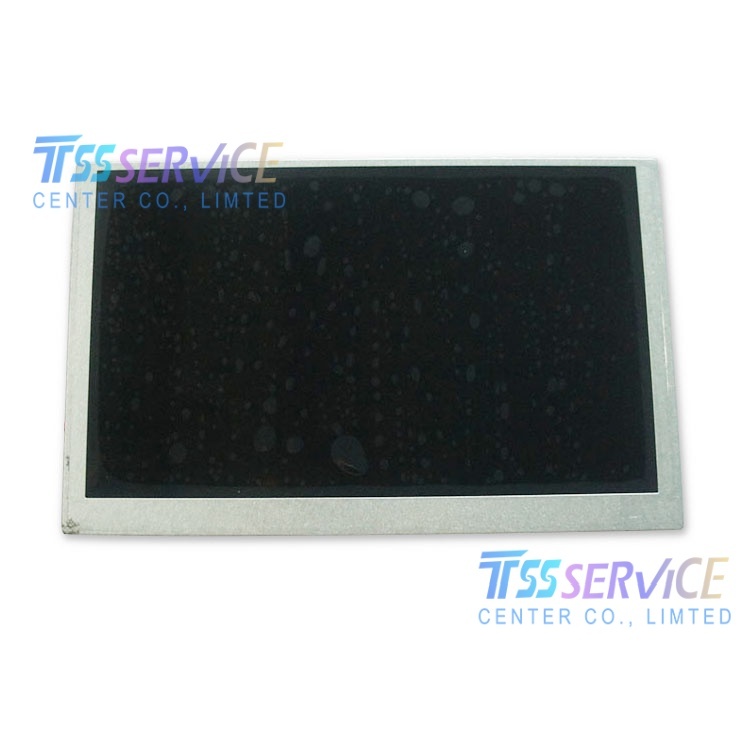

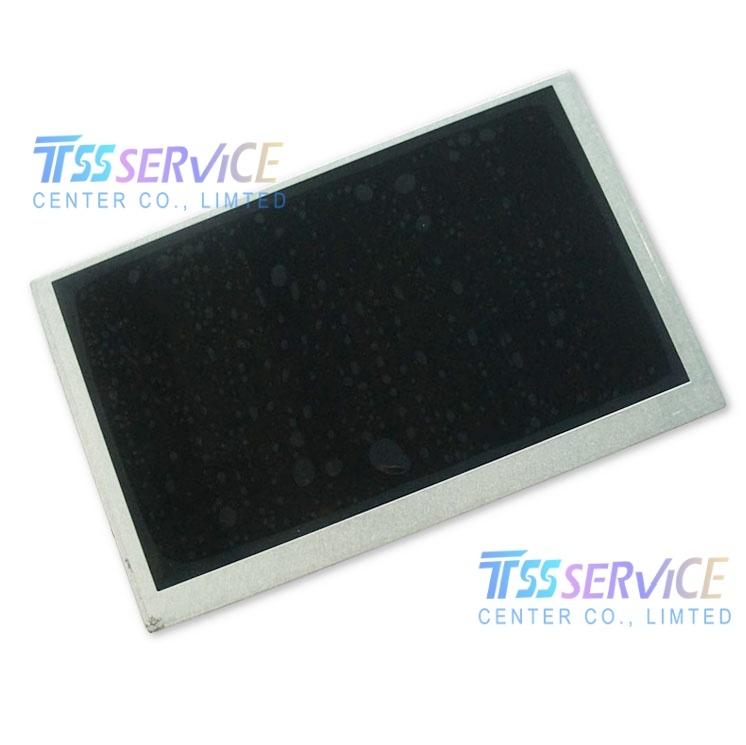

GD0800NA00240 8 inch LCD Panel Display For Industrial

Name: GD0800NA00240 8 inch LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: GD0800NA00240
Price: 40 USD
Availability: InStock

SKU: GD0800NA00240

Part Number: GD0800NA00240
Panel Type: a‑Si TFT‑LCD, Color (RGB)
Diagonal Size: 8.0" (8 inches)
Resolution: 800 × 600 (SVGA)
Aspect Ratio: 4:3

0.0 (0 Reviews)

0 Sold

~~$42.00~~ $40.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

GD0800NA00240 8 inch LCD Panel Display For Industrial

Parameter	Detail
Manufacturer	General Display (GD)
Part Number	GD0800NA00240
Panel Type	a‑Si TFT‑LCD, Color (RGB)
Diagonal Size	8.0" (8 inches)
Resolution	800 × 600 (SVGA)
Aspect Ratio	4:3
Brightness	Typically 500 cd/m² (High Brightness for Outdoor/Highway)
Contrast Ratio	Typically 1000:1
Viewing Angle	80° (H) / 80° (V) (Typical)
Interface	LVDS (Low Voltage Differential Signaling), 2-lane
Touch Type	Capacitive Touch Panel (Multi-touch supported)
Supply Voltage	3.3V / 5V (System & Touch)
Operating Temp.	-30°C ~ 80°C (Industrial/Automotive Grade)
Storage Temp.	-20°C ~ 70°C
Surface Treatment	Anti‑Glare (AG) / Hard Coating
Certification	RoHS, Reach

Automotive On-board Instrumentation
- Central control screens, instrument clusters, and infotainment systems.
- High brightness ensures readability under direct sunlight.
Industrial HMI & Control Panels
- Factory automation controllers, CNC machine interfaces, and PLC HMI terminals.
- Wide operating temperature range (-30°C to 80°C) suits harsh industrial environments.
Medical & Healthcare Devices
- Patient monitors, diagnostic equipment, and portable medical devices.
- Compact size and high resolution support clear visualization of medical data.
Marine & Outdoor Equipment
- Marine navigation systems, outdoor communication terminals, and ruggedized controllers.
- Robust construction and anti-glare surface perform well in variable light conditions.
Public Information & Kiosks
- ATM machines, self‑service payment kiosks, and information display systems.
- Capacitive touch provides intuitive and responsive user interaction.
