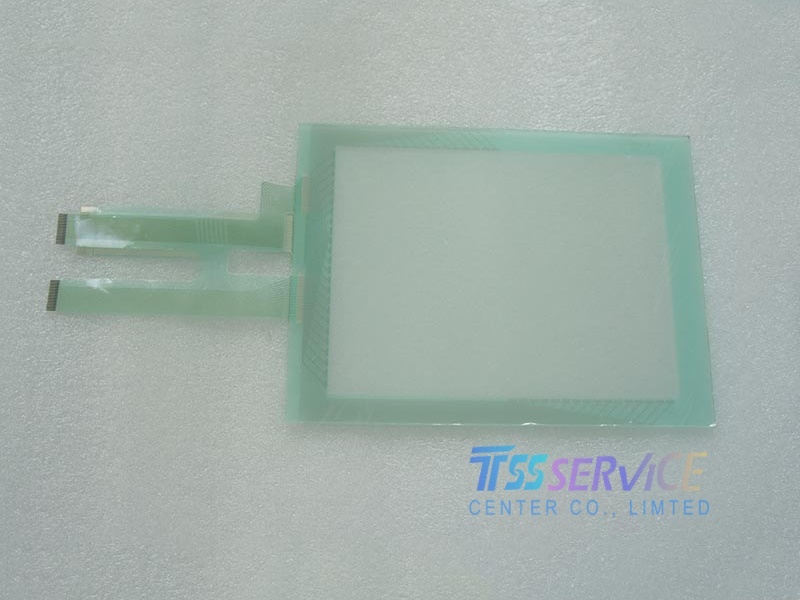

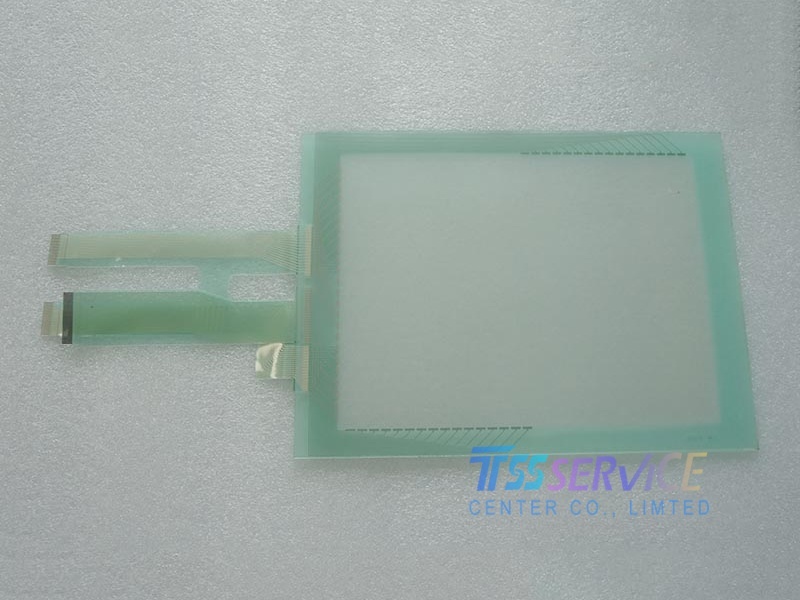

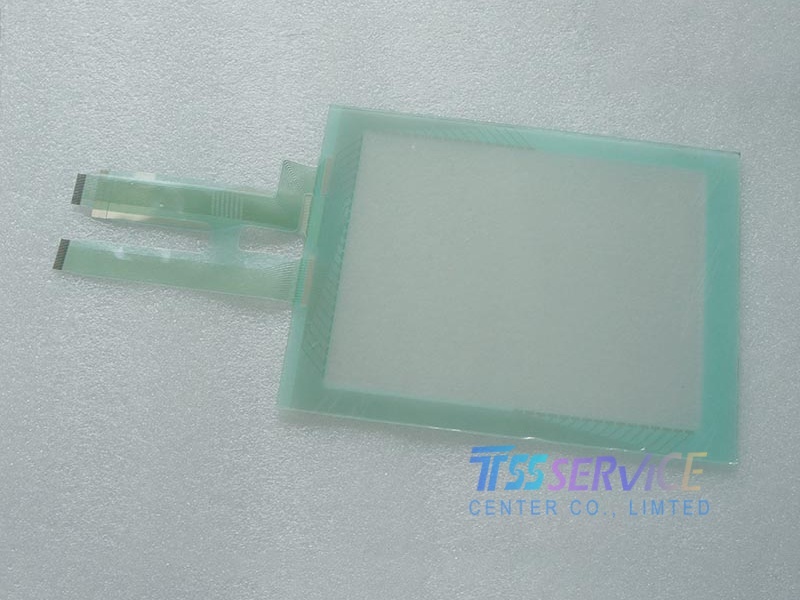

New Touch Screen GP2500
Model Prefix Display Size Resolution Typical Model Example
GP2505 5.7 inches 320 × 240 (QVGA) GP2505-TC41-24V
GP2506 6.5 inches 320 × 240 (QVGA) GP2506-TC41-24V
GP2508 8.4 inches 480 × 234 (Wide) GP2508-TC41-24V
GP2510 10.4 inches 640 × 480 (VGA) GP2510-TC41-24V
3. Common Specifications (Across Series)
Parameter Specification
Display Technology TFT LCD (Color Active Matrix)
Color Depth 256 colors (8-bit) or 4,096 colors (12-bit) depending on model
Brightness 200 - 300 cd/m² (typical)
Contrast Ratio 200:1 to 300:1
Backlight Type CCFL (Cold Cathode Fluorescent Lamp) - earlier models
LED - later models
Backlight Lifetime 30,000 - 50,000 hours (to half-brightness)
Touch Technology Analog Resistive (4-wire, single-touch)
Touch Life >1 million touches
Front Protection IP65 (when properly installed)
NEMA 4/4X/12 compatible
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Power Supply 24 V DC (typically 20.4 - 26.4 V DC range)
4. Detailed Model: GP2510-TC41-24V (10.4-inch Representative Model)
Parameter Specification
Display Size 10.4 inches diagonal (264.2 mm)
Aspect Ratio 4:3
Active Area 211 mm (W) × 158 mm (H)
Resolution 640 × 480 pixels (VGA)
Color Depth 256 colors (8-bit, typical)
Brightness 250 cd/m²
Contrast Ratio 250:1
Backlight CCFL (typical)
Touch 4-wire resistive
Communication Ports • Channel 1: RS-422/485 (for Mitsubishi PLCs)
• Channel 2: RS-232 (for computer, printer, etc.)
Optional Ports Ethernet, PROFIBUS, DeviceNet via optional communication modules
Memory 3 MB user memory (typical)
Cutout Dimensions 270 mm × 212 mm (10.63" × 8.35")
Overall Dimensions 289 mm × 231 mm × 57 mm (11.38" × 9.09" × 2.24")
Weight 3.0 kg (6.6 lbs)
5. Communication Capabilities
Interface Specification
Standard Ports • COM1: RS-422/485 (terminal block)
• COM2: RS-232 (9-pin D-Sub)
Supported Protocols • Mitsubishi MELSEC: FX, A, QnA, Q series
• Modbus RTU (Master/Slave)
• Omron Host Link
• Siemens S7-200 PPI
• ASCII communication
Optional Communication Boards • MELSECNET/H
• Ethernet (10BASE-T/100BASE-TX)
• PROFIBUS-DP
• DeviceNet
• CC-Link
Baud Rates 9,600 to 115,200 bps (selectable)
6. Processor & Memory
Parameter Specification
Processor 32-bit RISC processor (specific model varies)
Clock Speed 100 - 200 MHz (typical)
RAM 8 MB (for runtime operation)
Flash Memory 16 MB (stores OS, project, fonts)
User Memory 3 MB available for project (typical)
Backup Memory Non-volatile (no battery required for project storage)
Real-Time Clock Built-in (capacitor-backed, typical 10-day retention)
7. Power Requirements
Parameter Specification
Input Voltage 24 V DC (nominal)
Voltage Range 20.4 V DC to 26.4 V DC
Current Consumption 10.4-inch model: 300 mA typical @ 24V (7.2 W)
5.7-inch model: 150 mA typical @ 24V (3.6 W)
Inrush Current < 5 A for 20 ms
Connection 2-pin or 3-pin removable terminal block
Protection Reverse polarity, overvoltage (up to 30 V DC)
