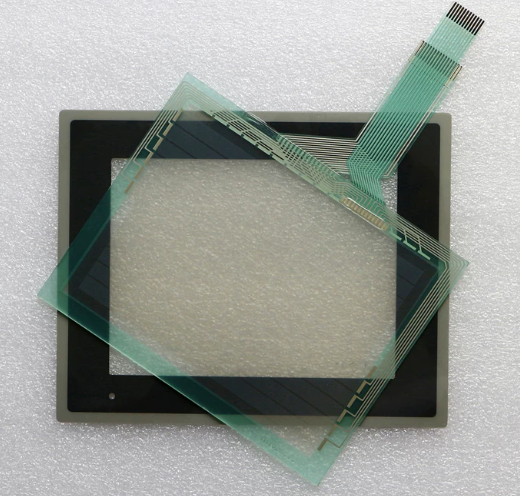

for GP370-SC11-24V new touch screen digitizer touch glass

for GP370-SC11-24V new touch screen digitizer touch glass
Display Specifications

• Display Type: STN (Super Twisted Nematic) Color LCD -1-3

• Display Size: 12.1 inches -2

• Resolution: 800 × 600 pixels -2

• Display Colors: 8 colors (Black, White, Cyan, Red, Magenta, Blue, Yellow, Green) -3 / 256 colors (no flicker) / 64 colors (3-speed flicker) -2

• Backlight: CCFL (Cold Cathode Fluorescent Lamp) -1-2

• Backlight Lifespan: 50,000 hours (24-hour continuous operation) -2

• Brightness Control: 4 levels adjustable via touch panel -2

Touch Panel

• Type: Resistive analog touch panel -2

• Touch Points: 1 or 2 point touch -1

• Key Layout: 16 × 12 keys per screen -1

Memory

• Internal Memory (Screen Storage): FLASH EPROM -1-2

  • GP370-SC11-24V: 4 MB FLASH EPROM -2

  • Note: Some documentation indicates 1 Mbyte for GP370 series -1

• Backup Memory: SRAM 256 KB -2

Electrical Specifications

• Rated Voltage: DC24V -2

• Operating Voltage Range: 19.2 - 28.8 VDC -5

• Power Consumption: 20W max -8

• Voltage Drop Tolerance: 10 ms max -5

• Inrush Current: 30A or less -5

• Insulation Resistance: 10 MΩ or more at 500 VDC -5

• Dielectric Strength: 1,000 VAC, 20 mA for 1 minute (between power terminal and FG terminal) -5

Interface / Communication

Serial Interface

• Transmission Method: Asynchronous -1-3

• Compatible Standards: RS-232C / RS-422 -1-3

• Data Length: 7 or 8 bits -1-3

• Stop Bit: 1 or 2 bits -1-3

• Parity: None, Odd, or Even -1-3

• Data Transmission Rate: 2,400 - 38,400 bps -1-3

• Connector Type: D-Sub 9-pin (male) -5

Tool Connector

• Interface: RS-232C asynchronous transmission, TTL level -1

• Purpose:

  • Development mode: Download screen designs -1

  • RUN mode: Used with barcode reader interface -1

Ethernet Interface

• Standard: IEEE802.3i / IEEE802.3u -5

• Speed: 10BASE-T / 100BASE-TX -5

• Connector: RJ-45 × 1 -5

Expansion Interfaces

• CF Card Slot: Yes (CompactFlash, for data transfer and program updates) -2

• USB Interface: Available on some models -5

Clock

• Clock Accuracy: ±40 seconds/month (at room temperature) -1

Environmental Specifications

Ingress Protection

• Front Panel Rating: IP65f (dust-tight and protected against water jets from any direction) -1

Temperature

• Operating Temperature: 0 to 50°C -5

• Storage Temperature: -20 to +60°C -5

Humidity

• Operating Humidity: 10 to 90% RH (non-condensing, wet bulb temperature: 39°C or less) -5

• Storage Humidity: 10 to 90% RH (non-condensing) -5

Altitude

• Operating Altitude: Up to 2,000 meters (800 - 1,114 hPa) -5

Vibration Resistance

• Standard: Compliant with IEC/EN61131-2 -5

• 5-9 Hz: Single amplitude 3.5mm -5

• 9-150 Hz: Constant acceleration 9.8 m/s² -5

• Direction: X, Y, Z axes, 10 times each (100 minutes) -5

Shock Resistance

• Standard: Compliant with IEC/EN61131-2 -5

• Specification: 147 m/s², X, Y, Z axes, 3 times each -5

Cooling

• Method: Natural air cooling -5

Certifications

• Safety Standards: UL/c-UL (CSA) Listed, CE compliant -1-5

Physical Dimensions

• External Dimensions (W × H × D): 272.5 × 214.5 × 57 mm -5

• Panel Cutout Dimensions: Compatible with standard panel mounting -5

• Panel Thickness Compatibility: 1.6 to 5 mm -5

• Weight: Approximately 2 kg or less
