This is a 10.4-inch monochrome display model from the GP570 Series.
| Attribute | Specification |
|---|---|
| Manufacturer | Pro-face (Schneider Electric) |
| Series | GP570 Series |
| Product Type | Monochrome LCD Touch Panel HMI |
| Status | Discontinued / Legacy Product -7 |
| Attribute | Specification |
|---|---|
| Display Size | 10.4 inches -7 |
| Display Type | Monochrome (Black and White) LCD -7 |
| Resolution | 640 × 480 pixels -7 |
| Display Attributes | Blink / Reverse Video (allows white text on black background) -7 |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) |
| Backlight Lifespan | 25,000 hours (approximately 2.85 years of continuous use) -7 |
| Backlight Replacement | Not user-replaceable -7 |
| Attribute | Specification |
|---|---|

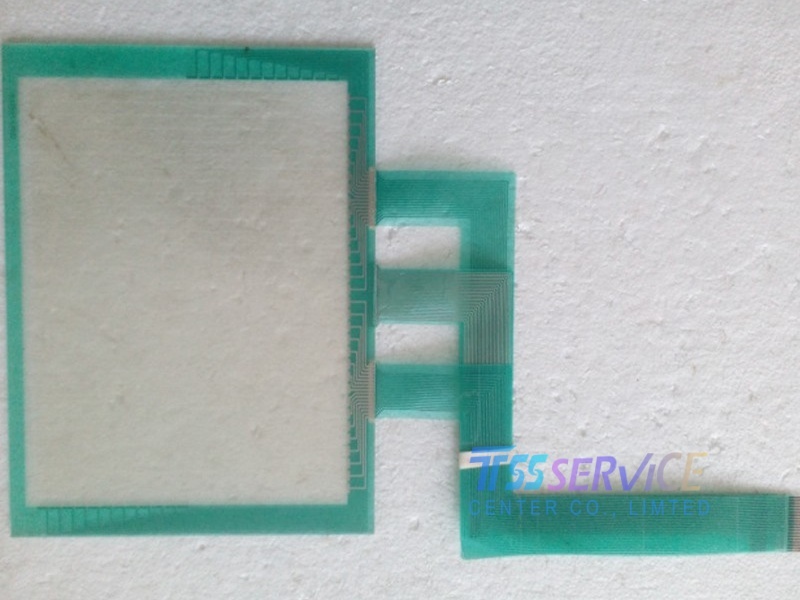

| Type | Resistive touch panel |
| Touch Points | 1 or 2 point touch -7 |
This is a 12.1-inch TFT color display model from the GP77R Series. Note: There is also a GP577R-SC41-24VP variant which typically uses AC power instead of DC.
| Attribute | Specification |
|---|---|
| Manufacturer | Pro-face (Schneider Electric) |
| Series | GP77R Series |
| Product Type | TFT Color LCD Touch Panel HMI |
| Status | Discontinued / Legacy Product |
| Attribute | Specification |
|---|---|
| Display Size | 12.1 inches -2-5 |
| Display Type | TFT True Color LCD -2-5 |
| Resolution | 800 × 600 pixels -2-5 |
| Display Colors | 256 colors (no flicker) / 64 colors (3-speed flicker) -2 |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) |
| Backlight Lifespan | Over 50,000 hours (24-hour continuous operation) -2 |
| Brightness Control | 4 levels adjustable via touch panel -2 |
| Attribute | Specification |
|---|---|
| Rated Power Supply | DC24V -2 |
Important Note: The similar model GP577R-SC41-24VP uses AC200-240V power -10. Always verify the voltage rating on your specific unit's label.
This is a 10.4-inch display model. There are conflicting reports about whether it is TFT color or STN color. The specifications below represent the most common configuration.
| Attribute | Specification |
|---|---|
| Manufacturer | Pro-face (Schneider Electric) |
| Series | GP570 Series |
| Product Type | TFT / STN Color LCD Touch Panel HMI |
| Status | Discontinued / Legacy Product |
| Attribute | GP570-LG21-24V | GP577R-SC41-24V | GP570-BG11-24V |
|---|---|---|---|
| Display Type | Monochrome LCD | TFT Color LCD | TFT/STN Color LCD |
| Screen Size | 10.4 inches | 12.1 inches | 10.4 inches |
| Resolution | 640 × 480 | 800 × 600 | 640 × 480 |
| Colors | Black & White | 256 colors | 64-256 colors |
| Power Supply | DC24V | DC24V | DC24V |
| Memory (Flash) | Not specified | 4 MB | 2-4 MB |
| Ethernet | Not specified | Yes | Yes |
