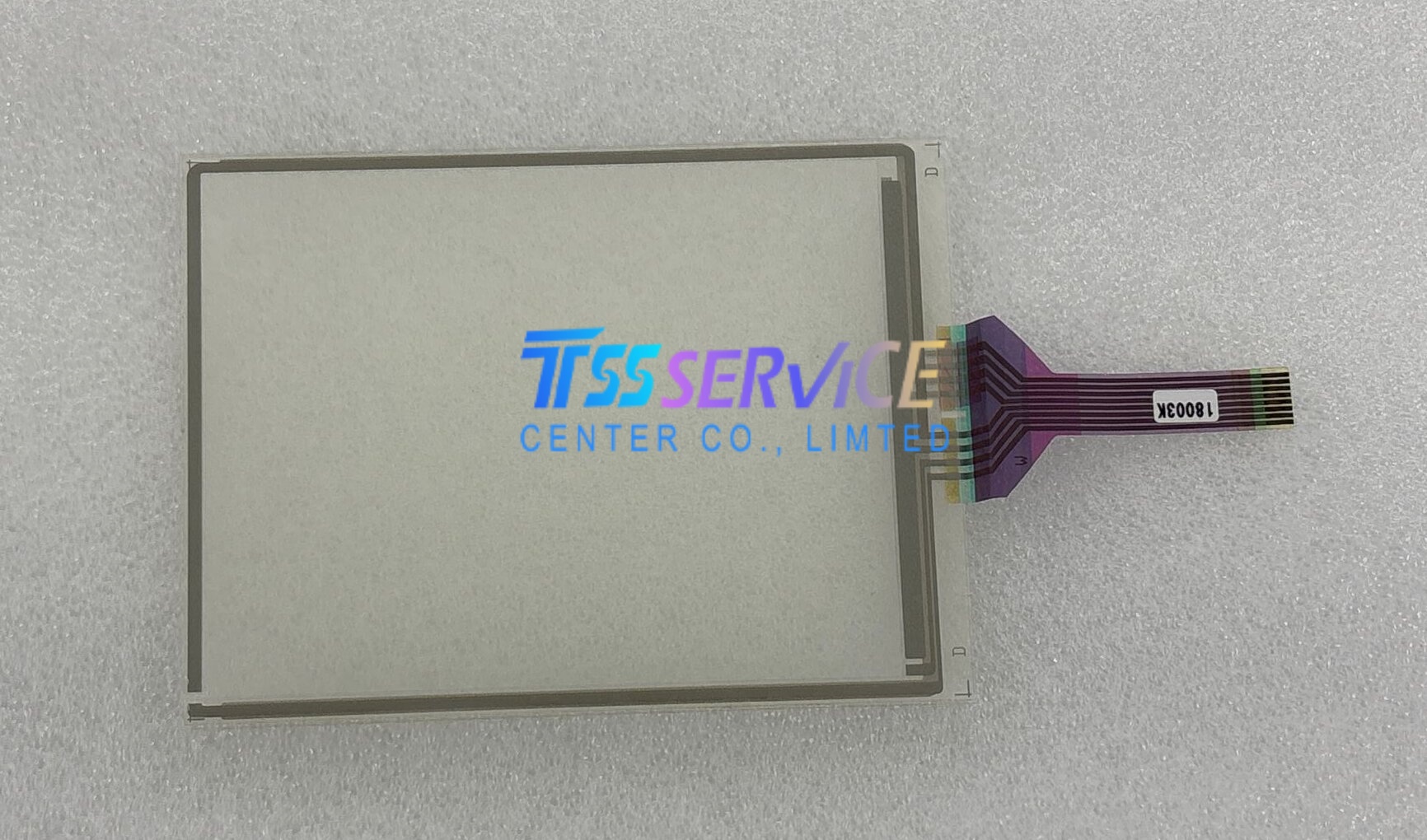

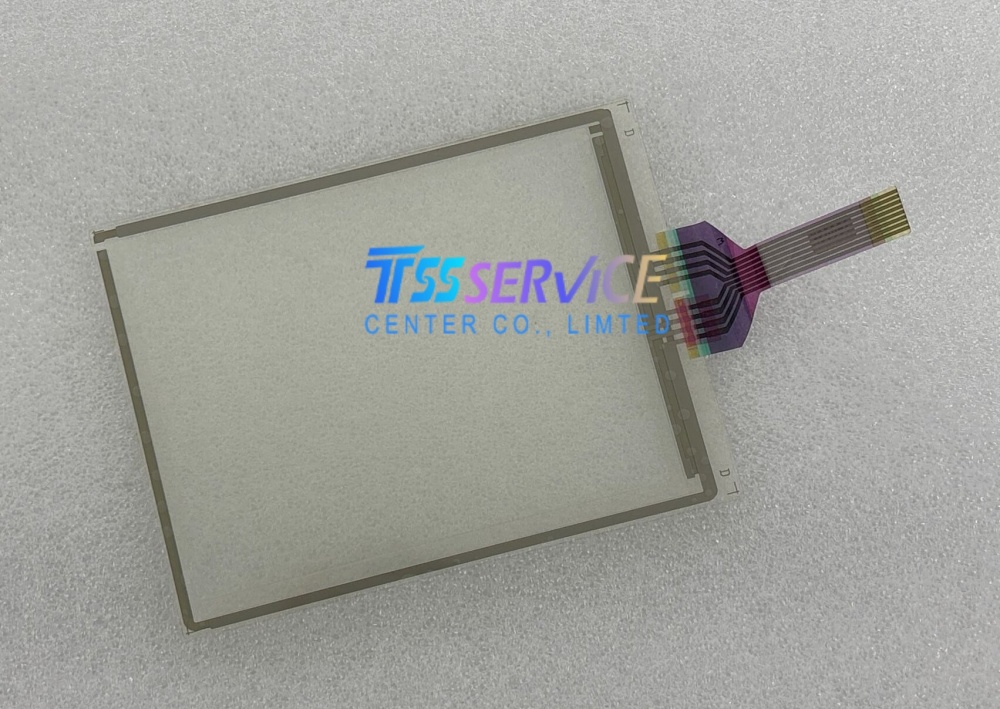

GT/GUNZE USP 4.484.038 G-25 4-wire analog resistive touch screen
Specifications
- Manufacturer: Gunze (GT/GUNZE, Japan)
- Part No: USP 4.484.038 G-25
- Type: 4-wire analog resistive touch screen panel
- Diagonal Size: 10.4 inch
- Structure: Glass top layer + PET bottom conductive film, FPC tail connection
2. Core Electrical & Touch Parameters
- Touch wiring: 4-wire resistive (X+/X-, Y+/Y-)
- Typical resistance range: X-axis 200–800 Ω, Y-axis 200–800 Ω
- Operating voltage: 3.3 V / 5 V compatible with industrial touch controllers
- Activation force: 20–100 g (finger, stylus, gloved hand operable)
- Touch resolution: High linearity, <1.5% position error
- Life cycle: ≥1,000,000 taps at single point
- Transmittance: ≥80% visible light
3. Mechanical Dimensions
- Active touch area: Matches standard 10.4” TFT LCD outline
- Total panel thickness: ~1.2 mm (glass substrate main body)
- FPC cable: Standard Gunze original pin definition, right-side outgoing flat ribbon
- Flat rectangular form factor, no built-in LCD backlight/display
4. Environmental Reliability
- Operating temp: -10 ℃ ~ +60 ℃
- Storage temp: -20 ℃ ~ +70 ℃
- Humidity tolerance: 5%–90% RH non-condensing
- Surface hardness: 3H scratch-resistant glass surface
- Compliance: RoHS industrial grade
Typical Applications
-
-
-
-
-
-
-
-
- Plastic Injection Molding Machine HMI
- Main operator touch interface for mold parameters, cycle time, pressure & fault monitoring
-
- CNC / Machine Tool Control Panels
- Lathe, milling, cutting machine cabin operation terminals
-
- Packaging & Automated Production Line Controllers
- Conveyor, filling, sealing, labeling equipment touch operation screens
-
- Medical Diagnostic & Lab Equipment
- Patient auxiliary monitors, analytical testing instruments
-
- Construction & Heavy Equipment Cabin Displays
- Excavator, loader, road roller monitor touch overlay
-
- General Factory Automation PLC HMI Terminals
- Retrofit/replacement touch glass for 10.4” industrial display units
-
