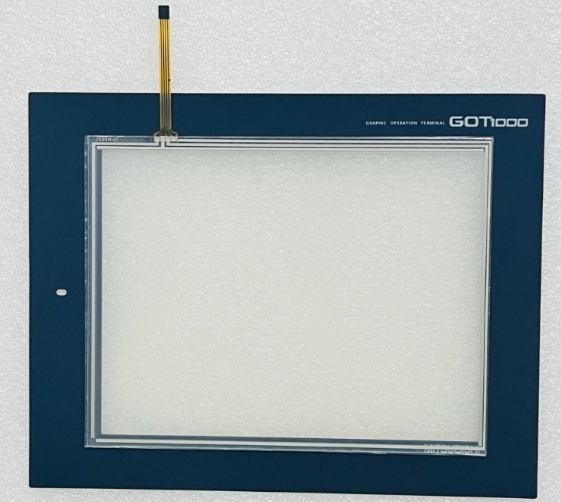

for GT1265-VNBA new touch screen digitizer touch glass

SKU: GT1265-VNBA
TFT Color Liquid Crystal Display  Screen Size    8.4 inches  Resolution    640 × 480 dots (VGA)
0.0 (0 Reviews)
0 Sold
$49.00 $47.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • for GT1265-VNBA new touch screen digitizer touch glass
  • for GT1265-VNBA new touch screen digitizer touch glass
1/1
  • for GT1265-VNBA new touch screen digitizer touch glass
  • Description
for GT1265-VNBA new touch screen digitizer touch glass

Product Information

Attribute Specification
Manufacturer Mitsubishi Electric
Series GOT1000 Series (GT12 model)
Product Type Operator Interface / Touch Panel HMI
Part Number GT1265-VNBA -2

Display Specifications

Attribute Specification
Display Type TFT Color Liquid Crystal Display -2
Screen Size 8.4 inches -1-2-4
Resolution 640 × 480 dots (VGA) -1-2-4
Display Size (W × H) 171 × 128 mm -2
Display Colors 256 colors -2-4
Viewing Angle Left/Right: 45°, Top/Bottom: 20° (or Top: 30°, Bottom: 20°) -2-4
Backlight CCFL (factory lifespan is not user-replaceable)

Touch Panel

Attribute Specification
Type Analog resistive film -1-2
Minimum Key Size 2 × 2 dots per key -2

Memory

Attribute Specification
User Storage Capacity 6 MB (built-in flash memory) -1-3-4
C Drive (Flash Memory) 9 MB -2

Note: Some sources indicate 6MB user storage -4, while others specify 9MB C drive -2

Electrical Specifications

Attribute Specification
Power Supply Type AC100~240V -1-2-3
Voltage Range 100 to 240 V AC (+10%, -15%) -5-9
Frequency 50/60 Hz (-5%) -5-9
Insulation Resistance 1 MΩ or more (at 500V DC, between power terminal and ground) -4

Interface / Communication

Attribute Specification
Ethernet Standard built-in -1-3
RS-232 Standard built-in -1-3
RS-422/485 Standard built-in -1-2-3
USB Interface Device USB (Mini-B USB) and Host USB (USB-A) -1-2
Optional Function Card Slot Available for expansion -2

Physical Dimensions

Attribute Specification
External Dimensions (W × H × D) 241 × 190 × 58 mm -4 or 303 × 214 × 53 mm -2
Panel Cutout Dimensions (W × H) 227 × 176 mm -4
Mass (Weight) Approximately 1.7 kg (excluding mounting fixtures) -2 or 1.0 kg -4
Panel Color Black -1-3
Mounting Type Panel mounting type -1

 Note: External dimensions vary between sources. See -4 for official values

Environmental Specifications

Attribute Specification
Front Panel Protection Rating IP67 (dust-tight, protected against temporary immersion) -4-7
Operating Temperature 0°C to +50°C (standard)
Storage Temperature -20°C to +60°C
Operating Humidity 10% to 90% RH (non-condensing)
Cooling Method Natural air circulation

Text Display Capabilities

Character Size Characters per Line Lines
12-dot standard font 53 characters 40 lines -2
16-dot standard font 40 characters 30 lines -2
