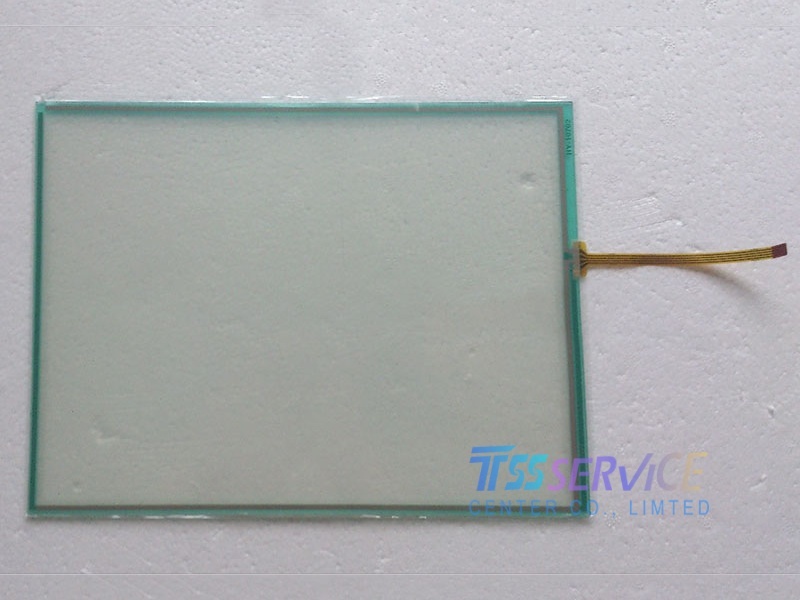

for GT1275-VNBA new touch screen digitizer touch glass
SKU: GT1275-VNBA
(0 Reviews)
0 Sold
1/1
CATEGORIES
| Attribute | Specification |
|---|---|
| Display Type | TFT Color LCD -5-6 |
| Screen Size | 10.4 inches -3-5-6 |
| Resolution | 640 × 480 pixels (VGA) -1-5-6 |
| Display Colors | 256 colors -1-5-6 |
| Display Area (W × H) | 211.2 × 158.4 mm -1 |
| Brightness | 200 cd/m² -1 |
| Brightness Control | 4-level adjustable -1 |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) -1 |
| Backlight Lifespan | Approx. 52,000 hours (at 25°C ambient temperature) -1-3 |
| Viewing Angle | Left/Right: 45°, Top: 30°, Bottom: 20° -1-6 |
| Attribute | Specification |
|---|---|
| Power Supply Type | AC100~240V -1-3 |
| Voltage Range | 100 to 240 V AC (+10%, -15%) -1-2-3 |
| Frequency | 50/60 Hz (±5%) -1-2 |
| Power Consumption | 18W or less -1-3 |
| Apparent Power | 44 VA max -1 |
| Inrush Current | 40A or less (at 4ms max load) -1 |
| Voltage Endurance | 1,500 VAC for 1 minute (between power terminal and ground) -1 |
| Insulation Resistance | 10 MΩ or more at 500 VDC -1 |
| Attribute | Specification |
|---|---|
| Ethernet | 1 × RJ45 port (10BASE-T/100BASE-TX) -3-6 |
| RS-232 | 1 × 9-pin D-Sub male connector -3 |
| RS-422/485 | 1 × 9-pin D-Sub female connector -3 |
| USB (Host) | 1 × USB-A (for USB memory, mouse, keyboard) -1-4 |
| USB (Device) | 1 × USB Mini-B (for connection to computer) -1-4 |
| CF Card Slot | Yes -1-5 |
| Expansion Interface | Optional function card slot available |
