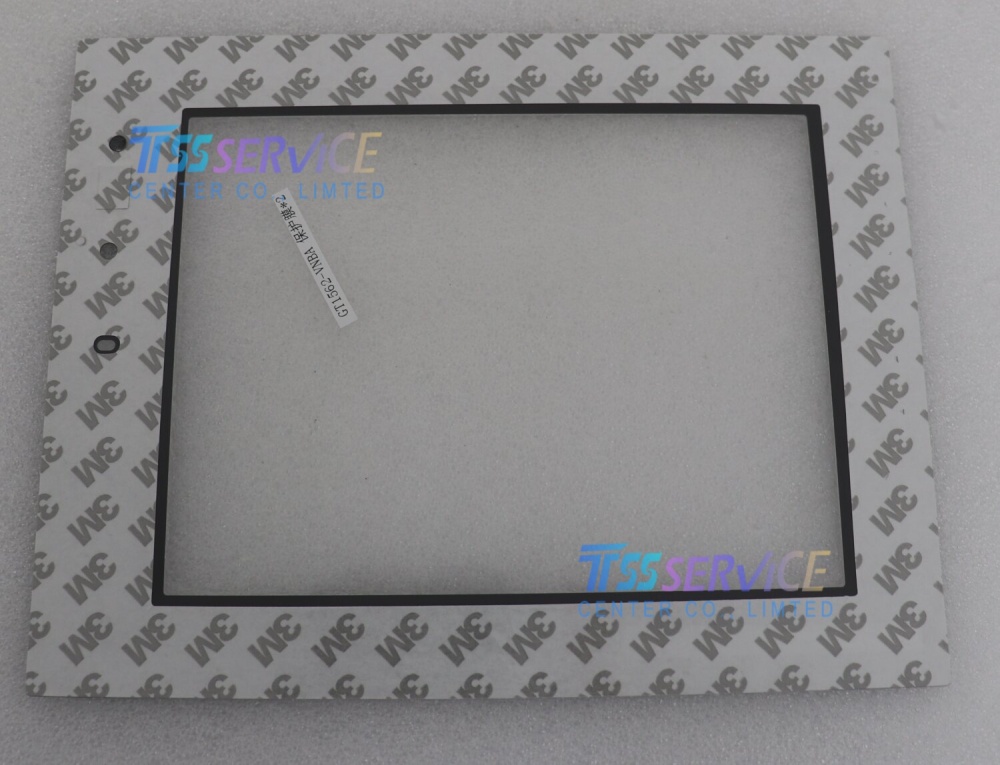

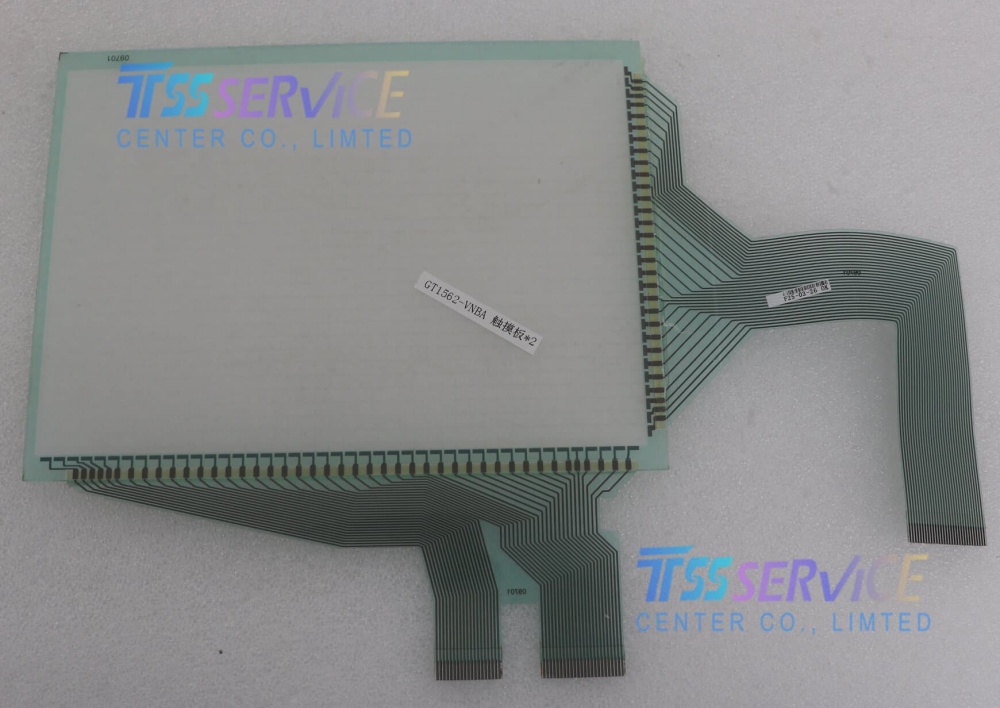

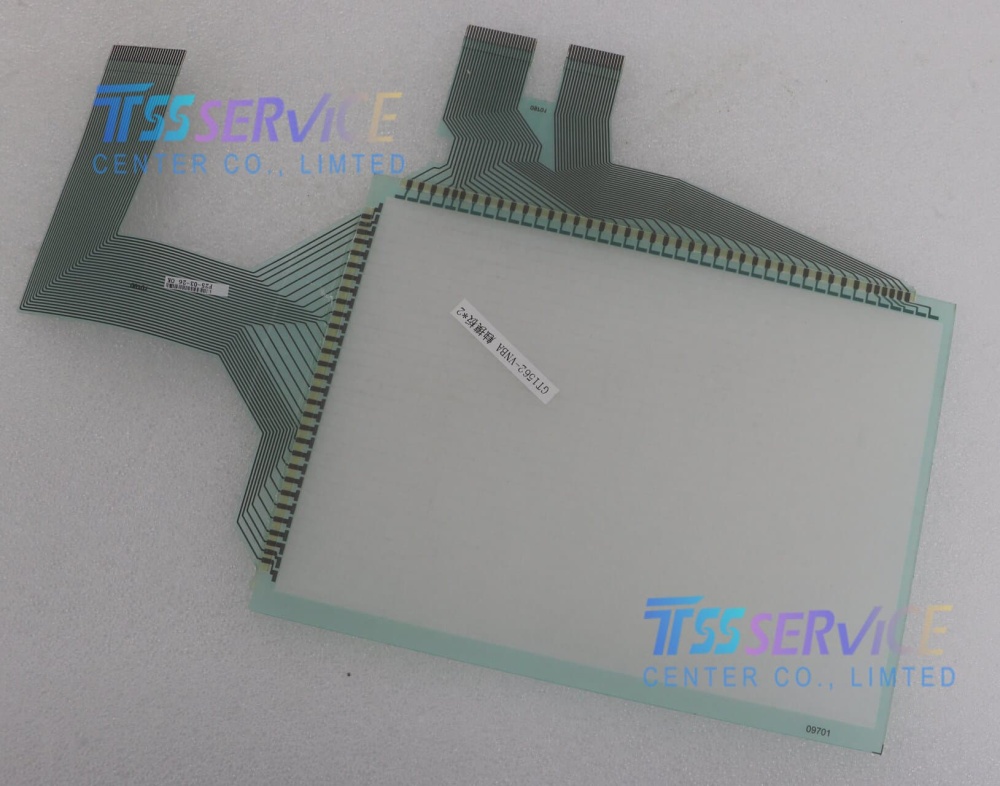

Mitsubishi GT1562-VNBA touch screen glass
SKU: GT1562-VNBA
(0 Reviews)
0 Sold
1/1
CATEGORIES
| Attribute | Specification |
|---|---|
| Display Type | TFT color liquid crystal display -1 |
| Screen Size | 8.4 inches -4 |
| Resolution | 640 × 480 pixels (VGA) -6 |
| Display Size (W × H) | 171 × 128 mm -7 |
| Display Colors | 16 colors -4 |
| Brightness | 150 cd/m² -7 |
| Brightness Control | 4-level adjustable -7 |
| Viewing Angle | Left/Right: 45°, Top: 20°, Bottom: 20° -4 |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) -7 |
| Backlight Replacement | User-replaceable -7 |
| Attribute | Specification |
|---|---|
| Power Supply Type | AC100~240V -1 |
| Voltage Range | 100 to 240 V AC (+10%, -15%) -7 |
| Frequency | 50/60 Hz (±5%) -7 |
| Power Consumption | 39W or less (typical) -7 |
| Backlight Off Consumption | 28W or less -7 |
| Apparent Power | 44 VA max (at 110V) -7 |
| Inrush Current | 40A or less (at 4ms max load) -7 |
| Allowable Momentary Power Failure | 20ms -7 |
| Noise Immunity | 1,500 Vp-p, 1µs pulse width (noise simulator 25-60Hz) -7 |
| Voltage Endurance | 1,500 VAC for 1 minute (power to ground) -7 |
| Insulation Resistance | 10 MΩ or more at 500 VDC -7 |
| Interface | Specification |
|---|---|
| RS-232 | 1 × D-sub 9-pin (male), up to 115,200 bps -7 |
| USB (Device) | 1 × USB Mini-B, 12 Mbps full speed -7 |
| CF Card Slot | 1 × TYPE I CF card slot -7 |
| Expansion Interface | Bus connection, serial communication, MELSECNET/H, CC-Link, Ethernet -2 |
| Option Function Board Slot | 1 slot available -7 |
| Extension Unit | 2 slots for communication/optional units -7 |
| Other Interfaces | Printer interface, audio interface, external I/O -2 |
Note: While some sources indicate built-in Ethernet -4, expansion via communication unit may be required depending on configuration.
