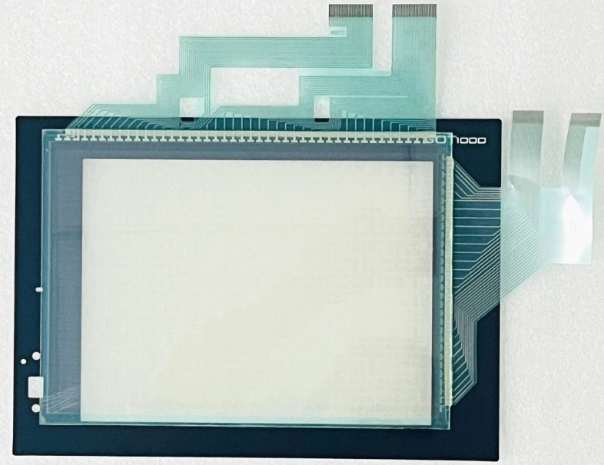

New Touch Screen Digitizer Touch glass GT1575-VNBA
SKU: GT1575-VNBA
(0 Reviews)
0 Sold
1/1
CATEGORIES
| Attribute | Specification |
|---|---|
| Display Type | TFT Color LCD -1-4 |
| Screen Size | 10.4 inches -1-4 |
| Resolution | 640 × 480 pixels (VGA) -1-4 |
| Display Size (W × H) | 211 × 158 mm -4 |
| Display Colors | 256 colors -1-4 |
| Brightness | 200 cd/m² -2-4 |
| Brightness Control | 4 levels adjustable -4 |
| Backlight Type | CCFL (Cold Cathode Fluorescent Lamp) - user replaceable -4 |
| Backlight Lifespan | Approx. 50,000 hours |
| Viewing Angle | Left/Right: 45°, Top: 30°, Bottom: 20° -2-4 |
| Attribute | Specification |
|---|---|
| Power Supply Type | AC100~240V -1-4 |
| Voltage Range | 100 to 240 V AC (+10%, -15%) -4 |
| Frequency | 50/60 Hz (±5%) -4 |
| Power Consumption (Typical) | 39W -1-4 |
| Power Consumption (Backlight Off) | 28W or less -4 |
| Apparent Power | 44 VA max (at 110V) -4 |
| Inrush Current | 40A or less (at 4ms max load) -4 |
| Allowable Momentary Power Failure | 20ms -4 |
| Noise Immunity | 1,500 Vp-p, 1µs pulse width -4 |
| Voltage Endurance | 1,500 VAC for 1 minute (power to ground) -4 |
| Insulation Resistance | 10 MΩ or more at 500 VDC -4 |
| Applicable Wire Size | 0.75 mm² to 2 mm² -4 |
| Terminal Screw Torque | 0.5 N·m to 0.8 N·m -4 |
| Interface | Specification |
|---|---|
| RS-232 | 1 × D-sub 9-pin (male); up to 115,200 bps -4 |
| USB (Device) | 1 × USB Mini-B; 12 Mbps full speed -4 |
| CF Card Slot | 1 × TYPE I CF card slot -1-4 |
| Option Function Board Slot | 1 slot available -4 |
| Extension Unit Slots | 2 slots (communication/optional units) -4 |
| Other Interfaces | Printer, audio, external I/O (via expansion) -2-5 |
| Expansion Options | Bus connection, serial comm, MELSECNET/H, CC-Link, Ethernet -2-5 |
| Attribute | Specification |
|---|---|
| Front Panel Protection Rating | IP65f (JEM11030) - dust-tight, protected against water jets -4 |
| Internal Protection Rating | IP2X -4 |
| Operating Temperature | 0°C to +55°C -1-4 |
| Storage Temperature | -20°C to +60°C -1 |
| Operating Humidity | 10% to 90% RH (non-condensing) -1 |
| Cooling Method | Natural air circulation -4 |
| Attribute | Specification |
|---|---|
| Buzzer Output | Single tone (adjustable duration) -4 |
| Electrical Durability | 41,000 hours |
