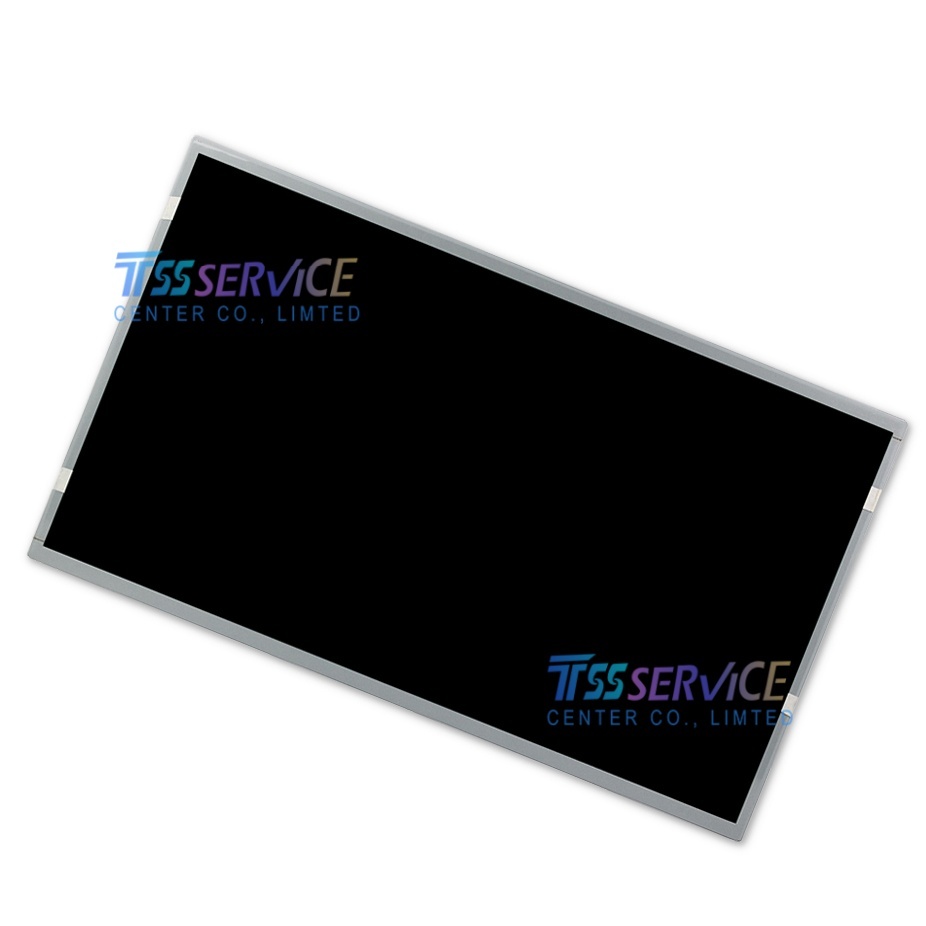

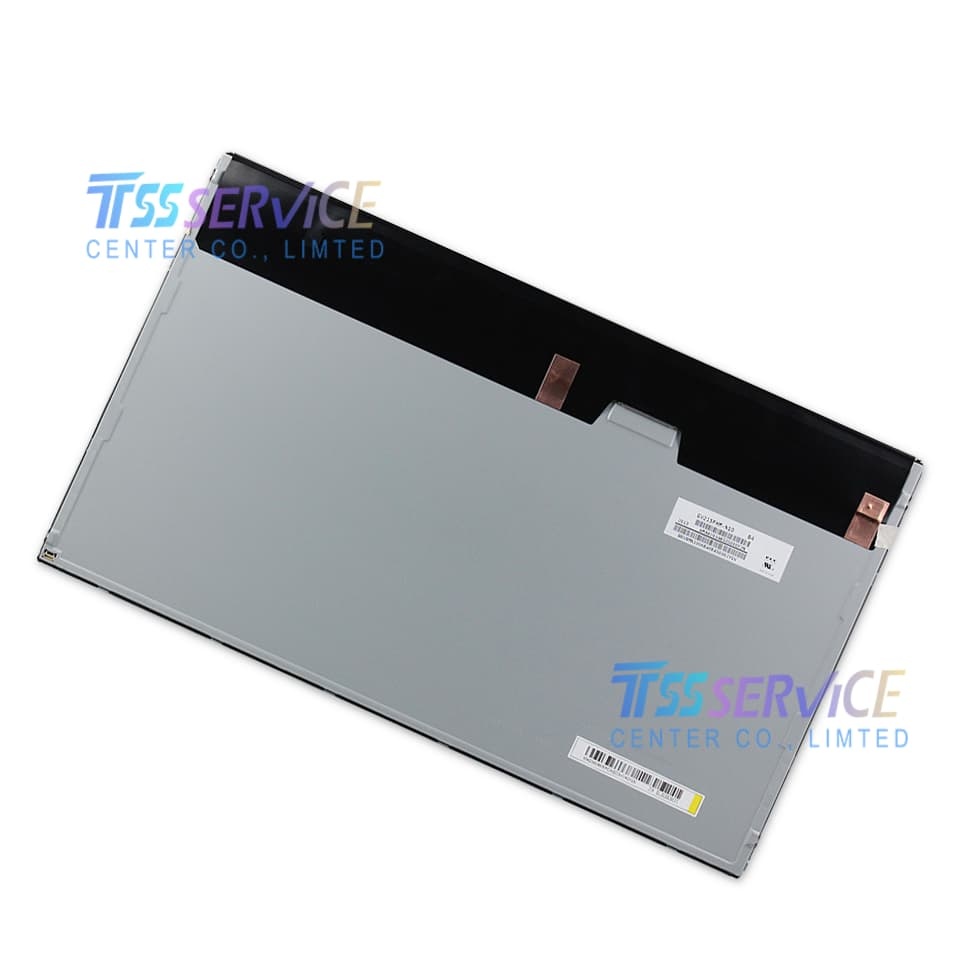

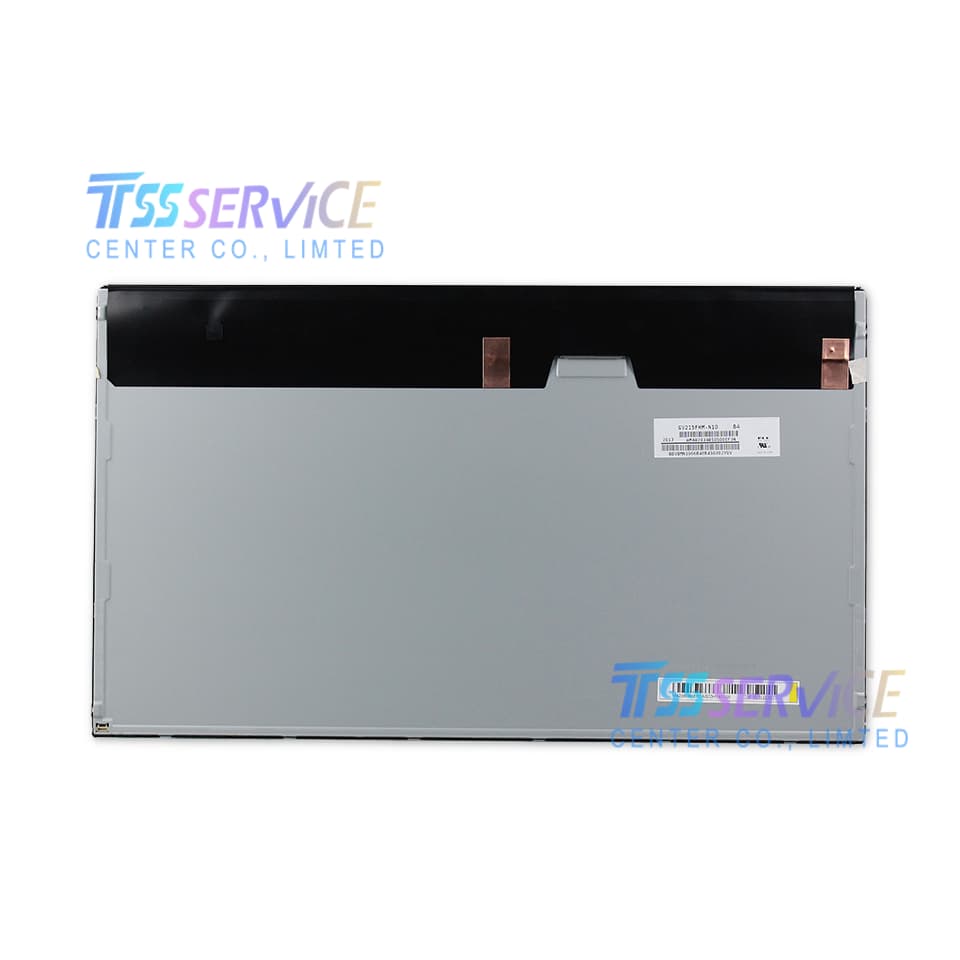

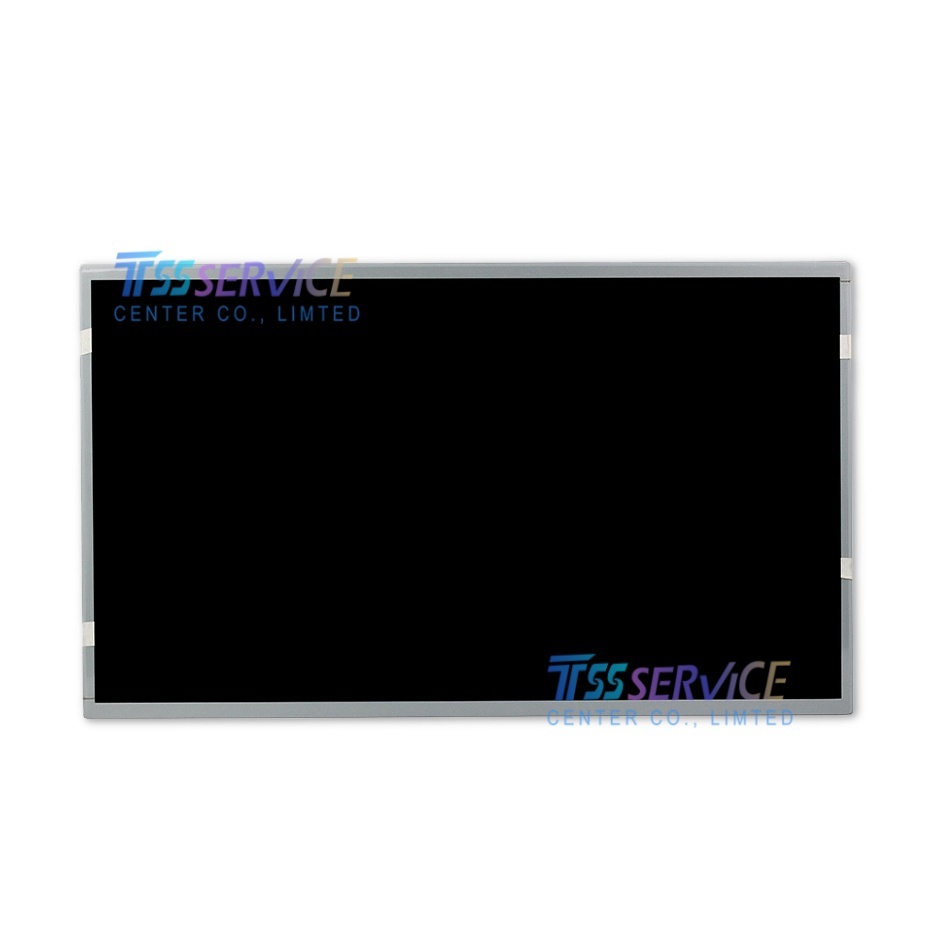

BOE GV215FHM-N10 21.5 Inch 1920×1080 TFT LCD Panel Industrial Display Screen
| Item |
Detailed Parameter |
| Manufacturer (Mfr.) |
BOE (Beijing Oriental Electronics) |
| Model Number |
GV215FHM-N10 |
| Diagonal Screen Size |
21.5 Inch |
| Panel Type |
a-Si TFT-LCD, IPS Transmissive LCM Module |
| Native Resolution |
1920(RGB) × 1080 (Full HD), 16:9 Aspect Ratio |
| Pixel Format |
RGB Vertical Stripe |
| Pixel Pitch |
0.24825mm (W) × 0.24825mm (V) |
| Typical Brightness |
450 cd/m² |
| Typical Contrast Ratio |
1000:1 (TM Mode) |
| Viewing Angle (U/D/L/R) |
89° / 89° / 89° / 89° (CR≥10) |
| Display Mode |
Normally Black, Transmissive |
| Response Time (G-to-G) |
14ms Typical |
| Display Colors |
16.7M True Colors |
| Backlight Light Source |
WLED, Long Lifespan, Without Built-in Driver IC |
| Refresh Frequency |
60Hz |
| Touch Function |
Without Touch Screen |
| Signal Interface |
LVDS (2 Channel, 8-bit), 30 Pins FPC Connector |
| Operating Temperature |
-20 ℃ ~ +70 ℃ |
| Storage Temperature |
-25 ℃ ~ +80 ℃ |
Application Scenarios
Industrial Automation Equipment
- CNC machine tool central control console displays
- Factory production line monitoring large-size terminals
- Packaging, printing and textile equipment HMI panels
- Automated warehouse monitoring display screens
- PLC industrial integrated control workstations
Commercial Self-Service & Digital Signage
- Supermarket self-checkout kiosk display screens
- Restaurant self-ordering touch base display modules
- Indoor commercial advertising digital signage
- Hotel lobby information inquiry terminals
- Vending machine large interactive display panels
Medical Monitoring & Auxiliary Equipment
- Medical imaging auxiliary high-definition display screens
- Multi-parameter patient central monitoring stations
- Laboratory testing equipment operation display terminals
- Medical beauty equipment large HD operation panels
Other Embedded Industrial Displays
- Workshop training industrial display monitors
- Small-size industrial all-in-one PC replacement screens
- Traffic indoor monitoring display terminals
