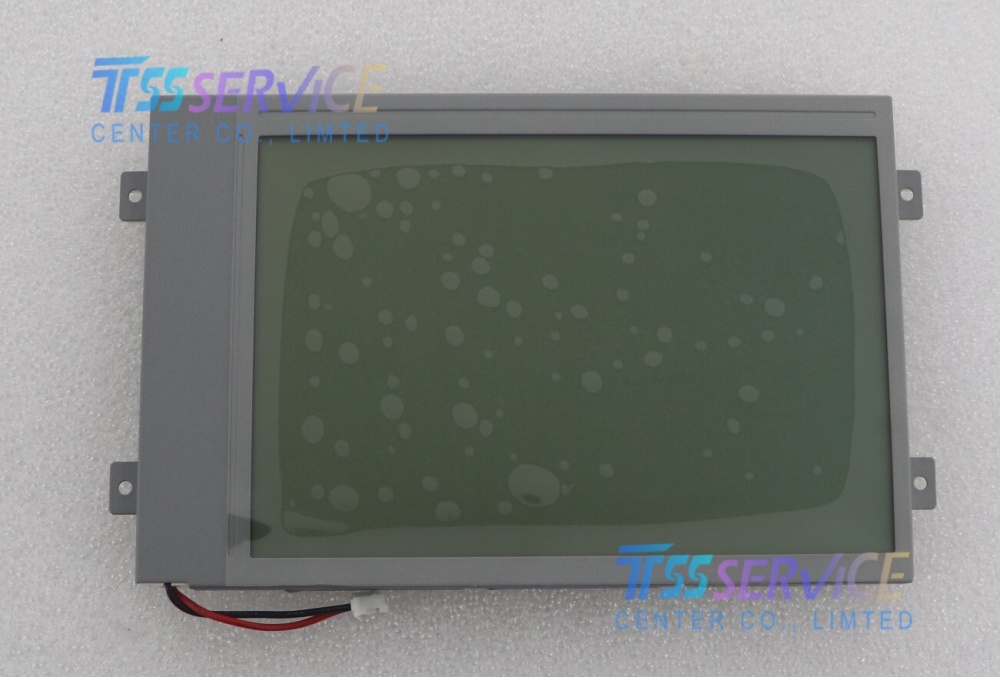

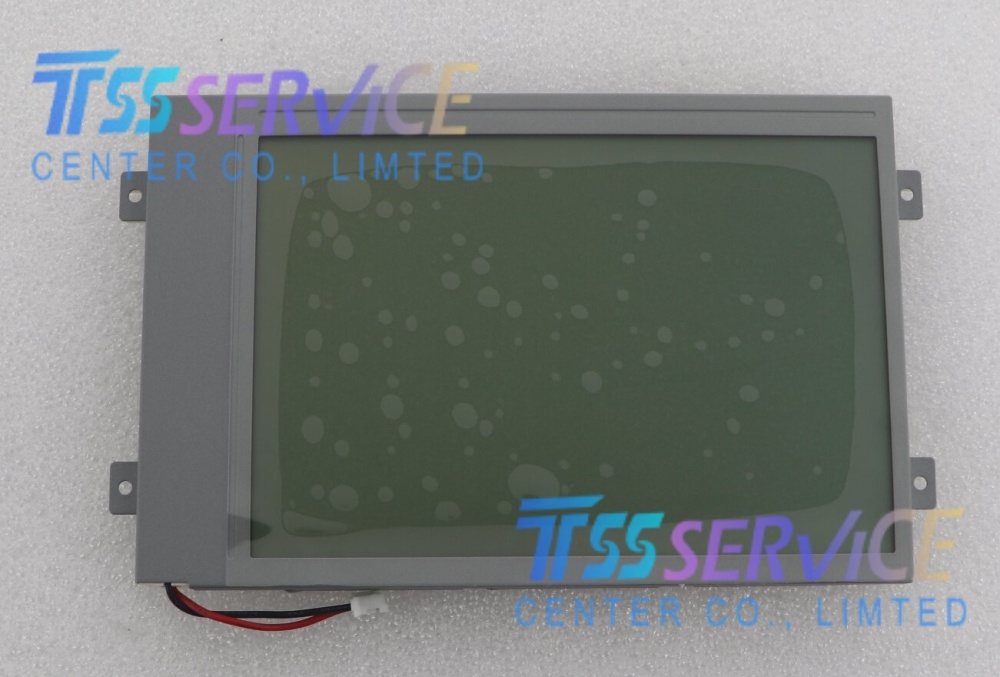

HDM48321-M-ZAEF 5.5 inch LCD Panel Display For Industrial
| Parameter |
Details |
| Model Number |
HDM4832L-M-ZAEF |
| Display Type |
Monochrome FSTN Graphic LCD (Transmissive/Positive) |
| Diagonal Size |
5.5 inch |
| Resolution |
480 × 320 pixels (WQVGA) |
| Active Area |
122.4 × 73.44 mm |
| Module Dimensions |
156.0 × 95.0 × 12.0 mm |
| Backlight |
White LED (WLED), long lifetime, with dedicated 2-pin connector |
| Interface |
Parallel 8/16-bit MCU interface, 24-pin FPC connector |
| Supply Voltage |
3.3V / 5.0V DC (typical) |
| Operating Temperature |
-20°C ~ +70°C (industrial wide range) |
| Storage Temperature |
-30°C ~ +80°C |
| Suffix-Specific Features |
Enhanced ESD protection, RoHS compliance, and optional transflective mode (for sunlight readability) |
| Contrast Ratio |
Adjustable via external control (typical 500:1) |
The HDM4832L-M-ZAEF is optimized for industrial and embedded systems requiring rugged, reliable displays:
- Industrial Control & HMI: PLC interfaces, factory automation panels, and process monitoring systems.
- Medical Equipment: Patient monitors, diagnostic analyzers, and lab instruments requiring clear, low-power displays.
- Test & Measurement Devices: Oscilloscopes, field meters, and portable data loggers for industrial use.
- Marine & Heavy Equipment: Navigation systems, control panels for construction machinery, and agricultural equipment.
- Legacy System Replacements: Direct drop-in upgrade for older HDM4832L-series modules in industrial machinery.
