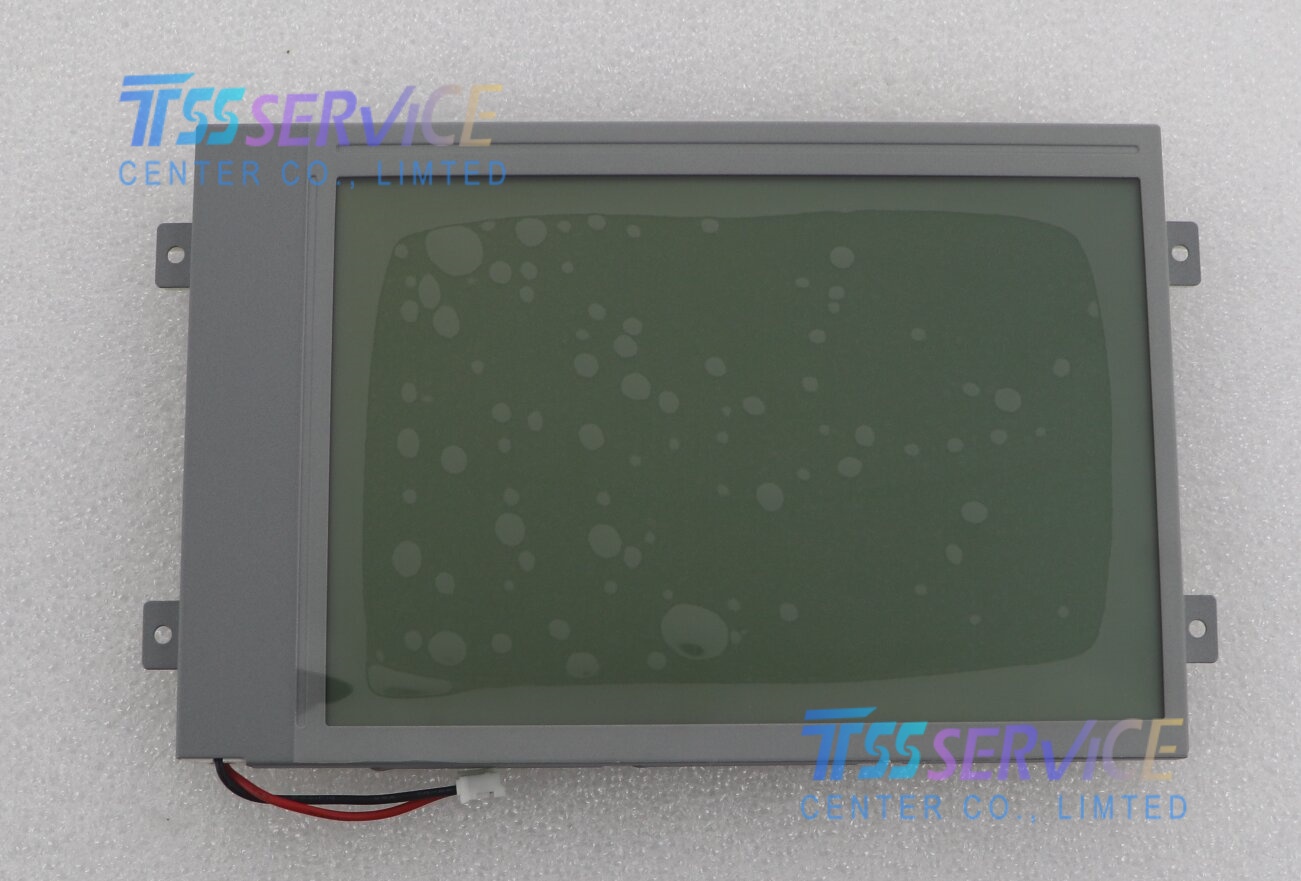

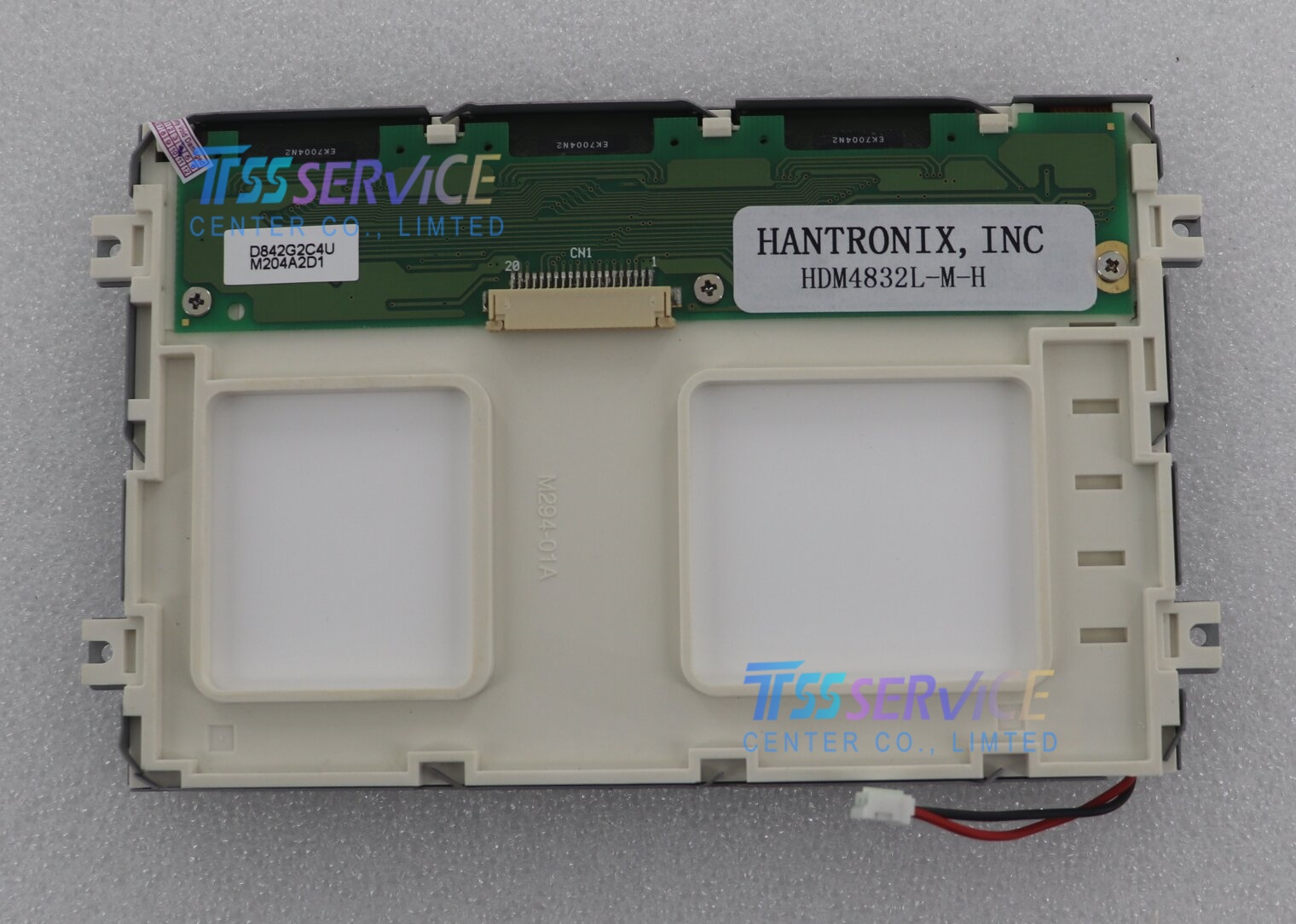

HDM4832L-M-H 5.5 inch LCD Panel Display For Industrial
| Parameter |
Details |
| Model Number |
HDM4832L-M-H |
| Manufacturer |
Hantronix, Inc. |
| Display Type |
Monochrome FSTN (Positive/Transmissive) Graphic LCD |
| Diagonal Size |
5.5 inch |
| Resolution |
480 × 320 pixels (WQVGA) |
| Aspect Ratio |
3:2 |
| Active Display Area |
122.4 × 73.44 mm |
| Module Outline Dimensions |
156.0 × 95.0 × 12.0 mm (approx.) |
| Backlight |
White LED (WLED), long lifetime, 2-pin connector |
| Interface |
Parallel 8/16-bit MCU interface, 20/24-pin FPC connector |
| Operating Voltage |
3.3V / 5.0V DC (typical) |
| Operating Temperature |
-20°C ~ +70°C (industrial wide range) |
| Storage Temperature |
-30°C ~ +80°C |
| Contrast Control |
Adjustable via external circuit |
| Features |
Industrial grade, sunlight-readable, robust mechanical design, long life cycle |
The HDM4832L-M-H is designed for applications requiring high reliability and readability in challenging environments:
- Industrial Control Panels & PLCs: Used in factory automation systems, HMI interfaces, and process control equipment.
- Medical & Laboratory Instruments: Diagnostic devices, patient monitors, and lab analyzers that need clear, stable monochrome displays.
- Test & Measurement Equipment: Oscilloscopes, signal generators, and field-test meters for portable or benchtop use.
- Marine & Avionics Systems: Navigation displays, monitoring panels, and control interfaces for marine and aerospace applications.
- Automotive & Heavy Equipment: Dashboard displays, diagnostic tools, and vehicle control systems in trucks, construction machinery, and agricultural equipment.
- Portable & Handheld Devices: Data terminals, field meters, and battery-powered instruments where low power consumption and durability are critical.
