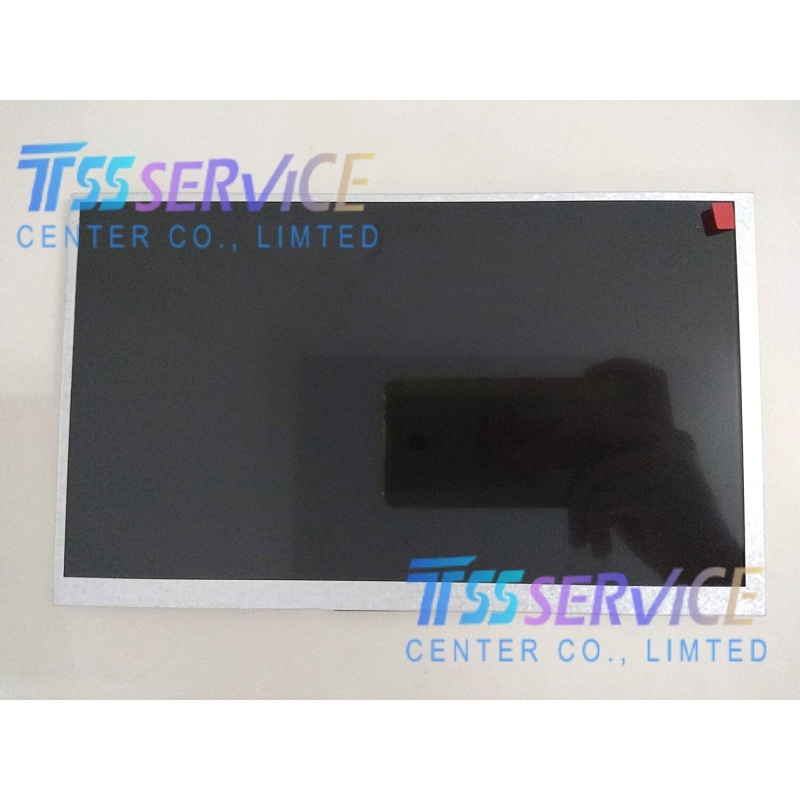

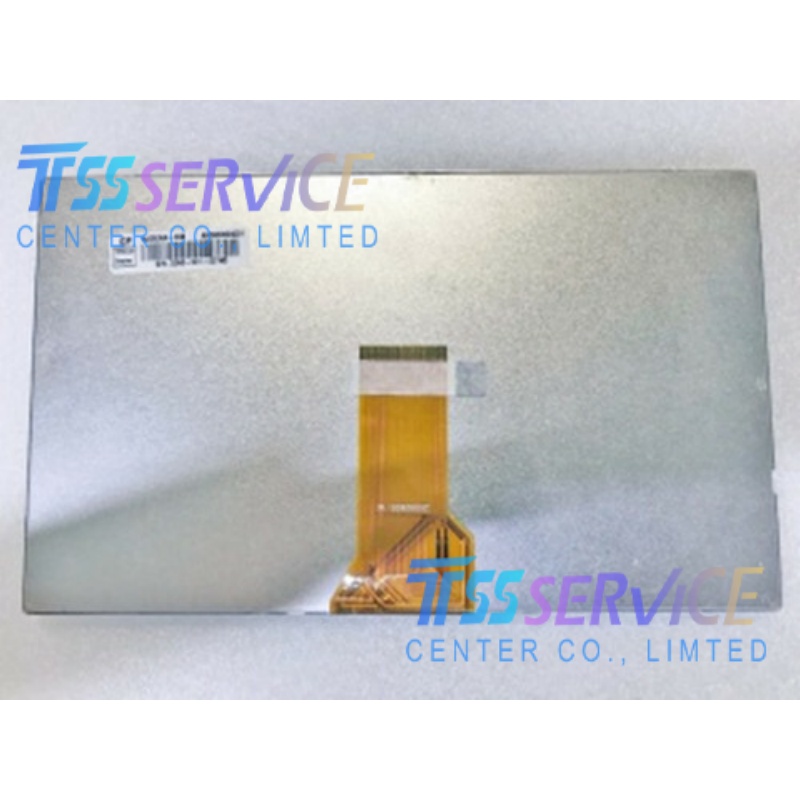

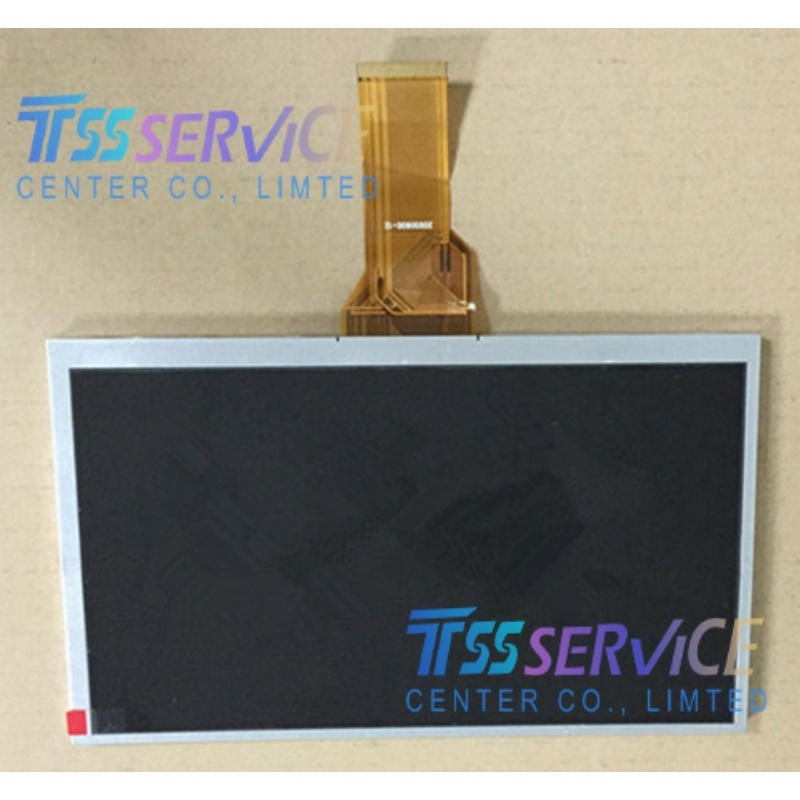

Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen

SKU: HJ090NA-03B
Model Number: HJ090NA-03B
Display Size: 9.0 Inch Diagonal
Panel Type:  a-Si TFT-LCD, LCM Module
Resolution: 800(RGB) × 480 (WVGA), 16:9
Dot Layout: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$58.00 $56.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen
  • Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen
  • Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen
  • Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen
  • Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen
  • Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen
1/1
  • Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen
  • Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen
  • Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen
  • Description
 Innolux HJ090NA-03B 9 Inch TFT LCD Panel 800×480 Industrial Display Screen
Item Detailed Parameter
Manufacturer (Mfr.) Chimei Innolux
Model Number HJ090NA-03B
Display Size 9.0 Inch Diagonal
Panel Type a-Si TFT-LCD, LCM Module
Resolution 800(RGB) × 480 (WVGA), 16:9
Dot Layout RGB Vertical Stripe
Display Area 198(W) × 111.696(H) mm
Outline Dimension 211.1(W) × 126.5(H) × 6.1(D) mm
Panel Weight 253g (Typical)
Surface Treatment Antiglare Matte
Typical Brightness 250 cd/m²
Contrast Ratio 500:1 (Typ., TM Mode)
Viewing Angle (U/D/L/R) 70° / 70° / 50° / 70° (CR≥10)
Display Mode TN, Normally White, Transmissive
View Direction 6 o'clock
Response Time 10ms Tr / 15ms Td (Typ.)
Display Colors 262K / 16.7M, 70% NTSC
Touch Function Without Touch Screen
Typical Power Usage 2.56W
Light Source 3S11P WLED, 20,000 Hours, No Driver IC
Refresh Frequency 60Hz
Signal Interface Parallel RGB (1 channel, 6/8-bit), 50 pins FPC
Input Voltage 3.3V / 10.4V / 17.0V / -5.0V (DVDD/AVDD/VGH/VGL)
Grade Condition Brand New Original Grade A, Fully Pre-tested

Application Scenarios

  • Industrial HMI touch control panels
  • Portable medical monitoring instruments
  • Embedded industrial monitoring displays
  • Small-size digital signage & advertising screens
  • Beauty equipment & testing devices
  • Automation machinery operation terminals
